Comparison setting output

The upper figure below (Left) represents the basic operation of comparative output of VALCOM products (Except for the VALCOLOR series).
However, note that the absolute pressures are output as shown in the lower figure below (Right) only in the case of pressure switch.

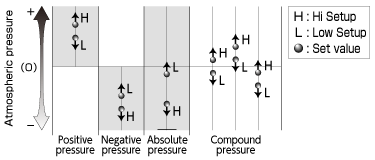

Basic operation of comparative output

Models concerned: [VSMC] [VSC] [VPMC] [VPC]

Basic operation of comparative output

Basic operation of pressure switch

Basic operation of pressure switch

* Coupled pressure cannot be set with pressure switches.
