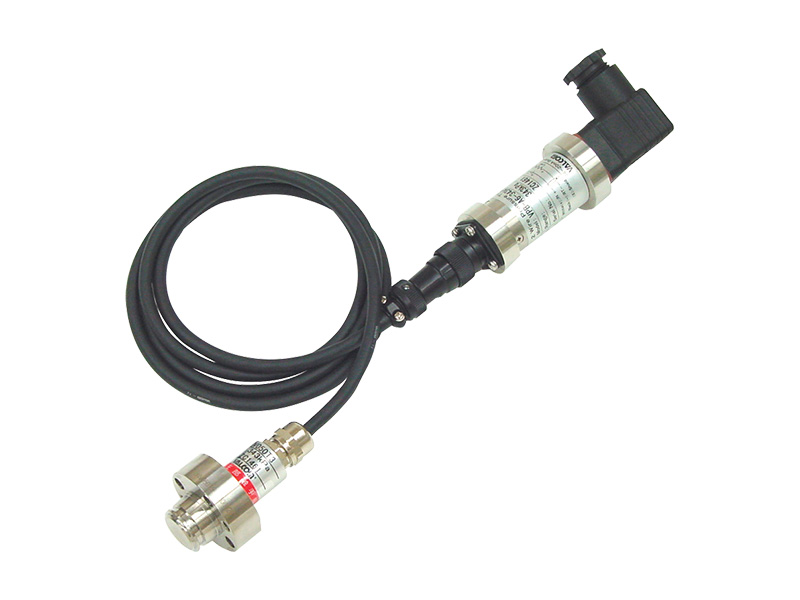

Sanitary Pressure Transmitter for Filling Machines (Screw type)
VPB series0–343kPa
This product requires meeting for specifications.
Contact our sales office.
- Dedicated to fillers - From chemical cleaning, steam sterilization up to beverage filling.
- Pressure port with higher strength.
- Safe and reliable construction with no sealed liquid.
| Measured medium | Beer, beverage or other media (These vary according to sensor materials) |
|---|---|
| Pressure type | Measurement at positive pressure is possible. |
| Pressure range | Calibration: 0–343kPa |
| Output type | 4–20mA(2-wire) |
Specifications1 (Sensor assembly)
| Rated capacity | 500kPa |
|---|---|
| Overload limit | 400%R.C. |
| Nonlinearity | ±0.8%R.C. |
| Hysteresis | ±0.5%R.C. |
| Temperature compensation range | −5–150°C |
| Safe temperature range | −5–150°C |
| Temperature effect on zero balance | ±0.7%R.C./10°C |
| Temperature effect on load | ±0.7%R.C./10°C |
| Material | SUS630(Wetted part) |
| IP Rating | Equivalent to IP65 |
| Mass | Approx. 450g(Sensor+Cable only) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy, Dedicated O-ring |
Specifications2((Amplifier part)
| Analog output | 4–20mA(2-wire)(Safe load resistance 500Ωmax.) |
|---|---|
| Ambient temperature and humidity range | Temperature: 0–70°C(No freezing), Humidity: 0–90%RH(No condensation) |
| Power supply | DC24V±10% |
| Material | SUS304(Case) |
| Option | Amplifier case fixation metal fittings |
Model Selection

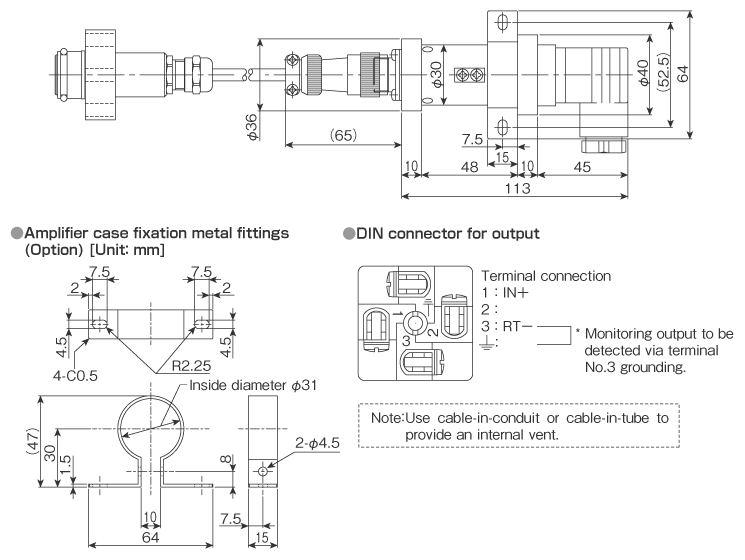

External dimensions (Unit: mm)
Sanitary Pressure Sensor
