Sanitary Pressure Transmitter
VHS series(Pigtail S type)50kPa–3MPa

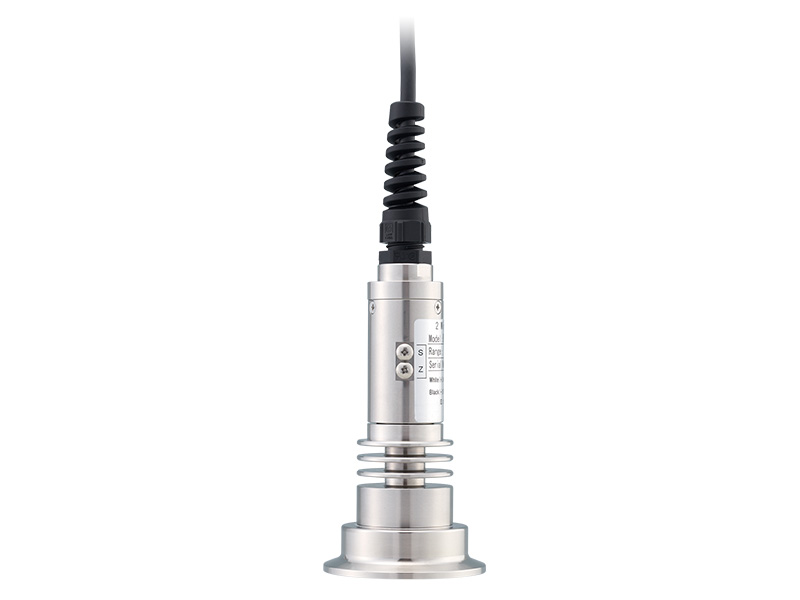

* The photo shows a ferrule 2S type.
- Pressure port with higher strength.
- Safe and reliable construction with no sealed liquid.
- Electro-chemically buffed wetted surfaces.
- Abundant analog output available.
[4–20mA(2-wire/4-wire), 1–5V, 0–5V, 0–10V]
| Measured medium | Liquor, milk beverage, seasoning, pure water, chemical or other media. (These vary according to sensor materials) |
|---|---|
| Pressure type | Measurement at positive pressure, compound pressure, and negative pressure is possible. |
| Pressure range | Can be specified within the range of 50 kPa to 3 MPa (Calibration:25kPa to 3MPa) of rated capacity. |
| Output | Specify among 4–20mA(2-wire/4-wire), 1–5V, 0–5V, 0–10V Specify more than 50% of rated capacity as the calibration range. |
Specifications1 (Sensor assembly)
| Pressure Port Type/Size | ISO Ferrule/VARIVENT®/ISO Cap-nut/Screw mount/Other custom |
|---|---|
| Rated capacity | 50kPa–3MPa(Ferrule 15A: 1MPa) |
| Pressure Port Materal | Sensor: SUS316L, Hastelloy C-276(MA276), SUS329J4L |
| Wetted part surface finish | Depending on pressure port material |
| Overload limit | 400%R.C.(Ferrule 15A, Rated capacity 3MPa: 150%R.C.) |
| Destruction point | 1000%R.C.(Ferrule 15A, Rated capacity 3MPa: 300%R.C.) |
Specifications2 (Amplifier part + Sensor assembly)
| Output | Current | 2-wire system | 4–20mA(2-wire system) |
|---|---|---|---|
| Safe load resistance | DC24V: 500Ω or less, DC12V: 150Ω or less | ||
| Current | 4-wire system | 4–20mA(4-wire system) | |
| Safe load resistance: | DC24V: 500Ω or less, DC12V: 250Ω or less | ||
| Current consumption | Approx. 35mA | ||
| Voltage | Voltage | 1–5V, 0–5V, 0–10V supported | |
| Safe load resistance | 5kΩ or more | ||
| Current consumption | Approx. 23mA | ||
| Accuracy at room temperature(*1) | ±0.3%R.C.(Rated 300/500/1000kPa/3MPa) ±0.35%R.C.(Rated 50/100/200kPa) Ferrule 15A: ±1%R.C. |
||
| Temperature compensation range (Wetted part) | −5–150°C | ||
| Safe temperature range(Wetted part) | −5–150°C | ||
| Temperature effect on zero balance | ±0.35%R.C./10°C(Rated 300/500/1000kPa/3MPa) ±0.5%R.C./°C(Rated 50/100/200kPa) Ferrule 15A: ±0.7%R.C./10°C |
||
| Temperature effect on load | ±0.35%R.C./10°C(Rated 300/500/1000kPa/3MPa) ±0.5%R.C./10°C(Rated 50/100/200kPa) Ferrule 15A: ±0.7%R.C./10°C |
||
| Ambient temperature and humidity range | Temperature: 0–70°C(No freezing), Humidity: 0–90%RH(No condensation) | ||
| Material | SUS304(Case), SUS304(Radiating fin) | ||
| IP Rating | Equivalent to IP66 | ||
| Mass | Approx. 600g(Including Sensor part/ISO Ferrule2S) | ||
| Accessories | Operating manual 1 copy, Test report 1 copy | ||
- (*1) Including Nonlinearity, Hysteresis, and repeatability. For the ferrule type, however, zero adjustment is to be made after the clamp is tightened.

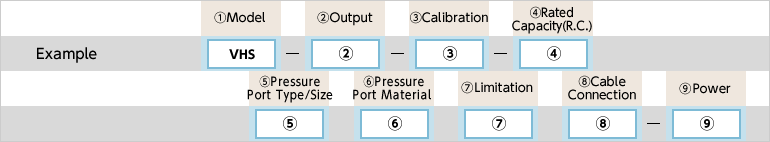

Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VHS | High temperature type: Temperature range of wetted parts -5–150°C | |||
| 2.Analog output | - | - | Output type | Response frequency | Safe load resistance | Current consumption |
| A2 | 1–5V | 500Hz | 5kΩ or more | Approx. 23mA | ||
| A3 | 4–20mA (4-wire) |
DC24V: 500Ω or less/ DC12V: 250Ω or less |
Approx. 35mA | |||
| A4 | 0–5V | 5kΩ or more | Approx. 23mA | |||
| A5 | 0–10V | 5kΩ or more | Approx. 23mA | |||
| A6 | 4–20mA (2-wire) |
1kHz | DC24V: 500Ω or less/ DC12V: 150Ω or less |
- | ||
| 3.Calibration | Positive pressure, Negative pressure | Put the output calibration range value and unit in parentheses. In case of negative pressure, put the calibration range value in parentheses. (*2) |
||||
| Compound pressure | Put the output calibration range value and unit in parentheses. (*2) | |||||
| 4.Rated Capacity(R.C.) | 005 | 50kPa Calibration range specification [50.0kPa] | ||||
| 010 | 100kPa Calibration range specification [100.0kPa] | |||||
| 020 | 200kPa Calibration range specification [200kPa] Compound [(-100–200)kPa (*3) |
Compound pressure: Only in [P], form selection of ⑦ Limitation is. | ||||
| 021 | 200kPa Calibration range specification [200kPa] Compound [(-100–200)kPa (*3)(*4) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||||
| 030 | 300kPa Calibration range specification [300kPa] Compound [(-100–300)kPa] (*3) |
|||||
| 031 | 300kPa Calibration range specification [300kPa] Compound [(-100–300)kPa] (*3)(*4) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||||
| 050 | 500kPa Calibration range specification [500kPa] | |||||
| 100 | 1000kPa Calibration range specification [1000kPa] | |||||
| 300 | 3MPaCalibration range specification [3MPa] (Made-to-order) (Withstand pressure: 150%R.C.ISO Cap-nut and screw mount only) |
|||||
| 5.Pressure Port Type/Size |
F0(*5) | ④Only rated capacity 100 can be selected ⑥Only wetted material J4L can be selected |
Positive pressure only | |||
| F1 | ISO Ferrule 1.5S | |||||
| F2 | ISO Ferrule 2S | |||||
| F3 | ISO Ferrule 2.5S [Made-to-order] | |||||
| F4 | ISO Ferrule 3S [Made-to-order] | |||||
| F6 | ISO Ferrule 4S [Made-to-order] | |||||
| V50A | VARIVENT® DN50 [Made-to-order] | |||||
| V65A | VARIVENT® DN65 [Made-to-order] | |||||
| V80A | VARIVENT® DN80 [Made-to-order] | |||||
| V100A | VARIVENT® DN100 [Made-to-order] | |||||
| R1 | ISO Cap-nut 1.5S [Made-to-order] with Hexagon nut(HEX61) | |||||
| R2 | ISO Cap-nut 2S [Made-to-order] with Hexagon nut(HEX76) | |||||
| M0 | Single screw mount type Dedicated O-ring 1 pc attached | |||||
| M1 | with JIS20K50A flange Dedicated O-ring 1 pc attached | |||||
| M2 | with JIS20K80A flange Dedicated O-ring 1 pc attached | |||||
| 6.Pressure Port Materal | Blank | SUS316L Electro polish (Rz0.7µm, Ra0.2µm) to all the rated apacity(④) ⑤Supports all pressure port type/size.(Excluding F0) |
||||
| HS1 | Equivalent to Hastelloy C-276 Electro polish(Rz0.7µm, Ra0.2µm) ④Select from the rated capacity of 030/050/100 ⑤Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
[Made-to-order] Negative pressure and compound pressure are not supported |
||||
| J4L(*6) | SUS329J4L Buffing(#400) ④Select from the rated capacity of 030/050/100 ⑤Select from the Pressure Port Type/Size of F0/F1/F2/F3/M0 |
|||||
| 7.Limitation | H | 400%R.C. (3MPa and Ferrule 15A are not selectable) | ||||
| P | 400%R.C. To be selected only when calibrating negative pressure or compound pressure ("focus on negative pressure" has been selected) (Ferrule 15A is are not selectable)(*2) |
|||||
| Blank | 150%R.C. (3MPa and Ferrule 15A only) | |||||
| 8.Cable Connection | S02 | Pigtail Standard(Sensor cable 2m attachment, Non-stranded wire) | ||||
| S03 | Pigtail(Sensor cable 3m attachment, Non-stranded wire) | |||||
| S05 | Pigtail(Sensor cable 5m attachment, Non-stranded wire) | |||||
| S10 | Pigtail(Sensor cable 10m attachment, Non-stranded wire) | |||||
| S□□ | Pigtail (Other length) *Contact our sales office for other cable lengths. |
|||||
| 9.Power | 4 | DC24V(±10%) | ||||
| 5 | DC12V(±10%) *Not available when analog output is A5 |
|||||
- (*2) Basically the calibration range is within the rated capacity, but other requirements are possible, as long as the range is 50% or more than the rating of the sensor used.
- (*3) In case of calibration for compound pressure, calibration is performed only for the positive pressure, and only measurement data are given for the negative pressure. In this case, acceptance criterion is within ±1%R.C. When focusing on the negative pressure, it is also possible to perform calibration for the negative pressure and to provide only measurement data (within ±1%R.C.) according to the request from the customer.
Regarding calibration, specify 020, 030 (focus on positive pressure) or 021, 031 (focus on negative pressure) in ④ above when placing an order. - (*4) When calibrating negative pressure and compound pressure ("focus on negative pressure" has been selected), both nonlinearity and hysteresis will be 0.5%R.C.
Temperature effect on zero balance and load: ±0.7%R.C./10°C or less (Rated 200kPa), ±0.5%R.C./10°C or less (Rated 300kPa) - (*5) Please also check the Ferrule 15A specifications.
- (*6) In case of Ferrule 15A: Electro polish(Rz0.7µm, Ra0.2µm)

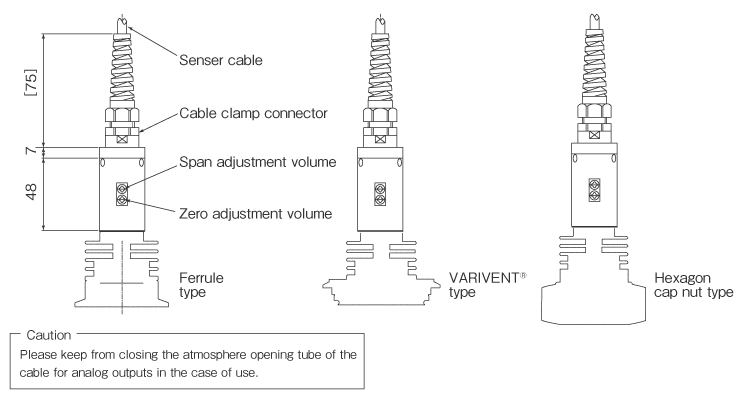

External dimensions (Unit: mm)
Sanitary Pressure Sensor
