Sanitary Digital Pressure Meter(2-wire type)
HSSC-A6 series50kPa–3MPa

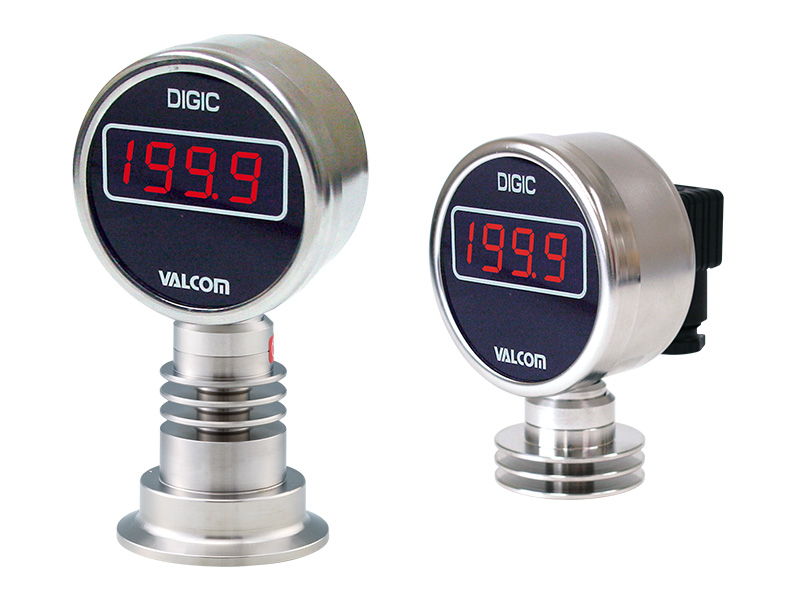

* The photo shows a ferrule 2S type
- Digital pressure meter with large high-brightness LED thanks to 2-wire transmission system.
- Constructed with stainless steel in view of environmental resistance.
- Pressure port with higher strength.
- Safe and reliable construction with no sealed liquid.
| Measured medium | Liquor, milk beverage, seasoning, pure water, chemical or other media.(These vary according to sensor materials) |
|---|---|
| Pressure type | Measurement at positive pressure, compound pressure, and negative pressure is possible. |
| Pressure range | Can be specified within the range of 50 kPa to 3 MPa (Calibration:25kPa to 3MPa) of rated capacity. Specify more than 50% of rated capacity as the calibration range. |
| Output type | 4–20mA(2-wire) |
Specifications1 (Sensor assembly)
| Pressure Port Type/Size | ISO Ferrule/VARIVENT®/ISO Cap-nut/Screw mount/Other custom |
|---|---|
| Rated capacity | 50kPa–3MPa(Ferrule 15A: 1MPa) |
| Pressure Port material | SUS316L, Equivalent to Hastelloy C-276, SUS329J4L |
| Wetted part surface finish | Depending on pressure port material |
| Overload limit | 400%R.C.(Ferrule 15A, Rated capacity 3MPa: 150%R.C.) |
| Destruction point | 1000%R.C.(Ferrule 15A, Rated capacity 3MPa: 300%R.C.) |
Specifications2 (Amplifier part + Sensor assembly)
| Accuracy(*1) (Including Nonlinearity, Hysteresis, and repeatability) |
±0.3%R.C.±1digit (Rated 300/500/1000kPa/3MPa) ±0.35%±R.C.±1digit (Rated 50/100/200kPa) *Negative pressure: ±1%R.C. or less Ferrule 15A: ±1%R.C.±1digit. |
|---|---|
| Temperature compensation range (Wetted part) | High temperature: -5–150°C |
| Safe temperature range(Wetted part) | High temperature: -5–150°C |
| Temperature effect on zero balance | ±0.5%R.C./10°C(Rated 300/500/1000kPa/3MPa) ±0.7%R.C./10°C(Rated 50/100/200kPa) Ferrule 15A: ±0.7%R.C./10°C |
| Temperature effect on load | ±0.5%R.C./10°C(Rated 300/500/1000kPa/3MPa) ±0.7%R.C./10°C(Rated 50/100/200kPa) Ferrule 15A: ±0.7%R.C./10°C |
| Ambient temperature and humidity range | Temperature: 0–50°C(No freezing), Humidity: 0–90%RH(No condensation) |
| Material | SUS304(Case), SUS304(Radiating fin) |
| IP Rating | Equivalent to IP65 |
| Mass | Approx. 700g |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy 1 Hex-nut(Cap-nut type only) |
- (*1)For the ferrule type, zero adjustment is to be made after the clamp is tightened.

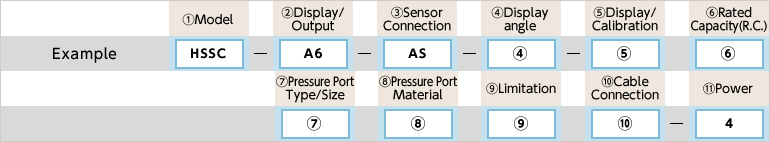

Model Selection
| Selection | Check | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | ○ | HSSC | High temperature type: Temperature range of wetted parts -5–150°C Stainless steel case | |
| 2.Display/Analog output | ○ | A6 | 1999 3 ½digit. Red LED Character height: Approx. 14.2mm Display conversion rate: Fixed at approx. 2.5 times per second 4–20mA(2-wire) Respose 500Hz Safe load resistance 400Ω or less |
|
| 3.Sensor connection | ○ | AS | Sensor directly connected on bottom(Flangeless) | |
| 4.Display angle | None | Display angle Front side, upward | ||
| (3) | Display angle Front side, rightward | |||
| (6) | Display angle Front side, downward | |||
| (9) | Display angle Front side, leftward | |||
| 5.Display/Calibration | - | - | Example of calibration range | |
| Positive pressure | Rated capacity 1000kPa: 1.000MPa (0–1.000)MPa |
Specify the values and units of display/calibration ranges | ||
| Negative pressure | Rated capacity 200kPa: -100.0kPa (0–-100)kPa |
In case of negative pressure, put the calibration range value in parentheses.(*2) | ||
| Compound pressure | Rated capacity 300kPa: -100–300kPa (-100–300)kPa |
Put the output calibration range value and unit in parentheses.(*2)(*3) | ||
| 6.Rated capacity | 005 | 50kPa | ||
| 010 | 100kPa | |||
| 020 | 200kPa(*3) | |||
| 021 | 200kPa(*3) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||
| 030 | 300kPa(*3) | |||
| 031 | 300kPa(*3) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||
| 050 | 500kPa | |||
| 100 | 1000kPa | |||
| 300 | 3MPa[Display/Calibration: 3.00MPa] (Made-to-order) |
|||
| 7.Pressure port type/size | F0(*4) | Ferrule 15A ⑥Only rated capacity 100 can be selected ⑧Only wetted material J4L can be selected |
Positive pressure only | |
| F1 | Ferrule 1.5S | |||
| F2 | Ferrule 2S | |||
| F3 | Ferrule 2.5S [Made-to-order] | |||
| F4 | Ferrule 3S [Made-to-order] | |||
| F6 | Ferrule 4S [Made-to-order] | |||
| V50A | VARIVENT® DN50 [Made-to-order] | |||
| V65A | VARIVENT® DN65 [Made-to-order] | |||
| V80A | VARIVENT® DN80 [Made-to-order] | |||
| V100A | VARIVENT® DN100 [Made-to-order] | |||
| R1 | Cap-nut 1.5S [Made-to-order]with Hexagon nut | |||
| R2 | Cap-nut 2S [Made-to-order]with Hexagon nut | |||
| M0 | Single screw mount type Dedicated O-ring 1 pc attached | |||
| M1 | With JIS20K50A flange Dedicated O-ring 1 pc attached | |||
| M2 | With JIS20K80A flange Dedicated O-ring 1 pc attached | |||
| 8.Pressure port material | Blank | SUS316L Electro polish(Rz0.7µm, Ra0.2µm) to all the rated apacity(⑥) ⑦to all the Pressure Port Type/Size |
||
| HS1 | Equivalent to Hastelloy C-276 Electro polish(Rz0.7µm, Ra0.2µm) ⑥Select from the rated capacity of 030/050/100/300 ⑦Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
|||
| J4L(*5) | SUS329J4L Buffing(#400) ⑥Select from the rated capacity of 030/050/100/300 ⑦Select from the Pressure Port Type/Size of F0/ F1/F2/F3/M0 |
|||
| 9.Limitation | H | 400%R.C.(3MPa and Ferrule 15A are not selectable) | ||
| Blank | 150%R.C.(3MPa and Ferrule 15A only) | |||
| 10.Cable connection | D | DIN connector | ||
| Blank | Cable 2m | |||
| 11.Power supply | ○ | 4 | DC24V(±10%) | |
- (*2) Basically the calibration range is within the rated capacity, but other requirements are possible, as long as the range is 50% or more than the rating of the sensor used.
Specify the display range between −200 and 200 digits for the 4 mA side and between 100 and 1999 digits for the 20 mA side. - (*3) In case of calibration for compound pressure, calibration is performed only for the positive pressure, and only measurement data are given for the negative pressure. In this case, acceptance criterion is within ±1%R.C. When focusing on the negative pressure, it is also possible to perform calibration for the negative pressure and to provide only measurement data (within ±1%R.C.) according to the request from the customer.
Regarding calibration, specify 020, 030 (focus on positive pressure) or 021, 031 (focus on negative pressure) in ⑥ above when placing an order. - (*4) Please also check the Ferrule 15A specifications.
- (*5) In case of Ferrule 15A: Electro polish (Rz0.7µm, Ra0.2µm)

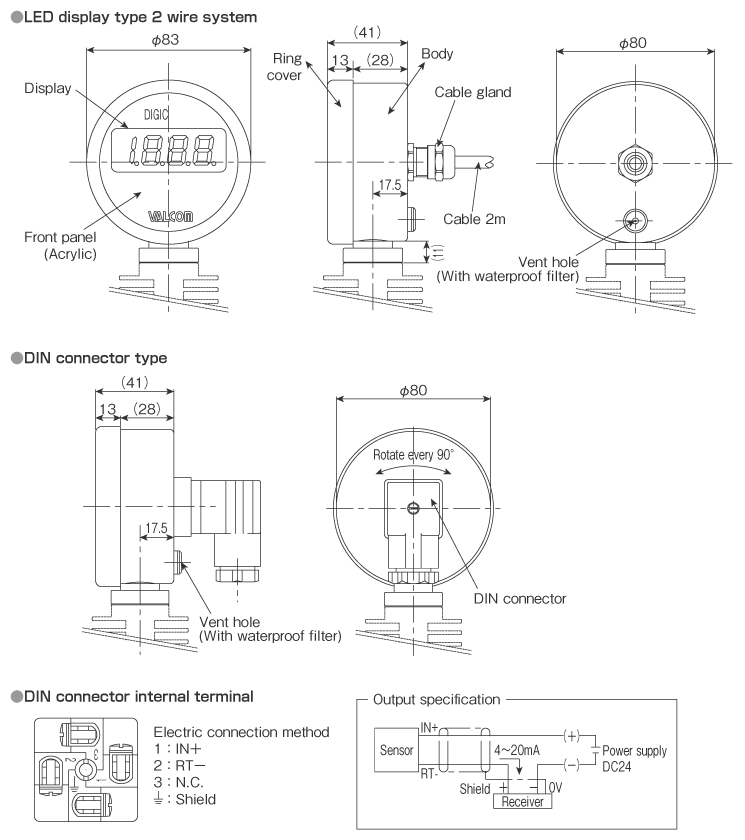

External dimensions (Unit: mm)

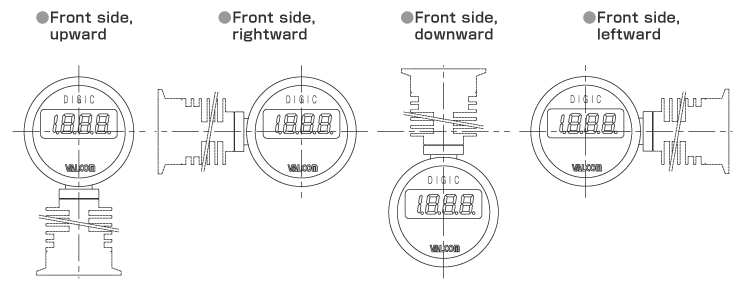

Display angle
