Sanitary Intelligent Digital Pressure Meter (Transmitter/Switch)
HSMC2 series50kPa–3MPa

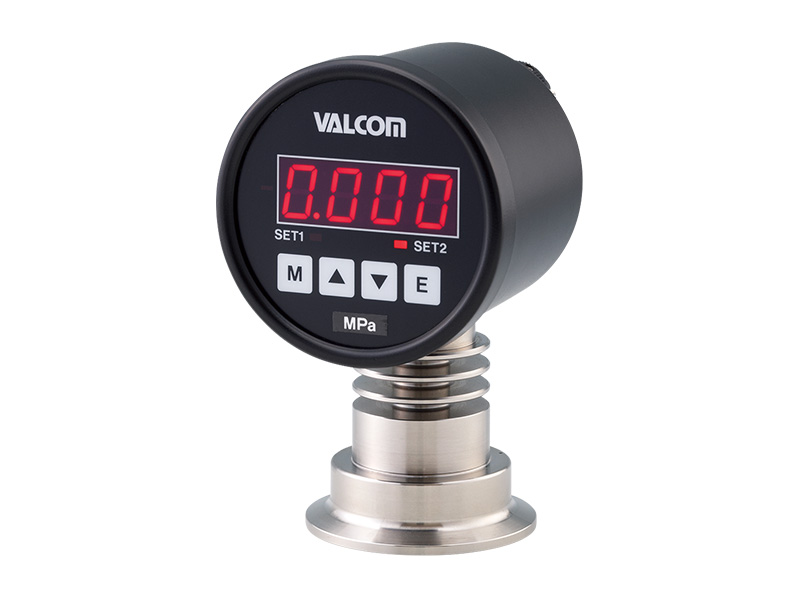

*Image is ISO Ferrule 2S type
- 2-setting output + 4–20mA output (with analog output scaling function)
- Quick zero-adjustment, tracking zero adjustment, loop check and moving average are included as standard.
- Pressure port with higher strength.
- Safe and reliable construction with no sealed liquid.
| Measured medium | Liquor, milk beverage, seasoning, pure water, chemical or other media. (These vary according to sensor materials) |
|---|---|
| Pressure type | Measurement at positive and negative pressure is possible. |
| Pressure range | Can be specified within the range of 50 kPa to 3 MPa (Calibration:25kPa to 3MPa) of rated capacity. |
| Output type | 4–20mA(4-wire) 2-point PhotoMOS relay output Specify more than 50% of rated capacity as the calibration range. |
Specifications1 (Sensor assembly)
| Sensor connection | ISO Ferrule/VARIVENT®/ISO Cap-nut/Screw mount/Other custom |
|---|---|
| Rated capacity | 50kPa–3MPa |
| Material | Sensor part: SUS316L, Hastelloy C-276(MA276), SUS329J4L |
| Wetted part surface finish | Material of sensor element element SUS329J4L is buffing(#400) Except the above, compound electrolytic polishing(Rz 0.7(µm)) |
| Overload limit | 400%R.C.(3MPa: 150%R.C.) |
| Destruction point | 1000%R.C.(3MPa: 300%R.C.) |
Specifications2 (Amplifier part + Sensor assembly)
| Display | 4-digit LED(Red, Character height: Approx. 14.2mm) |
|---|---|
| Display updating rate | Approx. 2.5 times/sec.(1–25 time Modifiable) |
| Nonlinearity | ±0.5%R.C.±1digit. (Negative pressure side ±1%R.C.±1digit.) |
| Hysteresis | ±0.5%R.C.±1digit. (Negative pressure side ±1%R.C.±1digit.) |
| Temperature compensated range(Wetted part) | −5–150°C |
| Safe temperature range(Wetted part) | −5–150°C |
| Temperature effect on zero balance | ±0.5%R.C./10°C(300/500/1000kPa/3MPa) |
| ±0.7%R.C./10°C(50/100/200kPa) | |
| Temperature effect on load | ±0.5%R.C./10°C(Rated 300/500/1000kPa/3MPa) |
| ±0.7%R.C./10°C(Rated 50/100/200kPa) | |
| Ambient temperature and humidity range | 0–50°C(No freezing), 0–90%RH(No condensation) |
| Material | Aluminum die casting(Case) Acrylic(Front) SUS304(Radiating fin) |
| IP Rating | Equivalent to IP65 |
| Mass | Approx. 960g(Including Sensor part/ISO Ferrule 2S) |
| Accessories | Operating manual 1 copy, Test report 1 copy 1 Power input connector 1 Analog/Connector for setting output |

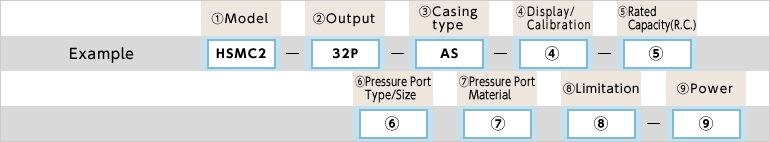

Model Selection
| Selection | Cheak | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | ○ | HSMC2 | Intelligent model high temperature type: Temperature range of wetted parts -5–150°C | |
| 2.Output | ○ | 32P | 4–20mA(4-wire)(Scaling enabled)+2-setting PhotoMOS relay output (AC/DC, Load voltage: 240V, Load current: 120mA) Response: Synchronized with sampling rate of 500 times per second Hysteresis setting range: 0–999 |
|
| 3.Casing type | ○ | AS | Sensor directly connected on bottom | |
| 4.Display/Calibration(*1) | - | - | Example of calibration range | |
| Positive pressure | When Rated capacity 100.0kPa 100.0kPa (0–100.0)kPa |
Specify the values and units of display/calibration ranges. | ||
| Positive pressure | When Rated capacity 100.0kPa -101.3kPa (0–-101.3)kPa |
In case of negative pressure, put the calibration range value in parentheses. | ||
| Compound pressure | Compound pressure model not available. | |||
| 5.Rated capacity | 005 | 50kPa | ||
| 010 | 100kPa | |||
| 020 | 200kPa(*2) | |||
| 021 | 200kPa(*2) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||
| 030 | 300kPa(*2) | |||
| 031 | 300kPa(*2) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||
| 050 | 500kPa | |||
| 100 | 1000kPa | |||
| 300 | 3MPa[Display/Calibration: Specify 3.00MPa] (Made-to-order) (Cap-nut/Screw mount type only) |
|||
| 6.Pressure part type/size |
F1 | Ferrule 1.5S | ||
| F2 | Ferrule 2S | |||
| F3 | Ferrule 2.5S [Ordering product] | |||
| F4 | Ferrule 3S [Ordering product] | |||
| F6 | Ferrule 4S [Ordering product] | |||
| V50A | VARIVENT® DN50 [Ordering product] | |||
| V65A | VARIVENT® DN65 [Ordering product] | |||
| V80A | VARIVENT® DN80 [Ordering product] | |||
| V100A | VARIVENT® DN100 [Ordering product] | |||
| R1 | Cap-nut 1.5S [Ordering product]with Hexagon nut(HEX61) | |||
| R2 | Cap-nut 2S [Ordering product]with Hexagon nut(HEX76) | |||
| M0 | Single screw mount type Dedicated O-ring 1 pc attached | |||
| M1 | with JIS20K50A flange Dedicated O-ring 1 pc attached | |||
| M2 | with JIS20K80A flange Dedicated O-ring 1 pc attached | |||
| 7.Pressure part material | Blank | SUS316L Electro polish(Rz0.7µm, Ra0.2µm) to all the rated apacity(⑤) ⑥to all the Pressure Port Type/Size |
||
| HS1 | Hastelloy C-276(MA276) Electro polish(Rz0.7µm, Ra0.2µm) ⑤Select from the rated capacity of 030/050/100 ⑥Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
[Ordering product] Negative pressure and compound pressure are not supported |
||
| J4L | SUS329J4L Buffing polish(#400) ⑤Select from the rated capacity of 030/050/100 ⑥Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
|||
| 8.Limitation | P | 400%R.C. | ||
| Blank | 150%R.C.(3MPa only) | |||
| 9.Power supply | 4 | DC24V(±10%) [200mA] | ||
| 7 | AC90–240V [6VA] | |||
- (*1) Basically the calibration range is within the rated capacity, but other requirements are possible, as long as the range is 50% or more than the rating of the sensor used.
- (*2)In case of calibration for compound pressure, calibration is performed only for the positive pressure, and only measurement data are given for the negative pressure. In this case, acceptance criterion is within ±1%R.C. When focusing on the negative pressure, it is also possible to perform calibration for the negative pressure and to provide only measurement data (within ±1%R.C.) according to the request from the customer.
Regarding calibration, specify 020, 030 (focus on positive pressure) or 021, 031 (focus on negative pressure) in ⑤ above when placing an order.

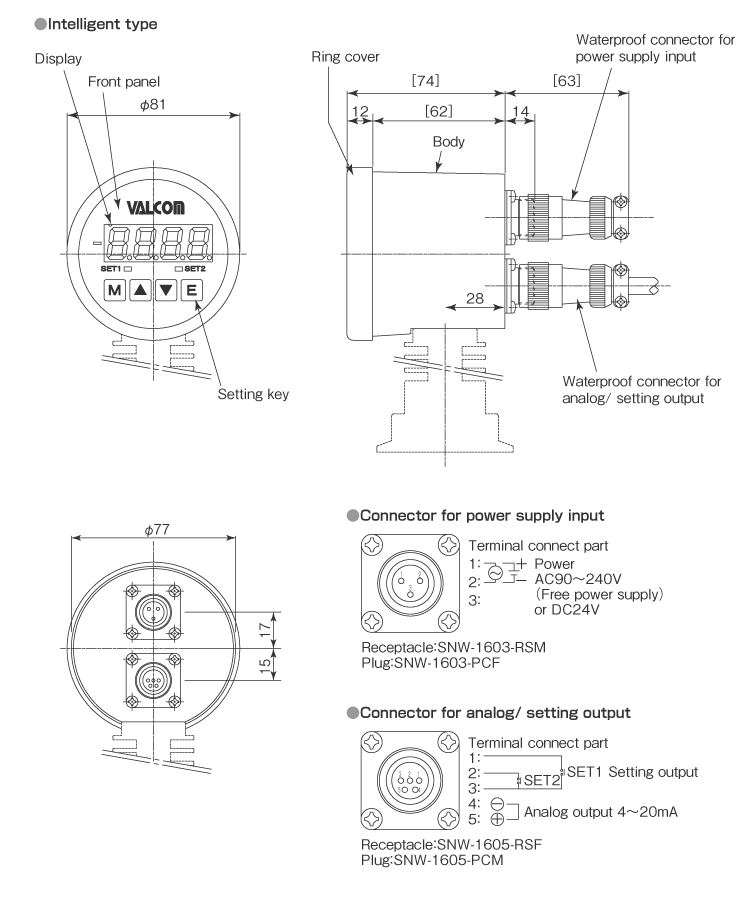

Dimensions (Unit: mm)
Sanitary Pressure Sensor
