Sanitary Digital Pressure Meter (Simple/Transmitter or Switch)
HSMC series50kPa–3MPa

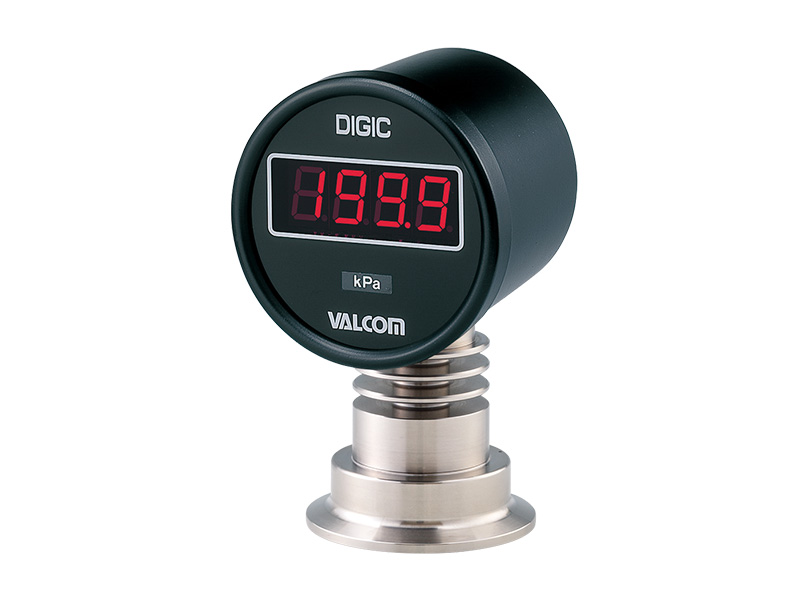

*Imaage is ISO Ferrule 2S type
- Standard type with only required functions selectable between contact and analog output.
- Improved visibility with large high brightness LED.
- Pressure port with higher strength.
- Safe and reliable construction with no sealed liquid.
| Measured medium | Liquor, milk beverage, seasoning, pure water, chemical or other media. (These vary according to sensor materials) |
|---|---|
| Pressure type | Measurement at positive and negative pressure is possible. |
| Pressure range | Can be specified within the range of 50 kPa to 3 MPa (Calibration: 25kPa to 3MPa) of rated capacity. Specify more than 50% of rated capacity as the calibration range. |
| Output type | Specify among 4–20mA(2-wire, 4-wire), 1–5V, 0–5V, and 1 setting output. |
Specifications1 (Sensor assembly)
| Sensor connection | ISO Ferrule / VARIVENT® / ISO Cap-nut / Screw mount / Other custom |
|---|---|
| Rated capacity | 50kPa–3MPa(Depending on the model) |
| Pressure port material | Blank: SUS316L, HS1: Hastelloy C-276(MA276), J4L: SUS329J4L |
| Wetted part surface finish | Material of sensor element element SUS329J4L is buffing(#400) Except the above, Electro polish(Rz 0.7(µm)) |
| Overload limit | 400%R.C.(3MPa: 150%R.C.) |
| Destruction point | 1000%R.C.(3MPa: 300%R.C.) |
Specifications2 (Amplifier part + Sensor assembly)
| Display | 1999 3 ½digit LED RED Character height: Approx. 14.2mm |
|---|---|
| Display updating rate | Approx. 3 times/sec. |
| Nonlinearity | ±0.5%R.C.±1digit. (Negative pressure side ±1%R.C.±1digit.) |
| Hysteresis | ±0.5%R.C.±1digit. (Negative pressure side ±1%R.C.±1digit.) |
| Temperature compensated range(Wetted part) | −5–150°C |
| Safe temperature range(Wetted part) | −5–150°C |
| Temperature effect on zero balance | ±0.5%R.C./10°C(300, 500, 1000kPa, 3MPa) |
| ±0.7%R.C./10°C(50, 100, 200kPa) | |
| Temperature effect on load | ±0.5%R.C./10°C(300, 500, 1000kPa, 3MPa) |
| ±0.7%R.C./10°C(50, 100, 200kPa) | |
| Ambient temperature range | 0–50°C(No freezing), 0–90%RH(No condensation) |
| Material | Aluminum die casting(Case) Acrylic(Front) SUS304(Radiating fin) |
| IP Rating | Equivalent to IP65 |
| Mass | Approx. 950g(Including Sensor part/ISO Ferrule 2S) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy, 1 O-ring(Screw mount type only) 1 hexagon nut(Cap nut only) |

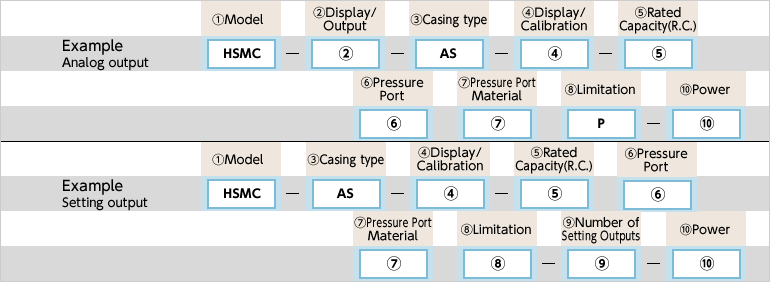

Model Selection
| Selection | Cheak | Model | Specifications | ||
|---|---|---|---|---|---|
| 1.Model | ○ | HSMC | Safe temperature range(Wetted part) -5–150°C | ||
| 2.Display/analog output | - | - | When this option is selected, ⑨ Number of Setting Outputs is not available. | ||
| Output type | Response frequency | Safe load resistance | |||
| D | Display only(Without output) | ||||
| A2 | 1–5V | 7Hz | 10kΩ or more | ||
| A3 | 4–20mA(4-wire) | 8Hz | 250Ω or less | ||
| A4 | 0–5V | 7Hz | 10kΩ or more | ||
| A6 | 4–20mA(2-wire) *Power supply 4 (DC24V) only |
500Hz | RX≤44×Vin-654 RX: Safe load resistance [Ω] Vin: Power supply voltage [V] |
||
| 3.Sensor connection | ○ | AS | Directly attached, underneath(the amplifier)(No collar) | ||
| 4.Display/Calibration range | - | - | Example of calibration range | ||
| Positive pressure | When Rated capacity 1000kPa 1.000MPa (0–1.000)MPa |
Specify the values and units of display/calibration ranges. | |||
| Negative pressure | When Rated capacity 200kPa -100.0kPa (0–-100.0)kPa |
In case of negative pressure, put the calibration range value in parentheses.(*1) | |||
| Compound pressure | When Rated capacity 300kPa -100–300kPa (-100–300)kPa |
Put the output calibration range value and unit in parentheses.(*1)(*2) | |||
| 5.Rated capacity | 005 | 50kPa | |||
| 010 | 100kPa | ||||
| 020 | 200kPa(*2) | ||||
| 021 | 200kPa(*2) (Negative pressure-oriented) |
||||
| 030 | 300kPa(*2) | ||||
| 031 | 300kPa(*2) (Negative pressure-oriented) |
||||
| 050 | 500kPa | ||||
| 100 | 1000kPa | ||||
| 300 | 3MPa[Display/Calibration: Specify 3.00MPa] (Ordering product) (Box nut, Screw mount type only) |
||||
| 6.Pressure Port | F1 | Ferrule 1.5S | |||
| F2 | Ferrule 2S | ||||
| F3 | Ferrule 2.5S [Ordering product] | ||||
| F4 | Ferrule 3S [Ordering product] | ||||
| F6 | Ferrule 4S [Ordering product] | ||||
| V50A | VARIVENT® DN50 [Ordering product] | ||||
| V65A | VARIVENT® DN65 [Ordering product] | ||||
| V80A | VARIVENT® DN80 [Ordering product] | ||||
| V100A | VARIVENT® DN100 [Ordering product] | ||||
| R1 | Cap-nut 1.5S [Ordering product]with Hexagon nut | ||||
| R2 | Cap-nut 2S [Ordering product]with Hexagon nut | ||||
| M0 | Single screw mount type Dedicated O-ring 1 pc attached | ||||
| M1 | with JIS20K50A flange Dedicated O-ring 1 pc attached | ||||
| M2 | with JIS20K80A flange Dedicated O-ring 1 pc attached | ||||
| 7.Material of sensor element | Blank | SUS316L Electro polish(Rz0.7µm, Ra0.2µm) to all the rated apacity(⑤) ⑥to all the Pressure Port Type/Size |
|||
| HS1 | Hastelloy C-276(MA276) Electro polish(Rz0.7µm, Ra0.2µm) ⑤Select from the rated capacity of 030/050/100 ⑥Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
[Ordering product] Negative pressure and Compound pressure are not supported. |
|||
| J4L | SUS329J4L Buffing(#400) ⑤Select from the rated capacity of 030/050/100 ⑥Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
||||
| 8.Limitation | P | 400%R.C. | |||
| Blank | 150%R.C.(3MPa only) | ||||
| 9.Setting output | - | - | When this option is selected, ② Display/analog output is not available. | ||
| Output type | Response time | Permission load | |||
| 1VAO(H) | 1-setting PhotomMos relay output (Upper limit comparison) |
0.5msec. or less | AC/DC 250V 0.1A (*3) |
||
| 1VAO(L) | 1-setting PhotomMos relay output (Lower limit comparison) |
||||
| 10.Power supply | 4 | DC24V(±10%) [100mA] | |||
| 5 | DC12V(±10%) [100mA] | ||||
| 1 | AC100V [2VA] | ||||
| 11 | AC110V [2VA] | ||||
| 2 | AC200V [2VA] | ||||
| 22 | AC220V [2VA] | ||||
- (*1) Basically the calibration range is within the rated capacity, but other requirements are possible, as long as the range is 50% or more than the rating of the sensor used (other than negative pressure).
- (*2) In case of calibration for compound pressure, calibration is performed only for the positive pressure, and only measurement data are given for the negative pressure. In this case, acceptance criterion is within ±1%R.C. When focusing on the negative pressure, it is also possible to perform calibration for the negative pressure and to provide only measurement data (within ±1%R.C.) according to the request from the customer.
Regarding calibration, specify 020, 030 (focus on positive pressure) or 021, 031 (focus on negative pressure) in ⑤ above when placing an order. - (*3) Notes for using the cable: The cable provided with N(H)SMC is a special shielded cable with a tube for venting. Always use it with the load in setting output below 30V. The cable cannot be used in the circuit of 100 or 200V AC. Where no condensation occurs, the cable can be used by providing a venting hole. Consult with us in such a case.

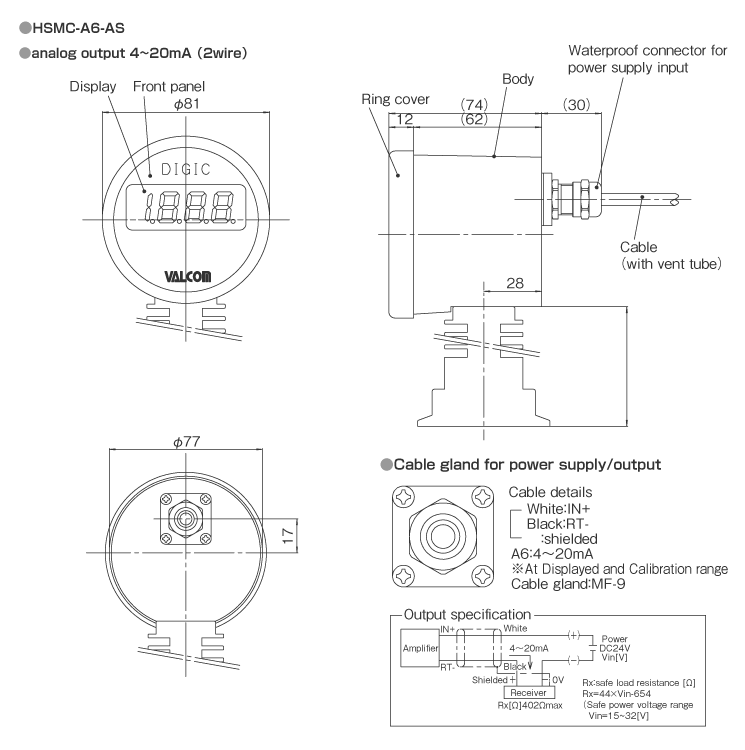

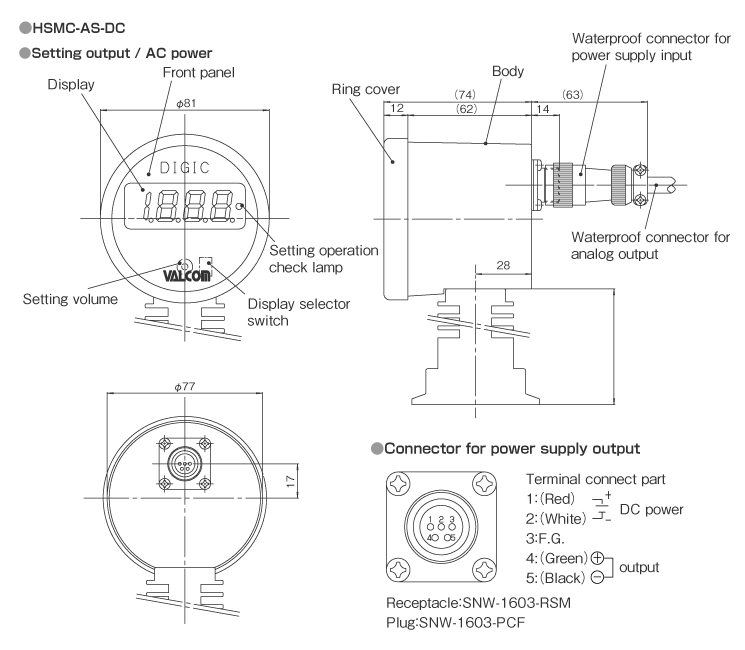

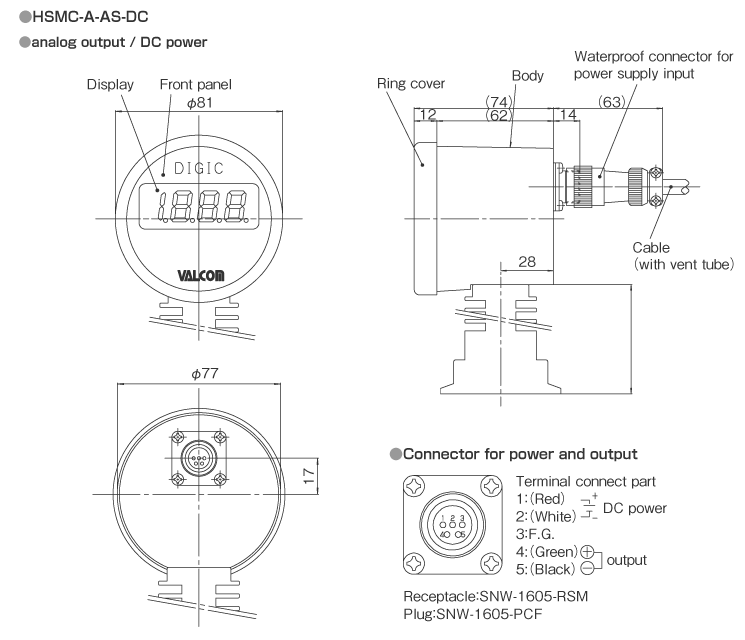

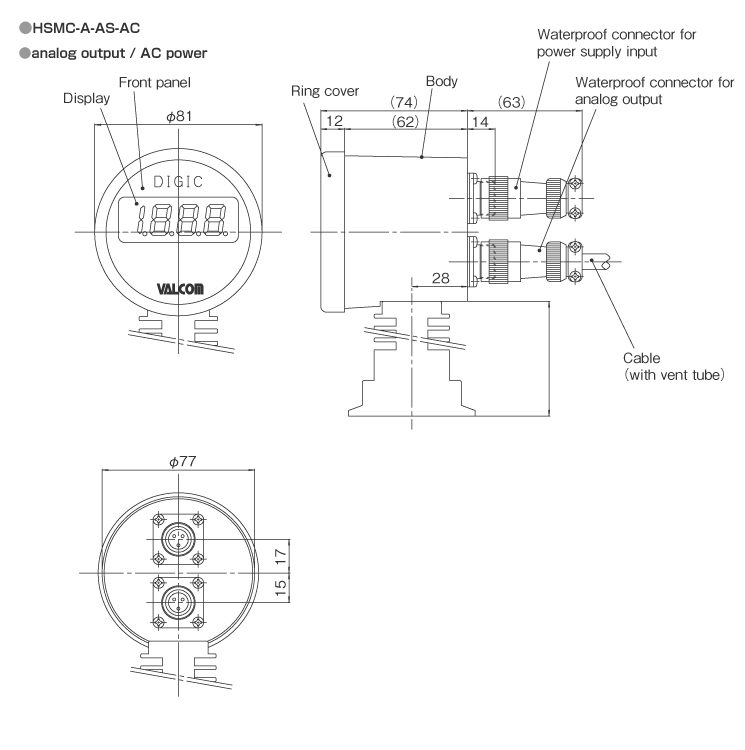

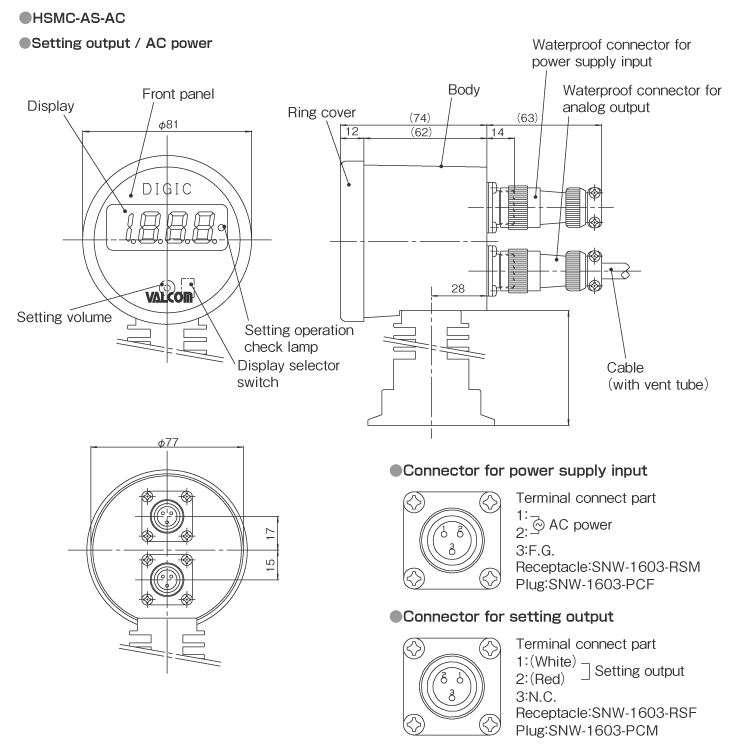

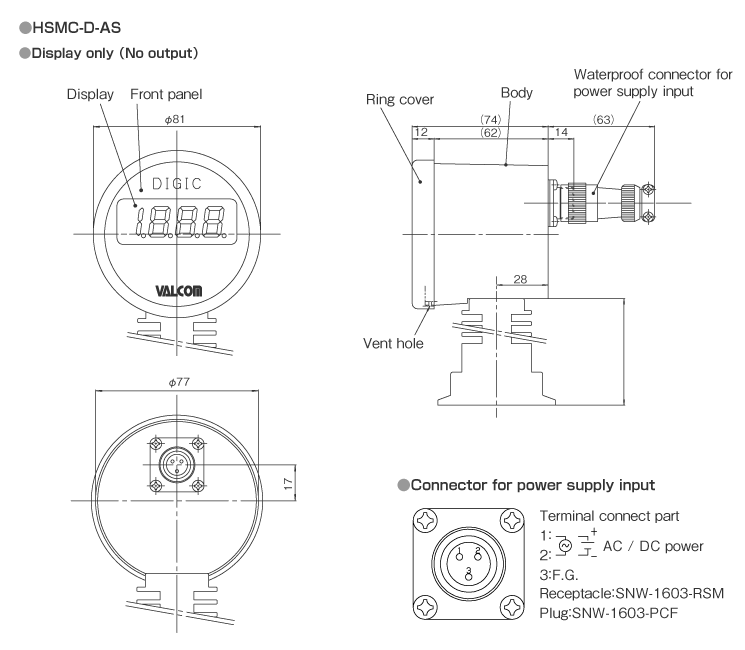

Dimensions (Unit: mm)
Sanitary Pressure Sensor
