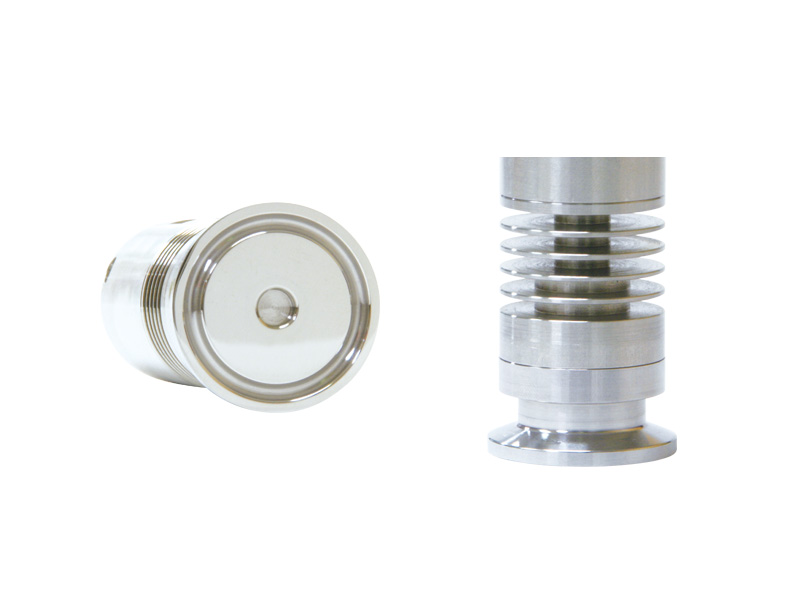

Sanitary small caliber type
Ferrule 15A series
- Suitable for measuring pressure with fine tube such as filling machines
- Safe and reliable construction with no sealed liquid.
- Pressure port with higher strength
- Extremely high sanitariness thanks to electrochemical buffing
Specifications
| Nominal diameter | 15A |
|---|---|
| Rated capacity | 1MPa (Overload limit 150%R.C.) |
| Pressure port material | SUS329J4L (Electro polish Rz0.7µm, Ra0.2µm) |
| Accuracy(*1) | HSSC, HSSC-A6, VHS: ±1%R.C.±1digit |
| Display/Analog output(*2) | HSSC-A6V(B), VHST: Scaling 40–100%R.C.: ±1%F.S. or less Scaling 30–40%R.C.: ±2%F.S. or less |
| Amplifier connection | Sensor directly connected on bottom only |
| Display/Calibration | Positive pressure only |
| Other | Temperature characteristics of zero point and output: ±0.7%R.C. / 10°C or less |
- (*1)Nonlinearity, Hysteresis, and repeatability
- (*2)Zero adjustment is to be made after the clamp is tightened.

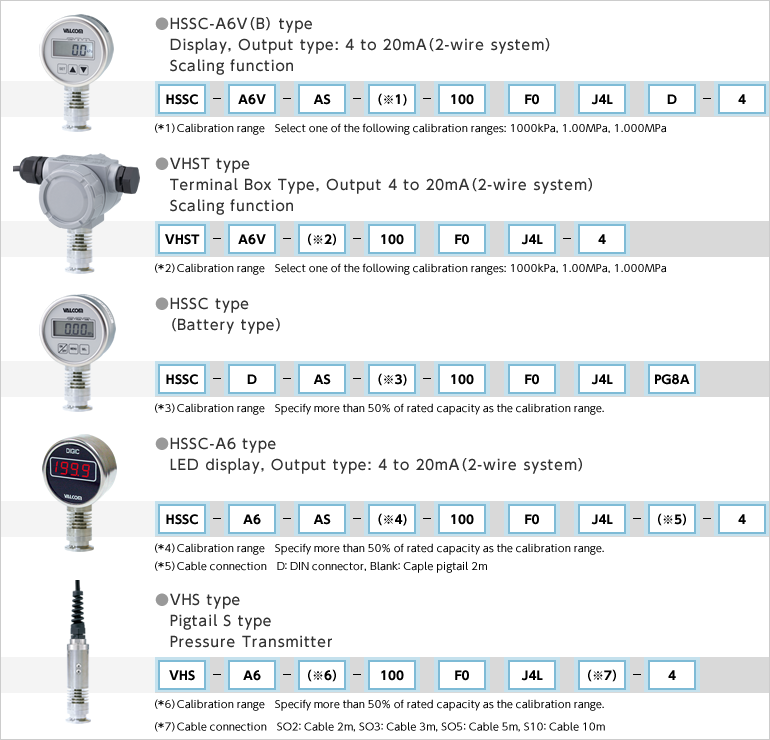

Model Selection

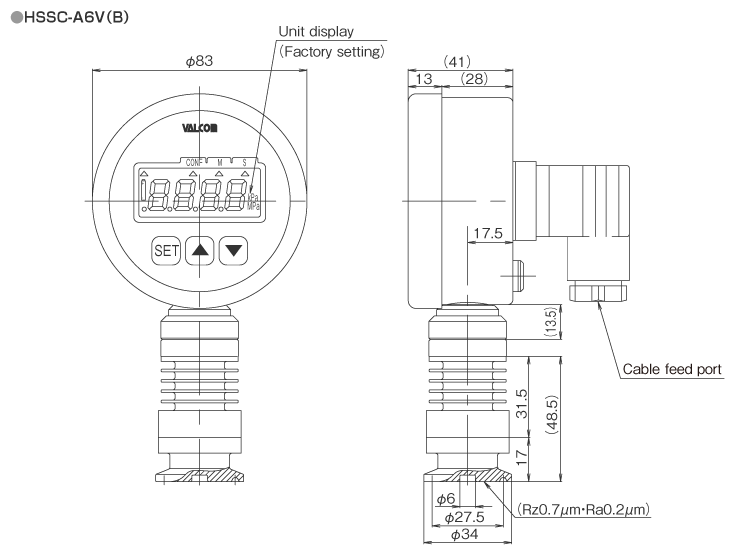

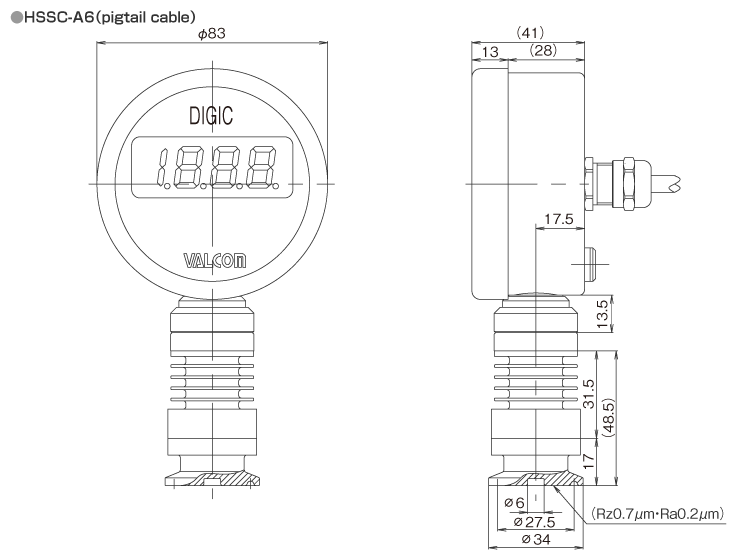

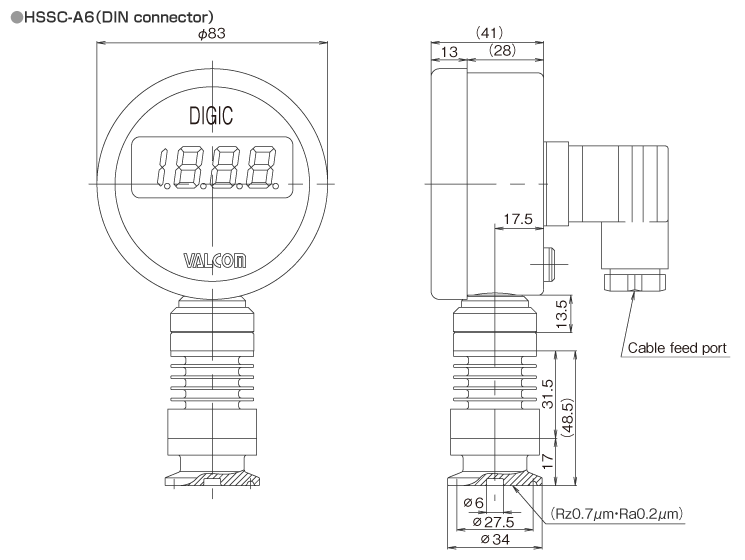

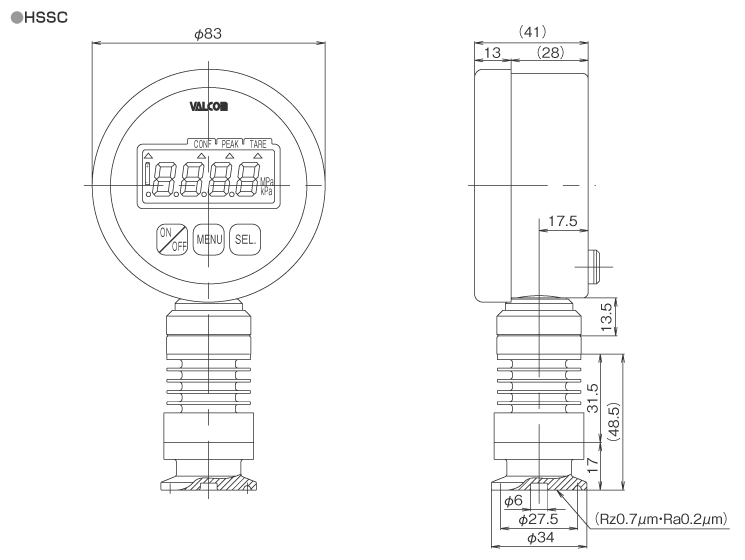

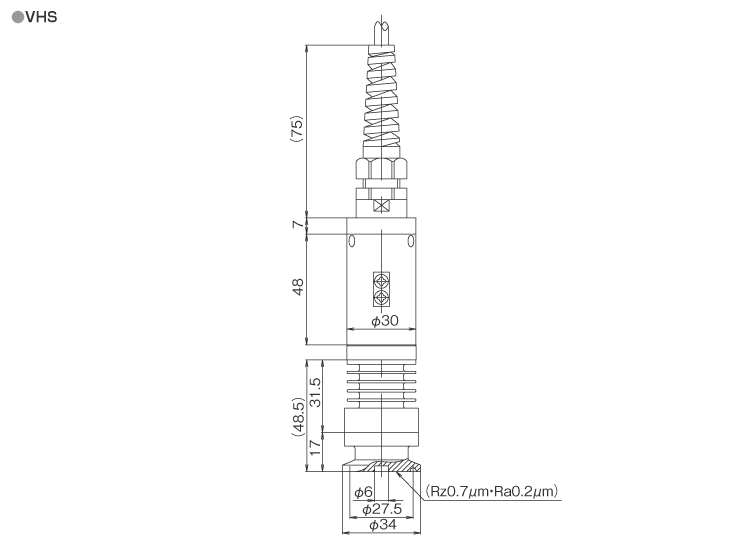

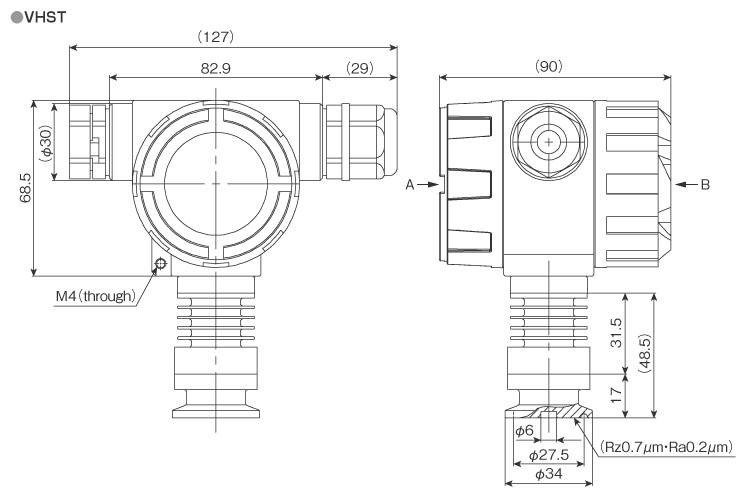

External dimensions (Unit: mm)

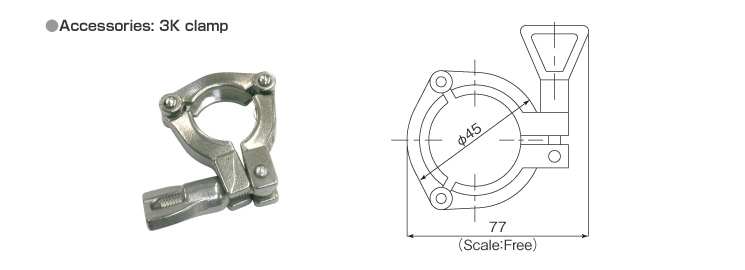

Accessories(Unit: mm)
Sanitary Pressure Sensor
