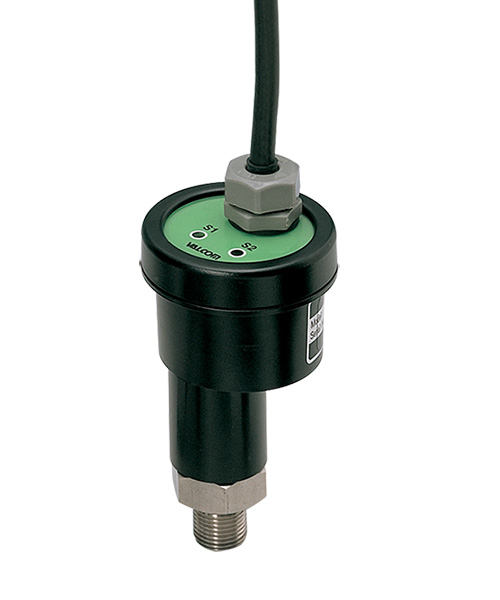

2 Comparison Setting type Pressure Switch with Internal Setting Trimmer
      Waterproof M type series
      With comparison setting 2 output50kPa–100MPa
50kPa(abs)–1700kPa(abs)


    50kPa(abs)–1700kPa(abs)
Please contact each sales office for instruction manuals.
- Contact output response as fast as approx. 1 ms.
 - High accuracy and long life.
 - Can be used in combination with a variety of pressure sensors.

| Measuring Medium | Air, gases, water, oil, etc. (Depends on the material of sensor.)  |

|---|---|
| Pressure Type | Positive, negative, and absolute pressures can be measured. (Compound pressure cannot be measured.) |
| Measured Range | Pressure sensor series ranging from low pressure, absolute pressure, and medium-to-high pressure up to 100 MPa are available. (Can be selected according to the range of pressure to be used.) |
Specifications
| Display | Operation check lamp |
|---|---|
| Use Temperature Range | Temperature: −10 to 55°C (No freezing) |
| Use Humidity Range | Humidity: 0 to 85%RH (No condensation) |
| IP Rating | Equivalent to IP55 |
| Setting Method | Via setting trimmers in the case |
| Dimensions | Pigtail cable type: φ60×58 (D: Protrusions not included) Waterproof connector type: φ60×66 (D: Protrusions not included)  |

| Weight | Approx. 200g (Varies with specification) |
| Accessories | Operation manual 1 copy (Specify English or Japanese.) Test report 1 copy  |

Model Selection

Pressure Sensor or Load Cell Selection
Refer to Selection Table for Pressure Sensors for specification and model numbers and specify the desired model.
        [e.g.] MQ - B - S - 50MPa - HH - 4 - P / VPRQ - 50MP
| Selection | Check | Model | Specifications | ||||
|---|---|---|---|---|---|---|---|
| 1.Model | ○ | M | Waterproof M type pressure switch with internal setting trimmer | ||||
| 2.Applicable Pressure Sensor (*1)  |
        - | - | Applicable sensor model | Non Linearity | Connection screw | Pressure type / Rated capacity range  |
        Medium to be measured |
| PR | VPNPR | ±0.25%R.C. | R3/8 | Gauge pressure: 100–1700kPa Absolute pressure: 100–1700kPa abs  |
        Medium that will not corrode SUS316L | ||
| PG | VPNPG | ±0.25%R.C. | G3/8 | ||||
| HR | VHR3 | ±0.2%R.C. | R3/8 | Gauge pressure: 50kPa Absolute pressure: 50kPa abs  |
        Medium that will not corrode Hastelloy C22 or SUS316L | ||
| HG | VHG3 | ±0.2%R.C. | G3/8 | ||||
| AR | VAR3 | ±0.2%R.C. | R3/8 | Gauge pressure: 100–700kPa Absolute pressure: 100–700kPa abs  |
        Medium that will not corrode Hastelloy C22 or SUS316L | ||
| AG | VAG3 | ±0.2%R.C. | G3/8 | ||||
| HV1 | HV1 | ±0.2%R.C. | VCR1/4 Male screw or equivalent | Gauge pressure: 50kPa Absolute pressure: 50kPa abs  |
        Medium that will not corrode Hastelloy C22 or SUS316L | ||
| HS1 | HS1 | ±0.2%R.C. | Swagelok® tube fitting 1/4 or equivalent | ||||
| AV1 | AV1 | ±0.2%R.C. | VCR1/4 Male screw or equivalent | Gauge pressure: 100–500kPa Absolute pressure: 100–500kPa abs  |
        Medium that will not corrode Hastelloy C22 or SUS316L | ||
| AS1 | AS1 | ±0.2%R.C. | Swagelok® tube fitting 1/4 or equivalent | ||||
| NV1 | NV1 | ±0.25%R.C. | VCR1/4 Male screw or equivalent | Gauge pressure: 100–700kPa Absolute pressure: 100–700kPa abs  |
        Medium that will not corrode SUS316L | ||
| NS1 | NA1 | ±0.25%R.C. | Swagelok® tube fitting 1/4 or equivalent | ||||
| T | VPRT | ±0.2%R.C. | R3/8 (100MPa:R1/2)  |
        1–100MPa | Medium that will not corrode 15-5PH | ||
| TF | VPRTF | ±0.2%R.C. | G3/8 (100MPa:G1/2)  |
        ||||
| Q | VPRQ | ±0.8%R.C. | R3/8 | 1–50MPa | Medium that will not corrode 15-5PH | ||
| QF | VPRQF | ±0.8%R.C. | G3/8 (100MPa:G1/2)  |
        1–100MPa | |||
| NFF | VNF | ±0.25%R.C. | G3/4 | Gauge pressure: 100–1700kPa Absolute pressure: 100–1700kPa abs  |
        Medium that will not corrode SUS316L | ||
| F | VPRF | ±0.5%R.C. | G3/8 | 1–50MPa | Medium that will not corrode 15-5PH | ||
| 3.Direct connection to sensor | ○ | B | Direct connection to sensor | ||||
| 4.Cable Connection type | S | Pigtail cable | |||||
| D | Waterproof connector | ||||||
| 5.Calibration | Specify the range within the rated capacity of the applicable pressure sensor. (Within 50% of the rated capacity) Refer to Selection Table for Pressure Sensors for the rated capacity.  |
      ||||||
| 6.Output type | - | - | Output type | Response time | Permissible load | ||
| HH | 2 setting/Open collector output (S1:Higher limit S2:Higher limit) Standard  |
        Approx. 1msec. or less | 45V 100mA | ||||
| HL | 2 setting/Open collector output (S1:Higher limit S2:Lower limit)  |
      ||||||
| LH | 2 setting/Open collector output (S1:Lower limit S2:Higher limit)  |
      ||||||
| LL | 2 setting/Open collector output (S1:Lower limit S2:Lower limit)  |
      ||||||
| 7.Power [Consumption current] | 4 | DC24V [40mA] | |||||
| 5 | DC12V [40mA] | ||||||
| 8.Bracket (option)  |
        Blank | No brackets | |||||
| P | with Panel mounting bracket | ||||||
- (*1) Refer to Selection Table for Pressure Sensors for details.
 - (*2) Non Linearity is 0.3%R.C. for the rated capacities 5 kPa.

External dimensions (Unit: mm)

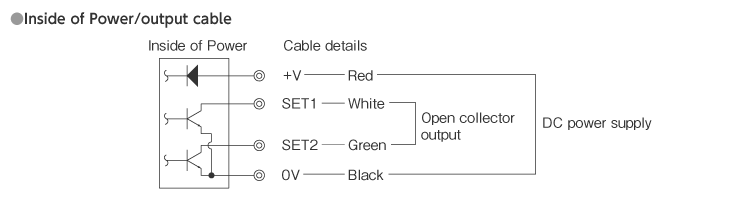

    Electrical wiring specification
    Pressure Switch
