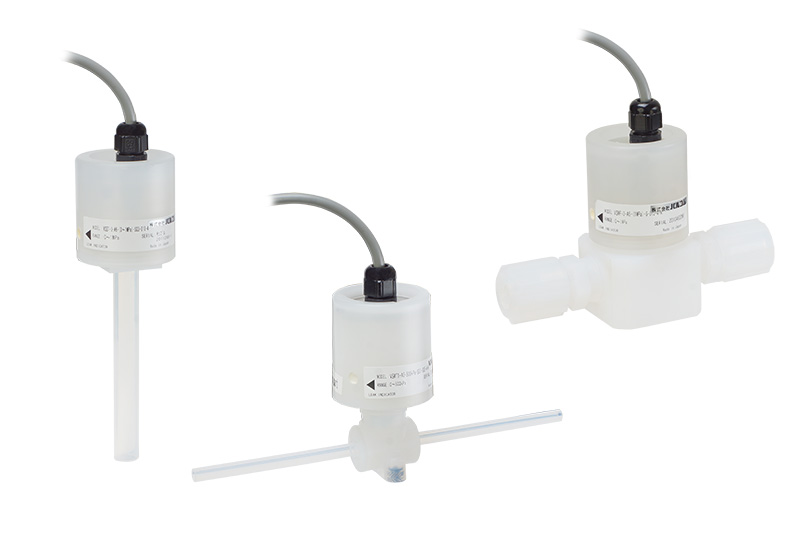

PFA type Pressure Transmitter
VSST(SF/RR/WT/WF) series0.4MPa–1MPa
- Suitable for pressure measurement of ultrapure water and corrosive media such as strong acids or alkalis.
- Integrally molded PFA body offers high leak-proof performance.
- Employs a leak indicator to alert you in case gas permeation occurs.
| Measured medium | Ultrapure water, strong acid, strong alkali or other media that will not corrode PFA |
|---|---|
| Pressure Type | Positive, compound and negative pressures can be measured. |
| Measured Range | Rated capacity: 0(-0.1) to 0.4, 0.6, 1MPa Specify more than 60% of rated capacity as the calibration range(F.S.). *(Example) Rated capacity 0.4MPa: 0 to 0.2MPa (=0.2MPaF.S.) → Manufacture is impossible. -0.1 to 0.2MPa (=0.3MPaF.S.) → Manufacture is possible. |
| Output type | Specify among 4 to 20 mA (2 wire system), 1 to 5 V, 0 to 5 V, 0 to 10 V. |
Specifications
| Accuracy | ±1%F.S. (Non Linearity, Hysteresis, Repeatability included) |
|---|---|
| Gas Permeability Detection | Leak indicator lamp changes from yellow to red when the medium is acidic, and from yellow to blue if alkaline. Exchange time: Becomes red or blue |
| Compensated Temperature Range (Temperature of medium to be measured) |
15–40°C (No condensation or freezing) |
| Safe Temperature Range (Temperature of medium to be measured) |
0–80°C (No condensation or freezing) |
| Temperature Effect | ±0.5%R.C. (15–40°C) |
| Safe Overload Rating | 0.4→0.6MPa, 0.6→0.9MPa, 1→1.25MPa |
| Pressure Port Material | PFA fluoroplastic |
| Housing Material | PP (Polypropylene) |
| Leakage | 3×10-8Pa·m³/sec. or less |
| Sealing | Seal-less due to integral molding |
| Screw type | 1/4, 3/8, 1/2, 3/4Tube, Flared, Screw-in |
| Cable | PVC coated 4-core (current type is 2-core) shielded 3m pigtail (UL-compliant) |
| IP Rating | Equivalent to IP55 |
| Weight | Approx. 360g (Cable 3m included) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy |

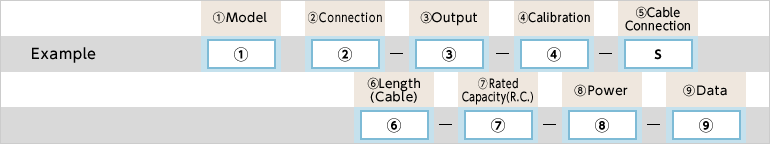

Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | VSST | Single feed port/Tube type | ||||
| VSSF | Single feed port/Flare groove joint type | |||||
| VSRR | Single feed port/Screw type | |||||
| VSWT | Double feed port/Tube type | |||||
| VSWF | Double feed port/Flare groove joint type | |||||
| 2.Connection screw | 1 | 1/4 (Not available for screw-in type) | ||||
| 2 | 3/8 | |||||
| 3 | 1/2 (Not available for screw-in type) | |||||
| 4 | 3/4 (For double feed port type only) | |||||
| 3.Analog output | - | - | Output type | Response frequency | Safe load resistance | Consumption current |
| A2 | 1–5V (3-wire) | 50Hz | 100kΩ or more | Approx. 10mA | ||
| A4 | 0–5V (3-wire) | |||||
| A5 | 0–10V (3-wire) | |||||
| A6 | 4 to 20mA (2 wire system) | 500Ω or less | - | |||
| 4.Calibration | - | - | Rated capacity | Example of calibration range | ||
| See right table. Enter the range in the as it is. |
0.4MPa | 0.4MPa (0–0.4) MPa |
0.25MPa (0–0.25) MPa |
-0.1–0.4MPa (-0.1–0.4) MPa |
||
| 0.6MPa | 0.6MPa (0–0.6) MPa |
0.4MPa (0–0.4) MPa |
-0.1–0.6MPa (-0.1–0.6) MPa |
|||
| 1MPa | 1MPa (0–1) MPa |
0.6MPa (0–0.6) MPa |
-0.1–1MPa (-0.1–1) MPa |
|||
| 5.Cable Connection | ○ | S | Pigtail Equivalent to IP55 | |||
| 6.Length (Cable) | 01 | 1m | ||||
| 02 | 2m | |||||
| 03 | 3m Standard | |||||
| □□ | 4–99m *Specify required length in meters. | |||||
| 7.Rated Capacity | 004 | 0.4MPa | ||||
| 006 | 0.6MPa | |||||
| 010 | 1MPa | |||||
| 8.Power | 4 | DC24V (Currente output only) | ||||
| 6 | DC15–24V (Voltage output only) | |||||
| 9.Data | N | Test report (3-point measurement)/(Standard) | ||||
| T | Traceability documents *Breakdown of traceability documents 1: Traceability certificate 2: Traceability system diagram 3: Test report (3-point measurement) |
|||||

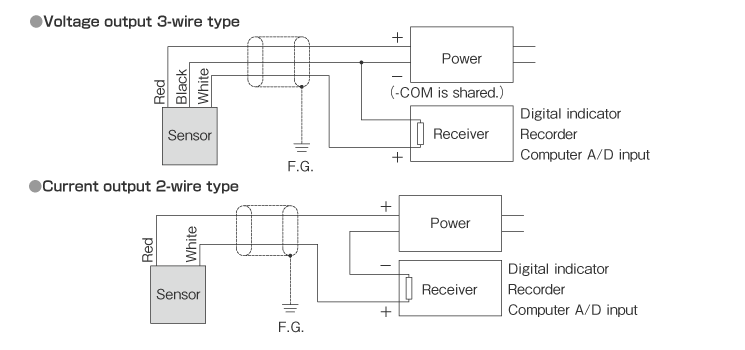

Power outlet specification
External dimensions (Unit: mm)
Pressure Sensor
