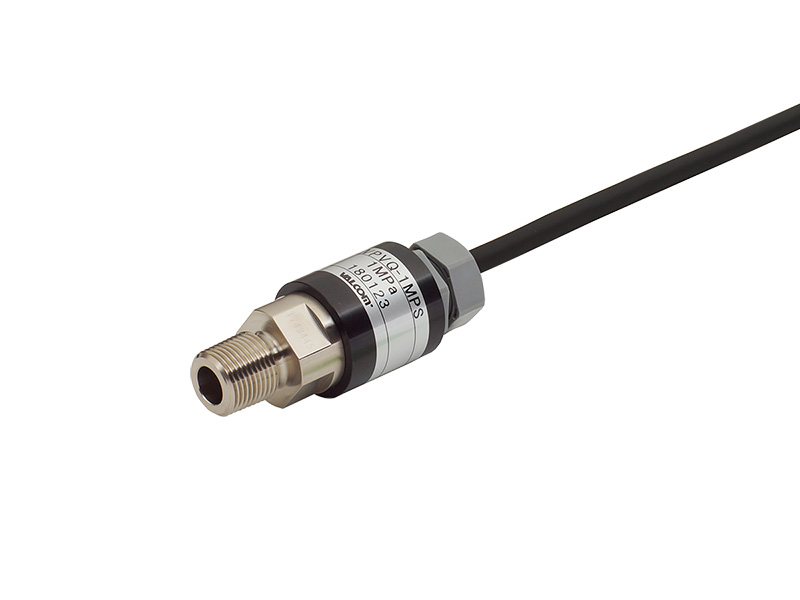

Vibration-proof General-purpose Pressure Transducer for Middle High Pressure
VPVQ(F) series1MPa–100MPa
- Vibration-proof and shock-proof construction with molded-in sensor elements.
- Sensor machined integral with diaphragm offers durability and long life.
- Vibration-proof model despite low price
| Measured medium | Water, oil, gases or other media that will not corrode 15-5PH (precipitation-hardened stainless steel). |
|---|---|
| Pressure Type | Positive and compound pressures can be measured. |
| Rated capacity | 1 to 100MPa |
Specifications
| Rated Output (R.O.) | 1.53mV/V ±0.153mV/V (1MPa,2MPa: 1.53mV/V +0.688mV/V-0.20mV/V) |
|---|---|
| Non Linearity | ±0.8%R.C. (100MPa:±1%R.C.) |
| Hysteresis | ±0.8%R.C. (100MPa:±1%R.C.) |
| Excitation; Recommended | 6V |
| Excitation; Maximum | 15V |
| Input Terminal Resistance | 350±7Ω |
| Output Terminal Resistance | 300–357Ω |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range (Temperature of medium to be measured) |
−30–70°C (No condensation or freezing) |
| Safe Temperature Range (Temperature of medium to be measured) |
−40–100°C (No condensation or freezing) |
| Safe Overload Rating | 150%R.C. |
| Ultimate Overload Rating | 200%R.C. |
| Temperature Effect on Zero Balance | ±0.2%R.C./10°C |
| Temperature Effect on Load | ±1%R.C./10°C |
| Fastening Torque;Recommended | 1MPa–5MPa:20N·m, 10MPa–50MPa:40N·m, 100MPa:80N·m |
| Fastening Torque;Maximum | 1MPa–5MPa:30N·m, 10MPa–50MPa:60N·m, 100MPa:120N·m |
| Vibration-proof | 300m/s² (X, Y, Z, 2 hours each) |
| Shock-proof | 1000m/s² 6msec. (3 axes: X, Y, Z in 6 directions, 3 times each) |
| Connection Screw | Selectable: R3/8 and G3/8 (100MPa: G1/2 only) |
| Pressure Port Material | 15-5PH (Precipitation hardening stainless steels) |
| IP Rating (Main body) | Equivalent to IP64 |
| Cable | 4-core shielded (oilproof) cable 3m(Standard) φ6mm |
| Weight | Approx. 250g (Cable not included) |
| Accessories | Test report 1 copy, Copper packing (×1) (G screw only) |
Model Selection
| Selection | Check | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | VPVQ | Vibration-proof General-purpose Pressure Transducer for Middle High Pressure *Connection screw: R3/8 |
||
| VPVQF | Vibration-proof General-purpose Pressure Transducer for Middle High Pressure *Connection screw: G3/8 (100MPa: G1/2) |
|||
| 2.Rated Capacity (R.C.) | 1MP | 1MPa | ||
| 2MP | 2MPa | |||
| 5MP | 5MPa | |||
| 10MP | 10MPa | |||
| 20MP | 20MPa | |||
| 35MP | 35MPa | |||
| 50MP | 50MPa | |||
| 100MP | 100MPa (VPVQF only) | |||
| 3.Cable Connection | ○ | S | Pigtail Equivalent to IP64 | |
| 4.Length (Cable) | 3m | 3m Standard | ||
| 5m | 5m | |||
| 10m | 10m | |||
| □□m | Other length *Contact our sales office for other cable lengths. | |||

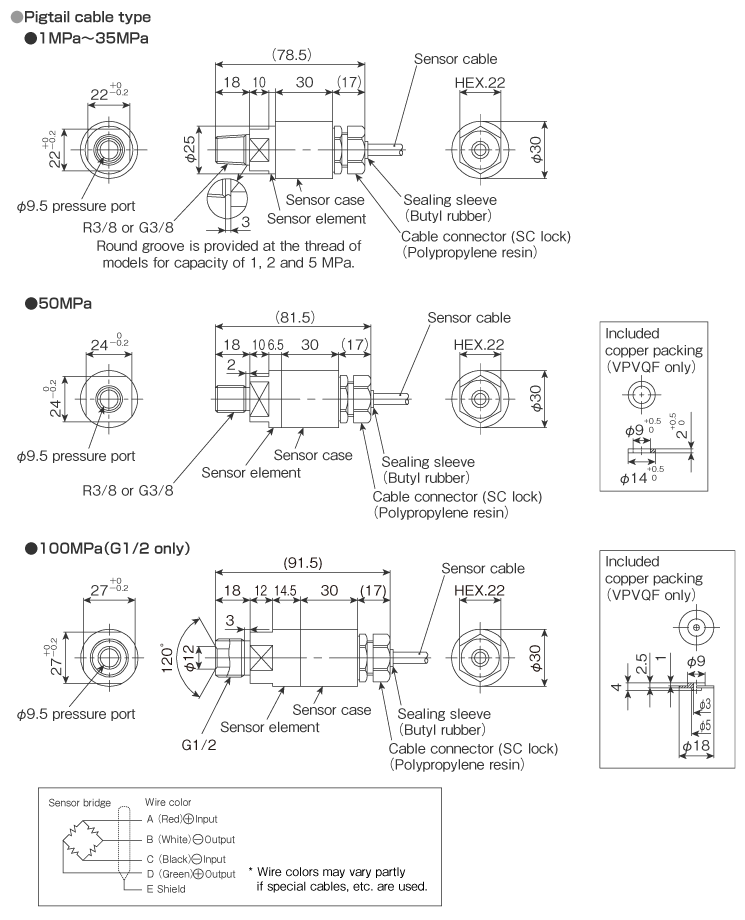

External dimensions (Unit: mm)
Pressure Sensor
