A New Standard for Pressure Sensor with Built-in Amplifier

Pressure Sensor with Built-in Amplifier
VMSI/VMSV series

Compact, High-accuracy and Capable of Measuring Pressures
in Various Industries and Applications under any Conditions

The VMSI/VMSV series pressure sensors with built-in amplifier are specialized for medium and high pressure ranges of 1 to100 MPa. Though compact and lightweight in design, these models offer a high accuracy of ±0.5%F.S. (at 25°C) and can be used in the temperature range of −40 to 120°C. Moreover, they are IP67-rated, have superior vibration and shock resistance, and are suitable for many different applications.

  • Hydraulic press

    Hydraulic press

    Application

    • Hydraulic mold clamping control
    • Press load control

    Features

    • Compact and high-accuracy
    • Dustproof
  • Vulcanizer for tires and rubbers

    Vulcanizer for tires and rubbers

    Application

    • Hydraulic mold clamping control
    • Vapor pressure monitoring

    Features

    • Compact and high-accuracy
    • Dustproof
  • Die casting and injection molding machines

    Die casting and injection molding machines

    Application

    • Hydraulic mold clamping control
    • Release agent application pressure control

    Features

    • Compact and high-accuracy
    • Vibration- and shock-resistant
  • Hydraulic unit

    Hydraulic unit

    Application

    • Oil filter cartridge change management
    • Oil cooler clogging control
    • Hydraulic accumulator pressure monitoring
    • Liquid delivery pump pressure monitoring
    • Valve block operation control

    Features

    • Compact and high-accuracy
    • Supports hot range
  • Construction machine and specially-equipped vehicle

    Construction machine and specially-equipped vehicle

    Application

    • Arm / boom / backet pressure control
    • Control valve control
    • Overload and fall prevention

    Features

    • Vibration- and shock-resistant
    • Waterproof and dustproof
  • Crane

    Crane

    Application

    • Boom / winch / outrigger pressure control
    • Control valve control
    • Overload and fall prevention

    Features

    • Vibration- and shock-resistant
    • Waterproof and dustproof
  • Tailgate lifter

    Tailgate lifter

    Application

    • Hydraulic control unit control

    Features

    • Compact and high-accuracy
    • Vibration- and shock-resistant
    • Waterproof
  • Diesel railcar

    Diesel railcar

    Application

    • Transmission clutch hydraulic control

    Features

    • Compact and high-accuracy
    • Supports hot range
    • Vibration- and shock-resistant
    • Waterproof
  • Commercial refrigerator

    Commercial refrigerator

    Application

    • Refrigerant circulation pressure monitoring

    Features

    • Compact and high-accuracy
    • Supports hot and cold ranges
    • Waterproof
  • Autoclave

    Autoclave

    Application

    • Hot water / chemical / steam circulation pressure monitoring

    Features

    • Compact and high-accuracy
    • Supports hot range

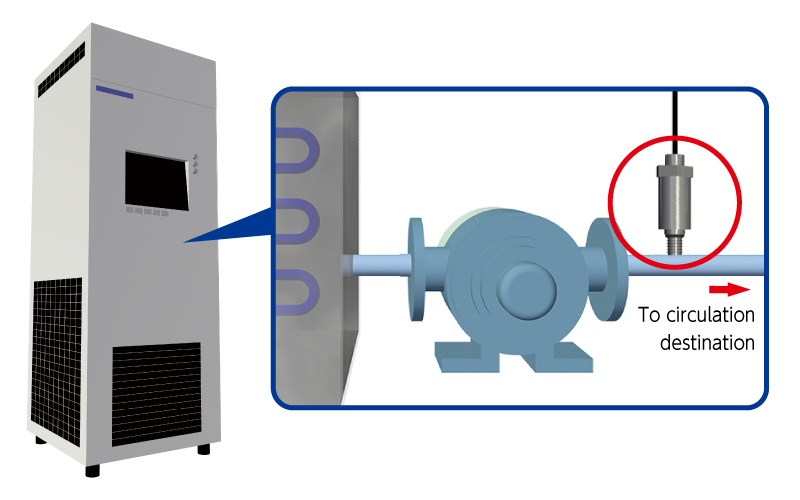

  • Chiller unit

    Chiller unit

    Application

    • Circulation water pressure monitoring
    • Refrigerant circulation pressure control

    Features

    • Compact and high-accuracy
    • Waterproof
  • Vapor boiler

    Vapor boiler

    Application

    • Vapor pressure monitoring
    • Supply water pressure monitoring

    Features

    • Compact and high-accuracy
    • Supports hot range
    • Waterproof

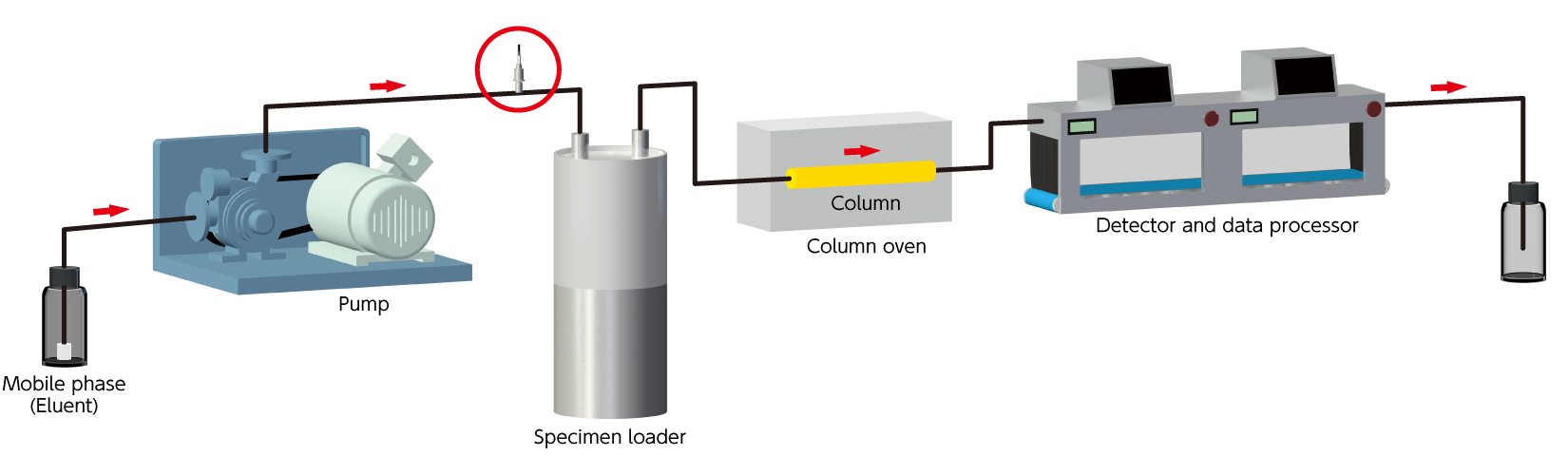

  • Chromatography / Water analysis

    Chromatography / Water analysis

    Application

    • Feed pressure rated value control
    • Pressure fluctuation suppression control

    Features

    • Compact and high-accuracy

Specifications

Pressure Range 1~100MPa
Power VMSI: 10~30V DC/VMSV: 12~30V DC
Output VMSI: 4~20mA/VMSV: 1~5V
Accuracy (*1) ±0.5%F.S. (@25°C)
Compensated temperature range −40~120°C
Operating temperature range −40~120°C
Storage temperature range −40~120°C
Safe overload rating 200% / 150%(100MPa only)
Burt overload rating 500% / 200%(100MPa only)
Stability ±0.25%F.S./year
Total Error Band (※2) ±1.0%F.S. (−20~85°C), ±1.5%F.S. (−40~−20°C), ±3.0%F.S. (85~120°C)
Response <1.5ms
Impact resistance 980m/s² (11msec or lower)
Vibration resistance 196m/s² (10Hz~2kHz)
Protection rating IP67 * Only when our M12 connector cable is connected
Materials of diaphragm 17-4PH
Materials of connecting thread 17-4PH
Case SUS304
Dielectric strength >100MΩ (@250V DC)
Withstand voltage 100V AC (1 minute between all terminals and case)
Sensor weight 1~50MPa: 65g / 100MPa: 85g * Main body only
CE marking EMC directive, Europe RoHS directive conformity product
Safe Load Resistance VMSI: 150Ωmax (DC11V), 500Ωmax (DC24V)
VMSV: 2kΩ or more
Operating current VMSV: 5mA (MAX)
Fastening Torque: Recommended 70~75Nm * 100 MPa only

(*1) Non Linearity, hysteresis and repeatability included.
(*2) Non Linearity, Hysteresis, Repeatability, Temperature effect on zero balance and Temperature effect on span load included.

Model Selection

Example
  • ①Model

    VMS

  • ②Analog output

  • ③Calibration Range

  • ④Screw

  • Option



Selection Check Model Specifications
①Model VMS Pressure Sensor with Built-in Amplifier
②Analog output - - Output type Safe load resistance Consumption current Power
  I 4~20mA 150Ωmax
(DC11V) / 500Ωmax
(DC24V)
- 10~30V DC
  V 1~5V 2kΩ or more 5mA (MAX) 12~30V DC
③Calibration Range   001 0~1MPa
  002 0~2MPa
  005 0~5MPa
  010 0~10MPa
  020 0~20MPa
  035 0~35MPa
  050 0~50MPa
  100 0~100MPa
④Screw   R2 R1/4
* Available only when calibration range 001~050 is selected
  G3 G3/8
* Available only when calibration range 100 is selected
Selection Check Model Specifications
Option
(Sold separately)

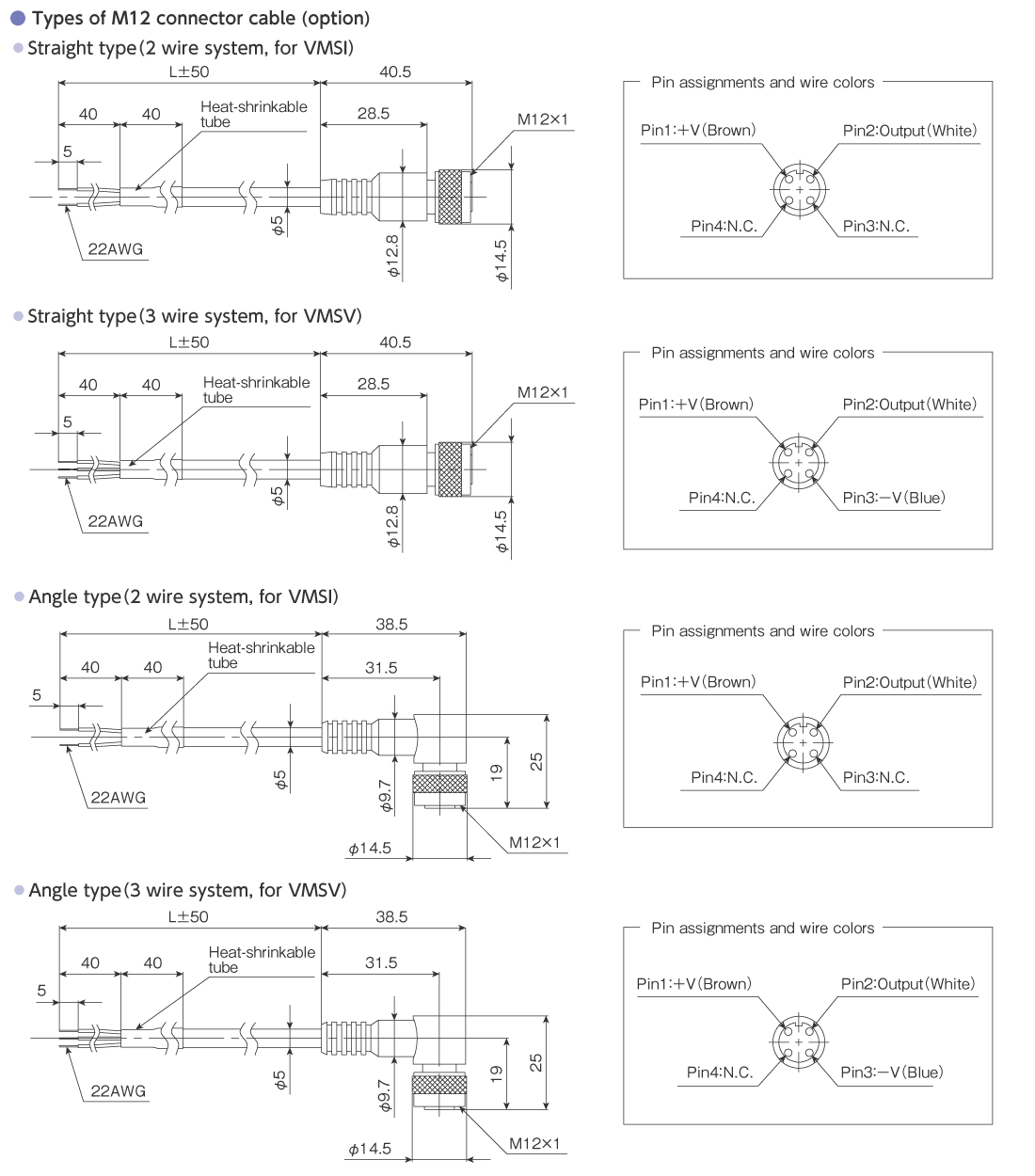

  NT-S00343A-2M-2S M12 connector cable (Straight type, 2 wire system, for VMSI) 2m
  NT-S00343A-2M-3S M12 connector cable (Straight type, 3 wire system, for VMSV) 2m
  NT-S00343A-5M-2S M12 connector cable (Straight type, 2 wire system, for VMSI) 5m
  NT-S00343A-5M-3S M12 connector cable (Straight type, 3 wire system, for VMSV) 5m
  NT-S00344A-2M-2S M12 connector cable (Angle type, 2 wire system, for VMSI) 2m
  NT-S00344A-2M-3S M12 connector cable (Angle type, 3 wire system, for VMSV) 2m
  NT-S00344A-5M-2S M12 connector cable (Angle type, 2 wire system, for VMSI) 5m
  NT-S00344A-5M-3S M12 connector cable (Angle type, 3 wire system, for VMSV) 5m
  Copper packing for VMS G3/8
* Available only when calibration range 100 is selected
  3-point measurement Test report
  5-point measurement Test report

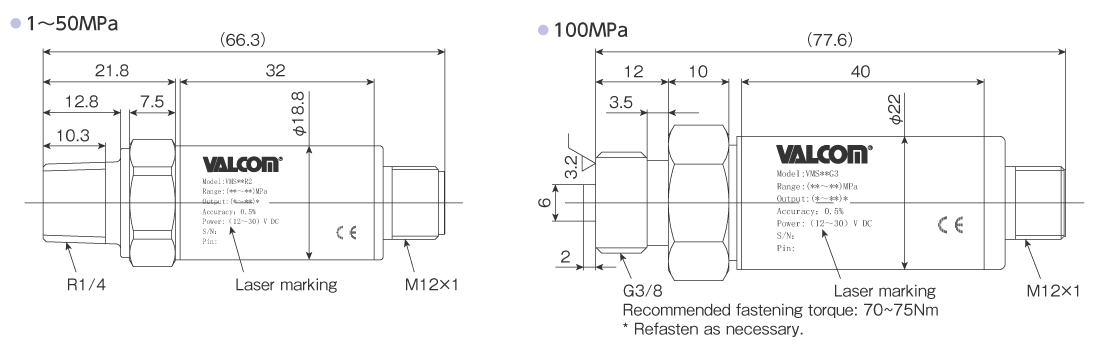

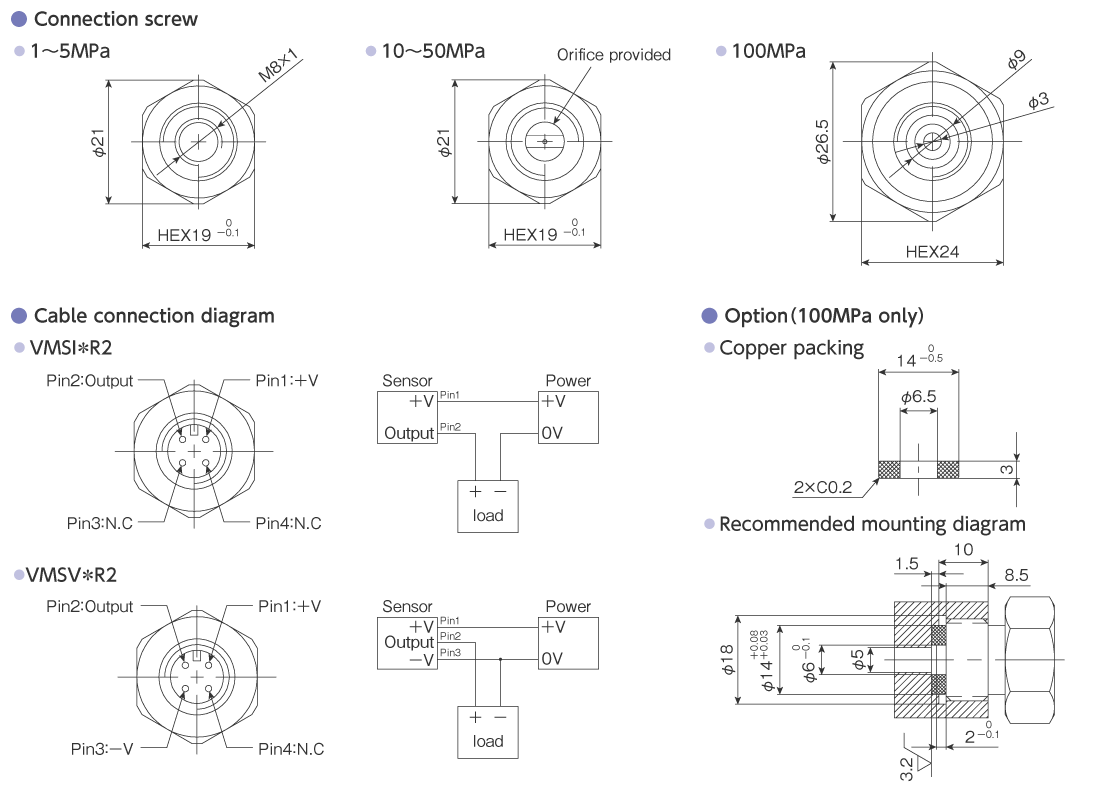

Dimensions [Unit: mm]

Dimensions
Dimensions
Dimensions
