Custom-made Pressure Transmitter
VMS series

Low-cost, custom-made pressure transmitters (pressure sensors with built-in amplifier) available at a minimum order quantity of 50 units per lot.

  • High Cost Performance
  • Abundant Specification Choices
  • High Accuracy,
    Long-term Stability

Custom-made pressure transmitters offered by a pressure measurement expert are available with a variety of ranges, accuracy levels and output signals to suit to your application needs.
High cost performance product specialized in desired specs, without any unnecessary features.

  • High cost performance only for the specs you need.
  • Selectable from wealth of specifications.
  • Long life, high accuracy, and good quality.

ATTENTION

  • Cannot be used in applications involving viscous fluids.
  • Cannot be used in explosion-proof areas.
  • Minimum order quantity: 50

Feature

  • High-accuracy total error band (TEB)
  • Wide pressure and temperature ranges
  • Rigid structure integrated with sensor
  • CE and RoHS2 compliant
  • IP65~67 equivalent
  • Safe overload rating 200%
  • Abundant output support
  • Various connecting thread types
  • Selectable connectors types (Customer-designated connectors also available)

Flow from Order to Delivery

  1. Inquiry
  2. Arrangements/Hearing
  3. Model designation (Proposal included)
  4. Submission of samples for evaluation
  5. Specification change, if necessary, based on evaluation result
  6. Mass production
  7. Delivery to customer

Survey Form

Specifications to be determined according to your entries.

Application ①Application, ②Type of fluid, ③Fluid temperature (°C), ④Environmental temperature (°C), ⑤Viscous or not
Quantity 50 or more
Pressure Range
* −100 to 300 kPa or above, up to 100 MPa
* Absolute pressure not supported		 Positive pressure/Compound pressure
Pressure range (Unit: kPa, MPa, bar, mbar, psi, kgf/cm², Other)
* For use in Japan. Non-SI Units (other than kPa, MPa) not available
Power DC10 to 30V, DC5V (Output 0.5 to 4.5V, I2C*1 only)
Output 4 to 20mA, 1 to 5V, 0 to 10V, 0.5 to 4.5V, I2C*1, 20mV/V, Other
Accuracy level to be selected from (1) - (3)
*2: Some restrictions apply depending on the specifications.
  1. (1) Non Linearity, hysteresis, repeatability @25°C Selected from ①②③④
    ①±0.1%, ②±0.25%, ③±0.5%, ④±1%
    TEB*3 [±1.0%F.S. (−20 to 85°C), ±1.5%F.S. (−40 to −20°C), ±1.5%F.S. (85 to 125°C)]
  2. (2) Non Linearity, hysteresis, repeatability @25°C Selected from ①②③
    ①±0.25%F.S., ②±0.5%F.S., ③±1%F.S.
    Temperature effect on zero balance, Temperature effect on span load Selected from ①②③
    ①±0.1%F.S./10°C, ②±0.25%F.S./10°C, ③±0.5%F.S./10°C
  3. (3) Other
Compensated temperature range *2 −40 to 125°C, −20 to 85°C
Operating temperature range *2 −40 to 125°C
Storage temperature range *2 −40 to 125°C
Safe overload rating *2 200%F.S.
Burt overload rating *2 500%F.S.
Stability ±0.25%F.S./year
Vibration resistance *2 196m/s² (10Hz to 2kHz), 490m/s² (10Hz to 2kHz)
Impact resistance *2 980m/s² (6msec or lower), 1960m/s² (6msec or lower)
Protection rating *2 IP67 (M12 connector, Pack connector), IP66 (Pigtail cable), IP65 (DIN connector)
Electrical connectors *2
  1. ①M12
    M12
  2. ②Pigtail cable
    Pigtail cable
  3. ③Pack connector
    Pack connector
  4. ④DIN connector (DIN43650A)
    DIN connector
  5. ⑤Mini DIN connector
    Mini DIN connector
  6. ⑥Other
Materials of diaphragm/connecting thread 17-4PH (Integral structure)
Screw
(M: Male/F: Female)		 R1/2 (M), R1/4 (M/F), R1/8 (M), R3/8 (M/F), G1/2 (M), G1/4 (M/F), G3/8 (M/F), 1/2NPT (M), 1/4NPT (M/F), 1/8NPT (M), 3/8NPT (M/F), M10X1 (M), M12X1 (M/F), M14X1 (M/F), M16X1.5 (M/F), M20X1.5 (M/F), M22X1.5 (M), 7/16-20UNF (M/F), 9/16-18UNF (M/F), 3/4-16UNF (M/F), Other
* Some connecting threads are not available depending on the pressure range.
Cable □□m, Optional end connector (Y/N) / Connector type
Throttle * Available for 5 MPa or above φ0.7, φ0.5
Oil-free & water-free Oil-free & water-free
Europe conformity CEmark, RoHS2
Other Manuals and related documents are available.
Contact our sales office for details.

*1: I2C (Inter-Integrated Circuit)
*3: TEB (Total Error Band)

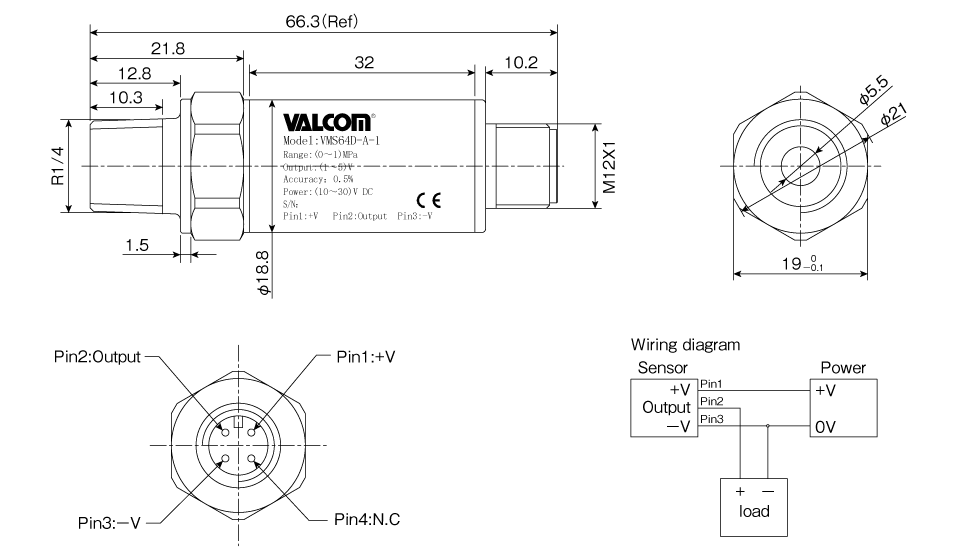

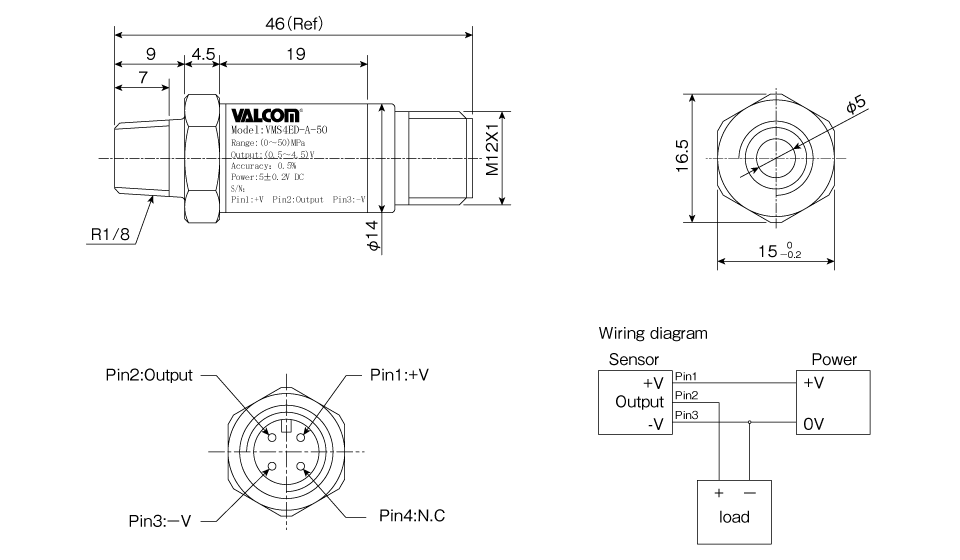

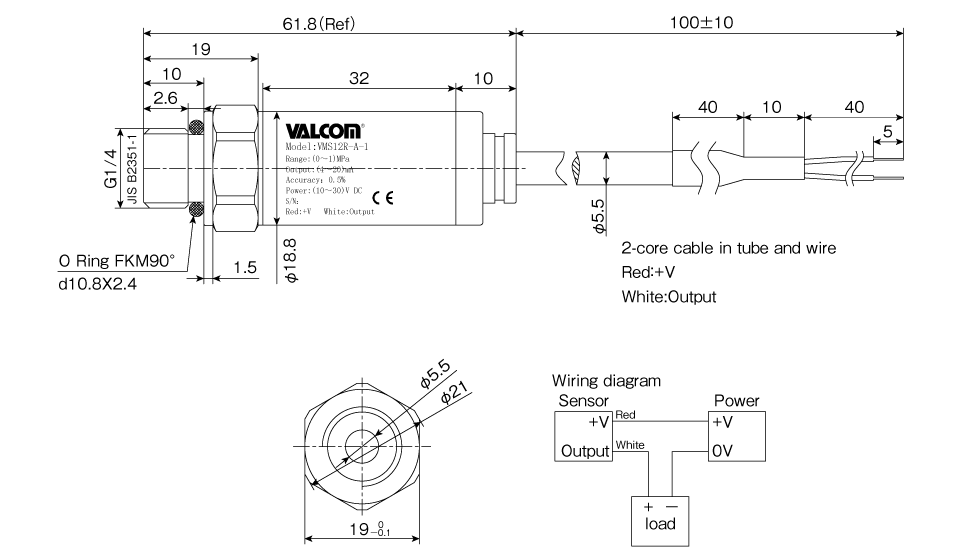

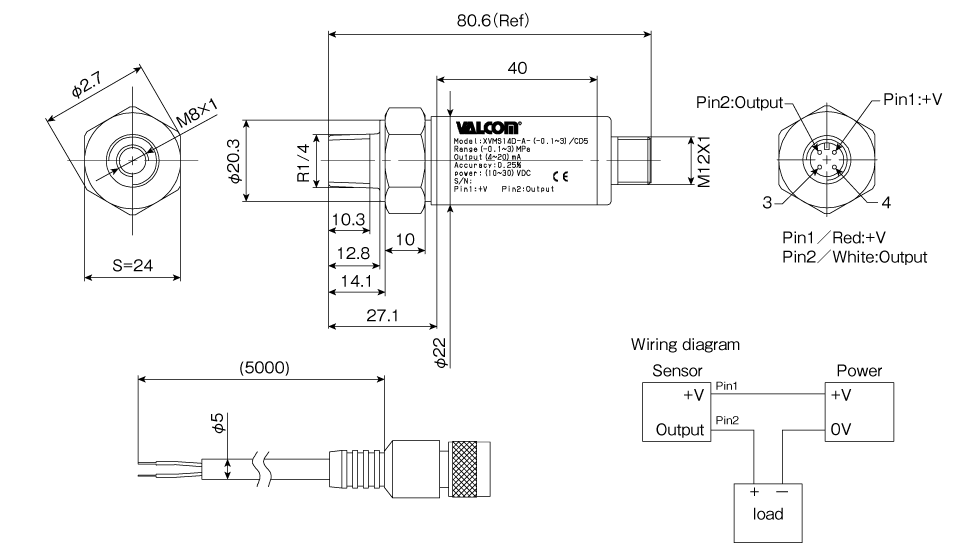

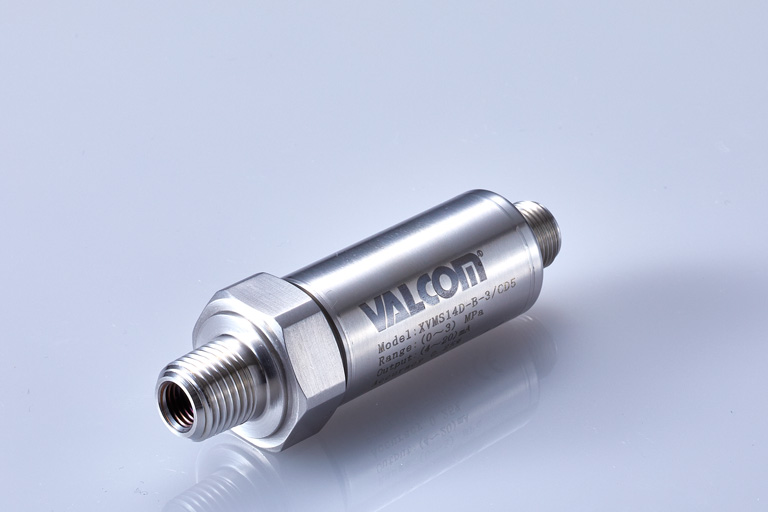

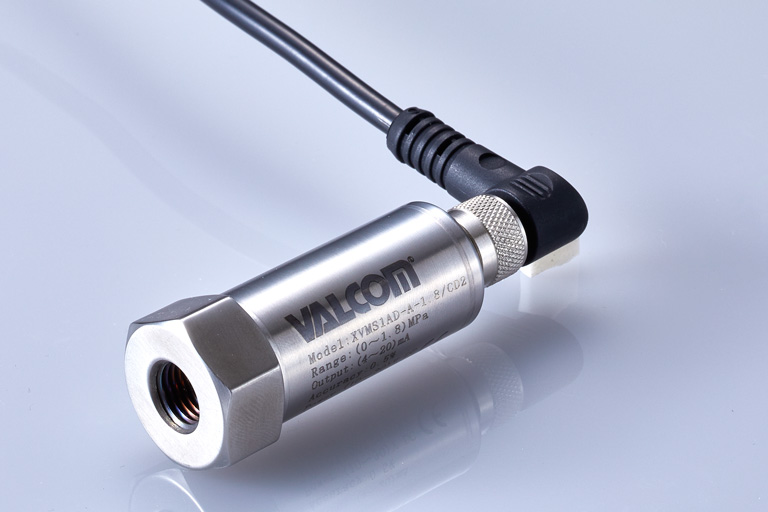

Product Examples

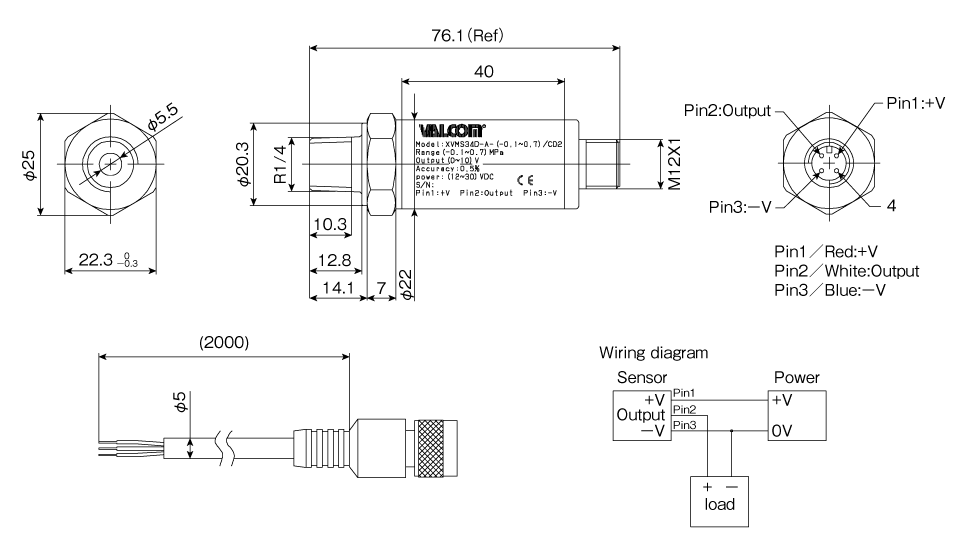

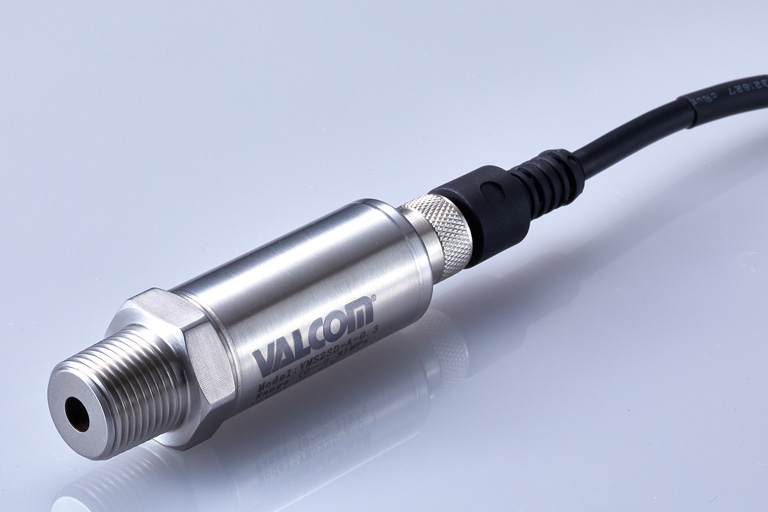

Reference Examples 1

  • Pressure Range −0.1 to 0.7MPa
    Power 12 to 30V DC
    Output signal 0 to 10V (max: 10.050V)
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength 250V DC/>100MΩ
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 95g (Body)
    Load Resistance ≥2kΩ
    CE marking EMC directive, Europe RoHS directive conformity product

Reference Examples 2

  • Pressure Range −0.1 to 3MPa
    Power 10 to 30V DC
    Output signal 4 to 20mA
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.25%F.S. (@25°C)
    Compensated temperature range −40 to 125°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Total Error Band (includes the following)
    ①Linearity
    ②Hysteresis
    ③Repeatbillity    		 ±1.5%F.S. (−40 to −20°C)
    ±1.0%F.S. (−20 to 85°C)
    ±1.5%F.S. (85 to 125°C)
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength 250V DC/>100MΩ
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 105g (Body)
    Load Resistance 150Ω (@11V)
    500Ω (@24V)
    CE marking EMC directive, Europe RoHS directive conformity product

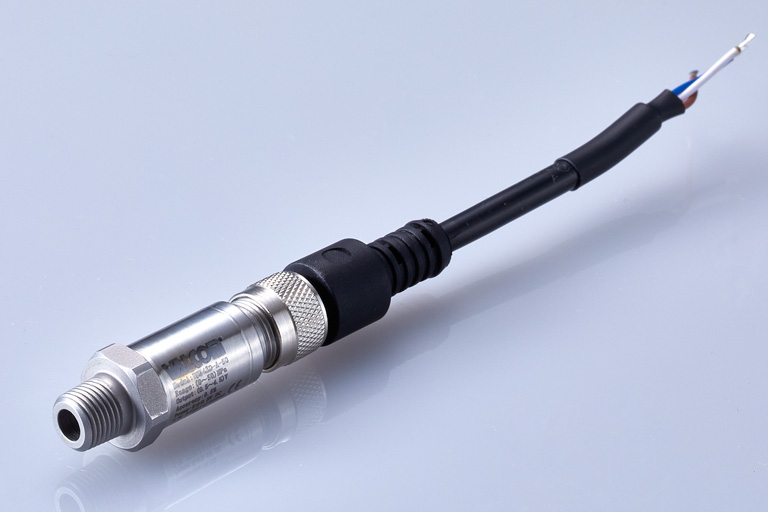

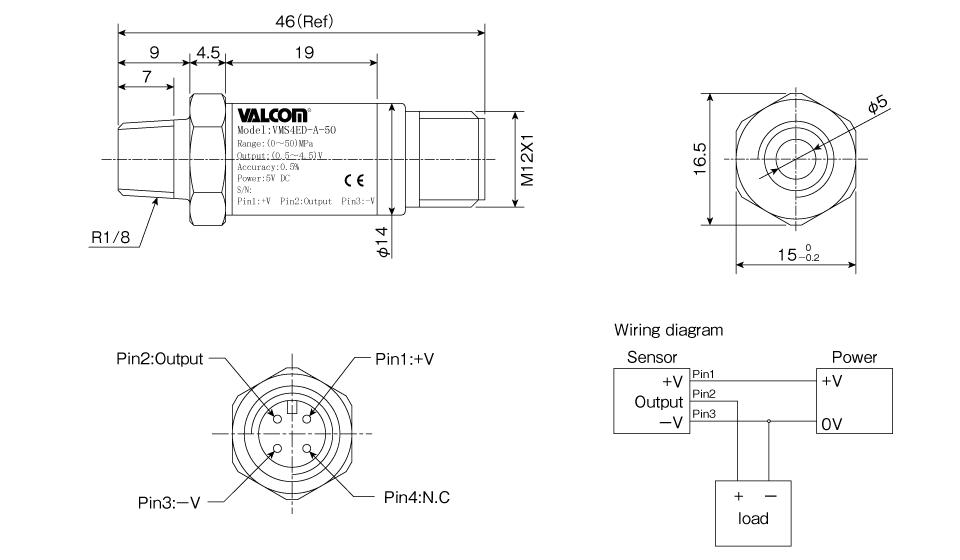

Reference Examples 3

  • Pressure Range 0 to 50MPa
    Power 5V DC
    Output signal 0.5 to 4.5V
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −20 to 85°C
    Storage temperature range −20 to 85°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.5%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 25g (Body)
    Load Resistance ≥2kΩ
    CE marking EMC directive, Europe RoHS directive conformity product

Reference Examples 4

  • Pressure Range 0 to 50MPa
    Power 5V DC
    Output signal 0.5 to 4.5V
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −20 to 85°C
    Storage temperature range −20 to 85°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.5%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 25g (Body)
    Load Resistance ≥10kΩ
    CE marking EMC directive, Europe RoHS directive conformity product

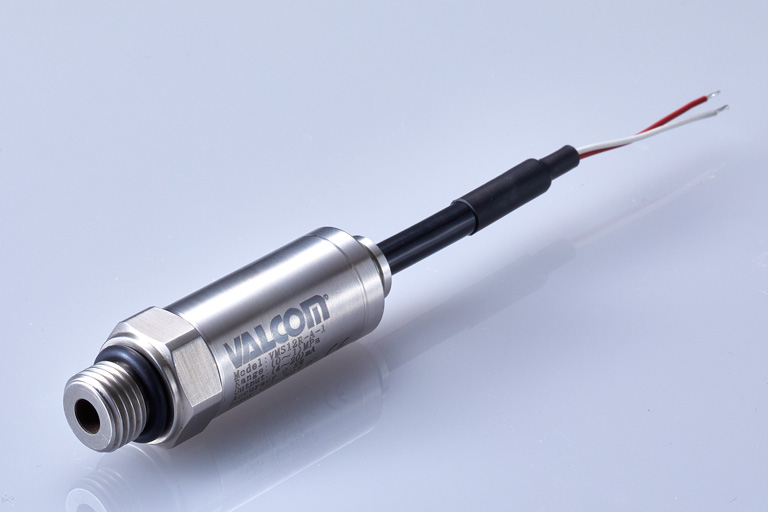

Reference Examples 5

  • Pressure Range 0 to 1MPa
    Power 10 to 30V DC
    Output signal 4 to 20mA
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance 0.25%F.S./10°C
    Temperature effect on span load 0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Body)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 70g (Body)
    Load Resistance 150Ω (@11V)
    500Ω (@24V)
    CE marking EMC directive, Europe RoHS directive conformity product

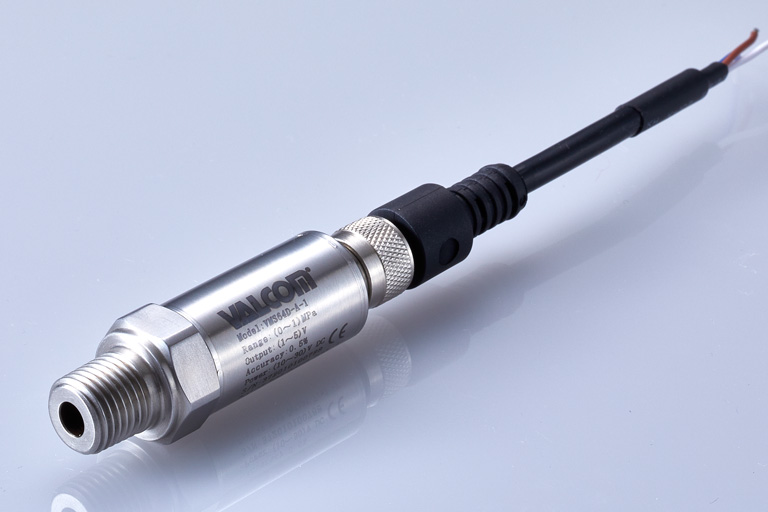

Reference Examples 6

  • Pressure Range 0 to 1MPa
    Power 10 to 30V DC
    Output signal 1 to 5V
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 70g (Body)
    Load Resistance ≥2kΩ
    CE marking EMC directive, Europe RoHS directive conformity product

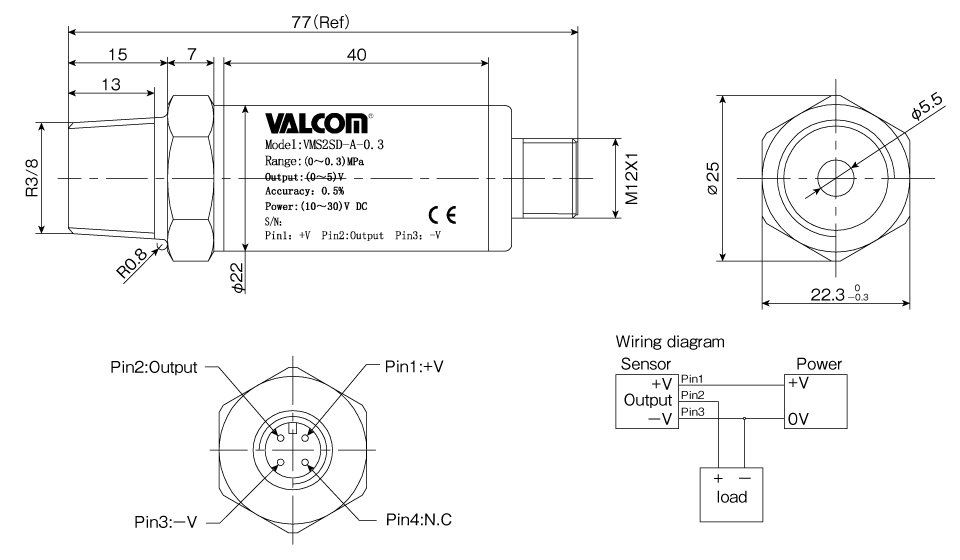

Reference Examples 7

  • Pressure Range 0 to 0.3MPa
    Power 10 to 30V DC
    Output signal 0 to 5V
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 95g (Body)
    Load Resistance ≥2kΩ
    CE marking EMC directive, Europe RoHS directive conformity product

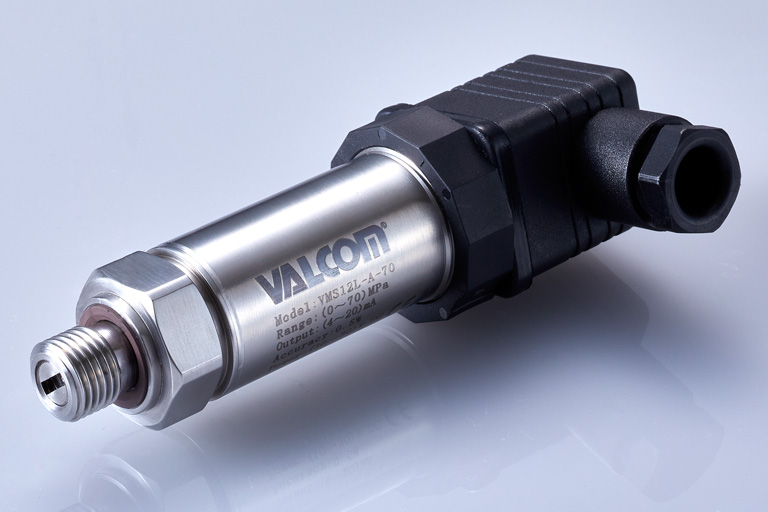

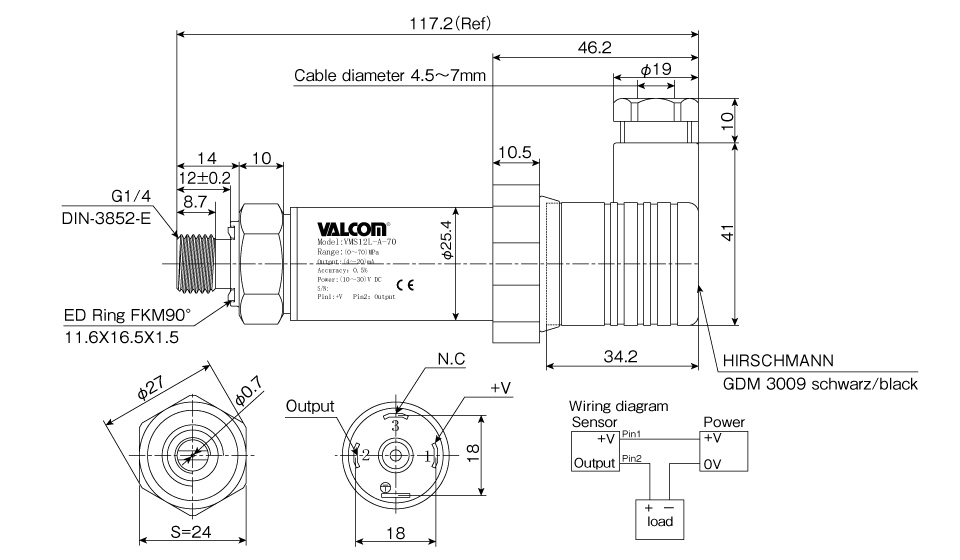

Reference Examples 8

  • Pressure Range 0 to 70MPa
    Power 10 to 30V DC
    Output signal 4 to 20mA
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance 0.25%F.S./10°C
    Temperature effect on span load 0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP65 (Body)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 150g (Body)
    Load Resistance 150Ω (@11V)
    500Ω (@24V)
    CE marking EMC directive, Europe RoHS directive conformity product

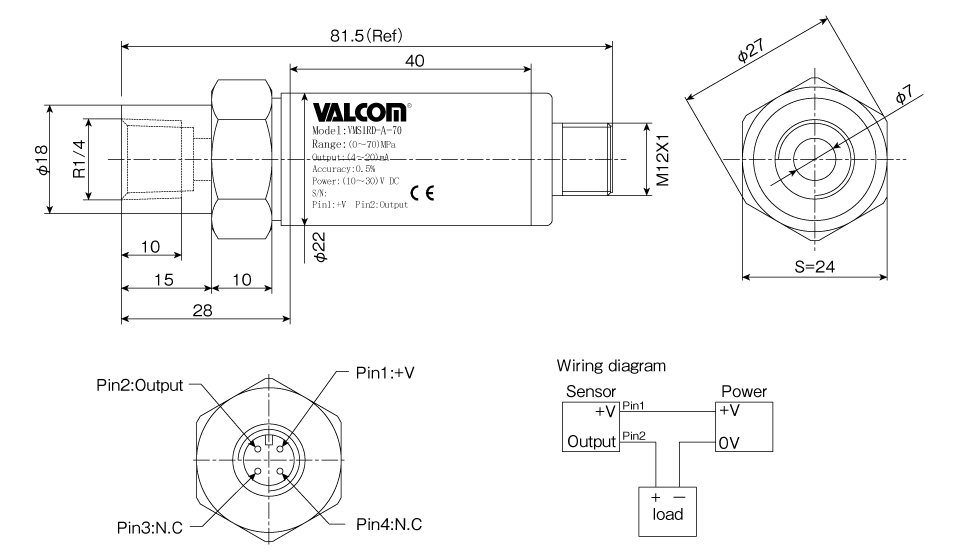

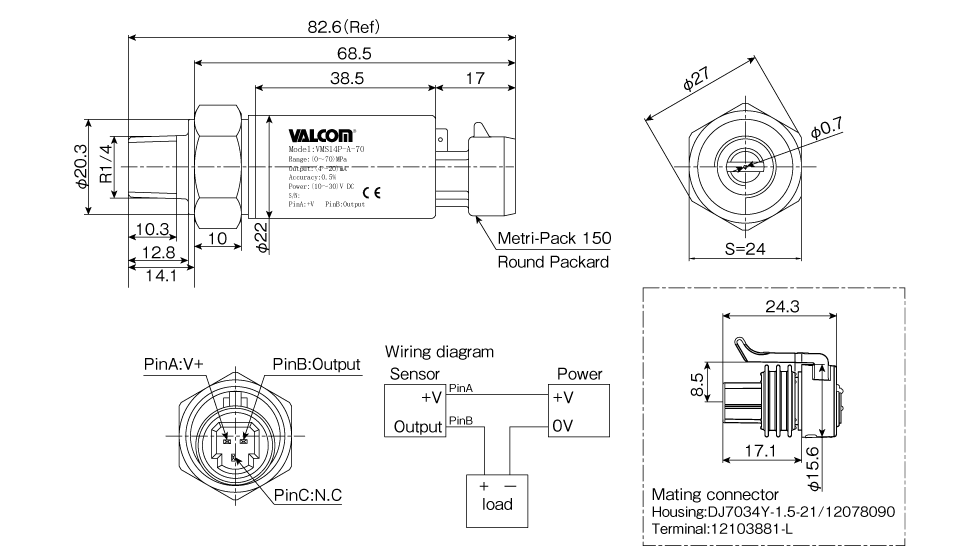

Reference Examples 9

  • Pressure Range 0 to 70MPa
    Power 10 to 30V DC
    Output signal 4 to 20mA
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance 0.25%F.S./10°C
    Temperature effect on span load 0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 95g (Body)
    Load Resistance 150Ω (@11V)
    500Ω (@24V)
    CE marking EMC directive, Europe RoHS directive conformity product

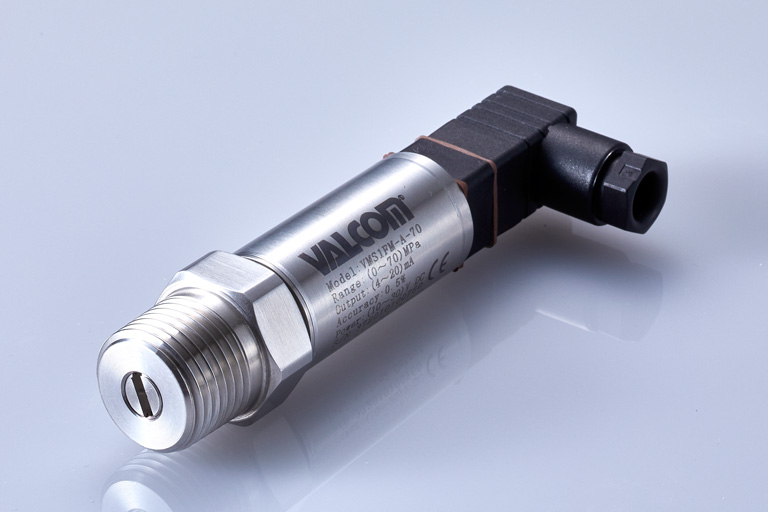

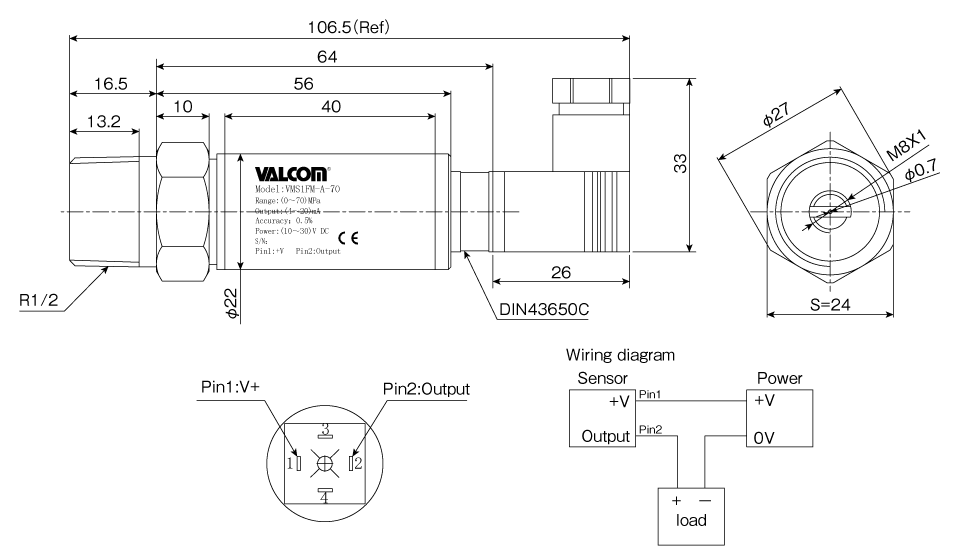

Reference Examples 10

  • Pressure Range 0 to 70MPa
    Power 10 to 30V DC
    Output signal 4 to 20mA
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP65 (Body)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 105g (Body)
    Load Resistance 150Ω (@11V)
    500Ω (@24V)
    CE marking EMC directive, Europe RoHS directive conformity product

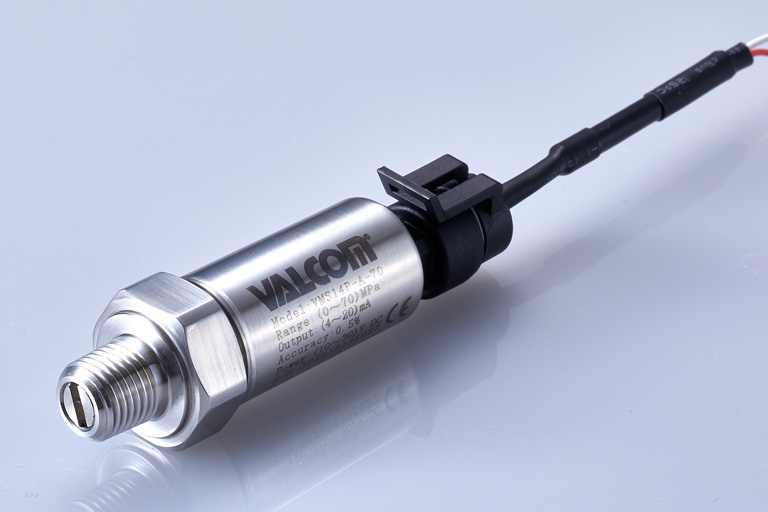

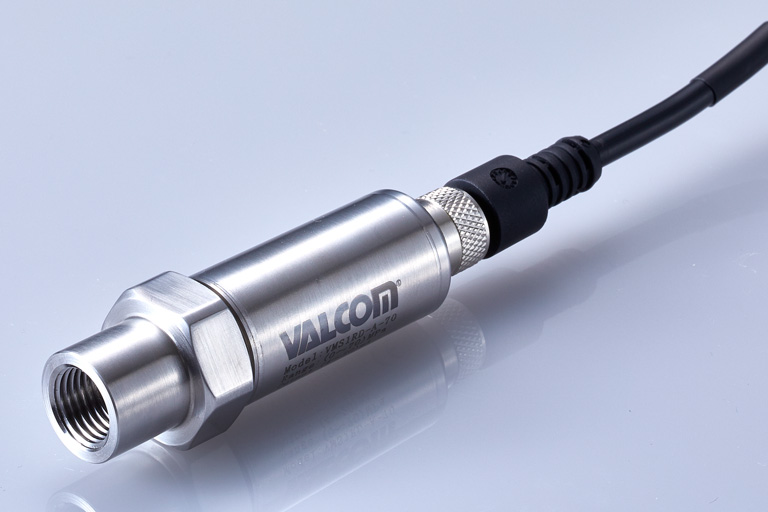

Reference Examples 11

  • Pressure Range 0 to 70MPa
    Power 10 to 30V DC
    Output signal 4 to 20mA
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance ±0.25%F.S./10°C
    Temperature effect on span load ±0.25%F.S./10°C
    Response time <1.5ms
    Protection rating IP67 (Using mating connectors)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 95g (Body)
    Load Resistance 150Ω (@11V)
    500Ω (@24V)
    CE marking EMC directive, Europe RoHS directive conformity product

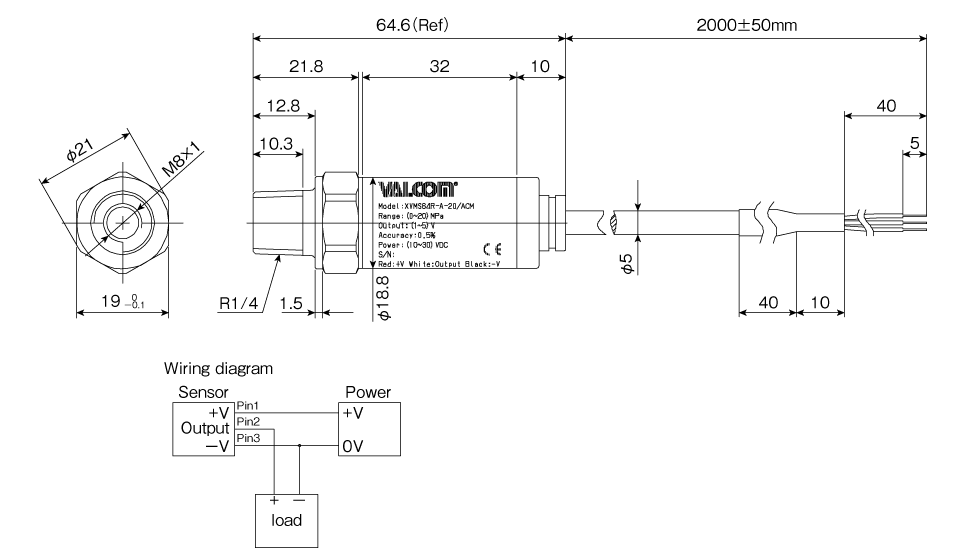

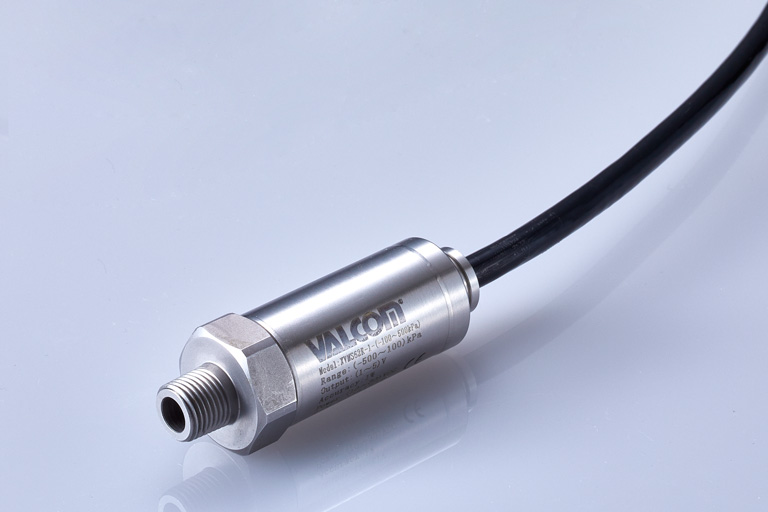

Reference Examples 12

  • Pressure Range 0 to 20MPa
    Power 10 to 30V DC
    Output signal 1 to 5V
    Accuracy(Non Linearity/Hysteresis/Repeatbility) ±0.5%F.S. (@25°C)
    Compensated temperature range −20 to 85°C
    Operating temperature range −40 to 125°C
    Storage temperature range −40 to 125°C
    Safe overload rating 2
    Burst overload rating 5
    Stability ±0.25%F.S./year
    Temperature effect on zero balance ±0.5%F.S./10°C
    Temperature effect on span load ±0.5%F.S./10°C
    Impact resistance 980m/s² (11msec or less)
    Vibration resistance 196m/s² (10Hz to 2kHz)
    Response time <1.5ms
    Protection rating IP66 (Body)
    Diaphragm 17-4PH
    Screw 17-4PH
    Case SUS304
    Dielectric strength >100MΩ (@250V DC)
    Withstand voltage 100V AC (1 minute between all terminals and case)
    Sensor weight 70g (Body)
    Load Resistance ≥2kΩ
    Operating current 5mA (Max)
    CE marking EMC directive, Europe RoHS directive conformity product

Membership is required to use the download service.
If you have already finished registration, log in from here.

■ E-mail address
■ Password

If not yet, click here to register for membership.
