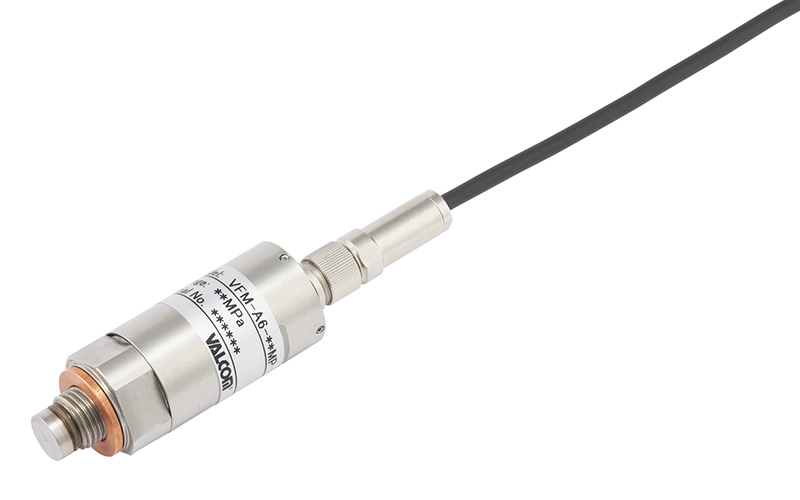

G1/4 Flush type Pressure Transmitter
VFM series1MPa–20MPa
- Small design (G1/4 thread)
- Suitable for measurement of viscous media since the flush type (no feed port) wetted part is hardly clogged up.
- Wetted part constructed integral with diaphragm does not use any sealed liquid, offering durability, reliability and long life.
| Measured medium | Water, oil, gases or other media that will not corrode SUS630. |
|---|---|
| Pressure Type | Positive pressure can be measured. |
| Measured Range | Rated capacity: 1 to 20MPa |
| Output type | 4 to 20mA (2 wire system) |
Specifications
| Accuracy(0 - 60°C) (*1) | ±1.0%R.O. |
|---|---|
| Temperature Effect on Zero Balance | ±0.8%R.O./10°C |
| Temperature Effect on Load | ±0.8%LOAD/10°C |
| Compensated Temperature Range (Temperature of medium to be measured) |
0–60°C (No condensation) |
| Safe Temperature Range (Temperature of medium to be measured) |
−20–60°C (No condensation) |
| Safe Overload Rating | 150%R.C. |
| Insulation Resistance | 1000MΩ or more (When 50V DC is applied) |
| Pressure Port Material | SUS630 |
| Connection Screw | G1/4 |
| Fastening Torque;Recommended | 20N･m |
| Fastening Torque;Maximum | 30N･m |
| Power | DC24V (11–28V) |
| Cable | φ4.7-2-core shielded cable |
| Weight | Approx. 100g (Cable not included) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy, Copper packing |
| Options (*2) | Aluminum packing for VFM |
- (*1)Accuracy: Non Linearity + Hysteresis + Temperature characteristics
- (*2)Not attached by default. Contact our sales office for details.
For Intrinsic Safety Explosion-proof Barrier
| Selection | Check | Model | Specifications | ||||
|---|---|---|---|---|---|---|---|
| 1.Model | ○ | VFM | G1/4 Flush type Pressure Transmitter (Standard: Copper packing included) (Option: Aluminum packing for VFM) |
||||
| 2.Analog output | - | - | - | Output type | Response frequency | Safe load resistance | Consumption current |
| A6 | Intrinsically safe explosion-proof approved | 4–20mA (2-wire) |
1kHz | DC24V: 500Ω or less |
- | ||
| M6 | Same as above (* Model in combination with MTL661 explosion-proof display) | ||||||
| 3.Calibration | - | - | Rated capacity | Example of calibration range | |||
| See right table. Enter the range in the as it is. |
1MPa(*3) | 1MP(0–1) MPa | |||||
| 2MPa | 2MP(0–2) MPa | ||||||
| 5MPa | 5MP(0–5) MPa | ||||||
| 10MPa | 10MP(0–10) MPa | ||||||
| 20MPa | 20MP(0–20) MPa | ||||||
| Cable Connection | ○ | - | Standard connector Equivalent to IP64 | ||||
| 5.Length(Cable) | Specify a cable from Cable Selection Table below. | ||||||
- * Scaling of explosion-proof display 0–100%
Standard Model Selection
| Selection | Check | Model | Specifications | ||||
|---|---|---|---|---|---|---|---|
| 1.Model | ○ | VFM | G1/4 Flush type Pressure Transmitter (Standard: Copper packing included) (Option: Aluminum packing for VFM) |
||||
| 2.Analog output | - | - | - | Output type | Response frequency | Safe load resistance | Consumption current |
| ○ | A6 | Pressure Transmitter | 4 to 20mA (2 wire system) | 1kHz | DC24V: 500Ω oe less | - | |
| 3.Calibration | - | - | Rated capacity | Example of calibration range | |||
| See right table. Enter the range in the as it is. |
1MPa | 1MPa(0–1) MPa | |||||
| 2MPa | 2MPa(0–2) MPa | ||||||
| 5MPa | 5MPa(0–5) MPa | ||||||
| 10MPa | 10MPa(0–10) MPa | ||||||
| 20MPa | 20MPa(0–20) MPa | ||||||
| Cable Connection | ○ | - | Standard connector Equivalent to IP64 | ||||
| 4.Power | ○ | 4 | DC24V (11–28V) | ||||
| 5.Length(Cable) | Specify a cable from Cable Selection Table below. *Only connector cable available |
||||||
Cable Selection Table
| Connector cable | ||
|---|---|---|
| Model | Length | Specifications |
| VFM-ER04-22AWG-2M | 2m | φ4.7 AWG22×2-core braided Shielded oilproof cable |
| VFM-ER04-22AWG-3M | 3m | |
| VFM-ER04-22AWG-5M | 5m | |
| VFM-ER04-22AWG-10M | 10m | |
| Cable between explosion-proof display–barrier | ||
| Model | Length | Specifications |
| VFM-DP-22AWG-2M | 2m | φ4.7 AWG22×2-core braided Shielded oilproof cable |
| VFM-DP-22AWG-3M | 3m | |
| VFM-DP-22AWG-5M | 5m | |
| VFM-DP-22AWG-10M | 10m | |

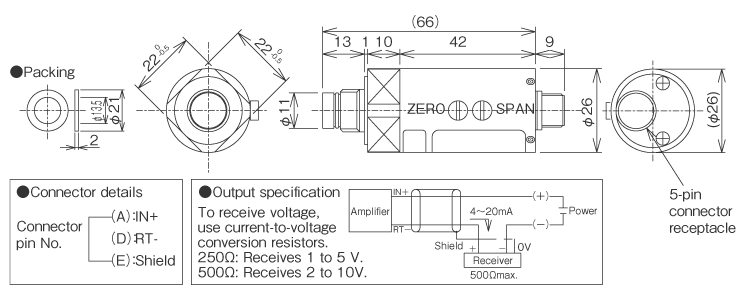

External dimensions (Unit: mm)
