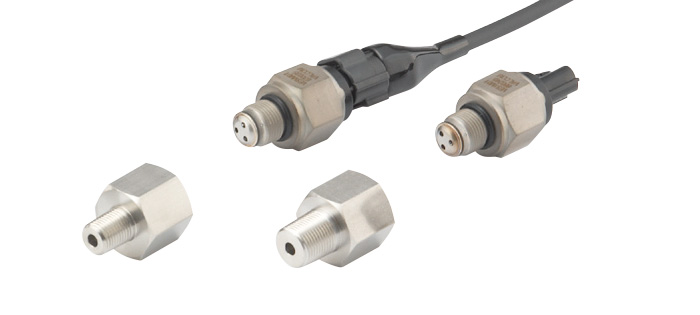

Miniature Pressure Transmitter (Mid-High)
VESV/VESI series1MPa–50MPa
- Suitable for location with abrupt pressure fluctuation thanks to the diaphragm cover.
- High environmental resistance
[Wide temperature compensation range / IPx7 rating / Vibration resistance: 196 m/s² (50 to 1000 Hz)] - Quick delivery and low price
| Measured medium | Water, oil, gases or other media that will not corrode SUS304. |
|---|---|
| Pressure Type | Positive pressure can be measured. |
| Measured Range | Rated capacity: 1 to 50MPa |
| Output type | Specify within 1 to 5 V for VESV, and 4 to 20mA (2 wire system) for VESI. |
Specifications
| Non Linearity | VESV:±0.3%R.C. or less (35, 50MPa:±0.5%R.C. or less) |
|---|---|
| VESI:±0.5%R.C. or less | |
| Hysteresis | VESV:±0.2%R.C. or less |
| VESI:±0.5%R.C. or less | |
| Total Accuracy | VESV:±3.0%R.C. or less (−20–120°C) |
| VESI:±3.0%R.C. or less (−20–100°C) | |
| Compensated Temperature Range (Temperature of medium to be measured) |
VESV:−20–120°C (No condensation or freezing) |
| VESI:−20–100°C (No condensation or freezing) | |
| Safe Temperature Range (Temperature of medium to be measured) |
VESV: −40–120°C (No condensation or freezing) |
| VESI: −40–100°C (No condensation or freezing) | |
| Response | 5msec. or less |
| Safe Load Resistance | VESV: 1kΩ or more |
| VESI: 11.5V:150Ω MAX./24V:500Ω MAX. | |
| Safe Overload Rating | 150%R.C. |
| Insulation Resistance | 10MΩ or more (DC50V) |
| Wetted Part Material | 1–5MPa: SUS304+Zirconia+SUS316L 10–50MPa: SUS304+Zirconia |
| Connection Screw | G3/8 |
| Fastening Torque | 68.6N·m or less |
| Vibration-proof | 196m/s² (50–1000Hz) |
| Protection | Equivalent to IP×7 |
| Power [Consumption current] | VESV:DC12V,DC24V (10–32V) [12mA or less] |
| VESI:DC12V,DC24V (10–26.5V) | |
| Cable | φ6mm 2- or 3-core shielded (oilproof) cable: 2m |
| Weight | Approx. 150g (Cable not included) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy P-14 1A (×1) |
- * Overall accuracy: Non Linearity + Hysteresis + Temperature characteristics
Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VES | Miniature Pressure Transmitter (Mid-High) *Connection screw: G3/8 |
|||
| 2.Analog output | - | - | Output type | Response frequency | Safe load resistance | Consumption current |
| V | 1–5V | 200Hz | 1kΩ or more | 12mA or less | ||
| I | 4–20mA (2-wire) |
DC24V: 500Ω or less/ DC11.5V: 150Ω or less |
- | |||
| 3.Calibration | - | - | Rated capacity | Example of calibration range | ||
| M01 | 1MPa | (0–1) MPa | ||||
| M03 | 3MPa | (0–3) MPa | ||||
| M05 | 5MPa | (0–5) MPa | ||||
| M10 | 10MPa | (0–10) MPa | ||||
| M20 | 20MPa | (0–20) MPa | ||||
| M35 | 35MPa | (0–35) MPa | ||||
| M50 | 50MPa | (0–50) MPa | ||||
| 4.Length (Cable) | 2m | 2m Standard | ||||
| 5m | 5m Option | |||||
| □□m | Other length *Contact our sales office for other cable lengths. | |||||
| 5.Screw Adaptor (Optional) |

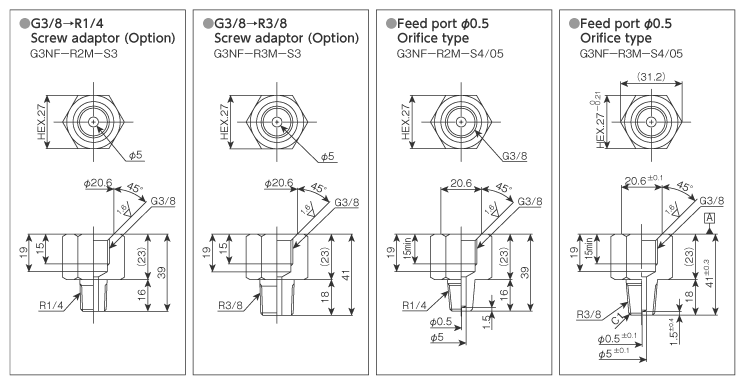

G3NF-R2M-S3 | G3/8 → R1/4 Screw adaptor (Optional) | ||||
| G3NF-R3M-S3 | G3/8 → R3/8 Screw adaptor (Optional) | |||||
| G3NF-R2M-S4/05 | G3/8 → R1/4 Screw adaptor, Feed port φ0.5, Orifice type | |||||
| G3NF-R3M-S4/05 | G3/8 → R3/8 Screw adaptor, Feed port φ0.5, Orifice type | |||||

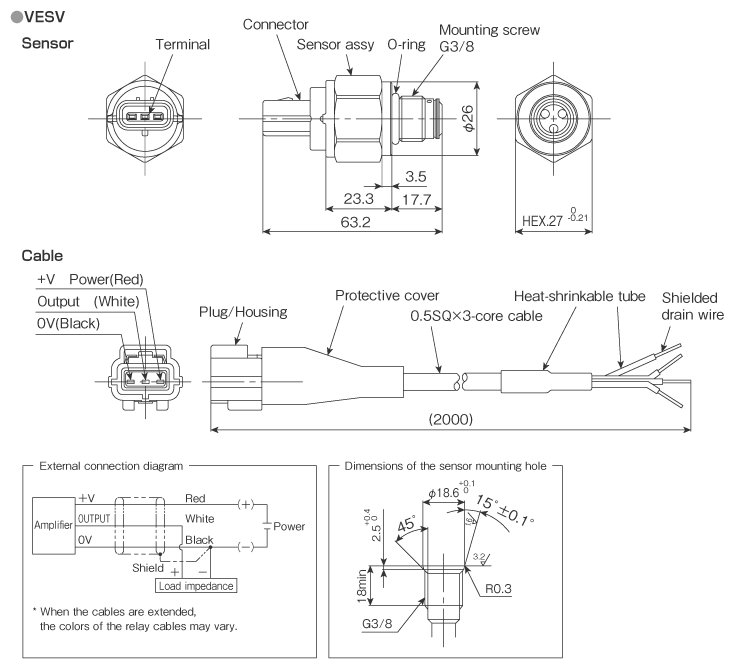

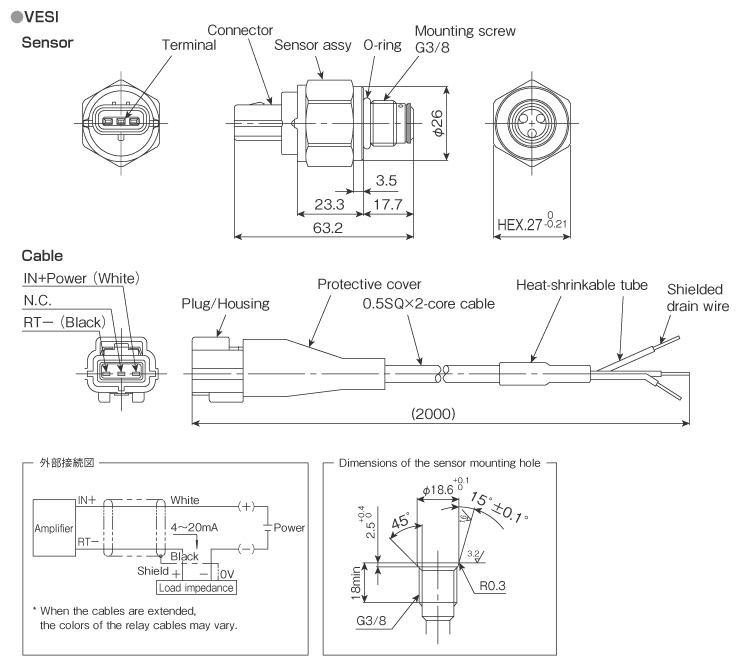

External dimensions (Unit: mm)
Pressure Sensor
