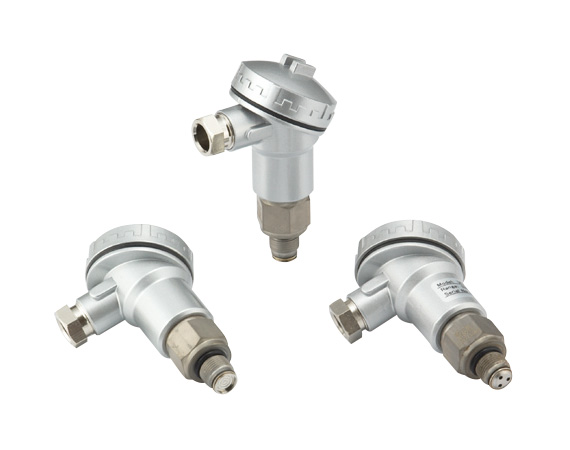

Miniature Pressure Transmitter (terminal box) for Middle High Pressure
VESIM□□T series1MPa–50MPa
- Suitable for location with abrupt pressure fluctuation thanks to the diaphragm cover.
- High environmental resistance (Wide temperature compensation range / IPx7 rating)
| Measured medium | Water, oil, gases or other media that will not corrode SUS304. |
|---|---|
| Pressure Type | Positive pressure can be measured. |
| Measured Range | Rated capacity: 1 to 50MPa |
| Output type | 4 to 20mA(2 wire system) |
Specifications
| Non Linearity | ±0.5%R.C. or less |
|---|---|
| Hysteresis | ±0.5%R.C. or less |
| Total Accuracy | ±3.0%R.C. or less (-10–55°C) |
| Compensated Temperature Range (Temperature of medium to be measured) |
−10–55°C |
| Safe Temperature Range (Temperature of medium to be measured) |
−10–55°C (0–95%R.H. No condensation or freezing) |
| Response | 10msec. or less |
| Safe Load Resistance | 11.5V: 150Ω MAX./24V:500Ω MAX |
| Safe Overload Rating | 150%R.C. |
| Wetted Part Material | 1–5MPa: SUS304+Zirconia+SUS316L 10–50MPa: SUS304+Zirconia |
| Insulation Resistance | 10MΩ or more (DC50V) |
| Connection Screw | G3/8 |
| Fastening Torque | 68.6N·m or less |
| Protection | Equivalent to IP×5 |
| Power [Consumption current] | DC12V，DC24V (10–26.5V) |
| Weight | Approx. 300g |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy P-14 1A (×1) Cable inlet port seal kit Packing for cable up to φ8mm in O.D. ×1 Packing for cable up to φ10mm in O.D. ×1 Washer ×1 |
- * Overall accuracy: Non Linearity + Hysteresis + Temperature characteristics
Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VES | Miniature Pressure Transmitter for Middle High Pressure *Connection screw: G3/8 |
|||
| 2.Analog output | - | - | Output type | Response frequency | Safe load resistance | Consumption current |
| ○ | I | 4–20mA (2-wire) |
200Hz | DC24V: 500Ω or less /DC11.5V: 150Ω or less |
- | |
| 3.Calibration | - | - | Rated capacity | Example of calibration range | ||
| M01 | 1MPa | (0–1) MPa | ||||
| M03 | 3MPa | (0–3) MPa | ||||
| M05 | 5MPa | (0–5) MPa | ||||
| M10 | 10MPa | (0–10) MPa | ||||
| M20 | 20MPa | (0–20) MPa | ||||
| M35 | 35MPa | (0–35) MPa | ||||
| M50 | 50MPa | (0–50) MPa | ||||
| 4.Cable Connection | ○ | T | Equivalent to IPx5, Cable not included | |||
| 5.Screw Adaptor (Optional) | G3NF-R2M-S3 | G3/8 → R1/4 Screw adaptor (Optional) | ||||
| G3NF-R3M-S3 | G3/8 → R3/8 Screw adaptor (Optional) | |||||
| G3NF-R2M-S4/05 | G3/8 → R1/4 Screw adaptor, Feed port φ0.5, Orifice type | |||||
| G3NF-R3M-S4/05 | G3/8 → R3/8 Screw adaptor, Feed port φ0.5, Orifice type | |||||

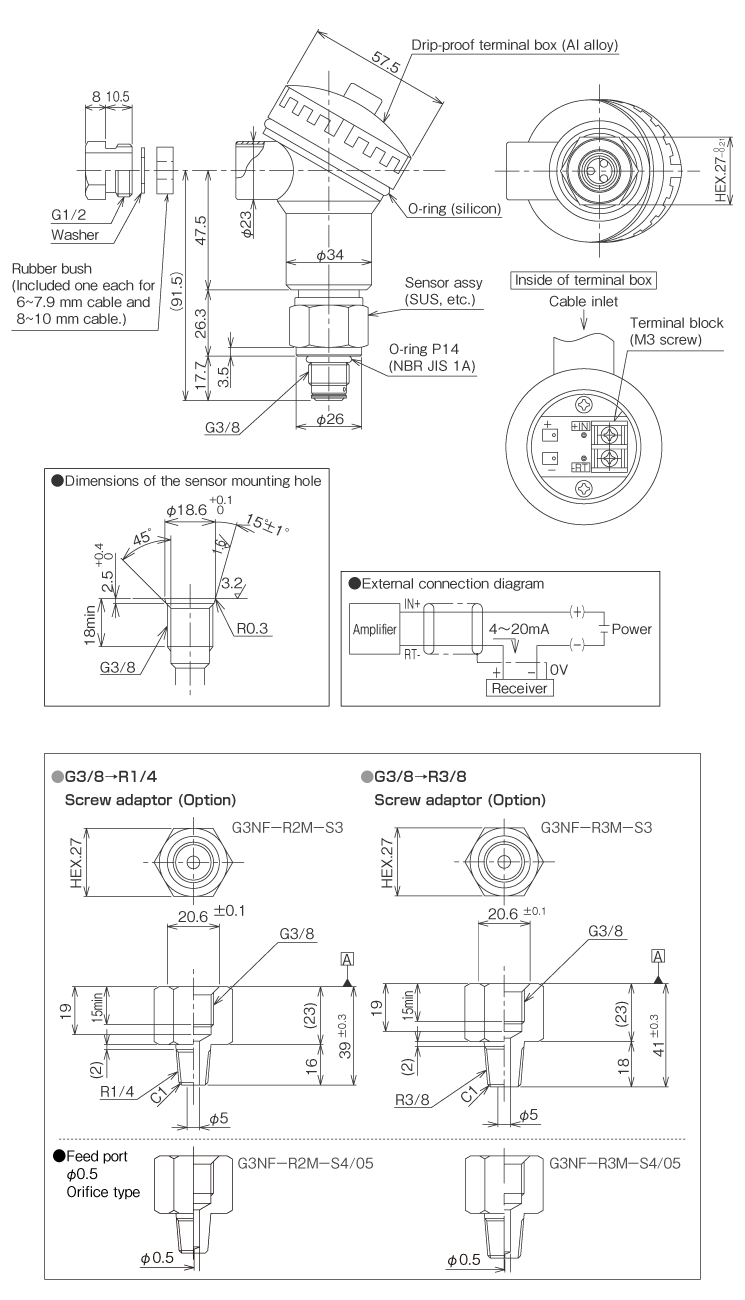

External dimensions (Unit: mm)
*Refer to line connection here
