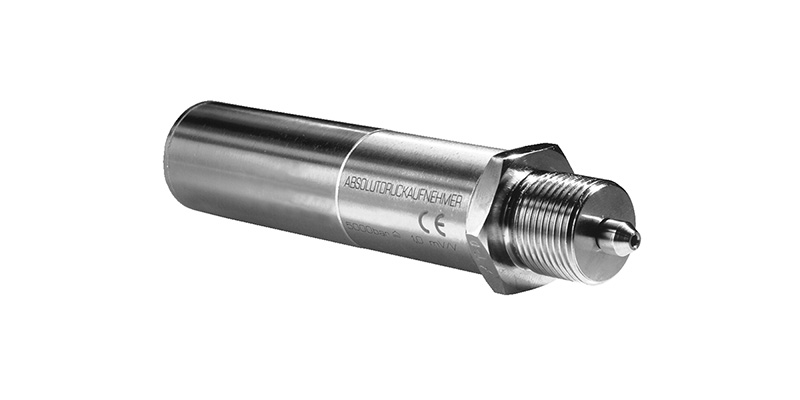

Excessive High Pressure Transducer (High Accurate)
P3MBP series5000–15000bar
Manufacturer:
Hottinger Brüel & Kjær GmbH (Germany)
our amplifiers
- Ultrahigh pressure: 5000 to 15000 bar / High accurate: 0.2 to 0.5%R.C.(Varies with the range.)
- Good reliability and stability.
- Measurement of changes in static/dynamic pressures, peak pressure and pressure fluctuation.
- Protection rating IP67 (Compliant with DIN 40050, IEC 529)
| Measured medium | Water, oil, gases or other media that will not corrode SUS630. |
|---|---|
| Pressure Type | Positive pressure can be measured. |
| Rated capacity | 5000, 10000, 15000 bar |
Specifications (Mechanical input characteristics)
| Pressure type | Absolute pressure | |
|---|---|---|
| Principle of Measurement | Strain gauge | |
| Rated capacity | 5000,10000,15000bar | |
| Initial Value | 0bar | |
| Operating Range at Reference Temperature | 120% | |
| Overload Limit at Reference Temperature | 120% | |
| Test Pressure | 5000bar: 200% 10000bar: 130% 15000bar: 100% | |
| Destructive Range | 5000bar: >200% 10000bar: >130% 15000bar: >100% | |
| Max. Dynamic Pressure (*1) | 5000bar: >100% 10000bar: >70% 15000bar: >55% | |
| Destructive Range | Permissible Vibration Amplitude (*1) | 5000bar: 3500bar 10000bar: 5000bar 15000bar: 6000bar |
| Natural Frequency of the Membrane | >100kHz | |
| Dead Volume (Approximation) | 5000bar: 615mm³ 10000bar: 150mm³ 15000bar: 100mm³ | |
| for Included Packing (5000bar only) | 5000bar: 200mm³ | |
| Control Volume | 1mm³ | |
| Material | of the Parts In Contact with the Measurement Medium | 5000bar: 1.4301,1.4542 10000,15000bar: 1.4542 |
| of the Parts In Contact with Environment | 1.4542, 1.4301, Nickel plating brass | |
- * This is a made-to-order model. Contact our sales office for details.
- (*1)As per DIN 50 100 (Load cycle: 107times)
Specifications (Output characteristics)
| Rated sensitivity | 1mV/V | |
|---|---|---|
| Sensitivity Tolerance | 5000bar: <±0.3% 10000bar: <±0.6% 15000bar: <±0.8% | |
| Temperature Effect on Zero Balance (*1) | Within rated temperature range | 5000bar: ±0.1% 10000bar: ±0.2% 15000bar: ±0.2% |
| In the Operating Temperature Range | 5000bar: ±0.15% 10000bar: ±0.25% 15000bar: ±0.25% | |
| Temperature Effect on Load (*1) | Within rated temperature range | 5000bar: ±0.1% 10000bar: ±0.2% 15000bar: ±0.2% |
| In the Operating Temperature Range | 5000bar: ±0.3% 10000bar: ±0.4% 15000bar: ±0.4% | |
| Nonlinearity including hysteresis | 5000bar: 0.2% 10000bar: 0.4% 15000bar: 0.5% | |
| Repeatability to DIN1319 | <±0.05% | |
| Bridge voltage | Rated bridge voltage | 5V |
| Operating range | 0.5–12V | |
| Input Resistance at Reference Temperature | 350±5Ω | |
| Output Resistance at Reference Temperature | 350±1.5Ω | |
| Isolation Resistance at 100V AC | 5000MΩ | |
Specifications (Ambient environment)
| Reference Temperature | +23°C | |
|---|---|---|
| Nominal Temperature Range | −10–+80°C | |
| Limiting Temperature Range | −40–+100°C | |
| Storage Temperature Range | −50–+100°C | |
| Impact Resistance (Test condition as per DIN 40046) | Impact Acceleration | 1000m/s² |
| Impact Duration | 4ms | |
| Impact Form | Half sine wave | |
Specifications (Mechanical specification)
| Pressure Connection 1-P3MB | M20×1.5 58°C Sealing cone packing (*3) | |
|---|---|---|
| Electrical Connection | ERA.2E.310.SLL (LEMO Japan, Ltd.) | |
| Bending Radius | Static | 35mm |
| Dynamic | 75mm | |
| Mounting Position | Desired position | |
| Dimension | φ25×123mm | |
| IP Rating | IP67 | |
| Weight | 200g (Cable not included) | |
| Accessories | Double cone seal (×1) | |
- (*3) Only the mode rated 5000 bar uses the packing.
Model Selection
| Selection | Check | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | ○ | P3MBP | Excessive High Pressure Transducer (High Accurate) | |
| 2.Rated Capacity (R.C.) | 5000 | 5000bar | ||
| 10000 | 10000bar | |||
| 15000 | 15000bar | |||
| 3.Cable Connection | ○ | Blank | Connector type | |
| 4.Length (Cable) | ○ | 7m | 7m | |

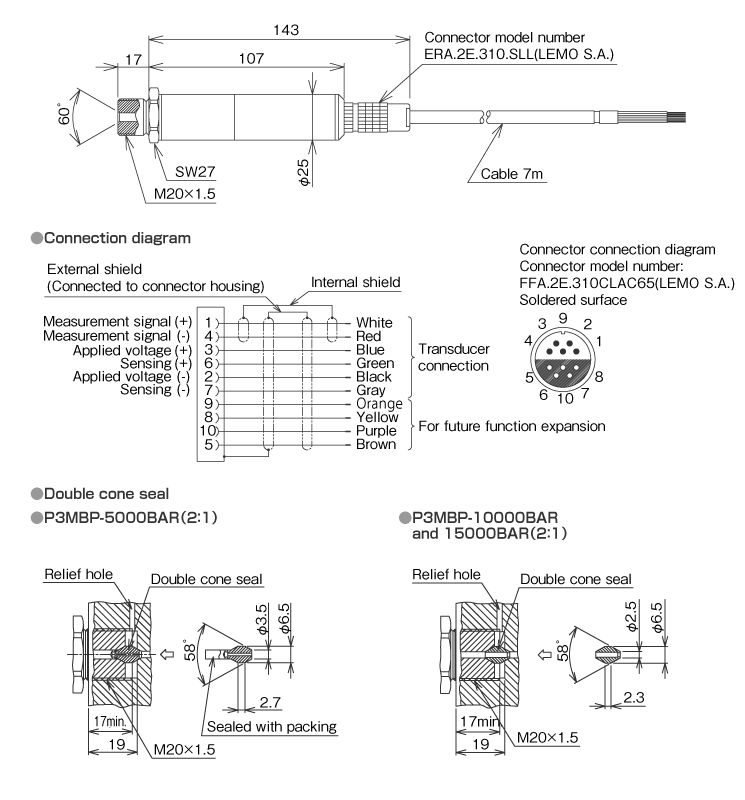

External dimensions (Unit: mm)
