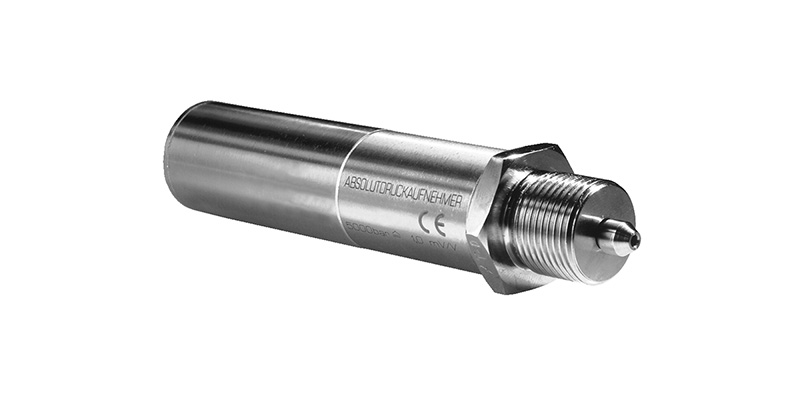

Excessive High Pressure Transducer (High Accurate)
P3MB series3000bar
Manufacturer:
Hottinger Brüel & Kjær GmbH (Germany)
our amplifiers
- Ultrahigh pressure: 3000 bar / High accurate: 0.2%R.C.
- Good reliability and stability.
- Measurement of changes in static/dynamic pressures, peak pressure and pressure fluctuation.
- Protection rating IP67 (Compliant with DIN 40050, IEC 529)
| Measured medium | Water, oil, gases or other media that will not corrode SUS630. |
|---|---|
| Pressure Type | Positive pressure can be measured. |
| Rated capacity | 3000 bar |
Specifications (Mechanical input characteristics)
| Pressure type | Absolute pressure | |
|---|---|---|
| Initial Value | 0bar | |
| Mechanical Values to VDI/VDE2600 by Reference to Full Scale Value | Operating Range at Reference Temperature | 0–150% |
| Overload Limit at Reference Temperature | 200% | |
| Test Pressure | 150% | |
| Destructive Range | >200% | |
| Max. Dynamic Pressure | 100% | |
| Max. Dynamic Vibration Amplitude to DIN 50 100 | 70% | |
| Natural Frequency of the Membrane | >100kHz | |
| Dead Volume | 900mm³ | |
| Control Volume | 1.5mm³ | |
| Material | of the Parts In Contact with the Measurement Medium | 1.4542 |
| of the Parts In Contact with Environment | 1.4542, 1.4301, Nickel plating brass Chloroprene natural rubber, Silicon |
|
- * This is a made-to-order model. Contact our sales office for details.
Specifications (Output characteristics)
| Rated sensitivity | 1.5±0.15%mV/V | |
|---|---|---|
| Nonlinearity including hysteresis | ±0.2% | |
| Repeatability to DIN1319 | ±0.05% | |
| Temperature Effect on Load (*1) | Within rated temperature range | ±0.1% |
| In the Operating Temperature Range | ±0.2% | |
| Temperature Effect on Zero Balance (*1) | Within rated temperature range | ±0.1% |
| In the Operating Temperature Range | ±0.15% | |
| Rated bridge voltage | 5V | |
| Operating range (Valid value) | 0.5–12V | |
| Input Resistance at Reference Temperature | 350±5Ω | |
| Output Resistance at Reference Temperature | 350±1.5Ω | |
| Isolation Resistance at 500V AC | 5000MΩ | |
- (*1) Effect of temperature change per 10k within the rated range of bridge applied voltage (Percentage of measured value)
Specifications (Ambient environment)
| Reference Temperature | +23°C | |
|---|---|---|
| Nominal Temperature Range | −10–+80°C | |
| Limiting Temperature Range | −40–+100°C(Up to 120°C within 24 hours) | |
| Storage Temperature Range | −50–+100°C | |
| IP Rating (DIN 40050, IEC 529) | IP67 | |
Specifications (Mechanical specification)
| Pressure Connection | M20×1.5 | |
|---|---|---|
| Weight (Approximation) | 200g (Cable excluded) | |
| Accessories | Double cone seal (×1) | |
Model Selection
| Selection | Check | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | ○ | P3MB | Excessive High Pressure Transducer (High Accurate) | |
| 2.Rated Capacity (R.C.) | ○ | 3000 | 3000bar | |
| 3.Cable Connection | ○ | Blank | Connector type | |
| 4.Length (Cable) | ○ | 3m | 3m | |

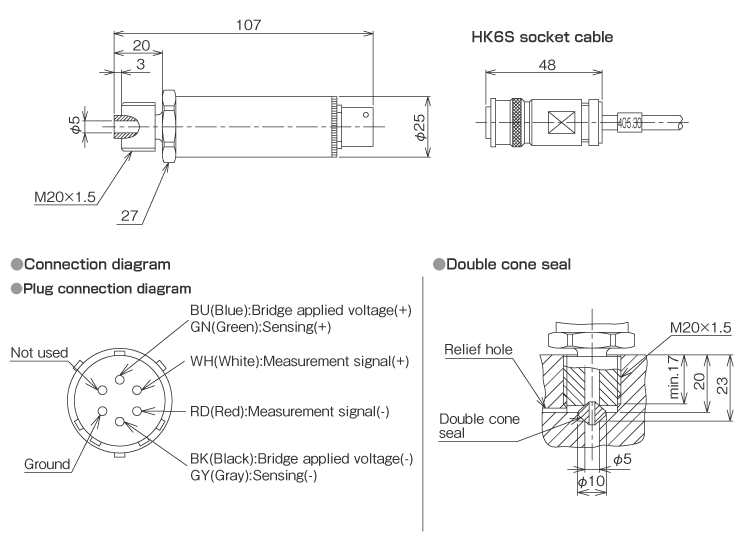

External dimensions (Unit: mm)
Pressure Sensor
