Conversion adaptor
| Conversion adaptor | Photo | Model | Application pressure sensor | Note |
|---|---|---|---|---|
| For R1/4 |  |
G3NF-R2M-S3 (G3/8 → R1/4 Material: SUS304) |
Pressure sensor of G3/8 screw "VESV" "VESI" "VESIM□□T" "VESIM□□A" |
Dedicated joint of VALCOM |
| For R3/8 |  |
G3NF-R3M-S3 (G3/8 → R3/8 Material: SUS304) |
||
| For R3/8 | |
G3/8 → R3/8 (Material: SUS316) |
Pressure sensor of G3/8 screw "VPRTF" "VPVTF" "VPRQF" "VPVQF" |
Other companies product |
| For R1/4 | |
G3/8 → R1/4 (Material: SUS316) |
||
| For R1/2 |  |
G3/8 → R1/2 (Material: SUS316) |
||
| For G1/2 |  |
G3/8 → G1/2 (Material: SUS316) |
||
| For G1/4 |  |
G3/8 → G1/4 (Material: SUS316) |
||
| For R3/8 Surge pressure absorption |
 |
J2 joint (R3/8→ R3/8 Material: SUS303) R3F-R3M-S3 (Joint body) FS10-013 (Throttle) (*1) |
Dedicated R3/8 "VPRT" "VPVT" "VPRQ" "VPVQ" |
Dedicated joint of VALCOM |
- *Contact our sales office for price and delivery.
- (*1) Combination with pressure sensor & model No.: Add "-J2" to the end of pressure sensor model No.
Oil is sealed in the joint. Contact us separately for the kind of oil.
Protective joint against excessive pressure or surge pressure

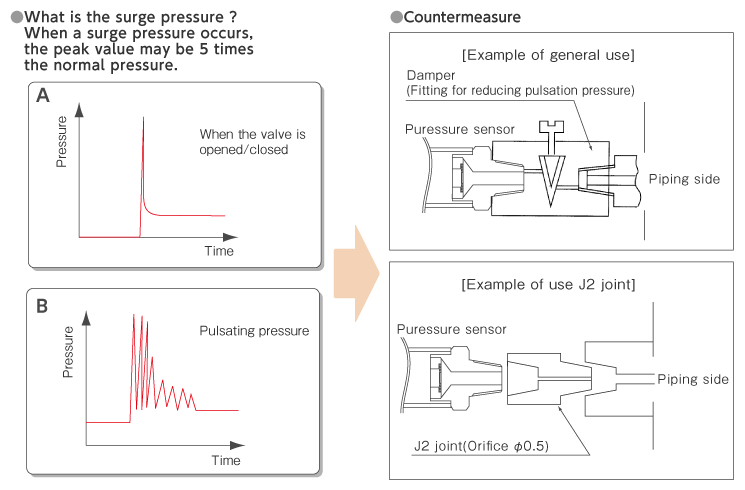

| What is the surge pressure ? | When a surge pressure occurs, the peak value may be several times the normal pressure. (More than five times in case of injection molding machines) Surge pressure exceeding the allowable pressure may cause the sensor to break down. |
|---|---|
| Countermeasure | 1. Generally, a "damper (fitting for reducing pulsation pressure)" sold by pressure meter suppliers is used. 2. When combined with VALCOM pressure sensors, a conversion adapter with orifice "J2 Joint" may be used. (See table above.) Applicable to the VALCOM VPRT/VPVT/VPRQ/VPVQ series. *Contact our sales office for details or questions. |
 |
|
- * Refer to "FAQ" for the layout for avoiding impact pressure, surge pressure and water hammer to the pressure sensors.
For "Cable Unit" for the Pressure sensor
| Target model (Strain gauge output) |
|---|
| VPRT, VPRTF, VPVT, VPVTF, VPRQ, VPRQF, VPVQ, VPVQF, VHR3, VHG3, VAR3, VAG3 VPNPR, VPNPG, VPRF, VNF |
| Target model (Process output) |
| VRSR, VHR3, VHG3, VAR3, VAG3, VPNPR, VPNPG, VPRT, VPRTF, VPRQ, VPRQF, VPVT, VPVQ VPRF, VNF, HS1, HV1, AS1, AV1, NS1, NV1 |
Makeup
Strain gauge output
Process output

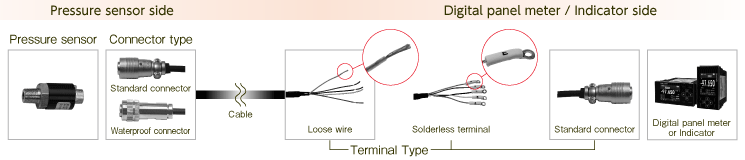

Model Selection (Strain gauge output)
| Selection | Check | Model | Specifications |
|---|---|---|---|
| 1.Connector Type (Sensor Side) |
K | Standard connector (Made in Tajimi): PRC03-12A10-7M | |
| W | Waterproof connector (Made in Tajimi): 1108-12A10-7M | ||
| 2.Terminal Type (Indicator Side) |
N | Loose wire Standard | |
| T | Solderless terminal (M3 Round terminal) | ||
| K | Standard connector (Made in Tajimi):PRC03-12A10-7M | ||
| 3.Cable Type | S3 | Standard (φ6mm 0.3SQ×4-core braided shielded oilproof cable) |
|
| T3 | For minute pressure (φ6.5mm 0.3SQ×4-core braided shielded oilproof cable / In tube) |
||
| S5 | For Intrinsically safe explosion-proof (φ6.5mm 0.5SQ×4-core braided shielded oilproof cable) |
||
| T5 | For intrinsically safe explosion-proof and minute pressure (φ8mm 0.5SQ×4-core braided shielded oilproof cable / In tube) |
||
| KV | For flex resistant (φ8mm 0.5SQ×4-core braided shielded flex-resistant cable) |
||
| HS | For heat resistance (φ5mm 0.3SQ×4-core braided shielded heat resistance cable (Compensated temperature 150°C)) |
||
| 4.Cable length | 3M | 3m | |
| 5M | 5m | ||
| 10M | 10m | ||
| □□M | m Can be specified up to 100m | ||
| 5.Special (Type) | Blank | If none of the following applies | |
| VEK | When connecting to zener barrier (Terminal treatment: T) |
- * Contact our sales office for the combination of pressure sensors and digital meters and selection of models.

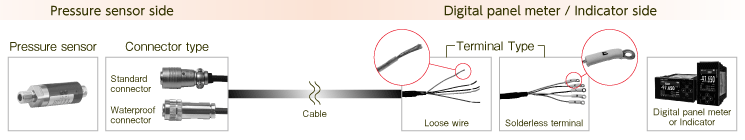

Model Selection (Process output)
| Selection | Check | Model | Specifications |
|---|---|---|---|
| 1.Connector Type (Sensor Side) |
K | Standard connector (Made in Tajimi): PRC03-12A10-7M | |
| W | Waterproof connector (Made in Tajimi): 1108-12A10-7M | ||
| 2.Terminal Type (Indicator Side) |
N | Loose wire Standard | |
| T | Solderless terminal (M3 Round terminal) | ||
| 3.Cable Type | S3 | Standard (φ6mm 0.3SQ×4-core braided shielded oilproof cable) |
|
| T3 | For minute pressure (φ6.5mm 0.3SQ×4-core braided shielded oilproof cable / In tube) |
||
| S6 | For 4–20mA 2 wire system (φ6.5mm 0.5SQ×2-core braided shielded oilproof cable) |
||
| T6 | For 4–20mA 2 wire system (φ6mm 0.5SQ×2-core braided shielded oilproof cable / In tube) |
||
| 4.Cable length | 2M | 2m | |
| 3M | 3m | ||
| 5M | 5m | ||
| 10M | 10m | ||
| □□M | m Can be specified up to 100m | ||
| 5.Special (Type) | Blank | If none of the applies |
- * Contact our sales office for more information about the combination of pressure transmitters and cables.
