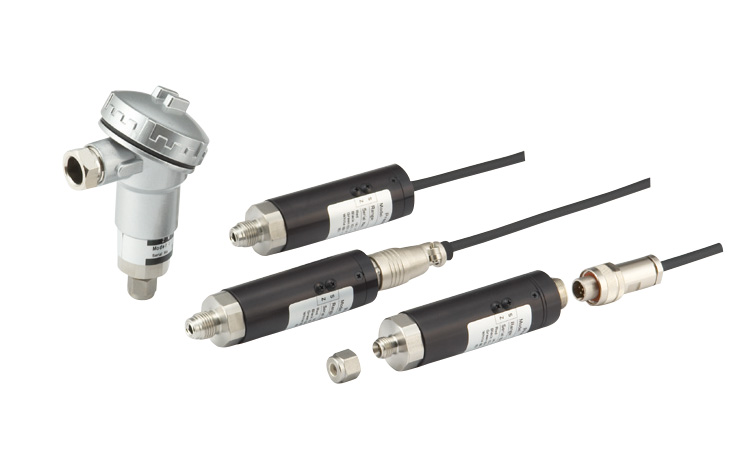

Pressure Transmitter for Semiconducting Industry
NS1/NV1 series100kPa–700kPa
100kPa abs–700kPa abs
100kPa abs–700kPa abs
- Equivalent to VCR/Swagelok® with high leak-proof performance adopted.
- Atmospheric pressure reference and absolute pressure reference available.
| Measured medium | Water, oil, gases or other media that will not corrode SUS316L. |
|---|---|
| Pressure Type | Positive, compound, negative and absolute pressures can be measured. |
| Measured Range | Can be specified within the range of 100 kPa to 700 kPa (Calibration: 50 to 700kPa) of rated capacity. Specify more than 50% of rated capacity as the calibration range. |
| Output type | 4–20mA (2 wire system, 4 wire system), Specify among 4 to 20 mA (2-wire, 4-wire), 1 to 5 V, 0 to 5 V, and 0 to 10 V. |
Specifications
| Non Linearity | ±0.25%R.C. |
|---|---|
| Hysteresis | ±0.05%R.C. |
| Compensated Temperature Range (Temperature of medium to be measured)) |
0–70°C (No condensation or freezing) |
| Safe Temperature Range (Temperature of medium to be measured) |
−20–80°C (No condensation or freezing) |
| Temperature Effect on Zero Balance | ±1%R.C./0–70°C (For25°C) |
| Temperature Effect on Load | ±1%R.C./0–70°C (For25°C) |
| Safe Overload Rating | 200%R.C. |
| Ultimate Overload Rating | 300%R.C. |
| Insulation Resistance | 100MΩ or more (DC50V) |
| Pressure Port Material | SUS316L |
| Connection Screw | Swagelok® tube fitting 1/4 or equivalent VCR 1/4 external thread or equivalent can be selected. |
| Oil | Silicon oil |
| Cable | 4-core shielded (oilproof) cable 2m(Standard) φ6mm Cable in tube is used for the gauge pressure model of waterproof connector and pigtail types |
| Weight | Approx. 150g (Cable not included) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy |
Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | NS1 | Swagelok® tube fitting 1/4 or equivalent | ||||
| NV1 | VCR1/4 Male screw or equivalent | |||||
| 2.Analog output *Only A6 available for waterproof terminal box type |
- | - | Output type | Response frequency | Safe load resistance | Consumption current |
| A2 | 1–5V | 200Hz | 5kΩ or more | Approx. 23mA | ||
| A3 | 4–20mA (4-wire) | DC24V: 500Ω or less/ DC12V: 250Ω or less |
Approx. 40mA | |||
| A4 | 0–5V | 5kΩ or more | Approx. 23mA | |||
| A5 | 0–10V | 5kΩ or more | Approx. 23mA | |||
| A6 | 4 to 20mA (2-wire system) | DC24V: 500Ω or less/ DC12V: 150Ω or less |
- | |||
| 3.Calibration | - | - | Rated capacity | Example of calibration range | ||
| See right table. Enter the range in the as it is. |
100kPa | 100kPa (0–100) kPa |
±50kPa (-50–50) kPa |
100kPa (abs) (0–100) kPa abs |
||
| 200kPa | 200kPa (0–200) kPa |
±100kPa (-100–100) kPa |
200kPa (abs) (0–200) kPa abs |
|||
| 700kPa | 700kPa (0–700) kPa |
-100–700kPa (-100–700) kPa |
700kPa (abs) (0–700) kPa abs |
|||
| 4.Cable Connection | N | Standard connector Equivalent to IP40 | ||||
| W | Waterproof connector Equivalent to IP56 | |||||
| S | Pigtail Equivalent to IP54 | |||||
| T | Waterproof terminal box type Equivalent to IP55 *Applicable only when analog output is A6. Cable not included | |||||
| 5.Power | 4 | DC24V | ||||
| 5 | DC12V *Not available when analog output is A5 | |||||
| 6.Length (Cable) | 2m | 2m Standard | ||||
| 3m | 3m | |||||
| 5m | 5m | |||||
| 10m | 10m | |||||
| □□m | Other length *Contact our sales office for other cable lengths. |
|||||

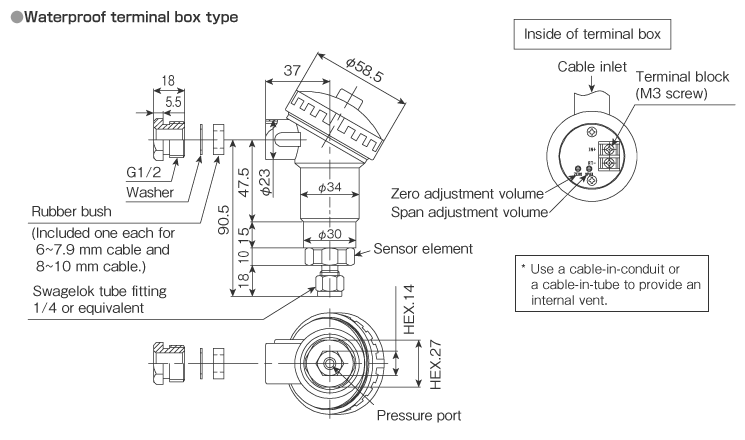

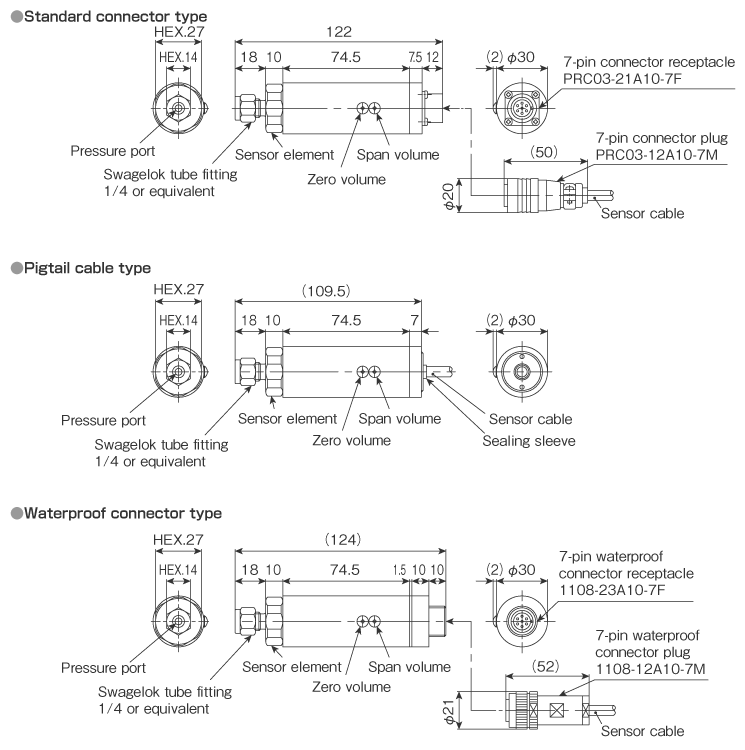

NS1 External dimensions(Unit: mm)

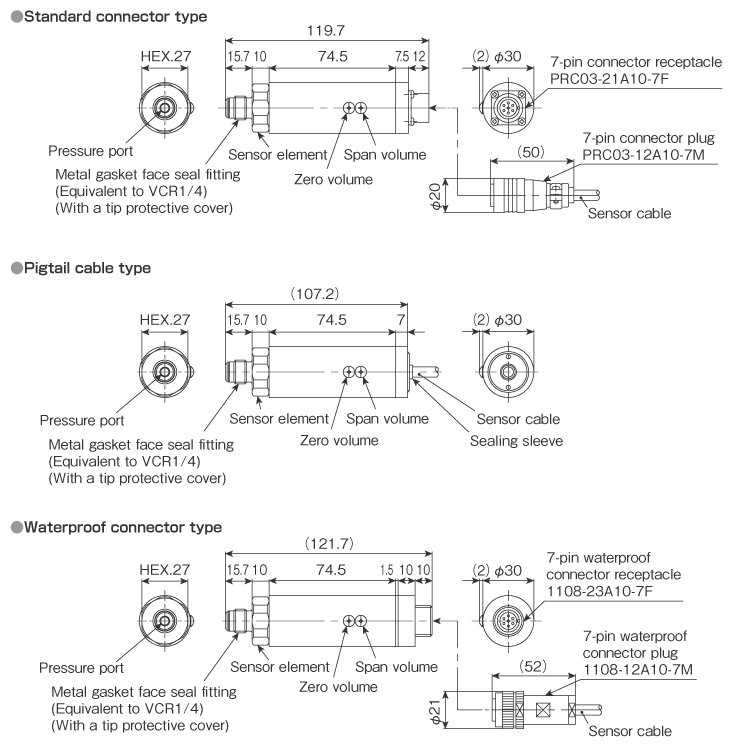

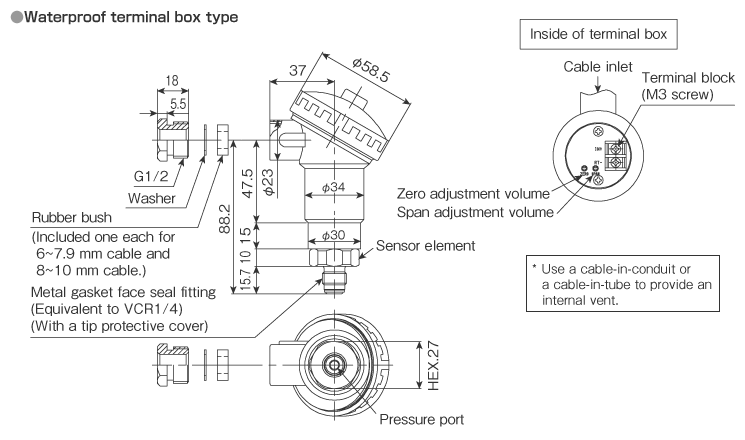

NV1 External dimensions(Unit: mm)
