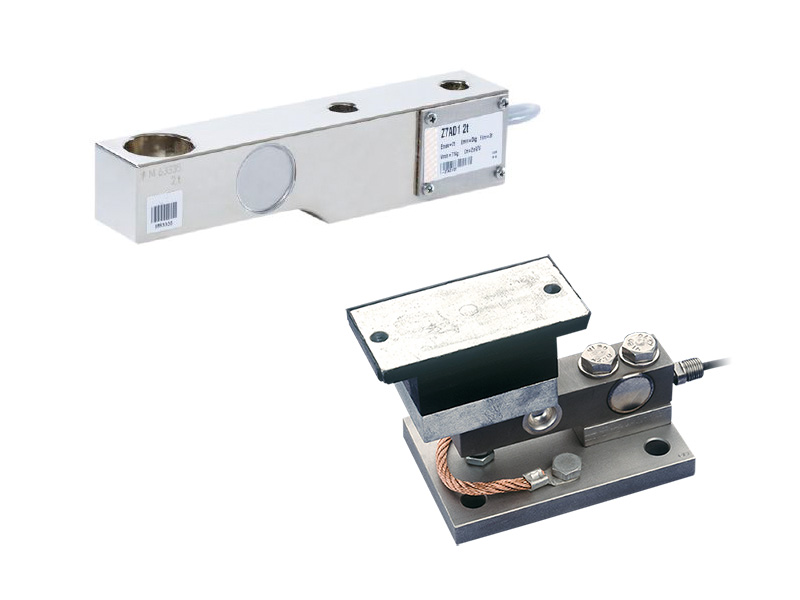

High Capacity Beam Load Cell
VZ7AC3

VZ7AC3

Sold separately: Elastomer bearing

  • High Capacity Beam Load Cell (Rating: 5TON, 10TON)
  • Compact design of low overall height.
  • Made of galvanized steel
  • IP Rating: IP67

Specifications

Rated output 2mV/V±0.05%
Nonlinearity ±0.0333%R.C.
Hysteresis ±0.0170%R.C.
Zero balance ±10%R.O.
Temperature effect on zero balance ±0.0140%R.C./10°C
Temperature effect on load ±0.0117%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −30–70°C (No condensation or freezing)
Input terminal resistance 350Ω or more
Output terminal resistance 356±0.12Ω
Recommended excitation voltage 0.5–12V
Maximum excitation voltage 18V
Insulation resistance 2GΩ or more
IP rating IP67 (Note 1)
Cable φ5.4-6-core Shielded cable 6m
  • Creep 30min: 0.0166%R.C.
  • Eccentric error: ±0.0233%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. L+0.2 MMH11 J B
  VZ7AC3-5t 49.03N 0.45mm 41.3 25.5 22.5 70
  VZ7AC3-10t 98.07N 0.70mm 51 27 27 82.6
Model H N A D F G E C K1 K2 Weight
VZ7AC3-5t 22.2 15.9 235 118 123.7 66.5 20.6 47.6 16 46 Approx. 5kg
VZ7AC3-10t 19.1 20.7 279.4 140 139.7 82.6 25.4 60.3 21 51 Approx. 8kg

Model selection

Selection Elastomer bearing Model Rated capacity B L P R T X Y Z a e
  VZ17/5T/ZEL-5t 49.03N 93 210.8 70 125 11 150 100 10 147+1.2-2.0 47.6
  VHLCB/10T/ZEL-10t 98.07N 114.1 247.7 90 175 13 200 100 12 176+1.8-2.0 60.3

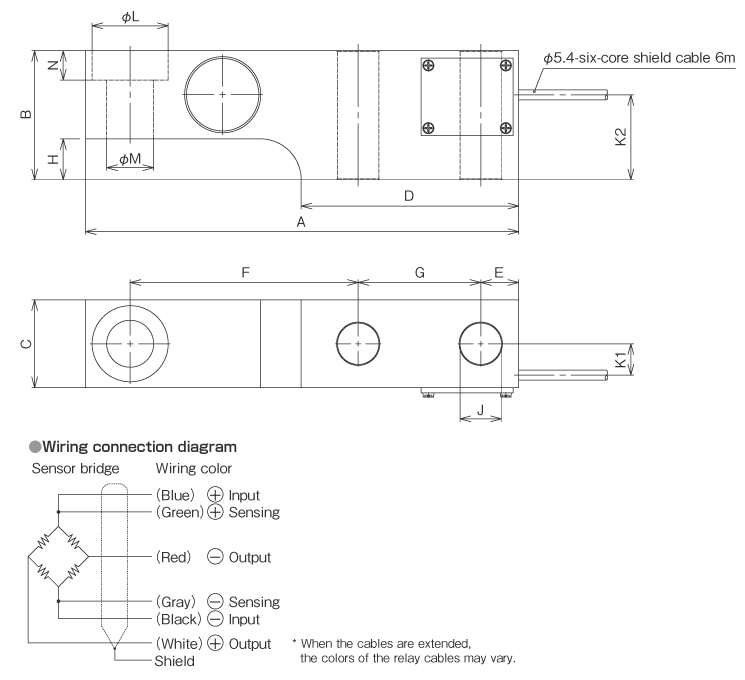

External dimensions (Unit: mm)

External dimensions
Load Cell
