NEW

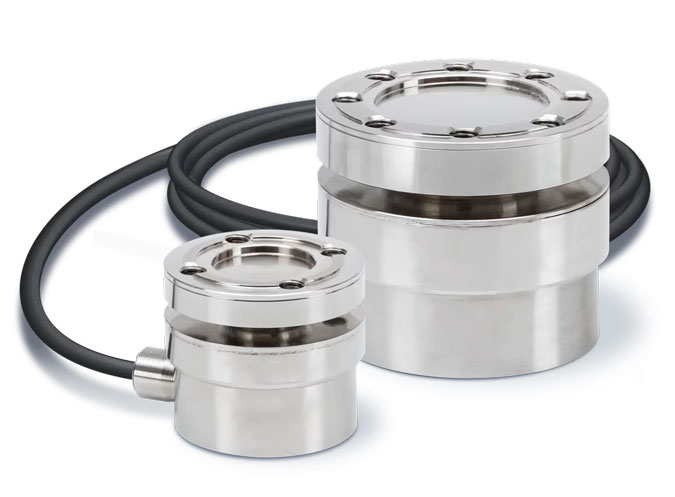

Side-force Resistant Flat type Load Cell
VU93A series
1kN–50kN
- Lateral force correction mechanism static limit stress 100 – 800% R.C.
- Double-sided flange
- Low-profile design
- Oil-resistant cable
Specifications
| Rated output | 1 – 1.5mV/V |
|---|---|
| Nonlinearity | ±0.2%R.C. |
| Hysteresis | ±0.2%R.C. |
| Repeatability | ±0.1%R.C. |
| Zero balance | −0.2 – +0.2mV/V |
| Temperature effect on zero balance | ±0.2%R.C./10°C |
| Temperature effect on load | ±0.2%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Temperature compensation range | −10 – 70°C |
| Safe temperature range | −30 – 85°C |
| Input terminal resistance | Over 295Ω |
| Output terminal resistance | 295 – 400Ω |
| Recommended excitation voltage | 5V or less |
| Maximum excitation voltage | 0.5–12V |
| Insulation resistance | Over 5GΩ |
| IP rating | IP68 (Test conditions: submerged in a 1m deep water tank for 100 hours) (Note 1) |
| Cable | φ4-6-core Shielded cable 3m Polyurethane coating, Minimum bending radius: 22mm |
- (*) Creep 30min ±0.1%R.C.
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Model | Rated capacity | Deflection at R.C. | Influence of lateral force | Limiting bending moment at rated capacity (*1) | Static limiting stress (the value when the rated capacity is loaded) (*1) |
Allowable relative live load |
|---|---|---|---|---|---|---|
| VU93A-1KN | 1kN | 0.023mm | 0.2% | 15Nm | 800%R.C. | 150%R.C. |
| VU93A-2KN | 2kN | 30Nm | 500%R.C. | |||
| VU93A-5KN | 5kN | 0.033mm | 0.5% | 45Nm | 200%R.C. | |
| VU93A-10KN | 10kN | 0.051mm | 120Nm | 100%R.C. | ||
| VU93A-20KN | 20kN | 0.052mm | 0.4% | 380Nm | 200%R.C. | |
| VU93A-50KN | 50kN | 0.082mm | 350Nm | 100%R.C. |
| Selection | Model | φA | φB | φCH8 | D | E | F | G | ±0.1 φK |
M | Weight (*2) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VU93A-1KN | 35 | 33 | 18 | 6.2 | 9 | 7 | 30.5 | 26 | M5 | 150g | |
| VU93A-2KN | |||||||||||
| VU93A-5KN | |||||||||||
| VU93A-10KN | |||||||||||
| VU93A-20KN | 54 | 51 | 32 | 11 | 12 | 10 | 48 | 42 | M6 | 530g | |
| VU93A-50KN |
- (*1) Specifications of the measurement body: Please adhere to the mechanical limits of the screws used.
- (*2) Excluding cable

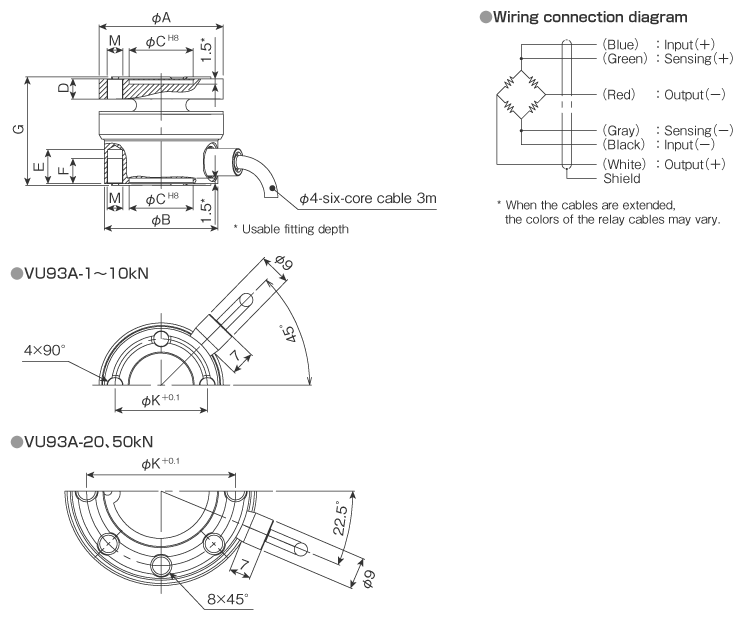

External dimensions (Unit: mm)
Load Cell
