Made-to-order

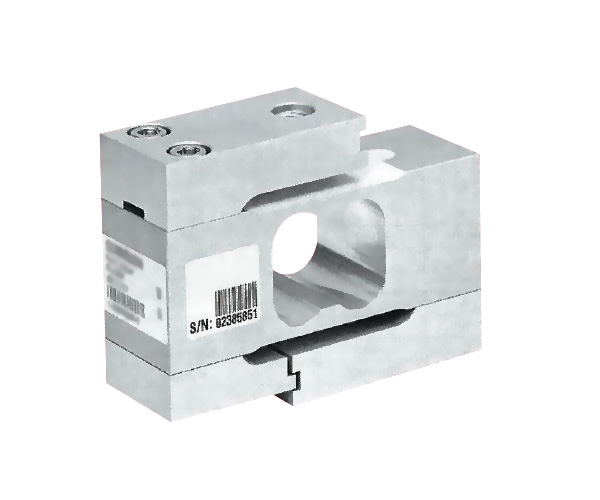

S type Load Cell (Overload Protection)
VS2M series
10N–1000N
- Overload protection mechanism included (Safe Load Limit: 1000%R.C.)
- High accuracy and compact
- For tensile and compressive loads
Specifications
| Rated output | 2mV/V±0.25% |
|---|---|
| Nonlinearity | ±0.02%R.C. |
| Hysteresis | ±0.02%R.C. |
| Zero balance | ±5%R.O. |
| Temperature effect on zero balance | ±0.02%R.C./10°C |
| Temperature effect on load | ±0.02%R.C./10°C |
| Relative sensitivity difference in power compression / tension |
±0.1%R.O. |
| Safe Load Level | 150%R.C. |
| Safe Load Limit | 1000%R.C. |
| Service Load | 1000%R.C. |
| Allowable relative dynamic load | 140% |
| Rated Temperature Range | 10–45°C |
| Operating Temperature Range | −10–70°C |
| Storage Temperature Range | −10–85°C |
| Input terminal resistance | 345Ω or more |
| Output terminal resistance | 350Ω±50Ω |
| Recommended excitation voltage | 5V or less |
| Safe excitation voltage | 0.5–12V |
| Insulation resistance | 2GΩ |
| Static Lateral Limit Force | 100%R.C. |
| Weight (Including cable) | 0.5kg (Approximation) |
| IP Rating | Equivalent to IP67 (Note 1) |
| Cable | 6-core Cable 6m |
- Creep 30min: ±0.02%R.C.
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Critical Torque | Bending Moment Limit | Deflection at R.C. | Natural Frequency of the Membrane |
Weight |
|---|---|---|---|---|---|---|---|
| VS2M-10N | 10N | 4N·m | 6N·m | 0.27mm | 94.4Hz | 0.5kg | |
| VS2M-20N | 20N | 8N·m | 25N·m | 0.21mm | 146Hz | ||
| VS2M-50N | 50N | 25N·m | 34N·m | 0.18mm | 243Hz | ||
| VS2M-100N | 100N | 28N·m | 50N·m | 0.15mm | 358Hz | ||
| VS2M-200N | 200N | 28N·m | 71N·m | 0.13mm | 475Hz | ||
| VSM2-500N | 500N | 28N·m | 95N·m | 0.12mm | 582Hz | ||
| VS2M-1000N | 1000N | 28N·m | 125N·m | 0.13mm | 618Hz |

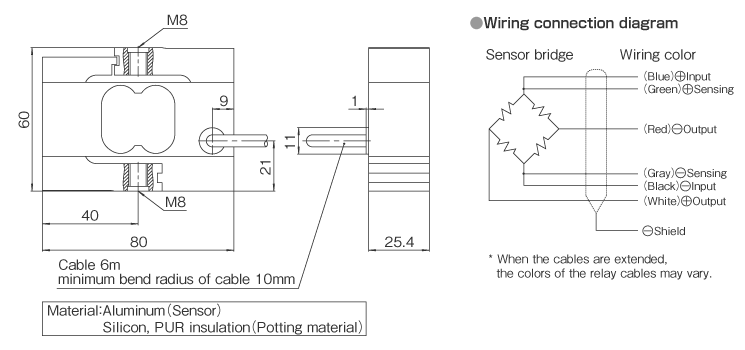

External dimensions (Unit: mm)
Load Cell
