Made-to-order (33t only)
Module Unit for VRTNC3
VRTN/M2LB series
1t–33ton

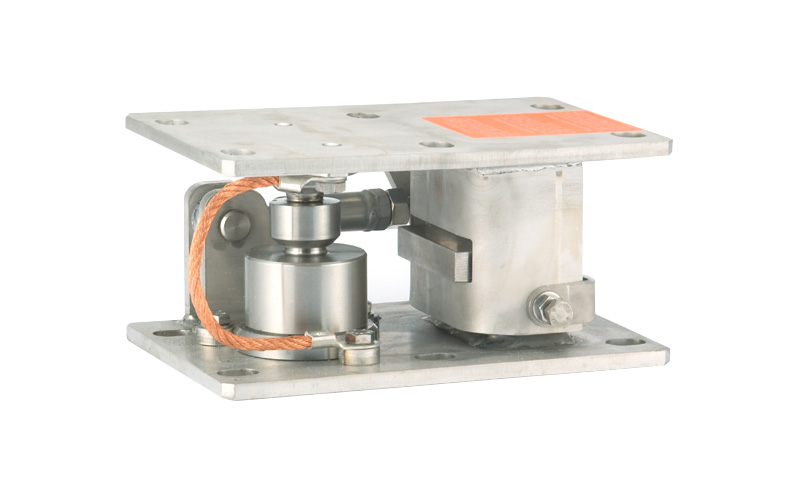

*The load cell in the photo is a dummy.
*The load cell is not included.
our amplifiers
- Module dedicated to VRTNC3
- Anti-vibration mechanism with a stay rod
- Particularly good environmental resistance
- Uplift prevention mechanism
- Made of stainless steel (up to 22 t)
Specifications
| Safe overload rating | 150%R.C. |
|---|---|
| Max.Permissible Loading of the Horizontal Stops Trans-verse to Stay Rod Axis | 10%R.C. |
| Restoring Force, for 1mm Side Offset of Applied Load (Percentage of the applied load) |
16.5%R.C. (1–4.7t) |
| 13%R.C. (10–22t) | |
| 8.2%R.C. (33t) | |
| Max.Permissible Side Offset Transverse to Stay Rod Axis | 1.5mm (1–2.2t), 1.3mm (4.7t) |
| 2mm (10–22t) | |
| 3.5mm (33t) | |
| Max.Permissible Lifting Force | 20kN (1–4.7t) |
| 50kN (10–33t) | |
| Maximum Permissible Horizontal Force in Direction of the Stay Rod | 10kN (1–4.7t) |
| 30kN (10–22t) | |
| 50kN (33t) | |
| Minimum Lifting Height to Install the Load Cell | 10mm |
| Height Adjustment | 5mm |
Model selection
| Selection | Model | Rated capacity | A | B | C | D | E | F | G | H | I | J | K | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRTN/M2LBR4.7T (for 1, 2.2, 4.7t) |
1ton(9.807kN) | - | 230 | 100 | 100 | 20 | 111+4-1 | 160 | 100 | 8 | 25 | 15 | Approx. 9.5kg | |
| 2.2ton (21.57kN) | ||||||||||||||
| 4.7ton (46.09kN) | ||||||||||||||
| VRTN/M2LBR22T (for 10, 15, 22t) |
10ton(98.07kN) | 148 | 310 | 130 | 140 | 20 | 151+4-1 | 200 | 140 | 10 | 25 | 18 | Approx. 20kg | |
| 15ton (147.1kN) | ||||||||||||||
| 22ton (215.7kN) | ||||||||||||||
| VRTN/M2LB33T (for 33t) |
33ton (323.6kN) | 188 | 420 | 155 | 200 | 26 | 193+4-1 | 280 | 200 | 12 | 35 | 22 | Approx. 45kg |
- *Weight includes cable.
This product is a module dedicated to the VRTNC3 load cell.

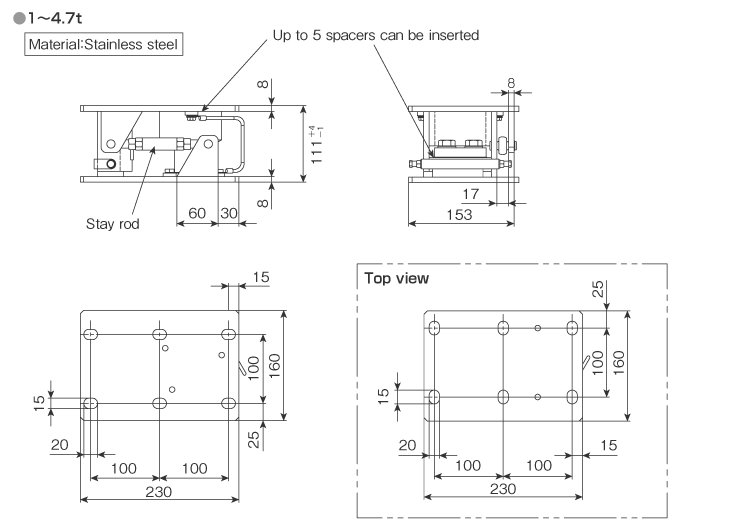

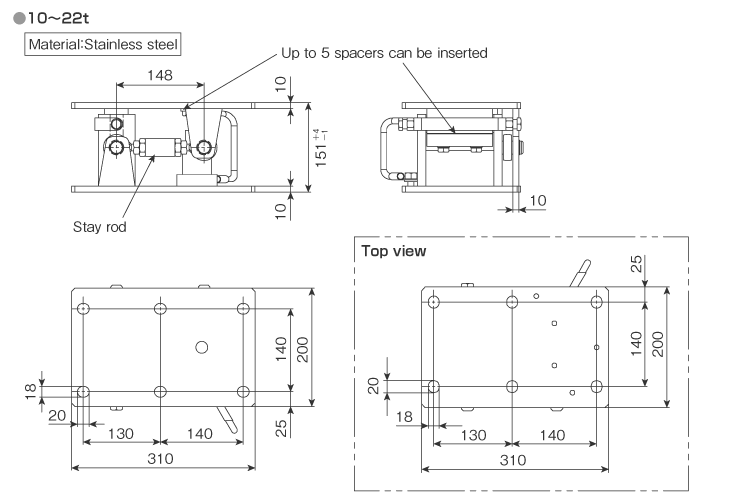

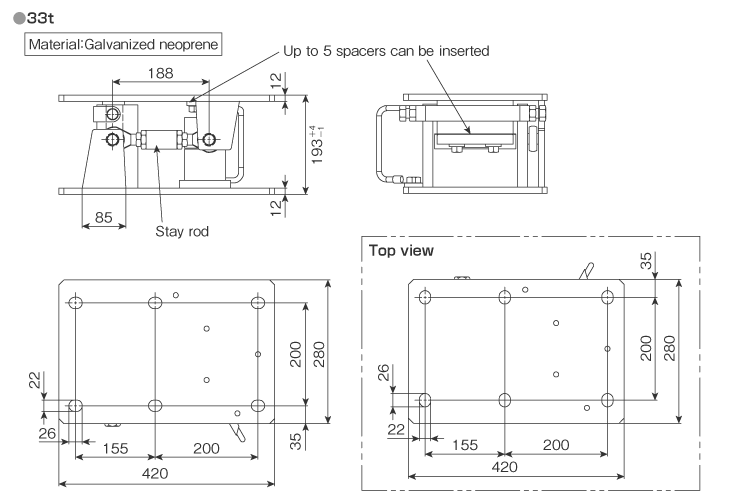

External dimensions (Unit: mm)
Load Cell
