NEW
Made-to-order

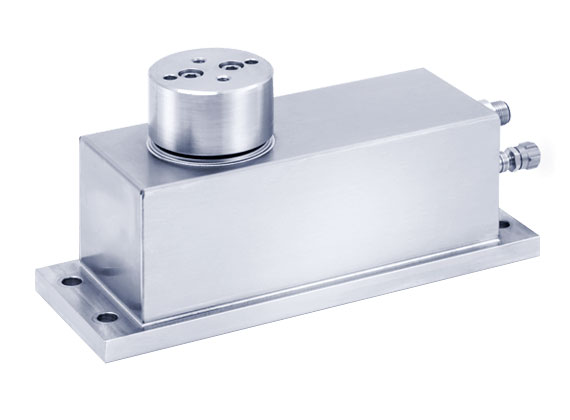

High Load-resistant Single Point type Load Cell
VPW28PHC3 series
5kg–75kg
- Extremely high overload limit (Fracture load: 1000%, mechanical stopper included)
- Good environmental resistance
- Highly resistant against lateral load and bending stress
Specifications
| Rated output | 1.7mV/V±0.2mV/V (5kg) 2.0mV/V±0.2mV/V |
|---|---|
| Nonlinearity | ±0.0166%R.C. |
| Hysteresis | ±0.0166%R.C. |
| Zero balance | −0.200–0.200mV/V |
| Temperature effect on zero balance | ±0.0140%R.C./10°C (5kg,10kg,20kg,50kg) ±0.0233%R.C./10°C (30kg) ±0.0186%R.C./10°C (75kg) |
| Temperature effect on load | 20–40°C:±0.0175%R.C./10°C -10–20°C:±0.0117%R.C./10°C |
| Safe overload rating | 150%R.C. (Up to 100 mm away from center) |
| Limit lateral loading, static | 300%R.C. |
| Temperature compensation range | −10–40°C (No condensation or freezing) |
| Operating temperature range | −10–50°C (No condensation or freezing) |
| Input terminal resistance | 300–500Ω |
| Output terminal resistance | 300–500Ω |
| Reference excitation voltage | 5V |
| Nominal (rated) range of the excitation voltage | 1–12V |
| Insulation resistance | 2GΩ or more (DC100V) |
| IP rating | Equivalent to IP66 (Note 1) |
| Cables Included | Cable with M12 plug connector (8-core, 0.25mm², 5m) |
- Return of the output of the minimum load: ±0.0166%R.C
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Maximum Load Area | Ultimate overload rating | Deflection at R.C. | Weight |
|---|---|---|---|---|---|---|
| VPW28PHC3-5kg | 5kg (49.03N) | 400×400mm | 1000%R.C. | Approx. 0.15mm | Approx. 3kg | |
| VPW28PHC3-10kg | 10kg (98.07N) | |||||
| VPW28PHC3-20kg | 20kg (196.1N) | |||||
| VPW28PHC3-30kg | 30kg(294.1N) | 600×500mm | ||||
| VPW28PHC3-50kg | 50kg (490.3N) | |||||
| VPW28PHC3-75kg | 75kg (735.5N) |
- *Weight includes cable.

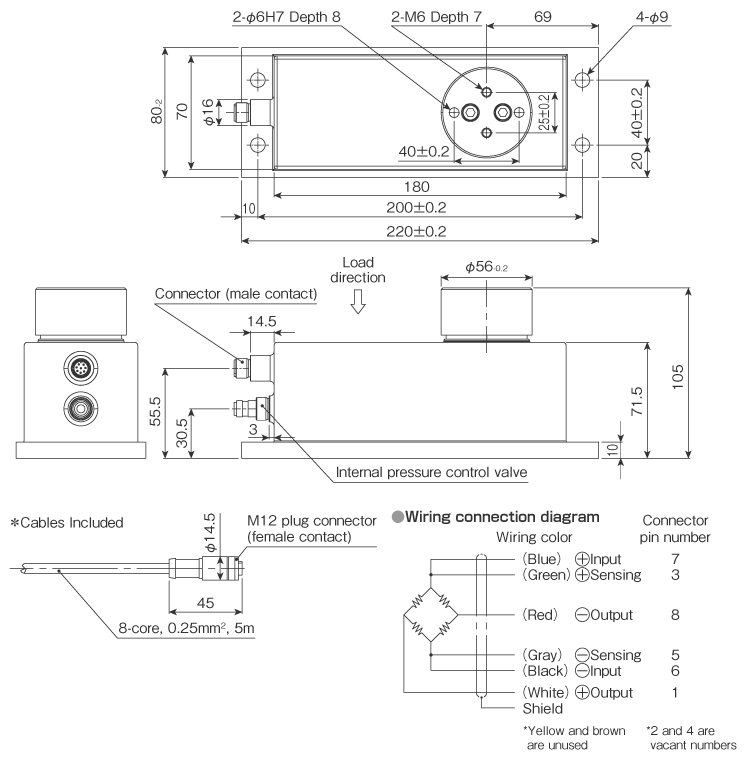

External dimensions (Unit: mm)
Load Cell
