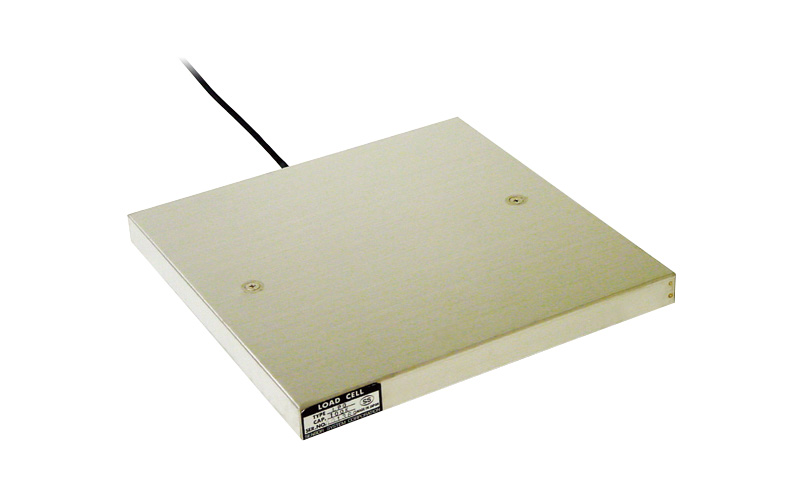

Floor Scale type Load Cell (Waterproof)
VLTT series
100kg–200kg
- Waterproof rating equivalent to IP×7
- Waterproof, ultralow profile design of 31 mm in height.
Specifications(Load transmitter)
| Safe overload rating | 150%R.C. |
|---|---|
| Accuracy | ±0.3%R.C. (Non Linearity, Hysteresis, Repeatability included)以内 |
| Analog output | 4–20mA(External AMP-BOX) |
| Power supply [Current consumption] | DC24V±10% [Approx. 50mA] |
| Load Resistance | 500Ω or less (DC24V) |
| Temperature compensation range | 0–50°C (No condensation or freezing) |
| Safe temperature range | 0–60°C (No condensation or freezing) |
| Temperature Effect | ±1%R.C./10°C |
| Cover Material | SUS304 |
| Base Plate Material | SUS304 |
| Cable | PVC coated 3-core Shielded cable (White/Red/Black/Shield) With 6-pin relay connector (TAJIMI) 1m |

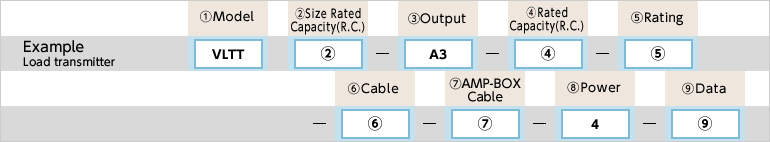

Model selection
| Selection | Check | Model | Specifications |
|---|---|---|---|
| 1.Model | ○ | VLTT | Built-in Amplifier type (Accuracy: 0.3%) | 2.Size/Rated capacity (*1) |
2 | □235 (100kg) |
| 3 | □250 (Can be selected between 100 and 200 kg.) | ||
| 4 | □300 (Can be selected between 100 and 200 kg.) | ||
| 3.Analog output | ○ | A3 | 4–20mA (External: AMP-BOX) |
| 4.Rated capacity (*1) | 100 | 100kg | |
| 200 | 200kg | ||
| 5.Rating | W | Water proof | |
| WB | Water proof (with Base plate) | ||
| 6.Cable | Blank | Cable 2m | |
| 4 | Cable 4m | ||
| 7.AMP-BOX cable | S01 | Cable extension 1m (Standard) | |
| S02 | Cable extension 2m | ||
| S03 | Cable extension 3m | ||
| S04– 99 |
Cable extension 4–99m | ||
| 8.Power supply | ○ | 4 | DC24V (±10%) |
| 9.Data | N | Examination result (3-point measurement)/(Standard) | |
| T | Traceability documents *Traceability documents breakdown 1: Traceability certificate, 2: Traceability system diagram, 3: Examination result(3-point measurement) |
- (*1) Note that some sizes may not be selected depending on the rated capacity.

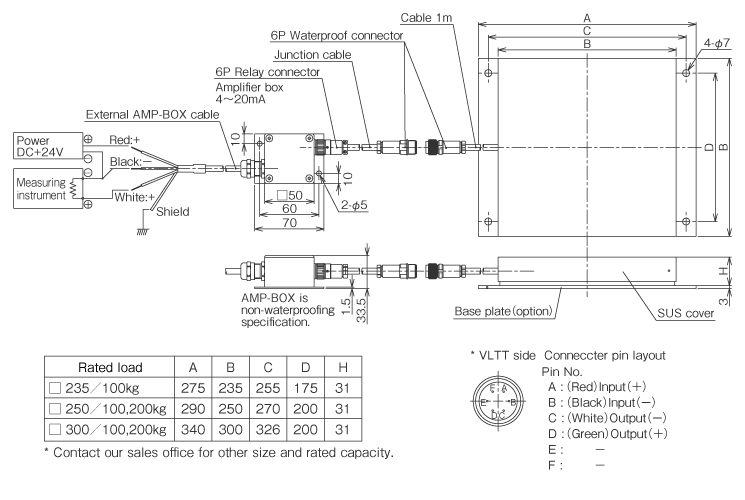

External dimensions (Unit: mm)
Load Cell
