Made-to-order

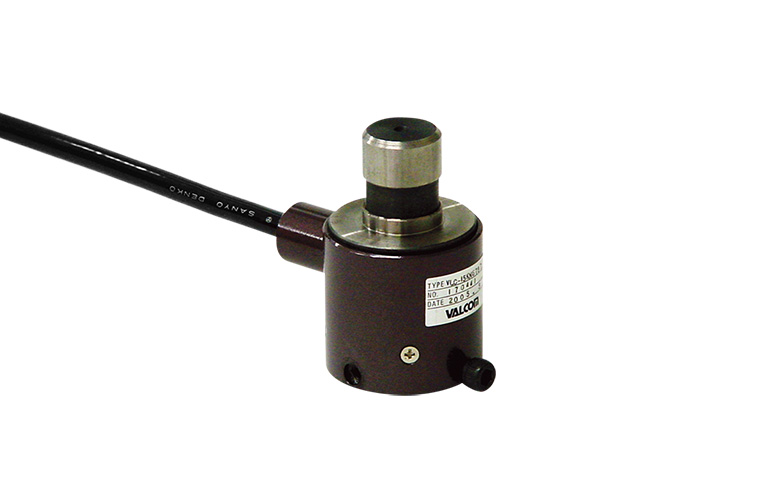

Miniature Load Cell for Manual Press
VLC-G787 series
Consult with us about the supported rated capacities
- Flex-resistant cable (standard)
Custom-made to different mounting dimensions available.
No minimum order quantity.
Specifications
| Rated output | 1mV/V±10% |
|---|---|
| Nonlinearity | ±3%R.C. |
| Hysteresis | ±3%R.C. |
| Repeatability | ±3%R.C. |
| Zero balance | ±5%R.O. |
| Temperature effect on zero balance | ±0.1%R.C./10°C |
| Temperature effect on load | ±0.1%R.C./10°C |
| Safe overload rating | 120%R.C. |
| Temperature compensation range | −5–60°C (No condensation or freezing) |
| Safe temperature range | −10–70°C (No condensation or freezing) |
| Input terminal resistance | 350Ω±2% |
| Output terminal resistance | 350Ω±2% |
| Recommended excitation voltage | 8V or less |
| Safe excitation voltage | 12V |
| Insulation resistance | 1000MΩ or more (DC 50V) |
| IP Rating | Equivalent to IP50 (Note 1) |
| Cable | φ8mm 4-core shielded cable (CESV-B) 3m |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | Weight |
|---|---|---|---|---|
| VLC-10KNG787 | 10kN | Approx. 0.02mm | Approx. 560g | |
| VLC-15KNG787 | 15kN | Approx. 565g | ||
| VLC-20KNG787 | 20kN | Approx. 570g | ||
| VLC-30KNG787 | 30kN | Approx. 585g | ||
| VLC-50KNG787 | 50kN | Approx. 610g |
- *Weight includes cable.

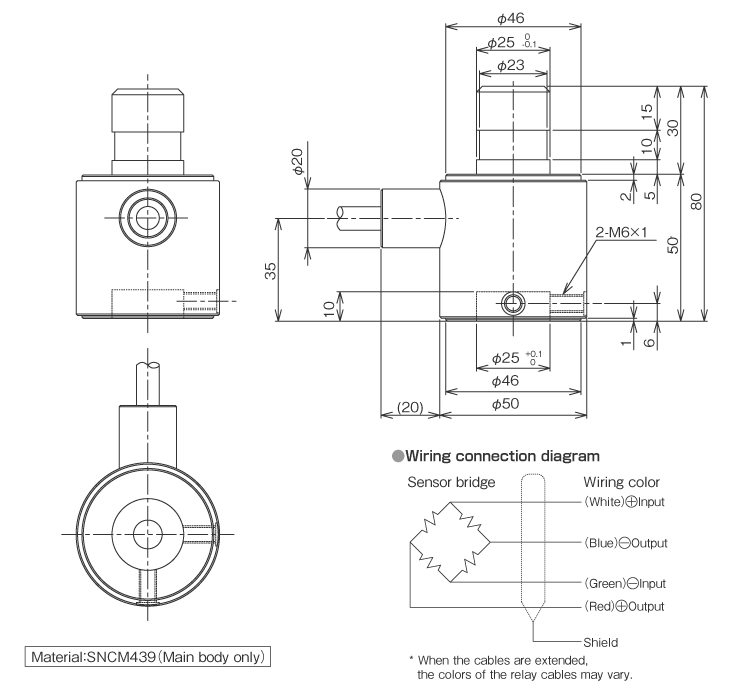

External dimensions (Unit: mm)
Load Cell
