Made-to-order

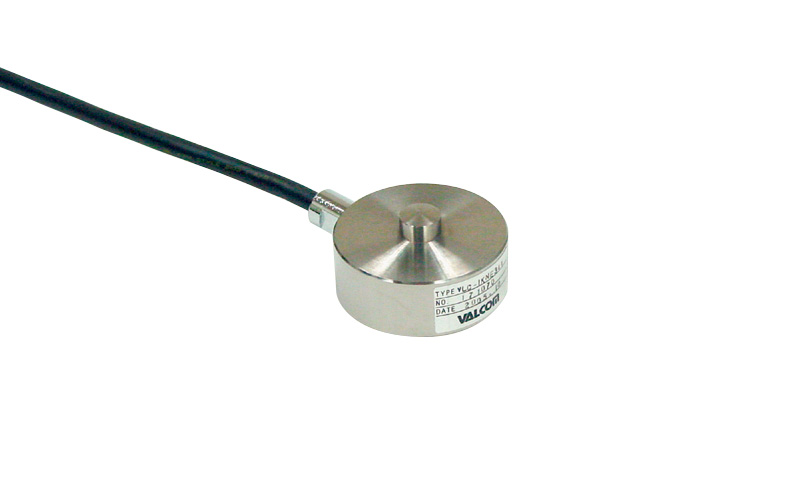

Temperature-proof Miniature Button Load Cell
VLC-E333M1H series
500N–20kN

  • Heat-resistant as high as 150°C
  • Miniature design

Specifications

Rated output 1.200–1.800mV/V
Nonlinearity ±0.3%R.C.
Hysteresis ±0.3%R.C.
Repeatability ±0.3%R.C.
Zero balance −0.075–0.075mV/V
Temperature effect on zero balance ±0.5%R.C./10°C
Temperature effect on load ±0.5%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −30–150°C (No condensation or freezing)
Safe temperature range −40–180°C (No condensation or freezing)
Input terminal resistance 343.0–357.0Ω
Output terminal resistance 343.0–357.0Ω
Recommended excitation voltage 8V or less
Maximum excitation voltage 12V
Insulation resistance 1000MΩ or more (DC 50V)
IP rating Equivalent to IP50 (Note 1)
Cable φ4mm 4-core Shielded Teflon cable (A-6FF-SB) 3m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-500NE333M1H 500N Approx. 0.10mm Approx. 700g
  VLC-1KNE333M1H 1kN Approx. 0.05mm
  VLC-2KNE333M1H 2kN
  VLC-3KNE333M1H 3kN
  VLC-5KNE333M1H 5kN
  VLC-10KNE333M1H 10kN Approx. 0.04mm
  VLC-20KNE333M1H 20kN
  • *Weight includes cable.

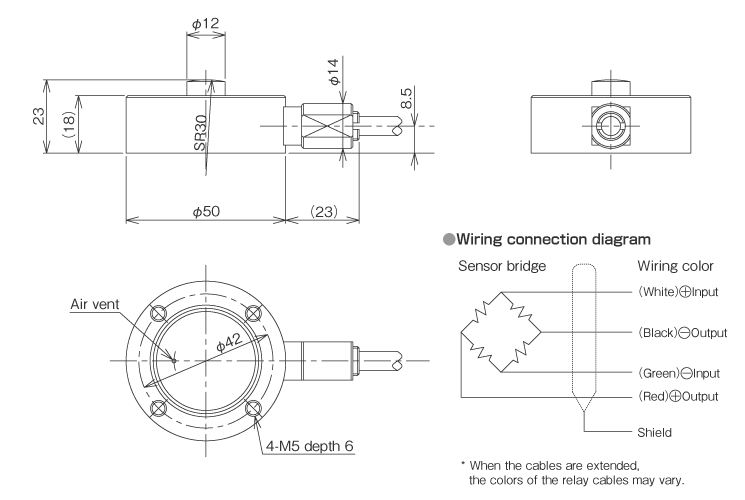

External dimensions (Unit: mm)

External dimensions
