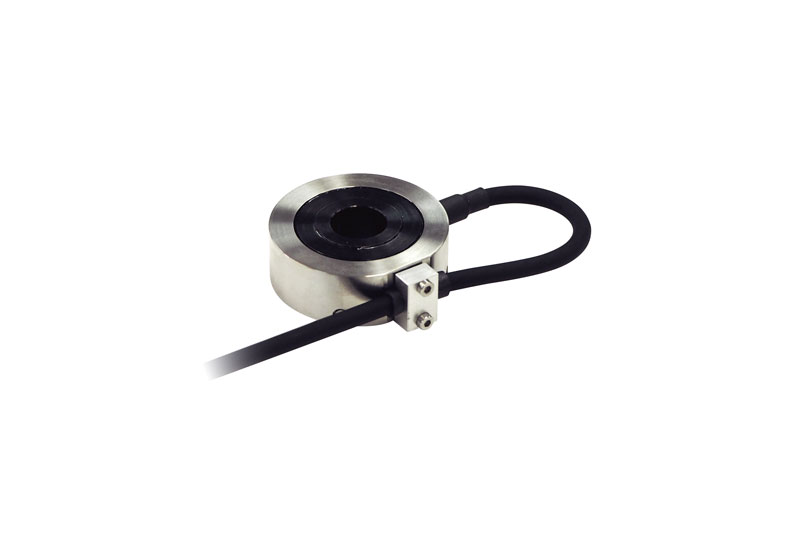

Miniature Washer type Load Cell
VLC-512 series
20kN–50kN
- Miniature design
- Robot cable (5 m, standard)
Specifications
| Rated output | 1mV/V±0.3mV/V |
|---|---|
| Nonlinearity | ±1%R.C. |
| Hysteresis | ±1%R.C. |
| Repeatability | ±1%R.C. |
| Zero balance | ±0.1mV/V |
| Recommended excitation voltage | 5V or less |
| Maximum excitation voltage | 10V |
| Input terminal resistance | 350Ω±5Ω |
| Output terminal resistance | 350Ω±5Ω |
| Insulation resistance | 1000MΩ or more (DC 50V) |
| Temperature compensation range | −5–60°C (No condensation or freezing) |
| Safe temperature range | −10–70°C (No condensation or freezing) |
| Temperature effect on zero balance | ±0.2%R.C./10°C |
| Temperature effect on load | ±0.5%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Ultimate overload rating | 200%R.C. or more |
| IP rating | Equivalent to IP60 (Main body only) (Note 1) |
| Cable | φ5-4-core shielded robot cable 5m |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | D | Weight |
|---|---|---|---|---|---|
| VLC-20KN-512 | 20kN | Approx. 0.01mm | 20 | Approx. 500g | |
| VLC-50KN-512 | 50kN | 24 |
- *Weight includes cable.
External dimensions (Unit: mm)
Load Cell
