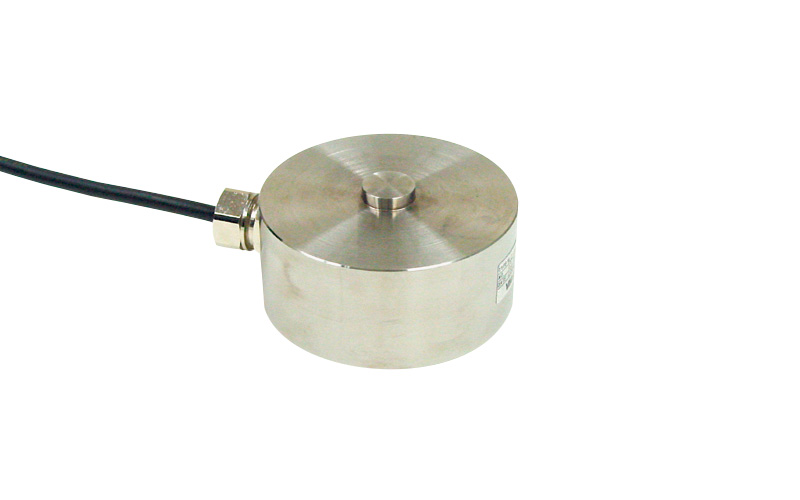

Load button type load cell
VLC-200KNJ544 series
200kN

  • High capacity
  • Robot cable (5 m, standard)

Specifications

Rated output 1.995–2.005mV/V
Nonlinearity ±0.1%R.C.
Hysteresis ±0.1%R.C.
Repeatability ±0.05%R.C.
Zero balance −0.060–0.060mV/V
Temperature effect on zero balance ±0.05%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–70°C (No condensation or freezing)
Safe temperature range −15–80°C (No condensation or freezing)
Input terminal resistance 343.0–357.0Ω
Output terminal resistance 343.0–357.0Ω
Recommended excitation voltage 8V or less
Maximum excitation voltage 15V
Insulation resistance 1000MΩ or more(DC 50V)
IP rating Equivalent to IP64 (Main body only) (Note 1)
Cable φ6mm 4-core shielded robot
cable (KDF-SB) 5m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-200KNJ544 200kN Approx. 0.05mm Approx. 3.6kg
  • *Weight includes cable.

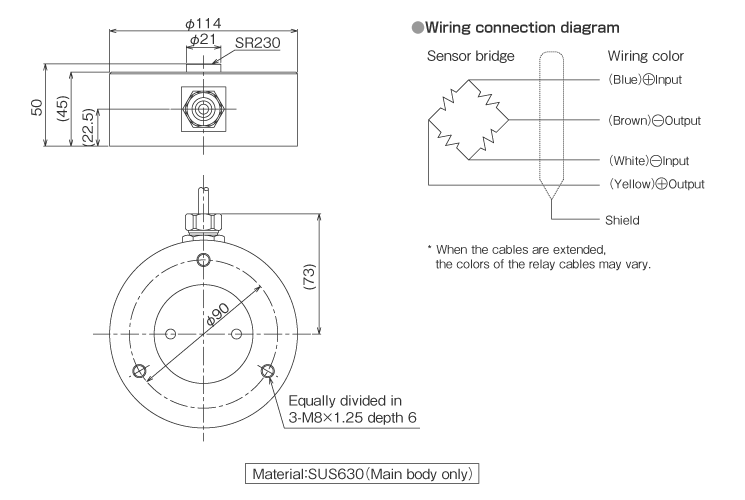

External dimensions (Unit: mm)

External dimensions
