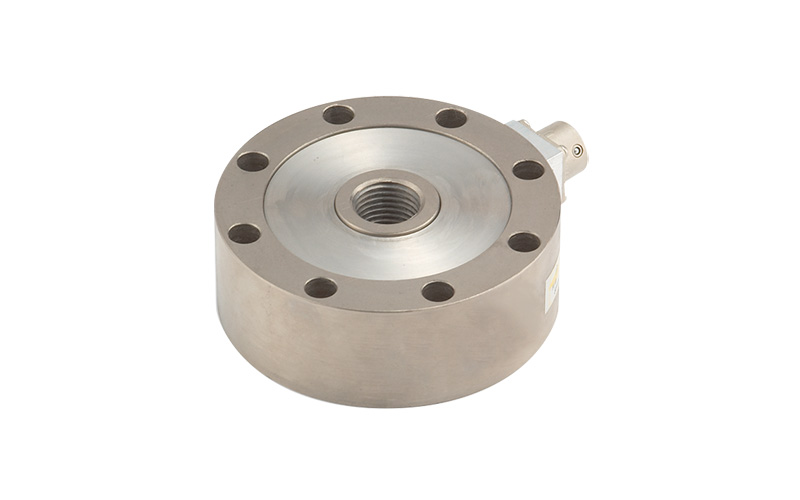

Shear Web type Load Cell
VLC-020/021 series
10kN–200kN
- Compact and low-profile
- Robot cable (5 m, standard)
Specifications
| Rated output | 1.980–2.020mV/V |
|---|---|
| Nonlinearity | ±0.1%R.C. |
| Hysteresis | ±0.1%R.C. |
| Repeatability | ±0.05%R.C. |
| Zero balance | −0.020–0.020mV/V |
| Temperature effect on zero balance | ±0.05%R.C./10°C |
| Temperature effect on load | ±0.05%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Temperature compensation range | −10–60°C |
| Safe temperature range | −10–60°C |
| Input terminal resistance | 700Ω±10Ω |
| Output terminal resistance | 700Ω±10Ω |
| Recommended excitation voltage | 5V |
| Maximum excitation voltage | 10V |
| Insulation resistance | 1000MΩ or more (DC50V) |
| IP Rating | Equivalent to IP64, Hermetically sealed (Note 1) |
| Cable | φ5mm 4-core shielded robot cable 5m |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | φA | φB | φC | M(Screw) | φE | φF | H | (I) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VLC-10KN-020 | 10kN | Approx. 0.03mm | 80 | 52 | 20 | M12×1.75 | 62 | 7 | 30 | 17 | Approx. 1kg | |
| VLC-20KN-020 | 20kN | 110 | 70 | 34 | M18×1.5 | 85 | 9 | 40 | 12 | Approx. 2.7kg | ||
| VLC-50KN-021 | 50kN | Approx. 0.04mm | 130 | 77 | 40 | M24×1.5 | 95 | 13 | 50 | - | Approx. 4.3kg | |
| VLC-100KN-021 | 100kN | Approx. 0.06mm | 160 | 100 | 60 | M36×2 | 125 | 17 | 60 | - | Approx. 7.5kg | |
| VLC-200KN-021 | 200kN | Approx. 0.07mm | 230 | 136 | 90 | M50×2 | 180 | 22 | 70 | - | Approx. 20kg |
- *Weight includes cable.

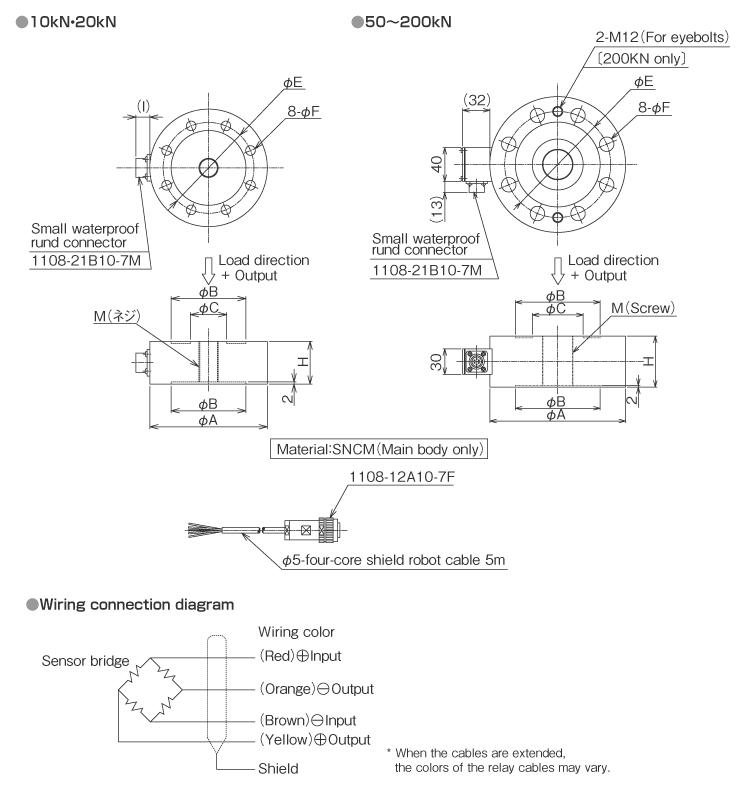

External dimensions (Unit: mm)
Load Cell
