Environment-proof Miniature Button Load Cell
VC9C series
50N–50kN
- All stainless steel (IP rating: Equivalent to IP67)
- Ultimate overload rating: 150–200%R.C.
Specifications
| Rated output | 0.99–1.01mV/V |
|---|---|
| Nonlinearity | ±0.2%R.C. |
| Hysteresis | ±0.2%R.C. |
| Zero balance | −0.2–0.2mV/V |
| Temperature effect on zero balance | ±0.2%R.C./10°C |
| Temperature effect on load | ±0.2%R.C./10°C |
| Safe overload rating | 200%R.C. (0.5–50kN:120%R.C.) |
| Ultimate overload rating | 200%R.C. (0.5–50kN:150%R.C.) |
| Temperature compensation range | −10–70°C (No condensation or freezing) |
| Safe temperature range | −30–85°C (No condensation or freezing) |
| Input terminal resistance | 250–400Ω (50–200N), 300–450Ω (0.5–50KN) |
| Output terminal resistance | 200–400Ω (50–200N), 120–450Ω (0.5–50KN) |
| Recommended excitation voltage | 5V |
| Excitation voltage range | 0.5–12V |
| Insulation resistance | 1000MΩ or more |
| IP rating | Equivalent to IP67 (Note 1) |
| Cable | 4-core Shielded cable 1.5m, directly-connected |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | φA -0.1 |
B | -0.1 G |
H | J | R | T | U -0.1 |
X | Y | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VC9C-50N | 50N | 0.009mm±15% | 26 | 15 | 20.5 | 3×M3 | 6 | 20 | 2.5 | 5.5 | Approx. 10.5 | Approx. 5.5 | Approx. 55g | |
| VC9C-100N | 100N | |||||||||||||
| VC9C-200N | 200N | |||||||||||||
| VC9C-0.5KN | 0.5kN | 0.015mm±15% | 13 | 22.75 | 3×M2 | 3.5 | 40 | 1 | 8 | Approx. 65g | ||||
| VC9C-1KN | 1kN | 0.019mm±15% | ||||||||||||
| VC9C-2KN | 2kN | 0.020mm±15% | ||||||||||||
| VC9C-5KN | 5kN | 0.025mm±15% | ||||||||||||
| VC9C-10KN | 10kN | 0.040mm±15% | ||||||||||||
| VC9C-20KN | 20kN | 0.055mm±15% | ||||||||||||
| VC9C-50KN | 50kN | 0.075mm±15% | 46 | 28 | 40 | 4×M4 | 6 | 80 | 8 | 16 | Approx. 260g |
- *Weight includes cable.

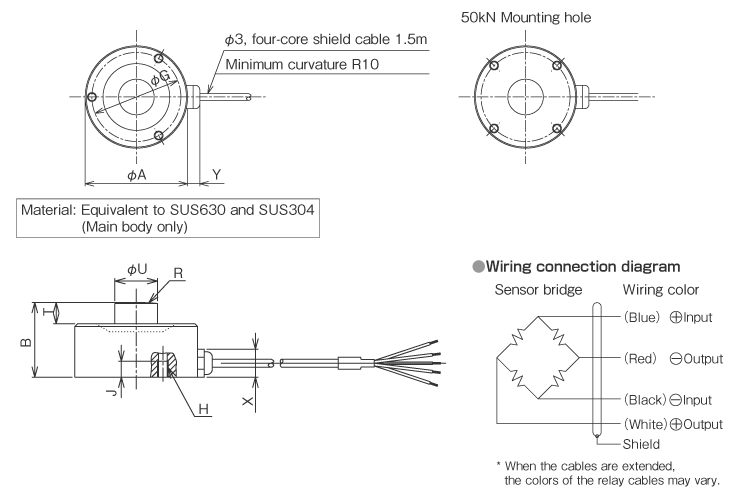

External dimensions (Unit: mm)
Load Cell
