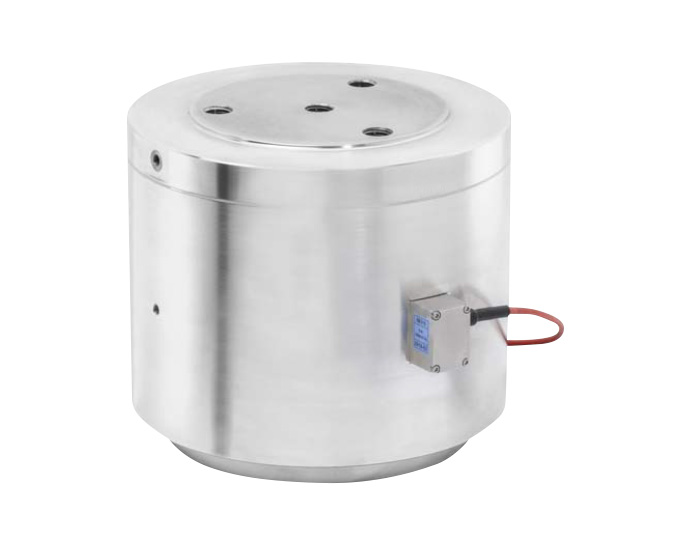

Lightweight Flat type Load Cell (R.C. 5MN)
VC6B-5MN
5MN

  • Compact and lightweight Approx. 32kg
  • Good environmental resistance
  • Can measure up to 5MN

Specifications

Rated output 2–2.48mV/V
Nonlinearity ±1%R.C. (With a pressure-proof hard plate, spherical support) (*1)
Hysteresis ±0.5%R.C. (With a pressure-proof hard plate, spherical support) (*2)
Zero balance ±0.0248mV/V
Temperature effect on zero balance ±0.05%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Relative Static Lateral Limit Force 10% (With a load button or a bendall bearing)
3% (With a spherical support) (*3)
Permissible Vibration Amplitude to DIN 50100 70%
Temperature compensation range −10–70°C (No condensation or freezing)
Safe temperature range −30–85°C (No condensation or freezing)
Input terminal resistance 380–420Ω
Output terminal resistance 280–360Ω
Recommended excitation voltage 5V or less
Excitation voltage range 0.5–12V
Insulation resistance 5GΩ or more
IP Rating Equivalent to IP68 (Note 1)
Cable φ5.4mm 6m, directly-connected
  • (*1) With a load button or a bendall bearing: ±0.4mV/V
  • (*2) With a load button or a bendall bearing: ±0.3mV/V
  • (*3) With a pressure-proof plate: Cannot be specified.
  • Creep 30min (Within temperature compensation range): ±0.06%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VC6B-5MN 5MN Approx. 0.5mm Approx. 32kg
  • *Weight not includes cable.

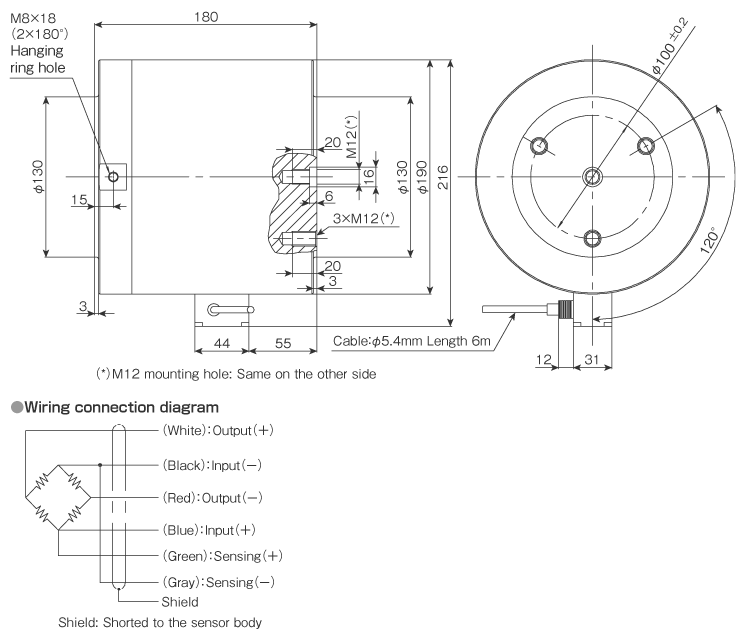

External dimensions (Unit: mm)

External dimensions
