Custom made type Load Cell / Torque Sensor
Custom made type Load Cell
![Custom made type Load Cell](img/photo_main_01.jpg)
- Minimizes the modification cost by making load cells to fit with the existing equipment.
- Load cells can be designed and made to meet your needs for application and shapes.
- Minimizes equipment downtime by utilizing the existing space.
- Supports from single units to OEM production.
Shapes of load cells that can be made
Load button type | Shah Web type |
Flat type | Centre Hall type |
Washer type | Shearing type |
Sigmoidal type | Load beam type |
Diaphragm type | Tension |
- Special shapes other than the above are also supported.

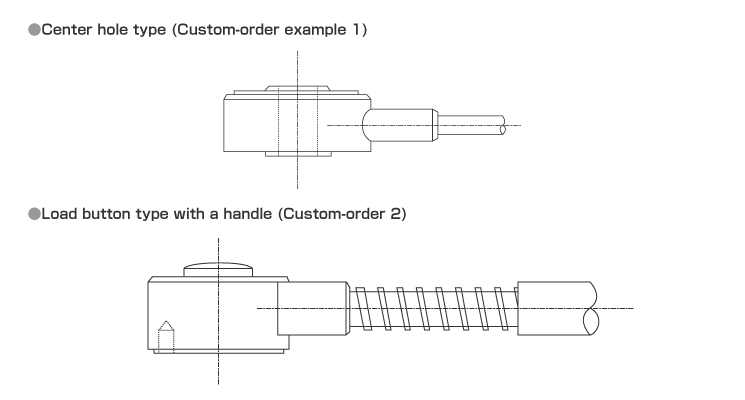

Example of custom-built load cell:1
![特注ロードセル参考1](img/figure_dimension.gif)

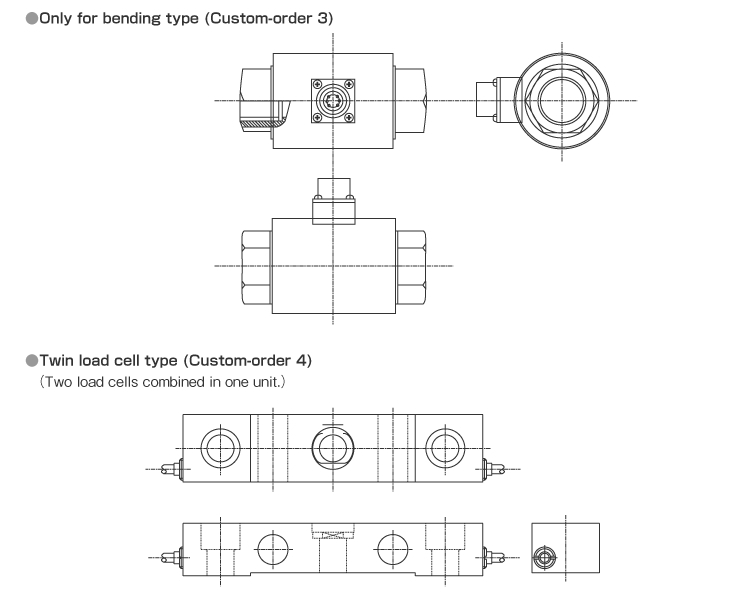

Example of custom-built load cell:2
![特注ロードセル参考2](img/figure_dimension2.gif)

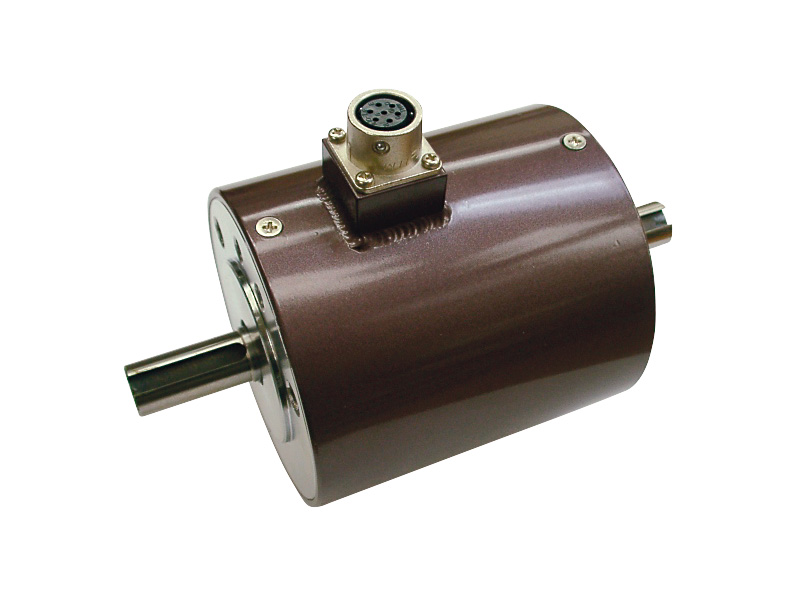

Custom made type Torque Sensor
- Minimizes the modification cost by making torque sensorss to fit with the existing equipment.
- Load cells can be designed and made to meet your needs for application and shapes.
- Minimizes equipment downtime by utilizing the existing space.
- Supports from single units to OEM production.
Torque sensors that can be made
- ●Non-rotary
- ●Rotary Brush contact type
- ●Rotary Non-contact type

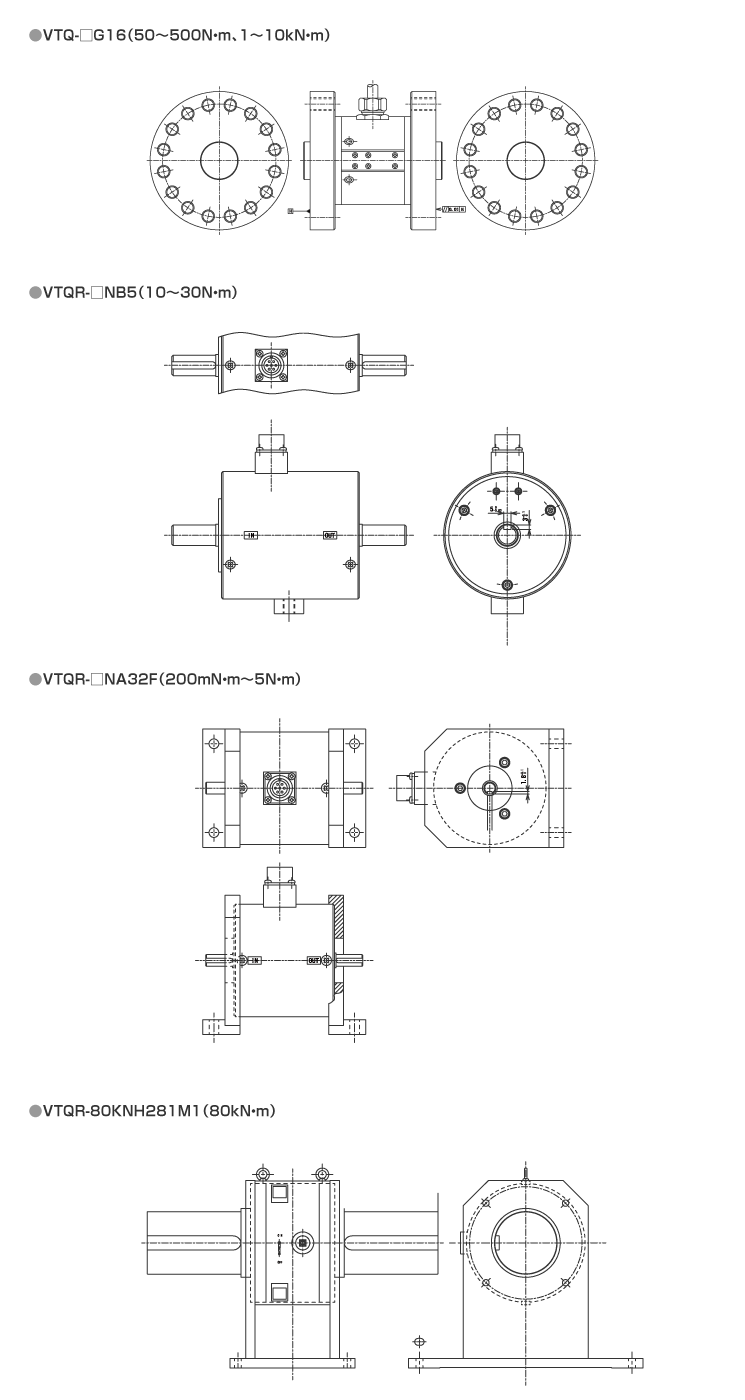

Dimention
![Dimention](img/figure_dimension3.gif)
