Accessories
![Accessories](img/accessories/photo_main.jpg)
-
Accessories for load cell such as load feet are available. Accessories can be custom-built to your needs. Please feel free to contact us

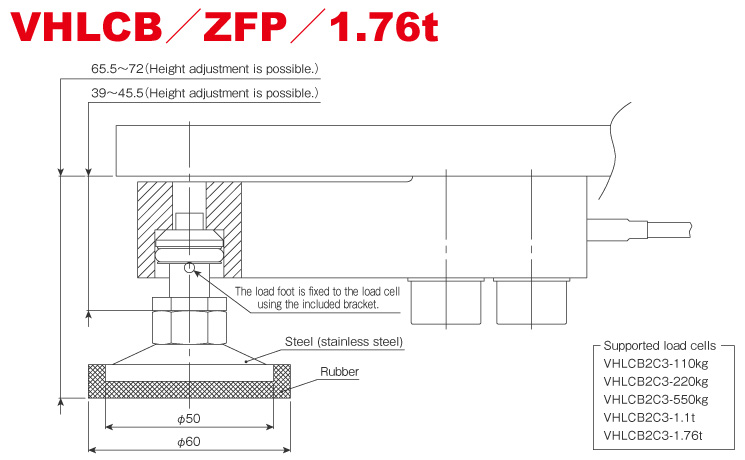

Load foot for VHLC/200kg–2t
![Load foot for VHLC / 200kg-2t](img/accessories/figure_dimension_01.jpg)

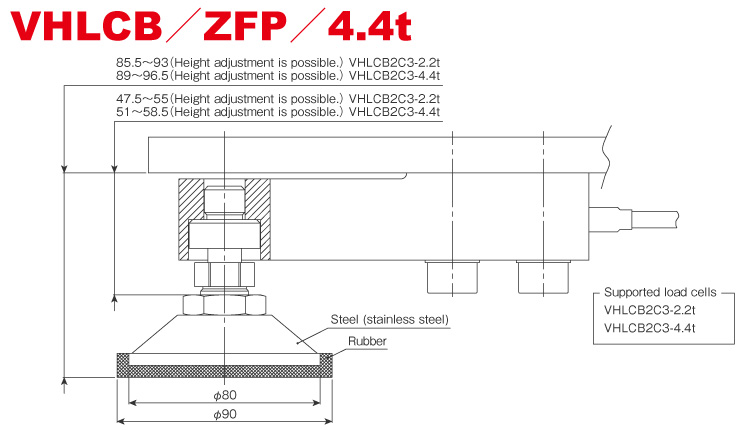

Load foot for VHLC/4.4t
![Load foot for VHLC / 4.4t](img/accessories/figure_dimension_02.jpg)

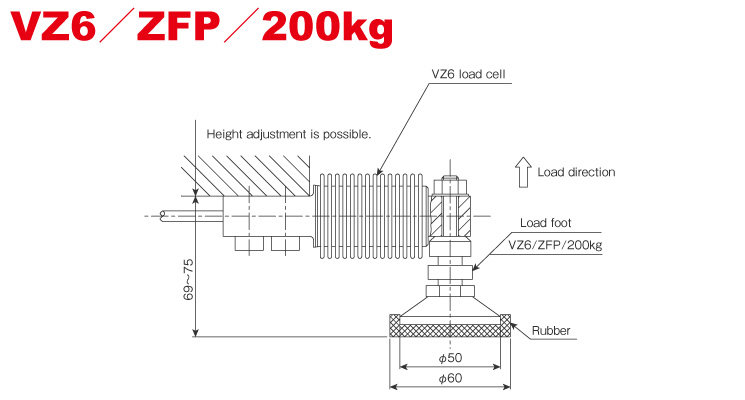

Load foot for VZ6 /200kg max.
![Load foot for VZ6 / 200kg max.](img/accessories/figure_dimension_03.jpg)

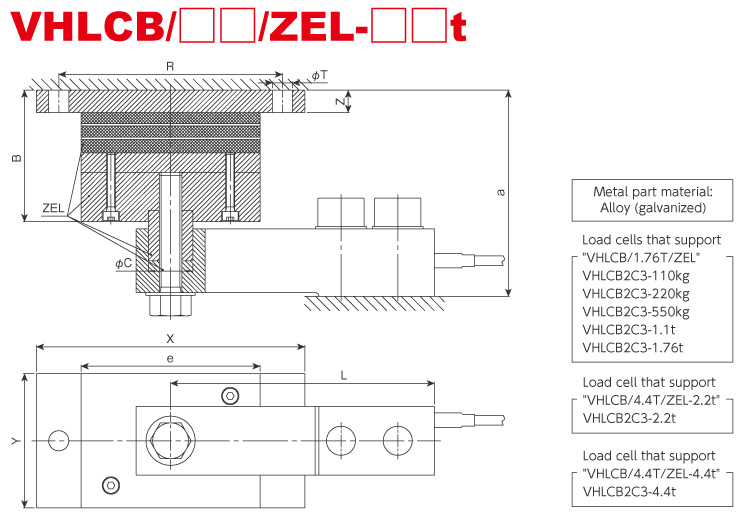

Elastomer belling for VHLC
![Elastomer belling for VHLC](img/accessories/figure_dimension_04.jpg)
Selection | Model | Maximum capacity |
B | φC -0.1 | L | R | φT | X | Y | Z | a | e | Maximum permission lateral displacement (below maximum capacity) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VHLCB/1.76T/ZEL | 110kg–1.76t | 58.8 | 20 | 118 | 100 | 9 | 120 | 60 | 10 | 92 | 80 | 4.5mm | |
VHLCB/4.4T/ZEL-2.2t | 2.2t | 71.2 | 30 | 152.4 | 125 | 11 | 150 | 100 | 10 | 113 | 100 | 8mm | |
VHLCB/4.4T/ZEL-4.4t | 4.4t | 116 |
