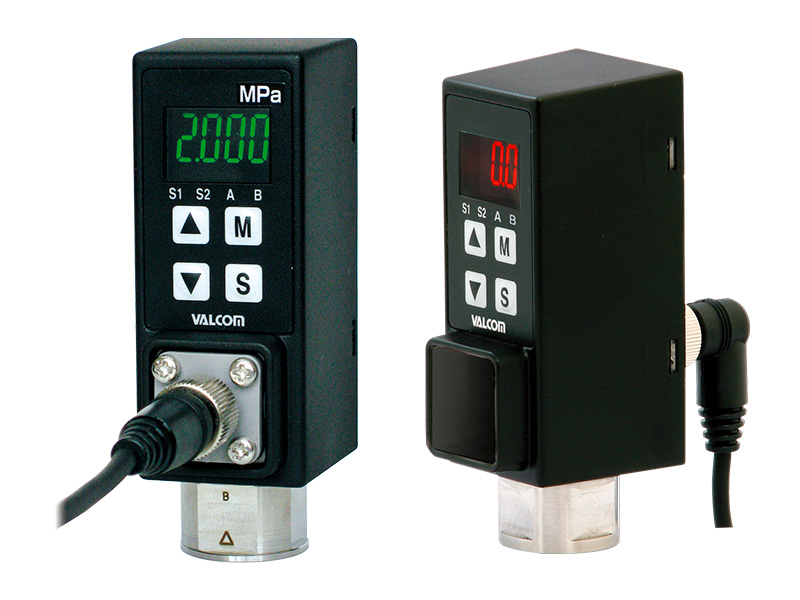

High Accurate Pressure Intelligent Digital Display
VSW2H series500kPa–50MPa
* Actual products may differ from photo depending on specifications.
- High accuracy: ±0.25%F.S. ±1 digit or below (Service temp.: 0 to 50°C, Overall accuracy including temperature characteristics)
- "Max./min memory" function included, which allows abnormal pressures detected so far to be checked during operation.
- Color LCD adopted with display colors "red and green" intuitively understandable for users.
- Setting output can be selected between higher/lower limits and NPN/PNP (Factory-set at NPN/PNP.)
| Measured medium | H sensor: Water, oil, gases or other media that will not corrode SUS316L and Hastelloy C-22 equivalent. VT sensor: Water, oil, gases or other media that will not corrode SUS630 and SUS430. |
|---|---|
| Pressure type | Positive pressures can be measured. |
| Pressure range | 500kPa–50MPa |
Specifications
| Display | −1999–5000 (*1) 7 segments 4 digit LCD (Character height:9mm) |
|---|---|
| Display Color | Red or Green (Arbitrary setting) |
| Rated capacity | 500kPa, 1, 2, 3.5, 5, 10, 20, 35, 50MPa |
| Calibration Range | 0– (500kPa, 1, 2, 3.5, 5, 10, 20, 35, 50) MPa |
| Accuracy | ±0.25%F.S.±1digit or less [Non Linearity, hysteresis, repeatability, Temperature characteristics of 0–50°C (25°C standard) included] |
| Output Channels | 2 points of Open collector output (NO/NC selectable) Setting output Maximum rating DC30V 20mA Residual voltage: 0.85V (NPN output) |
| 1 points of Open collector output + 4–20mA output (Safe load resistance: 400Ω or less) |
|
| Use Temperature Range | Temperature: 0–50°C (Temperature of medium to be measured: -10–70°C) |
| Safe Overload Rating | 500kPa, 1, 2, 3.5MPa: 300%R.C. 5, 10, 20, 35, 50MPa: 150%R.C. |
| IP Rating | Equivalent to IP65 (Dedicated cable connection state) |
| Temperature Effect | Included in Accuracy above |
| Vibration-Proof | 98m/s² (10G) [Compliant with IEC68-2-6] |
| Connection Screw | Rc1/4 [Female screw]: (Option) R1/4[Male screw] |
| Applicable standards | CE marking (EMS directive, European RoHS directive) |
| Connector | Model number XS2M-D423 made in Omron |
| Power Source Voltage | DC24V±10% |
| Consumption current | Approx. 30mA (Approx. 50mA for models with analog outputs) |
| Functions | Display oscillating mechanism (±120°)/2nd display function/Display update rate/Zero shift/Zero suppress Simulation/Damping/FIX zero/Number of moving average/Peak hold Key protection/Maximum and Minimum memory |
| Pressure Port Material | H sensor: Hastelloy C-22 VT sensor: SUS630 |
| Connection Screw Material | H sensor: SUS316L VT sensor: SUS430 |
| Weight | Main body: Approx. 230g |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy |
| Options (*2) | Wall hangings fixation bracket [VSW2-BR] |
- (*1)Depends on the factory setting. Values beyond the calibration range cannot be displayed.
- (*2)Contact our sales office for details.

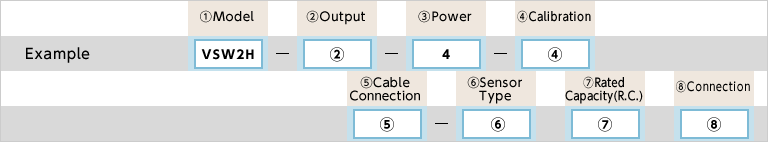

Model Selection
| Selection | Check | Model | Specifications | ||
|---|---|---|---|---|---|
| 1.Model | ○ | VSW2H | High Accurate Pressure Intelligent Digital Display | ||
| 2.Output | 02 | 2 points of Open collector output (Factory setting: NPN) | |||
| 31 | 1 points of Open collector output (Factory setting: NPN) +4–0mA output (Scaling setting possible as desired.) |
||||
| 3.Power | ○ | 4 | DC24V±10% (Consumption current: Approx. 30mA *Analog output: Approx. 50mA) | ||
| 4.Calibration | 500kPa | (0–500kPa) | Sensor H designation | Rated capacity 500KPG designation | |
| 1000kPa | (0–1000kPa) | Rated capacity 001MPG designation | |||
| 1.000MPa | (0–1.000MPa) | ||||
| 2000kPa | (0–2000kPa) | Rated capacity 002MPG designation | |||
| 2.000MPa | (0–2.000MPa) | ||||
| 3.50MPa | (0–3.50MPa) | Rated capacity 3R5MPG designation | |||
| 3.500MPa | (0–3.500MPa) | ||||
| 5.00MPa | (0–5.00MPa) | Sensor VT designation | Rated capacity 005MPG designation | ||
| 5.000MPa | (0–5.000MPa) | ||||
| 10.0MPa | (0–10.0MPa) | Rated capacity 010MPG designation | |||
| 10.00MPa | (0–10.00MPa) | ||||
| 20.0MPa | (0–20.0MPa) | Rated capacity 020MPG designation | |||
| 20.00MPa | (0–20.00MPa) | ||||
| 35.0MPa | (0–35.0MPa) | Rated capacity 035MPG designation | |||
| 35.00MPa | (0–35.00MPa) | ||||
| 50.0MPa | (0–50.0MPa) | Rated capacity 050MPG designation | |||
| 50.00MPa | (0–50.00MPa) | ||||
| 5.Cable Connection | WN | Cable not included. (If prepared by the customer), Front connector type Main body use connector: Panel mounting connector plug made in Omron (Model number) XS2M-D423 |
|||
| WS | Waterproof connector (Front: Straight type) + Cable 2m | ||||
| WR | Waterproof connector (Front: Angle type) + Cable 2m | ||||
| RN | Cable not included. (If prepared by the customer) Rear connector type Main body use connector: Panel mounting connector plug made in Omron (Model number) XS2M-D423 |
||||
| RS | Waterproof connector (Rear: Straight type) + Cable 2m | ||||
| RR | Waterproof connector (Rear: Angle type) + Cable 2m | ||||
| 6.Sensor Type | H | Semiconductor thin-film type sensor (Display oscillating mechanism not included.) |
|||
| VT | Thin-film sensor | ||||
| 7.Rated Capacity | 500KPG | 500kPa | |||
| 001MPG | 1000kPa | ||||
| 002MPG | 2000kPa | ||||
| 3R5MPG | 3500kPa | ||||
| 005MPG | 5MPa | ||||
| 010MPG | 10MPa | ||||
| 020MPG | 20MPa | ||||
| 035MPG | 35MPa | ||||
| 050MPG | 50MPa | ||||
| 8.Connection screw | C2 | Rc1/4 | |||
| R2 | R1/4 | ||||

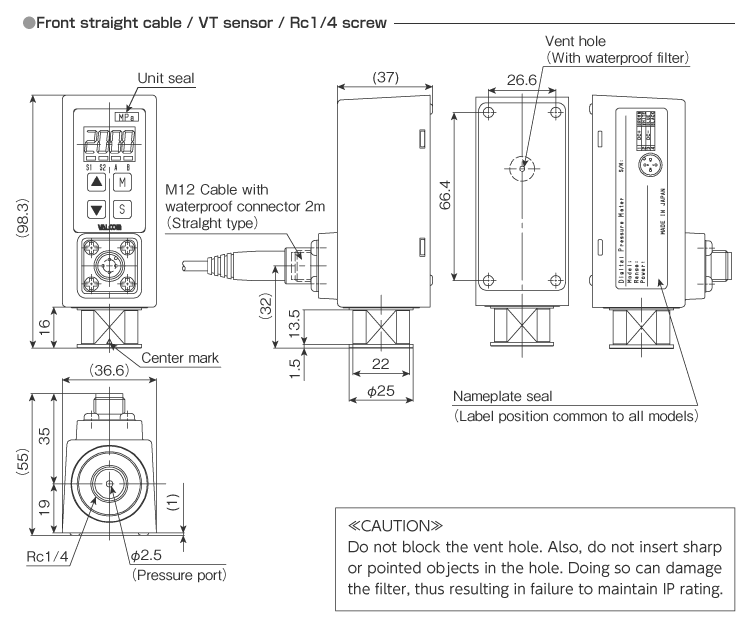

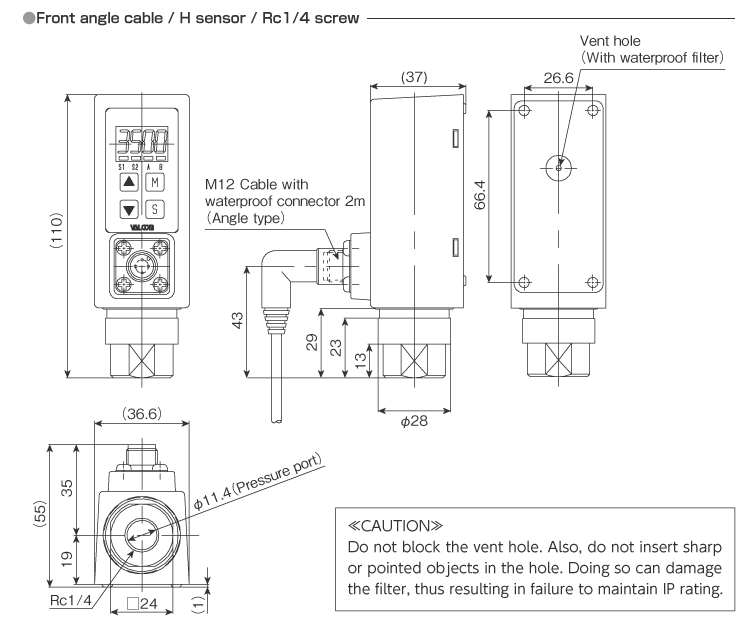

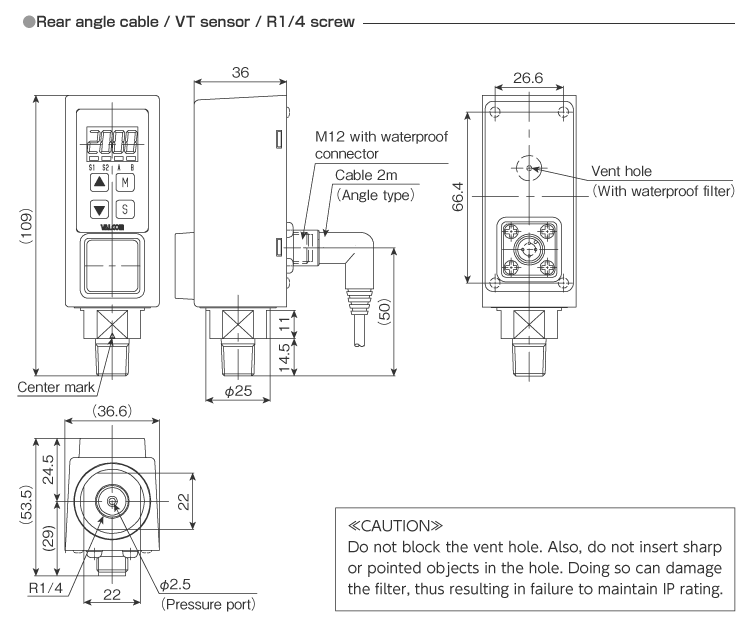

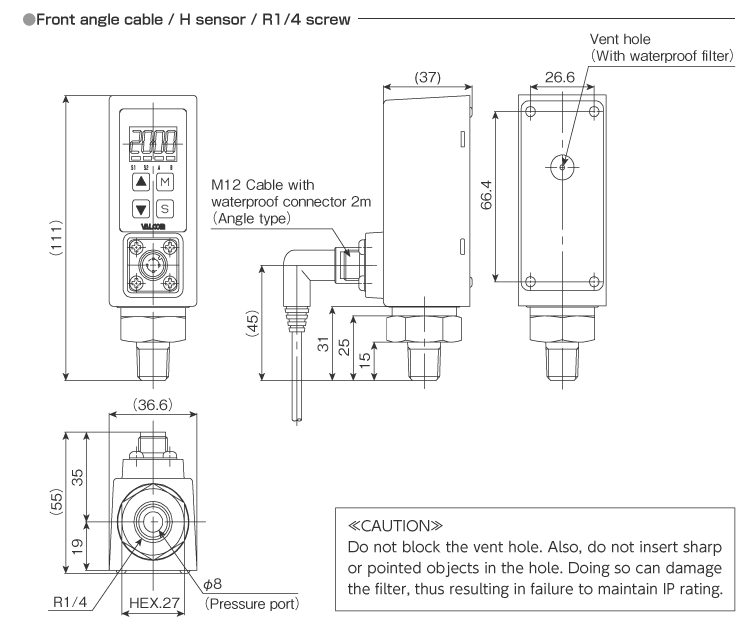

External dimensions (Unit: mm)

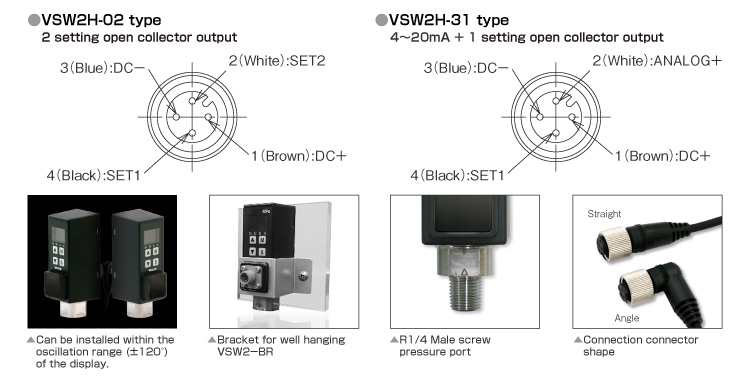

Wiring diagram
