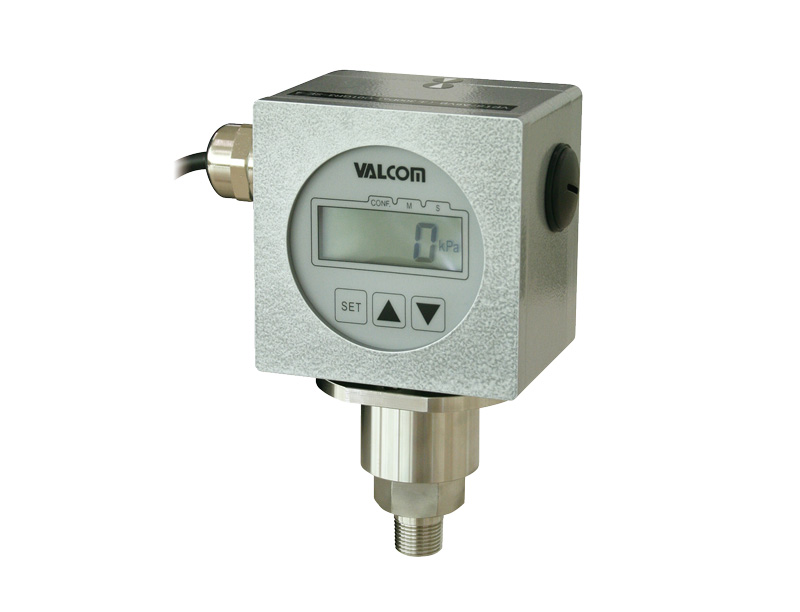

Range Variable 2-wire Ceramic Pressure Sensor
VPTS series
-300Pa–300Pa

  • We have developed it on the concept of high precision, high withstand pressure, high durability and high stability.
  • Overwhelming spec, ease of use and low price to be realized.
    * Caution: Sensing part is SUS316L (screw part) + alumina ceramic + O-ring (EPDM). Please note the use fluid.
Measured medium Media that will not corrode SUS316L(Screw part) + Alumina ceramic + O-ring(EPDM).
Pressure type Compound pressures can be measured.
Pressure range −300 to 300Pa

Specifications

Rated capacity ±2.5kPa
Safe Overload Rating 200%R.C.
Power voltage DC24V (Operating range: 18–26.5V)
Analog output 4–20mA 2-wire (Max: Approx. 22mA)
Safe load resistance: 380Ω or less (Power voltage: 24V, Ambient Temperature: 25°C)
Response time Selected by 0.2, 0.5, 1, 2, 4, 8, 16, 32, 64(63% Access time)
Display 7 segment 4 digit LCD (Character height: 9mm), Maximum indicated range: -300–300, Display: With backlight
Accuracy ±0.2%R.C.±1digit or less
(Non Linearity, hysteresis and repeatability included.)
Temperature Effect on Zero Balance ±0.5%R.C./10°C or less
Temperature Effect on Load ±0.5%R.C./10°C or less
Range of Use Temperature 0–50°C (Amplifier, Display)
-20–80°C (Temperature of medium to be measured)
0–90%R.H. (No condensation)
Functions Damping, Simulation(Loop check),
Output burnout at error, Quick zero-adjustment etc
Material (Main body) Aluminum alloy
Sensor Element Alumina ceramic + O-ring (EPDM)
Connection Screw Material SUS316L
Connection R3/8
Fastening Torque; Recommended 20N·m
Fastening Torque; Maximum 30N·m
Setting Change(Max) Writing guaranteed frequency: 10,000 times
IP Rating Equivalent to IP67
Accessories Cable gland (×1)
Option Full set of bracket for 50A plumbing fixation

Model Selection

Example

Selection of Pressure sensor

Pressure sensor is built in the case, and therefore need not be specified.

Selection Check Model Specifications
1.Model VPTS Range Variable 2-wire Ceramic Pressure Sensor
2.Display/Output A6VB 4–20mA (2-wire) Output scaling variable
Display: With backlight
3.Calibration (±300Pa) (-300–300Pa)
4.Connection C01GR3 Ceramic sensor Rated capacity ±2.5kPa
5.Connection screw R3 R3/8
6.Sensor Case Material S SUS304
7.Pressure Port O-ring Material E EPDM
8.Power 4 DC24V

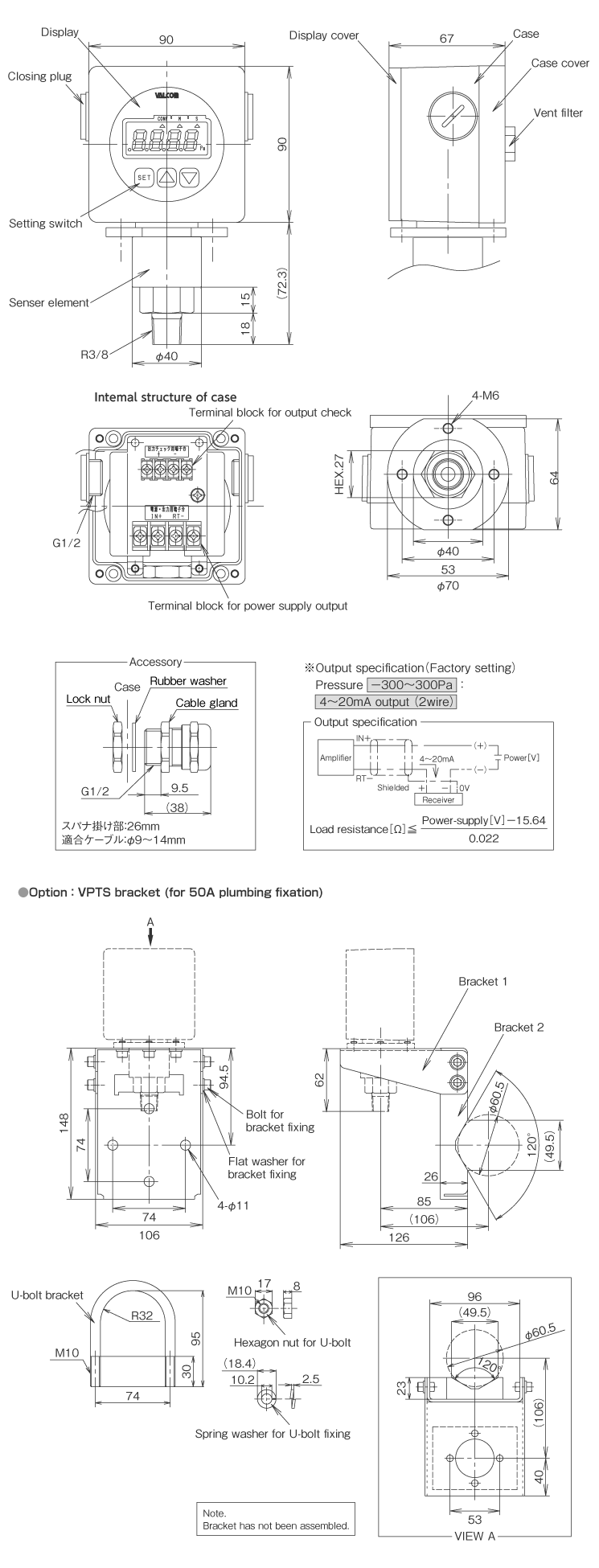

External dimensions (Unit: mm)

External dimensions
