Digital 2wire Pressure Transmitter
VPMC-A(B)-6 series50kPa–100MPa
50kPa abs–500kPa abs
50kPa abs–500kPa abs
- 2-wire transmission system takes advantage of existing wiring.
- Clear display with high brightness LED even in dimly-lit factories.
- Wide pressure range to support various sensors to be connected.
- Long life and good protection rating equivalent to IP65.
Measured medium | Air, gases, water, oil or other media. (Depends on the material of sensor.) |
---|---|
Pressure type | Positive, compound and absolute pressures can be measured. |

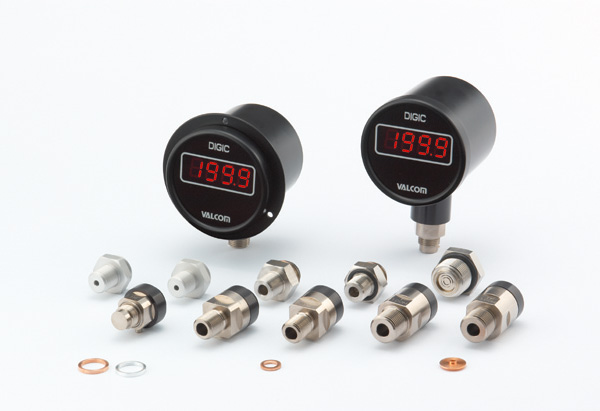

Pressure range | Pressure sensor series ranging from low pressure, absolute pressure, and medium-to-high pressure up to 100 MPa are available. (See photos on the left for pressure sensors.) |
Specifications
Display | 1999 3 ½digit Super luminosity Red LED (Character height: Approx. 14.2mm) |
---|---|
Display Conversion Speed | Approx. 2.5 times/sec. |
Accuracy (*1) | ±0.05%F.S.±1digit |
Use Temperature Range | 0–50°C (No freezing) |
Use Humidity Range | 35–85%RH (No condensation) |
External dimensions | φ98×74 (D:Protrusions not included) |
Weight | Approx. 600g (Varies with specification) |
Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy(*2) |
- (*1) Take into account the accuracy of the pressure sensor selected from the table.
- (*2) For accessories such as connectors, refer to the pages of Accessories and Options.
Model Selection
Selection of Pressure sensor
Refer to Selection Table for Pressure Sensors for specification and model numbers and specify the desired model.

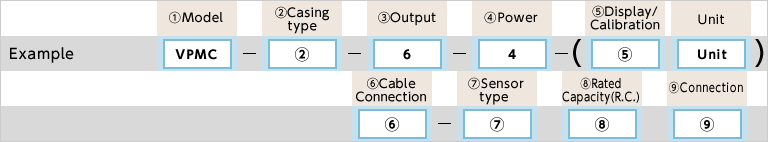

[e.g.] VPMC - A - 6 - 4 - (±100kPa) - S - P100KPGR3
[e.g.] VPMC - A - 6 - 4 - (±100kPa) - S - P100KPGR3
Selection | Check | Model | Specifications | ||
---|---|---|---|---|---|
1.Model | ○ | VPMC | Digital 2wire Pressure Transmitter | ||
2.Casing type | A | Directly connected on bottom side (With collar) | |||
AS | Directly connected on bottom side (Without collar) | ||||
B | Directly connected on back side (With collar) | ||||
3.Analog output | - | Output type | Response frequency | Safe load resistance | |
○ | 6 | 4–20mA 2-wire |
200Hz–1kHz *Depends on the specifications of sensor. |
402Ω max. | |
4.Power | ○ | 4 | DC24V | ||
5.Display/Calibration | It is not possible to display/calibrate negative pressures only. (*3)(*4) Specify the range within the rated capacity of the applicable pressure sensor.(Within 50% of the rated capacity) *Refer to Selection Table for Pressure Sensors for the rated capacity. |
||||
6.Cable Connection | S | Pigtail 2m | |||
W | Waterproof connector *Cable not included | ||||
N | Standard connector *Cable not included | ||||
7.Sensor type | H | VHR3 or VHG3 | *Refer to Selection Table for Pressure Sensors for the rated capacity. | ||
A | VAR3 or VAG3 | ||||
P | VPNPR or VPNPG | ||||
T | VPRT or VPRTF | ||||
Q | VPRQ or VPRQF | ||||
F | VPRF | ||||
8.Rated Capacity(R.C.) | See right table. Enter the range in the as it is. |
Sensor H designation | 050KPG50kPa 050KPA50kPa abs | ||
Sensor A designation | 100KPG100kPa 200KPG200kPa 500KPG500kPa 700KPG700kPa 100KPA100kPa abs 200KPA200kPa abs 500KPA500kPa abs 700KPA700kPa abs *Cannot be used for compound pressure. Select P for compound pressure. |
||||
Sensor P designation | 100KPG100kPa 200KPG200kPa 700KPG700kPa 1700KPG1700kPa 100KPA100kPa abs 200KPA200kPa abs 700KPA700kPa abs 1700KPA1700kPa abs |
||||
Sensor T, Q, F designation |
001MPG1MPa 020KPG20MPa | ||||
002MPG2MPa 035MPG35MPa *Sensor Q type only |
|||||
005MPG5MPa 050MPG50MPa | |||||
010MPG10MPa 100MPG100MPa *Sensor T/Q type only |
|||||
9.Connection screw | R3 | R3/8(Target model: VHR3/VAR3/VPNPR/VPRT/VPRQ) | |||
G3 | G3/8(Target model: VHG3/VAG3/VPNPG/VPRTF/VPRQF/VPRF) | ||||
R4 | R1/2(Target model: VPRT-100MP) | ||||
G4 | G1/2(Target model: VPRTF-100MP/VPRQF-100MP) |
- (*3)Notes for pressure range
Specify the display range between -200–200 for the 4 mA side and between 100–1999 for the 20 mA side.
[e.g.] ○ ±20.0kPa -1.00–19.99kPa
× ±30.0kPa -3.00–19.99kPa
If the 4 mA side is 0, specify the range for the 20 mA side only. - (*4)How to specify the display range:
(e.g. 1) To display 0–5.00 MPa with a pressure sensor of rated capacity of 10 MPa, specify "(5.00MPa"
(e.g. 2)To display 0–100.0 kPa with an absolute pressure sensor of rated capacity of 100 kPa, specify "(100.0kPa(abs))"
When using an absolute sensor, add "(abs)" next to the unit without adding a minus sign (-).
(e.g. 3) To display compound pressure of -100–100 kPa, specify "(±100kPa)". In case of -100–1000 kPa, specify "-100–100 kPa".

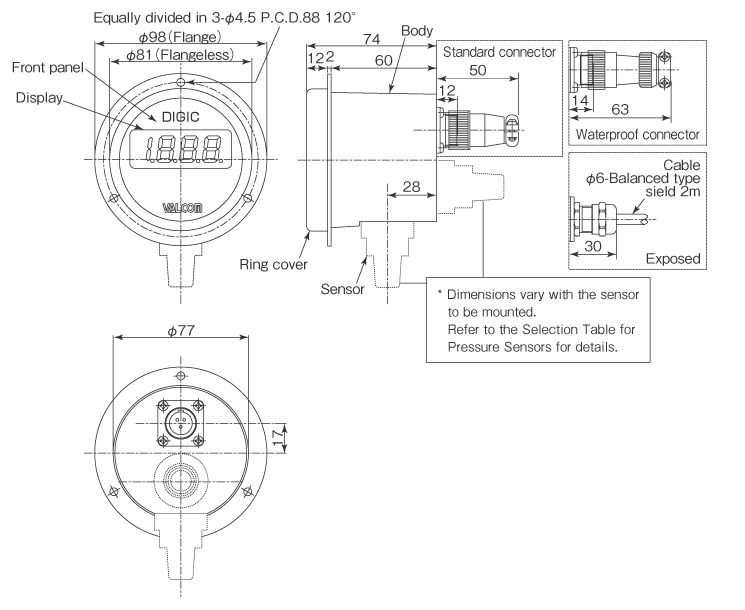

External dimensions (Unit: mm)
Selection table for pressure sensor | ||||||
---|---|---|---|---|---|---|
Pressure sensor | VHR3 | VHG3 | VAR3 | VAG3 | VPNPR | VPNPG |
Connection screw | R3/8 | G3/8 | R3/8 | G3/8 | R3/8 | G3/8 |
Rated capacity | 50kPa(or kPa abs) | 100–700kPa(or kPa abs) | 100–1700kPa(or kPa abs) | |||
Drawing | ||||||
Pressure sensor | VNF | VPRF | VPRT | VPRTF | ||
Connection screw | G3/4 | G3/8 | R3/8 | G3/8 | ||
Rated capacity | 100–1700kPa(or kPa abs) | 1–50MPa | 1–50MPa | |||
Drawing | ||||||
Pressure sensor | VPRT | VPRTF | VPRQ | VPRQF | VPRQF | |
Connection screw | R1/2 | G1/2 | R3/8 | G3/8 | G1/2 | |
Rated capacity | 100MPa | 1–50MPa | 100MPa | |||
Drawing |
●1–35MPa ●50MPa |
●100MPa |

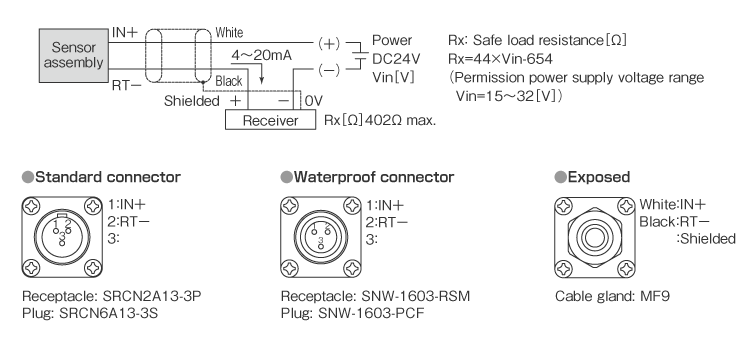

Power/Output specification
