Discontinued (Please contact our sales representative.)
Round Digital Pressure Meter with Analog/BCD Output
VPC series
(Sensor direct connection type, with analog/BCD output)50kPa–100MPa
50kPa abs–1700kPa abs
50kPa abs–1700kPa abs

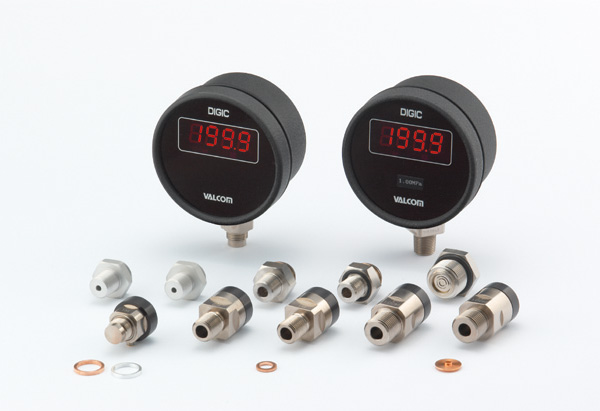

* Actual products may differ from photo depending on specifications.
- 5 analog outputs and 3 BCD outputs can be selected and used together.
- Fast response analog output without microcomputer is available that is suitable to fluid pressure measurement.
- High accuracy and long life.
- Can be selected from abundant pressure range.
| Measured medium | Air, gases, water, oil or other media. (Depends on the material of sensor.) |
|---|---|
| Pressure type | Positive, negative, compound and absolute pressures can be measured. |
| Pressure range | Pressure sensor series ranging from low pressure, absolute pressure, and medium-to-high pressure up to 100 MPa are available. (See photos on the left for pressure sensors.) |
Specifications
| Display | 1999 3 ½digit Super luminosity Red LED (Character height: Approx. 15mm) |
|---|---|
| Display Conversion Speed | 3times/sec. (Standard), Can be set in the range of 1–15 times/s. |
| Accuracy (*1) | ±0.05%F.S.±1digit |
| Use Temperature Range | 0–55°C (No freezing) |
| Use Humidity Range | 0–90%RH (No condensation) |
| External dimensions | φ104×56 (D:Protrusions not included) |
| Weight | Approx. 650g (Varies with specification) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy(*2) |
- (*1) Take into account the accuracy of the pressure sensor selected from the table.
- (*2) For accessories such as connectors, refer to the pages of Accessories and Options.

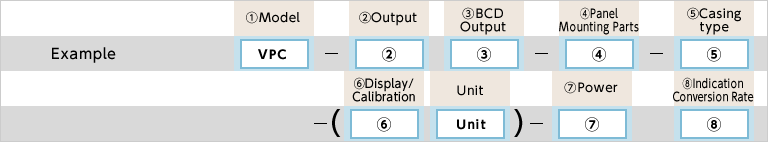

Model Selection
Selection of Pressure sensor
Refer to Selection Table for Pressure Sensors for specification and model numbers and specify the desired model.
[e.g.] VPC - A3B1 - S - A - 1.000MPa - 1 / VPRQ - 1MP
[e.g.] VPC - A3B1 - S - A - 1.000MPa - 1 / VPRQ - 1MP
Selection of Power converter
Only when AC power is used, refer to the Power Converters page, and specify the model.
[e.g.] TUC - AC100V - 3 - 1N
[e.g.] TUC - AC100V - 3 - 1N
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VPC | Round Digital Pressure Meter with Analog/BCD Output | |||
| 2.output | - | - | Output type | Response frequency | Safe load resistance | |
| Blank | None | |||||
| D | Display only (No output) *When D is selected, analog output and BCD output are not available. |
- | - | |||
| A1 | 1mV/digit (±1999mV max.) | 1.2kHz | This value has been calculated as response frequency (= 1/2T (Hz)) based on the measured step response (0–100%) and rise time (T) with the sensor bridge resistance of 350Ω. Response frequency is determined by the sensor to be used. Consult with us when focusing on response. |
10kΩ or more | ||
| A2 | 1–5V | |||||
| A3 | 4–20mA (4-wire) | 333Hz | 250Ω or less | |||
| A4 | 0–5V | 1.2kHz | 10kΩ or more | |||
| A5 | 0–10V | |||||
| 3.BCD Output | - | - | Output type | Response frequency | Safe load resistance | |
| Blank | None | - | - | |||
| B1 | BCD TTL (Positive) | Synchronized with the display conversion rate. | ±3mA | |||
| B2 | Discontinued BCD TTL (Negative) |
|||||
| B1O | BCD Open collector (Signal output Tr OFF) |
35V 25mA | ||||
| B2O | BCD Open collector (Signal output Tr ON) |
|||||
| 4.Panel Mounting Parts | S | Without panel bracket: A=Fixed at S for the models with sensor directly connected on bottom. | ||||
| P | With panel bracket: B=Available only for the models with sensor directly connected on bottom. | |||||
| 5.Casing type | A | Directly connected on bottom side (Pressure sensor only) | ||||
| B | Directly connected on back side (Pressure sensor only) | |||||
| 6.Display/Calibration | Specify the range within the rated capacity of the applicable pressure sensor.(Within 50% of the rated capacity) *Refer to Selection Table for Pressure Sensors for the rated capacity. |
|||||
| 7.Power [Power Consumption] | 1 | AC100V [5VA] | When specifying AC power, a dedicated power converter "TUC" will be included. Click here for the specifications of power converters. | |||
| 11 | AC110V [5VA] | |||||
| 2 | AC200V [5VA] | |||||
| 22 | AC220V [5VA] | |||||
| 3 | DC±12V [200mA] | |||||
| 4 | DC24V [100mA] | |||||
| 5 | DC12V [200mA] *Not available when analog output is A5 | |||||
| 8.Indication Conversion Rate (Option) |
Indication Conversion Rate 3 times/sec. Option ( times/sec.) *Specify in the range of 1–15 times/s. |
|||||

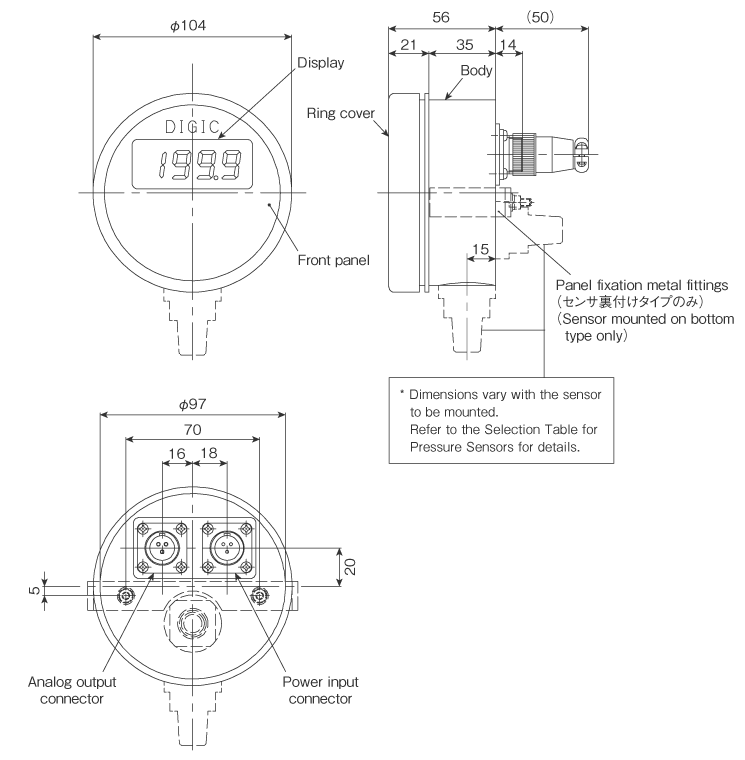

External dimensions (Unit: mm)
| Selection table for pressure sensor | ||||||
|---|---|---|---|---|---|---|
| Pressure sensor | VHR3 | VHG3 | VAR3 | VAG3 | VPNPR | VPNPG |
| Connection screw | R3/8 | G3/8 | R3/8 | G3/8 | R3/8 | G3/8 |
| Rated capacity | 50kPa(or kPa abs) | 100–700kPa(or kPa abs) | 100–1700kPa(or kPa abs) | |||
| Drawing |  |
 |
||||
| Pressure sensor | VNF | VPRF | VPRT | VPRTF | ||
| Connection screw | G3/4 | G3/8 | R3/8 | G3/8 | ||
| Rated capacity | 100–1700kPa(or kPa abs) | 1–50MPa | 1–50MPa | |||
| Drawing |  |
 |
 |
|||
| Pressure sensor | VPRT | VPRTF | VPRQ | VPRQF | VPRQF | |
| Connection screw | R1/2 | G1/2 | R3/8 | G3/8 | G1/2 | |
| Rated capacity | 100MPa | 1–50MPa | 100MPa | |||
| Drawing |
|
●1–35MPa
●50MPa
|
●100MPa
|
|||

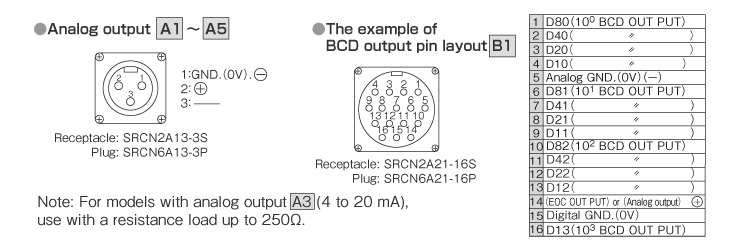

Output specification

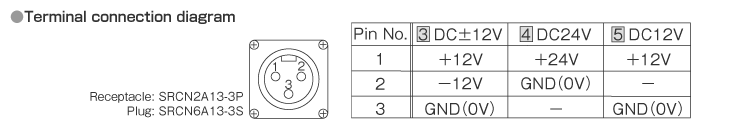

Power specification
*Only when AC power is used, select exclusive trans unit. (Refer to the "Exclusive power for VPC" page.)
