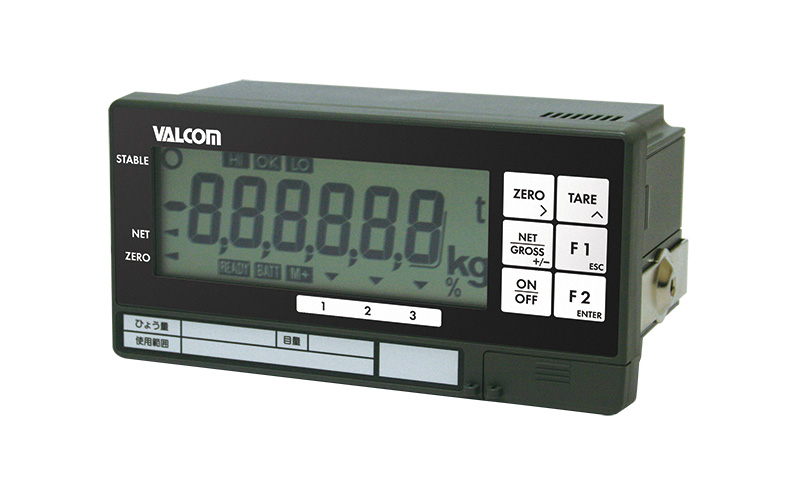

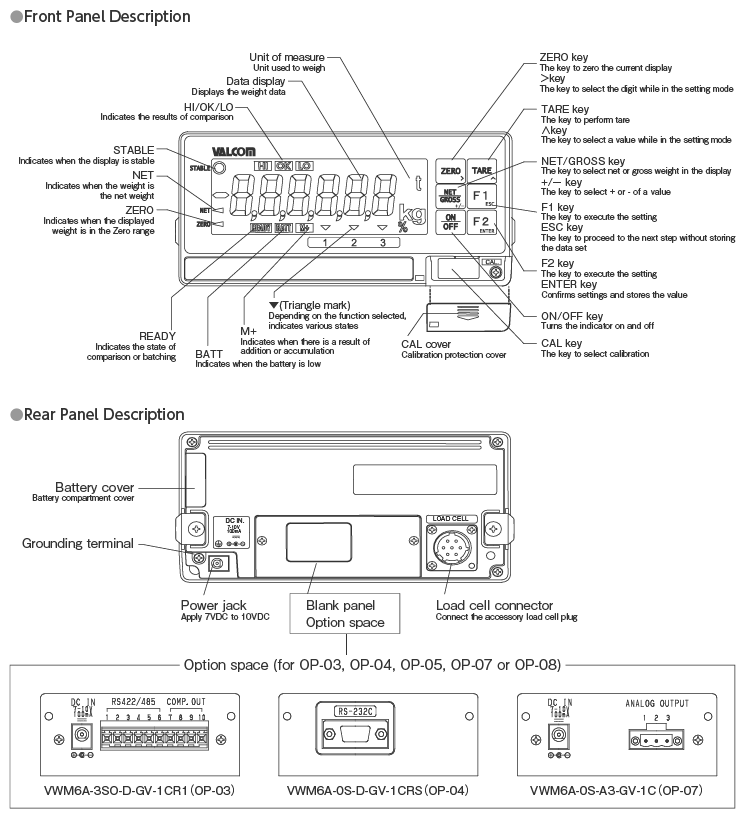

Strain Gauge Panel Meter for Scaling
VWM6A series
If it is combination with pressure sensors and load cells, it is possible to scalling cilibrate by value.
- Easy-to-view large display of 25mm in character hight.
- Can be used by AC adapter and AAA alkaline cells.
- There is two comparator functions, [HL mode] and [5 step sorting mode].
It is compared to measured mass value and set mass value, it can display the results or have a notice by buzzer. - Option Specifications(3 type)
●RS-232C interface (Both directions RS-232C)
●Analog output 4 to 20mA
●Photo Mos relay 3 points + RS-422/485 interface
Specifications
| Applicable sensor | Various strain gauge sensors (350Ω) | |
|---|---|---|
| Input signal range | ±7mV/V | |
| Sensor power supply | DC5V±5% 60mA | |
| A/D conversion method | Delta-sigma method | |
| A/D resolution count | 16000000 counts | |
| A/D conversion rate | Approximately 10 times/s | |
| Maximum display resoulution | 10,000 | |
| Display | Measurement display | 7 segment, Liquid crystal display Character height 25 mm |
| State indicator symbol | Minus sign, Zero point, Stable, Net, Comparison result
Storing accumulated data, Percentage, Low battery Various state indicators (triangle 1, 2, 3) |
|
| Unit | kg, g, t (lb, oz, lb-oz / catty, tl, catty-tl: depends on the region) | |
| Power supply | 7 to 10VDC (AC adapter, battery (6 x size C) ) | |
| Operation temperature | −10°C–+40°C | |
| Operation humidity | 85% R.H. (no condensation) | |
| Mass | Approximately 650g, excluding the batteries | |
| Dimensions | 192(W)×96(H)×87(D)mm | |
RS-232C interface Serial interface for communication (D-Sub 9P male contact)
| Transmission | Asynchronous, bi-directional, half-duplex |
|---|---|
| Baud rate | 600, 1200, 2400, 4800, 9600 bps |
| Parity bit | 1 bit, Even or Odd (for 7 data bits) or Non parity (for 8 data bits) |
| Start bit | 1 bit |
| Stop bit | 1 bit |
| Data bits | 7 bits, 8 bits |
| Terminator | CR LF, CR (CR:0Dh, LF:0Ah) |
| Code | ASCII |
| Connector | D-sub 9 pin connector |
Analog output 4-20 mA, free scaling output (terminal block)
| Nonlinearity | Less than±0.1% FS |
|---|---|
| Load resistance | 0–510Ω |
| Resolution | Approx. 1/10000 |
| ZERO Temperature coefficient | Less than±0.02% FS/°C |
| SPAN Temperature coefficient | Less than±0.02% FS/°C |
RS-422/485 interface Serial interface for communication, control (terminal block)
| Transmission | EIA RS-422/485 | |
|---|---|---|
| Transmission form | Asynchronous | |
| Data format | Baud rate | 600, 1200, 2400, 4800, 9600 bps |
| Parity bit | 1 bit, Even or Odd (for 7 data bits) or Non parity (for 8 data bits) |
|
| Start bit | 1 bit | |
| Stop bit | 1 bit | |
| Data bits | 7 bits, 8 bits | |
| Terminator | CR LF, CR (CR: 0Dh, LF: 0Ah) | |
| Code | ASCII | |
| Device ID | 01–99 (Specified by F-Function F06) | |
3-relay outputs (Photo MOS relay 3 points) (terminal block)
| Solid-state-relay | Maximum voltage 50VDC/Maximum current 100 mA DC/Maximum resistance 8Ω |
|---|
Other Specifications
| Accessories | Instruction manual, Load cell plug (AX-NJC-207-PF), AC adapter (AX-TB-162), Annunciator label |
|---|
Selection

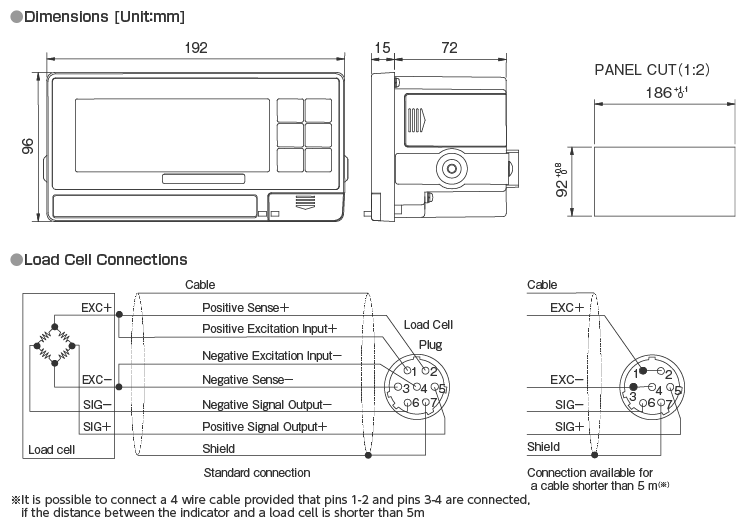

Dimensions (Unit: mm)
