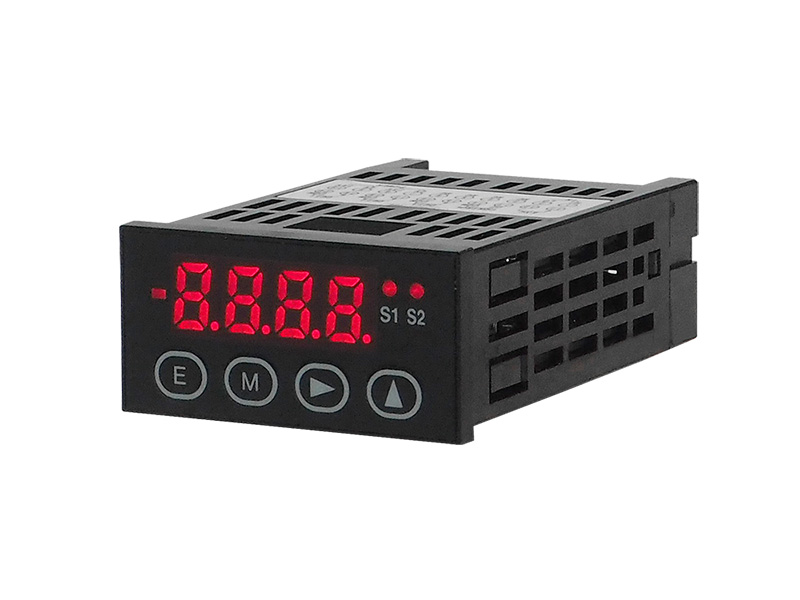

2 Settings 3 Output (Hi/Go/Lo) type Miniature Digital Panel Meter
VSM3B series

Ultrasmall, space-saving design with three setting outputs included.

GO output adopted in addition to the selection of HI-LO, HH and LL settings in pursuit of user-friendliness.

  • Ultrasmall, space-saving design with three setting outputs included.
  • GO output adopted in addition to the selection of HI-LO, HH and LL settings in pursuit of user-friendliness.
  • Scaling function included.
  • Equipped with sensor power supply.
  • Easy-to-see high brightness LED adopted.
  • Digital zero function included.
  • Low price and quick delivery.

Specifications

Display Can be set as desired via the scaling function. ±9999 (full 4 digits)
Red 7-segment LED display (character height: approximately 8 mm)
Sampling speed Maximum 25 times/second
Accuracy ±0.03% of rdg+2digit. (at 23°C±5°C)
Supply voltage [Rated power] DC24V±20% [3.0W]
Output voltage DC 24 V ±5% Maximum load: 25mA
Operating temperature ranges −10–55°C
Operating humidity ranges 35–85%RH (no condensation)
Setting output Relay output DC 24V, 1A (resistance load)
-9999 to +9999
HI/GO/LO mode HI limit value, HH/HI/GO mode HH limit value
GO/LO/LL mode LO limit value
Protective structure IP65: JIS C 0920
External dimensions 48(W)×24(H)×72.8(D)mm (Including screw terminal)
Weight Approx. 70g
Insulating resistance listed above: Operating manual, Fitting band, Unit seal

Selection

Example

Selection Cheak Model Specification
1.Model VSM3B 2 Settings 3 Output (Hi/Go/Lo) type Miniature Digital Panel Meter
2.Setting Output   2S Relay output
  2SO Photocoupler output (option) *It's impossible to be in use with relay output
3.Analog output   D None
  A3 4 to 20mA (resistance load 0 to 510Ω)
  A5 0–10V (option) (resistance load 5kΩ or more)
  R1 RS-485 (option) *It's impossible to be in use with analog output
4.Input range   A2 1 to 5V (Input impedance Approx. 1MΩ)
  A3 4 to 20mA (Input impedance Approx. 50Ω)
  A5 0 to 10V (option) (Input impedance Approx. 1MΩ)
5.Power [Rate power] 4 24V DC ±20% [3.0W]

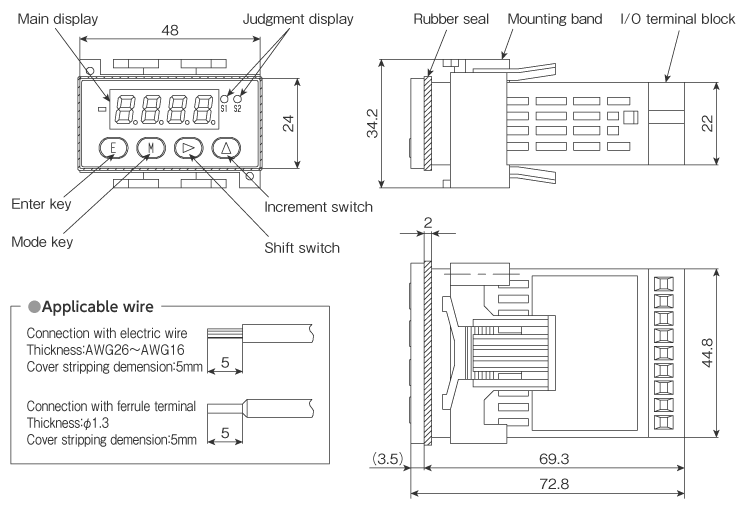

Dimentions(Unit: mm)

External dimensions

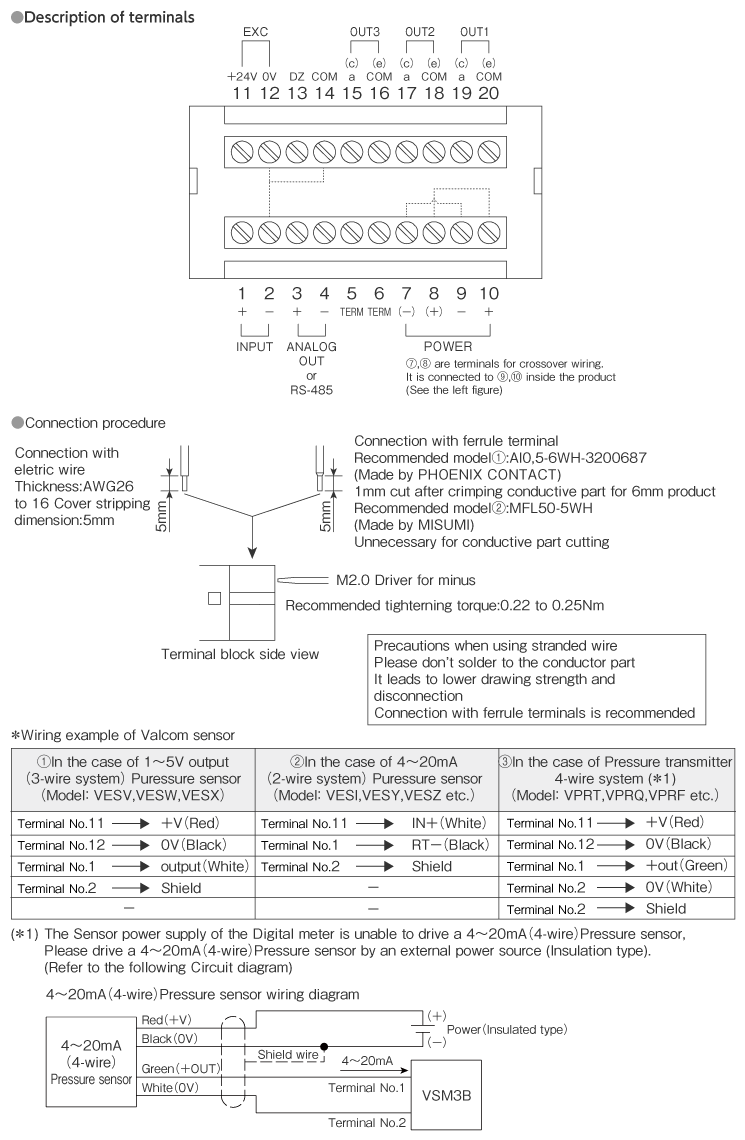

Connection

Connection

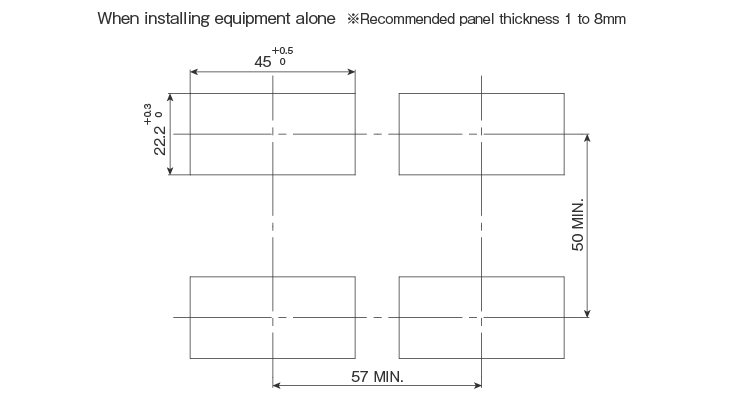

Panel cut(Unit: mm)

Panel cut
