DiscontinuedSuccessor model: VGM5-3
Amplifier with Square type (Pressure/Load) Display for Press, Injection and Bending
VPXM series

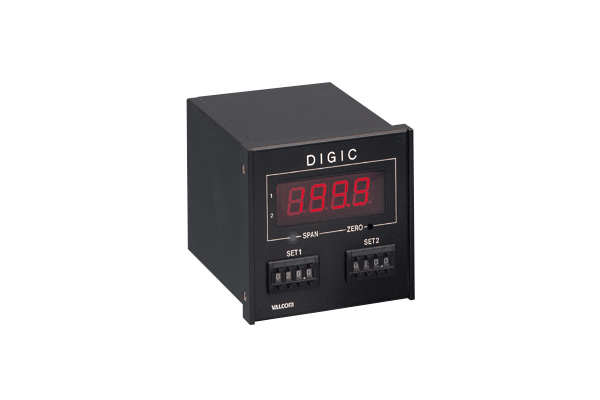

* Actual products may differ from photo depending on specifications.
Use in combination with pressure sensors or load cells.
- Compact and high-efficiency amplifier with digital display for Go/No-Go judgment of press work.
- Specialized in press, press fitting and caulking with the dedicated measurement timing chart.
- Abundant options to support OEM production.
| Can be combined with sensors | Can be combined with all models of pressure sensors and load cells. |
|---|---|
| Sensor specifications | Refer to the pages of pressure sensors and load cells. |
| Calibration of amplifier and sensor | VPXM amplifiers and pressure sensors or load cells have been calibrated as a pair. Amplifiers and sensors have been calibrated as a pair under the same serial number. |
- ■2S type
Most common type that outputs judgment with the maximum value after the measurement period is finished. - ■2SA1 type
Suitable for processes of fast cycle time where judgment output is required as soon as the measurement is finished. - ■2SA2 type
Suitable for processes with longer measurement period (time) where judgment output is required in real-time during measurement.
Specifications
| Display | 1999 3 1/2digit Super luminosity Red LED (Character height: approx.15mm) |
|---|---|
| Indication Conversion Rate | 10 times/sec. (Standard) |
| Accuracy | ±0.05%F.S.±1digit |
| Use Temperature Range | 0–55°C (No freezing) |
| Use Humidity Range | 0–90%RH (No condensation) |
| External dimensions | 96(W)×96(H)×139 (D: Protrusions not included) 96(W)×96(H)×210 (D: Protrusions not included) (Long case) |
| Weight | Approx. 750g (Varies with specification) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy (*1) |
- *1 Click here for accessories.

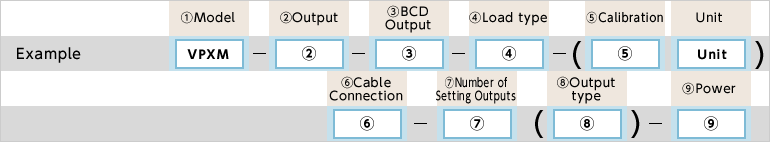

Model Selection
Pressure Sensor or Load Cell Selection
Click here for the specifications of pressure sensors, and click here for the loads cells
Specify the applicable models.
[e.g.] VPXM-A2B20-PS-1.999kN-2SA1(HH)-1/VLC-2KNE344 (5m cable includedm)
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VPXM | Amplifier with Square type (Pressure/Load) Display for Press, Injection and Bending | |||
| 2.Analog output *Analog output and BCD output can be used together. |
- | - | Output type | Response frequency | Power consumption | |
| Blank | None | - | - | |||
| D | Display only | |||||
| A1 | 1mV/digit (±1999mV max.) |
1.2kHz | This value has been calculated as response frequency (= 1/2T (Hz)) based on the measured step response (0–100%) and rise time (T) with the sensor bridge resistance of 350Ω. Response frequency is determined by the sensor to be used. Consult with us when focusing on response. | 10kΩ or more | ||
| A2 | 1–5V | |||||
| A3 | 4–20mA | 333Hz | 250Ω or less | |||
| A4 | 0–5V | 1.2kHz | 10kΩ or more | |||
| A5 | 0–10V | |||||
| 3.BCD output *Available to use BCD output at the same time |
- | - | Output type | Response frequency | Permission load | |
| Blank | None | - | - | |||
| B1 | BCD TTL (Positive) | 10 times/sec (Standard) | ±3mA | |||
| B2 | BCD TTL (Negative) | |||||
| B1O | BCD open-collector (Signal output Tr OFF) |
35V 25mA | ||||
| B2O | BCD open-collector (Signal output Tr ON) |
|||||
| 4.Load type | Blank | Need not be specified when combining with a pressure sensor | ||||
| PS | To be specified only when combining with a load cell. | Compression | ||||
| PL | Tension | |||||
| PSL | Compression and tension *Add a "±" sign to the display range when using for tensile/compression load. |
|||||
| 5.Calibration | Example of calibration range | Pressure: 1.000MPa(0–1.000)MPa 500kPa(0–500)kPa ±100.0kPa(-100.0–100.0)kPa |
||||
| Load: 20.0kN(0–20.0)kN 100.0kN(0–100.0)kN ±1.00kN(-1.00–1.00)kN |
||||||
| 6.Cable connection | Blank | Specify the type of the connector for the pressure sensor to be combined. | Standard connector | |||
| W | Waterproof connector | |||||
| S | With directly connected cable | |||||
| 7.Number of setting output | - | - | Output type | Response frequency | Permission load | |
| 2S | 2-setting/Standard type/relay output | 150msec. or less | AC250V 4A | |||
| 2SO | 2-setting/Standard type/Open collector output | 45V 150mA | ||||
| 2SA1 | 2-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 2SAO1 | 2-setting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 2SA2 | 2-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 2SAO2 | 2-setting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 8.Output type | H or L | When outputting 1 setting, select any of H and L | H=Higher limit L=Lower limit |
|||
| When outputting 2 settings, select any of HH, HL and LL | ||||||
| 9.Power [Power Consumption] | 1 | AC100V [5VA] | When specifying AC power, a dedicated power converter "TUC" will be included. Click here for the specifications of power converters. | |||
| 11 | AC110V [5VA] | |||||
| 2 | AC200V [5VA] | |||||
| 22 | AC220V [5VA] | |||||
| 3 | DC±12V [200mA] | |||||
| 4 | DC24V [100mA] | |||||
| 5 | DC12V [200mA] *Not available when analog output is A5 | |||||
●When using an inductive load (relay, etc.) with an open collector output model, connect a diode to absorb surge.

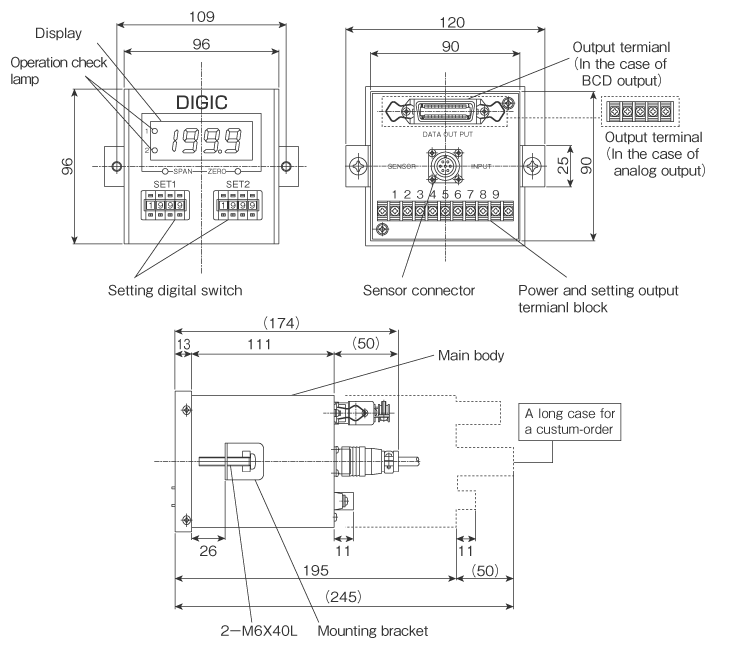

External dimensions (Unit: mm)

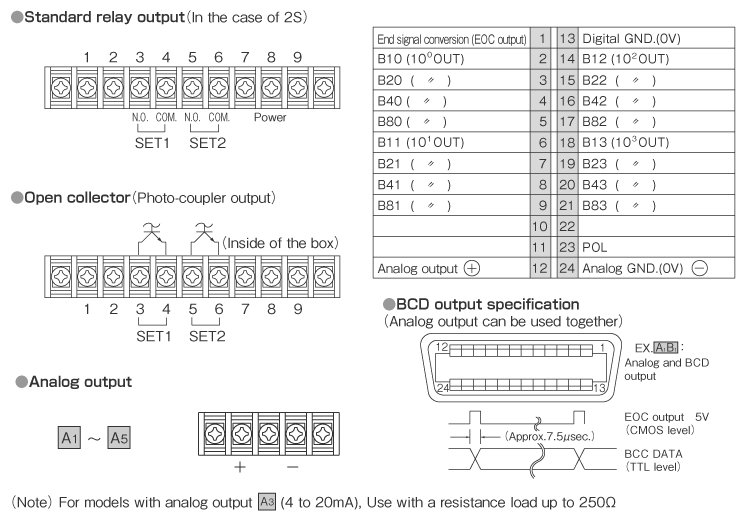

Output Specifications

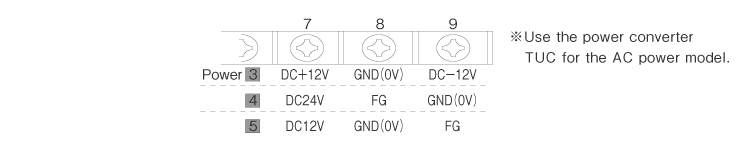

Power Specifications

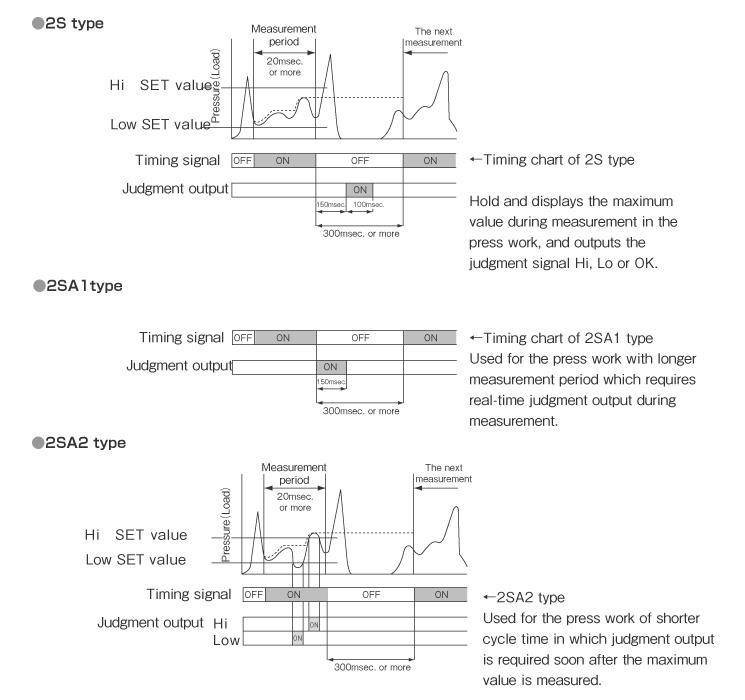

Measurement timing chart
