DiscontinuedSuccessor model: VGM5-3
Differential Pressure type DIN96 Square Digital(Pressure/Load) Meter
VPS series (Arithmetic function)

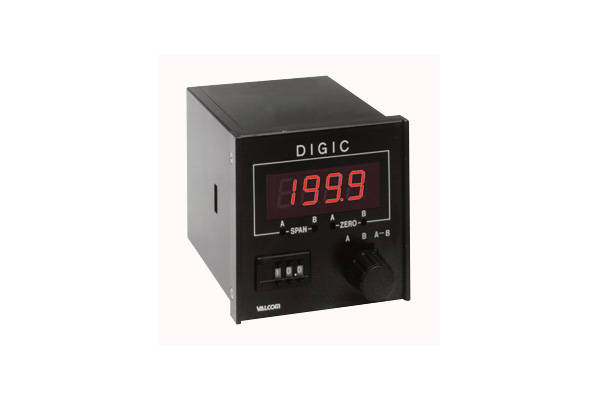

* Actual products may differ from photo depending on specifications.
Use in combination with pressure sensors or load cells.
- Equalizing valve not required for differential pressure display.
- Added and subtracted values can be read directly.
- 5 analog outputs and 4 BCD outputs can be selected and used together.
- Display can be changed between "A, B, A+B" and "A, B, A-B" according to the selective specification.
| Can be combined with sensors | Can be combined with all models of pressure sensors and load cells. |
|---|---|
| Sensor specifications | Refer to the pages of pressure sensors and load cells. |
| Calibration of amplifier and sensor | VPS amplifiers and pressure sensors or load cells have been calibrated as a pair. Amplifiers and sensors have been calibrated as a pair under the same serial number. |
Specifications
| Display | 1999 3 1/2 digits High brightness red LED (character height of approx. 15mm) |
|---|---|
| Display conversion speed | 3times/sec (Standard) Specify 1–15 times/sec. (Refer to option spec.) |
| Accuracy | ±0.05%F.S.±1digit |
| Operating temperature range | 0–55°C (No freezing) |
| Operating humidity range | 0–90%RH (No condensation) |
| Dimensions | 96(W)×96(H)×139 (D:Protrusions not included) 96(W)×96(H)×210 (D:Protrusions not included) (Long case) |
| Weight | Approx.750g (Varies with specification) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy (*1) |
- *1 Click here for accessories.

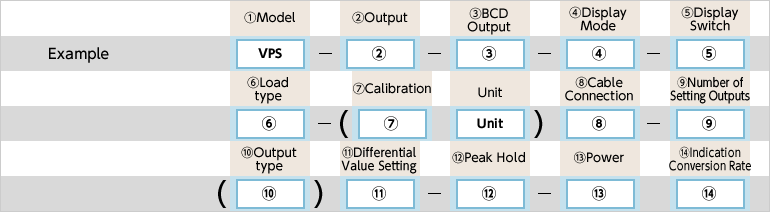

Model Selection
Pressure Sensor or Load Cell Selection
Click here for the specifications of pressure sensors, andclick here for the loads cells
Specify the applicable models.
[e.g.] VPS-A3B20-D4-SE-10.00MPa-1S(H)-4/VPRT-10MP (3m cable included)×2
| Selection | Cheak | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VPS | Differential Pressure type DIN□96 Square Digital (Pressure/Load) | |||
| 2.Analog output *Available to use BCD output at the same time |
- | - | Output type | Response frequency | Load resistance | |
| D | Display only (No output), When D is selected, analog output and BCD output are not available. | |||||
| A1 | 1mV/digit (±1999mV max.) |
1.2kHz | This value has been calculated as response frequency (= 1/2T (Hz)) based on the measured step response (0–100%) and rise time (T) with the sensor bridge resistance of 350Ω. Response frequency is determined by the sensor to be used. Consult with us when focusing on response. | 10kΩ or more | ||
| A2 | 1–5V | |||||
| A3 | 4–20mA | 333Hz | 250Ω or less | |||
| A4 | 0–5V | 1.2kHz | 10kΩ or more | |||
| A5 | 0–10V | |||||
| 3.BCD output *Available to use BCD output at the same time |
- | - | Output type | Response frequency | Permission load | |
| Blank | None | - | - | |||
| B1 | BCD TTL (Positive) | Synchronized with the display conversion rate. | ±3mA | |||
| B2 | BCD TTL (Negative) | |||||
| B1O | BCD open-collector (Signal output Tr OFF) |
35V 25mA | ||||
| B2O | BCD open-collector (Signal output Tr ON) |
|||||
| 4.Display mode | D1 | (A+B) | ||||
| D2 | (A-B) | |||||
| D3 | (A,B, A+B) | |||||
| D4 | (A,B, A-B) | |||||
| D5 | (A),(B) Only independent display change | |||||
| 5.Display switch | SE | Select switch (For no setting output and 1 setting output) *Only D3 and D4 can be selected. |
||||
| TE | Toggle switch (For 2 setting output) *Only D3 and D4 can be selected. |
|||||
| R | External signal input (For all setting output) *Only D3, D4 and D5 can be selected. |
|||||
| 6.Load type | Blank | Need not be specified when combining with a pressure sensor | ||||
| PS | To be specified only when combining with a load cell. | Compression | ||||
| PL | Tension | |||||
| PSL | Compression and tension *Add a "±" sign to the display range when using for tensile/compression load. |
|||||
| 7.Calibration | Example of calibration range | Pressure: 1.000MPa (0–1.000)MPa 500kPa (0–500)kPa ±100.0kPa (-100.0–100.0)kPa |
||||
| Load: 20.0kN (0–20.0)kN 100.0kN (0–100.0)kN ±1.00kN (-1.00–1.00)kN |
||||||
| 8.Cable connection | Blank | Specify the type of the connector for the pressure sensor to be combined. | Standard connector | |||
| W | Waterproof connector | |||||
| S | With directly connected cable | |||||
| 9.Number of setting output | - | - | Output type | Response frequency | Permission load | |
| 0S | None | - | - | |||
| 1S | 1-setting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 1SO | 1-setting/Standard type/Open collector output | 45V 150mA | ||||
| 1SA | 1-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 1SAO | 1-setting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 2S | 2-setting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 2SO | 2-setting/Standard type/Open collector output | 45V 150mA | ||||
| 2SA | 2-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 2SAO | 2-setting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 3S | 3-setting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 3SO | 3-setting/Standard type/Open collector output | 45V 150mA | ||||
| 3SA | 3-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 3SAO | 3-setting/High-speed/PhotoMOS relay output | 1msec. or less | AC/DC250V 0.1A | |||
| 10.Output type | H or L | When outputting 1 setting, select any of H and L | *Always specify the output type when placing an order. | |||
| When outputting 2 settings, select any of HH, HL and LL | ||||||
| When outputting 3 settings, select any of HHH, HHL, HLL and LLL | ||||||
| 11.Differential value setting Volume adjustment type |
Blank | Hysteresis=△P not available | ||||
| □△P | Hysteresis=△P available *With differential, a differential as many as the setting will be added. | |||||
| 12.Peak hold (option) |
Blank | Without peak hold | ||||
| P-M | With peak hold (with memory) | |||||
| PSM | Sample hold | |||||
| 13.Power [Power consumption] | 1 | AC100V [2VA] | When specifying AC power, a dedicated power converter "TUC" will be included. Click herefor the specifications of power converters. | |||
| 11 | AC110V [2VA] | |||||
| 2 | AC200V [5VA] | |||||
| 22 | AC220V [5VA] | |||||
| 3 | DC±12V [200mA] | |||||
| 4 | DC24V [100mA] | |||||
| 5 | DC12V [200mA] *Not available when analog output is A5 | |||||
| 14.Indication cnversion rate (option) |
Indication cnversion rate Standard 3 times/sec option ( times/sec) *Specify in the range of 1–15 times/s. |
|||||
●Always use two sensors of the same model. Contact our sales office in case of different sensors.
●When using an inductive load (relay, etc.) with an open collector output model, connect a diode to absorb surge.

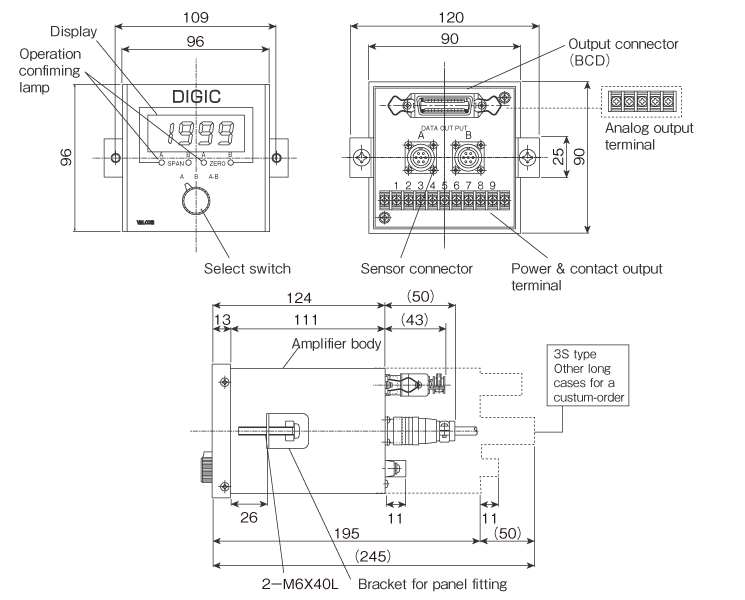

Dimensions (Unit: mm)

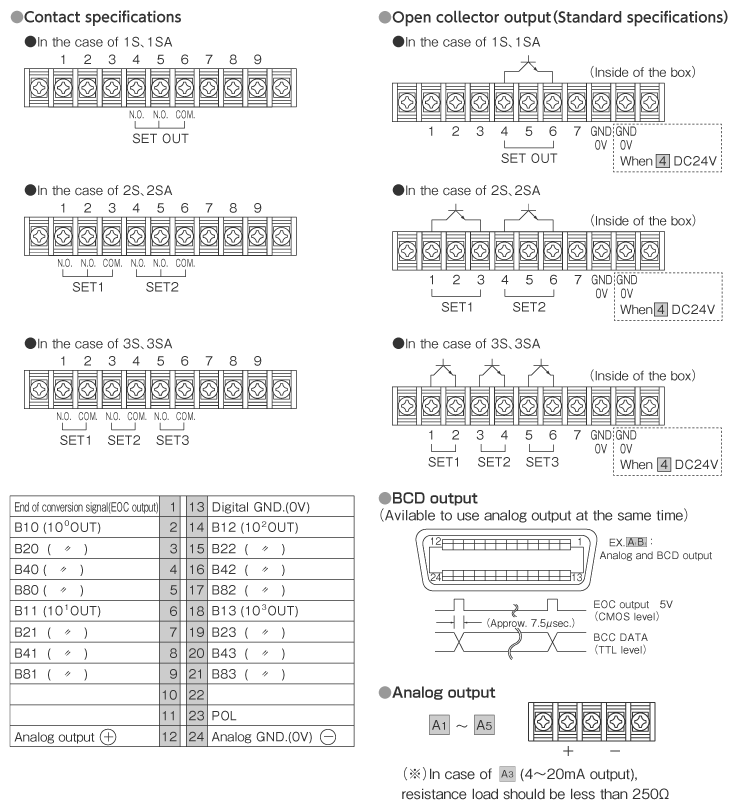

Output Specifications

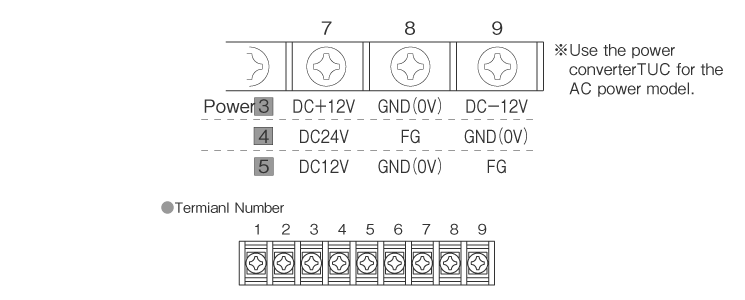

Power Specifications

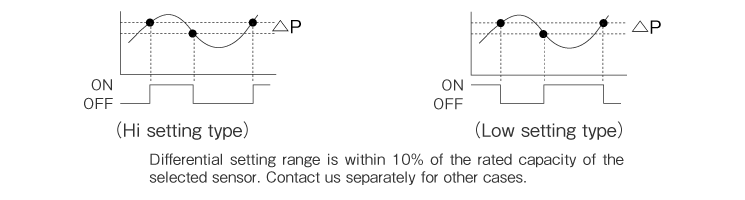

Hysteresis(Volume adjustment)

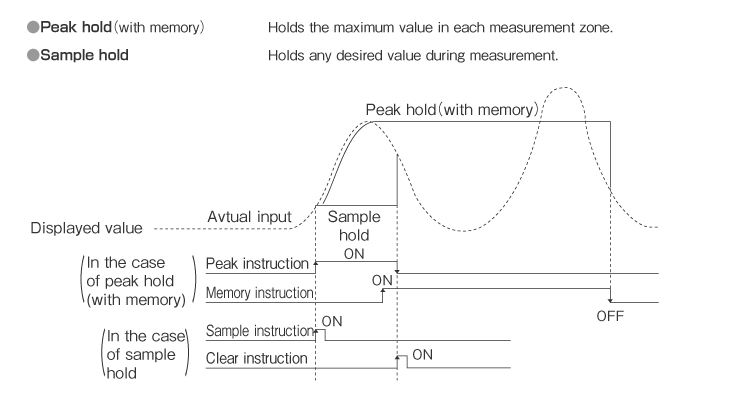

Peak hold(option)

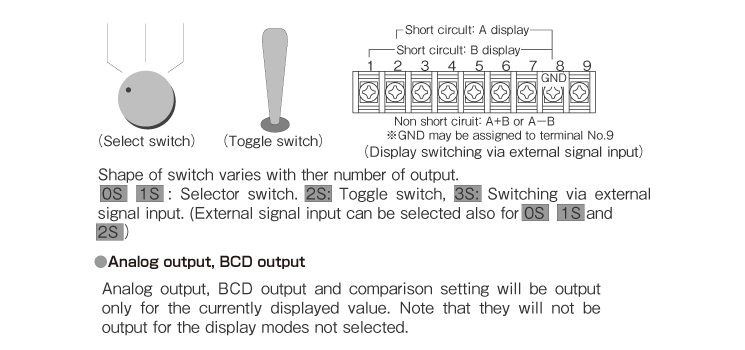

Display switch
