DiscontinuedSuccessor model: VGM5-3
Analog, BCD Output/Setting Output type Digital(Pressure/Load) Meter
VPS series (Analog/BCD output)

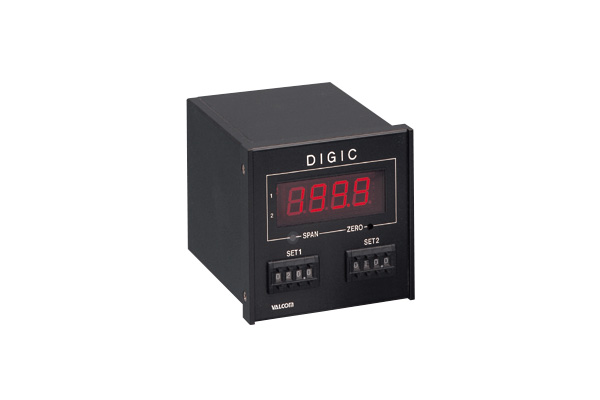

* Actual products may differ from photo depending on specifications.
Use in combination with pressure sensors or load cells.
- 5 analog outputs and 4 BCD outputs can be selected and used together.
- Analog outputs are raw waveforms not via the digital circuit, and fast response.
- High capacity relay (250 V AC, 4 A) for setting output.
| Can be combined with sensors | Can be combined with all models of pressure sensors and load cells. |
|---|---|
| Sensor specifications | Refer to the pages of pressure sensors and load cells. |
| Calibration of amplifier and sensor | VPS amplifiers and pressure sensors or load cells have been calibrated as a pair. Amplifiers and sensors have been calibrated as a pair under the same serial number. |
Specifications
| Display | 1999 3 1/2 digits High brightness red LED (character height of approx. 15mm) |
|---|---|
| Display conversion speed | 3 times/sec (Standard) Specify 1–15 times/sec. (Refer to option spec.) |
| Accuracy | ±0.05%F.S.±1digit |
| Operating temperature range | 0–55°C (No freezing) |
| Operating humidity range | 0–90%RH (No condensation) |
| Dimensions | 96(W)×96(H)×139 (D: Protrusions not included) 96(W)×96(H)×210 (D: Protrusions not included) (Long case) |
| Weight | Approx. 750g (Varies with specification) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy (*1) |
- *1 Click here for accessories.

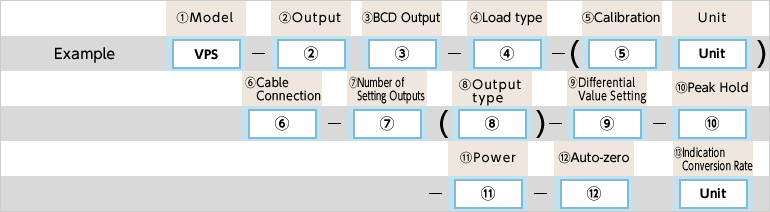

Model Selection
Pressure Sensor or Load Cell Selection
Click here for the specifications of pressure sensors, and click here for the loads cells
Specify the applicable models.
[e.g.] VPS-A3B20-10.00MPa-1S(H)-4/VPRT-10MP (3m cable included)
| Selection | Cheak | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VPS | DIN□96 Analog, BCD Output/Setting Output type Digital (Pressure/Load) | |||
| 2.Analog output *Available to use BCD output at the same time |
- | - | Output type | Response frequency | Load resistance | |
| D | Display only (No output) When Dis selected, analog output and BCD output are not available. | |||||
| A1 | 1mV/digit (±1999mV max.) |
1.2kHz | This value has been calculated as response frequency (= 1/2T (Hz)) based on the measured step response (0–100%) and rise time (T) with the sensor bridge resistance of 350Ω. Response frequency is determined by the sensor to be used. Consult with us when focusing on response. | 10kΩ or more | ||
| A2 | 1–5V | |||||
| A3 | 4–20mA | 333Hz | 250Ω or less | |||
| A4 | 0–5V | 1.2kHz | 10kΩ or more | |||
| A5 | 0–10V | |||||
| 3.BCD output *Available to use BCD output at the same time |
- | - | Output type | Response frequency | Permission load | |
| Blank | None | - | - | |||
| B1 | BCD TTL (Positive) | Synchronized with the display conversion rate. | ±3mA | |||
| B2 | BCD TTL (Negative) | |||||
| B1O | BCD Open collector (Signal output Tr OFF) |
35V 25mA | ||||
| B2O | BCD Open collector (Signal output Tr ON) |
|||||
| 4.Load type | Blank | Need not be specified when combining with a pressure sensor | ||||
| PS | To be specified only when combining with a load cell. | Compression | ||||
| PL | Tension | |||||
| PSL | Compression and tension *Add a "±" sign to the display range when using for tensile/compression load. |
|||||
| 5.Calibration | Example of calibration range | Pressure: 1.000MPa (0–1.000)MPa 500kPa (0–500)kPa ±100.0kPa (-100.0–100.0)kPa |
||||
| Load: 20.0kN (0–20.0)kN 100.0kN (0–100.0)kN ±1.00kN (-1.00–1.00)kN |
||||||
| 6.Cable connection | Blank | Specify the type of the connector for the pressure sensor to be combined. | Standard connector | |||
| W | Waterproof connector | |||||
| S | With directly connected cable | |||||
| 7.Number of setting output | - | - | Output type | Response frequency | Load resistance | |
| 0S | None | - | - | |||
| 1S | 1-setting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 1SO | 1-setting/Standard type/Open collector output | 45V 150mA | ||||
| 1SA | 1-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 1SAO | 1-setting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 2S | 2-stting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 2SO | 2-setting/Standard type/Open collector output | 45V 150mA | ||||
| 2SA | 2-setting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 2SAO | 2-stting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 3S | 3-stting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 3SO | 3-stting/Standard type/Open collector output | 45V 150mA | ||||
| 3SA | 3-stting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 3SAO | 3-stting/High-speed/PhotoMOS relay output | 1msec. or less | AC/DC250V 0.1A | |||
| 4S | 4-stting/Standard type/relay output | 520msec. or less | AC250V 4A | |||
| 4SO | 4-stting/Standard type/Open collector output | 45V 150mA | ||||
| 4SA | 4-stting/High-speed/relay output | 19msec. or less | AC250V 4A | |||
| 4SAO | 4-stting/High-speed/Open collector output | 0.5msec. or less | 45V 150mA | |||
| 8.Output type | H or L | When outputting 1 setting, select any ofH and L | *Always specify the output type when placing an order. | |||
| When outputting 2 settings, select any of HH, HL and LL | ||||||
| When outputting 3 settings, select any of HHH, HHL, HLL and LLL | ||||||
| When outputting 4 settings, select any ofHHHH, HHHL, HHLL, HLLL and LLLL | ||||||
| 9.Differential value setting (Volume adjustment) |
Blank | None | ||||
| □△P | With hysteresis *With differential, a differential as many as the setting will be added. | |||||
| 10.Peak hold (Option) |
Blank | Without peak hold | ||||
| P-M | With peak hold (with memory) | |||||
| PSM | Sample hold | |||||
| 11.Power [Power consumption] | 1 | AC100V [2VA] | When specifying AC power, a dedicated power converter "TUC" will be included. Click herefor the specifications of power converters. | |||
| 11 | AC110V [2VA] | |||||
| 2 | AC200V [5VA] | |||||
| 22 | AC220V [5VA] | |||||
| 3 | DC±12V [200mA] | |||||
| 4 | DC24V [100mA] | |||||
| 5 | DC12V [100mA] *Not available when analog output isA5 | |||||
| 12.Auto-zero (Option) |
Blank | Without auto-zero | ||||
| AZ | With auto-zero (external signal input) | |||||
| MAZ | Manual auto-zero (Push button) | |||||
| 13.Indication cnversion rate (Option) |
Indication cnversion rate Standard 3 times/sec option ( times/sec) *Specify in the range of 1–15 times/s. |
|||||
●When using an inductive load (relay, etc.) with an open collector output model, connect a diode to absorb surge.

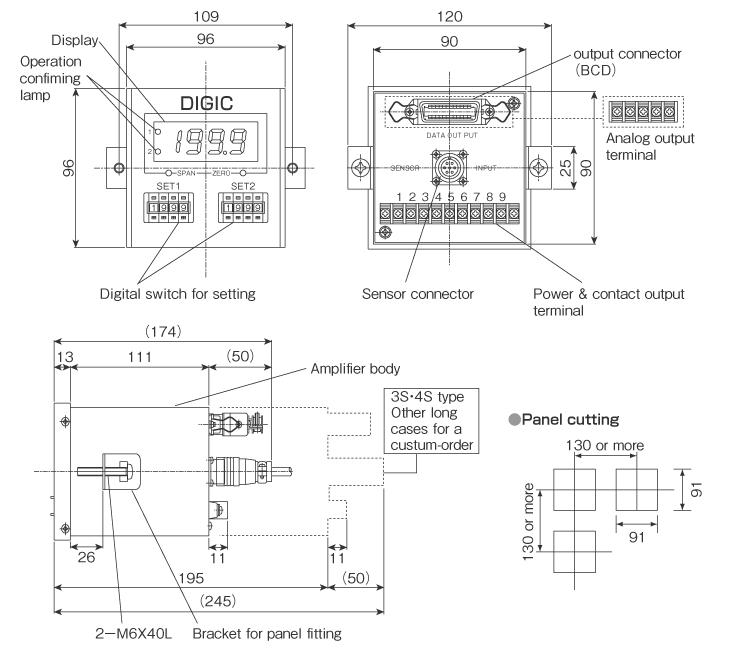

Dimensions (Unit: mm)

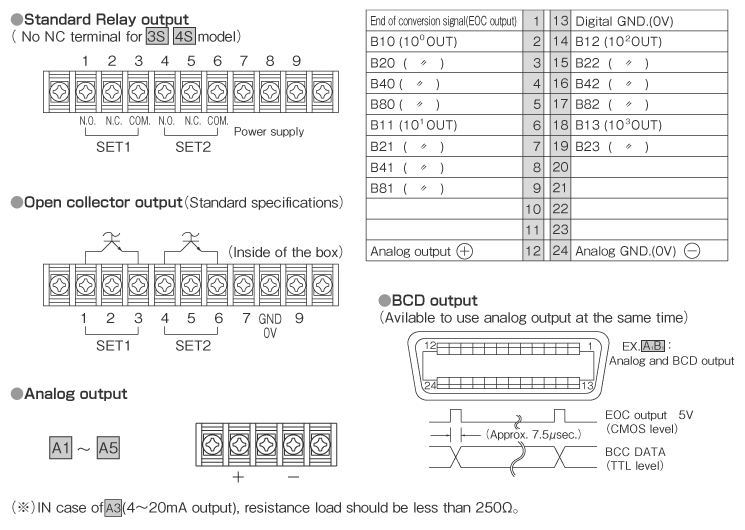

Output Specifications

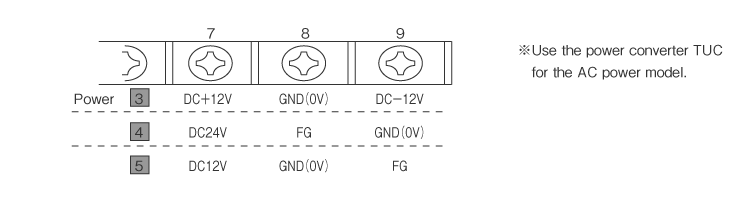

Power Specifications

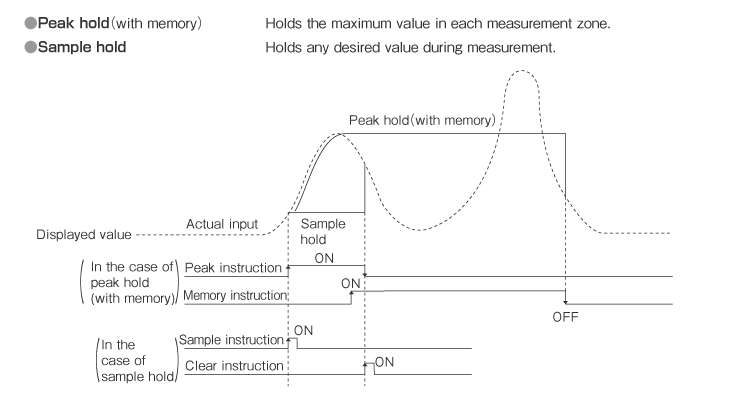

Peak hold(option)

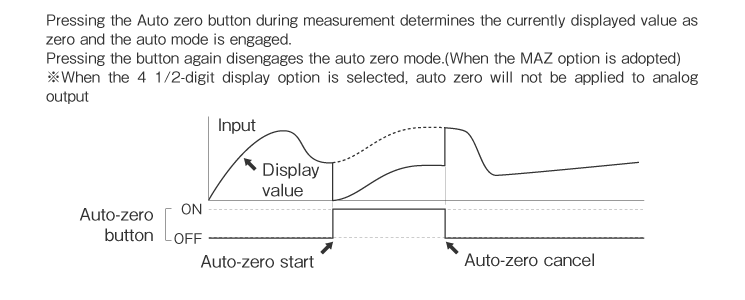

Auto-zero(option)

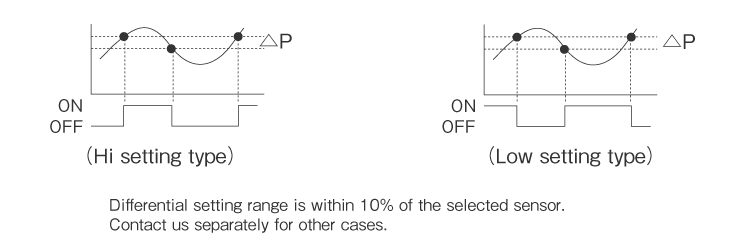

Hysteresis(Volume adjustment)
