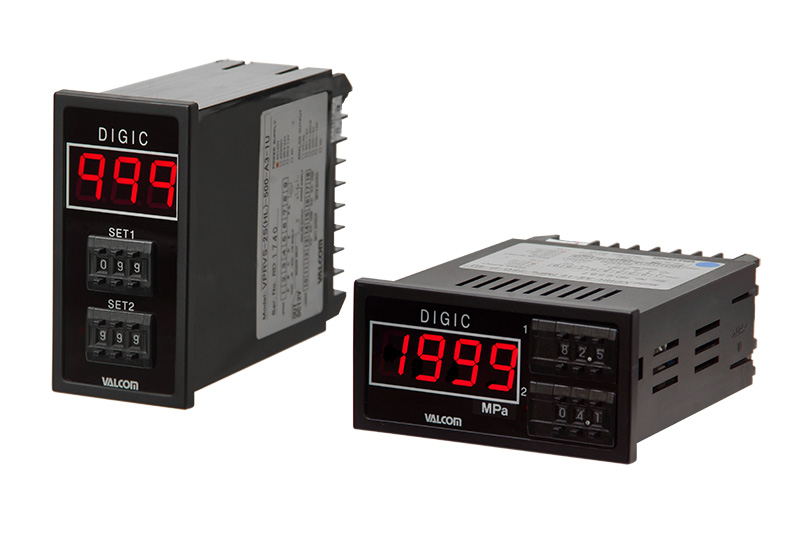

DIN48×96 Square type Digital Panel Meter
VPRHS(VS)-U series
- Setting output can be selected between relay and photo-MOS relay.
- Horizontal type (3½ digits) and vertical type (3 digits) are available in DIN sizes.
- Selectable from among 4 analog outputs.
- Power converter built in.
| Input signal | Specify among 4 to 20mA (2-wire, 4-wire), 1 to 5V, 0 to 5V, 0 to 10V. |
|---|---|
| Sensor specifications | Select from Pressure Sensor Analog output type. |
| Use | Pressure sensor series ranging from low pressure, absolute pressure, and medium-to-high pressure up to 100 MPa are available. |
Specifications
| Display | ±1999 3½ Digit (Horizontal type), 999 3 Digit (Vertical type) Red LED (letters height 15mm) |
|---|---|
| Sampling time | 4 times/sec(Standard)1– Can be set in the range of 1 to 10 times/s. (Refer to option spec.) |
| Accuracy | ±0.05%F.S.±1digit |
| Operating temperature | −10–55°C (No freezing) |
| Operating humidity | 0–90%RH (No condensation) |
| Dimensions | Vertical type: 48(W)×96(H)×127 (D: Protrusions not included) Horizontal type: 96(W)×48(H)×127 (D: Protrusions not included) |
| Weight | Approx. 400g (Varies with specification) |
| Accessories | Operation manual (1 copy) (Specify English or Japanese.) Test report (1 copy) |

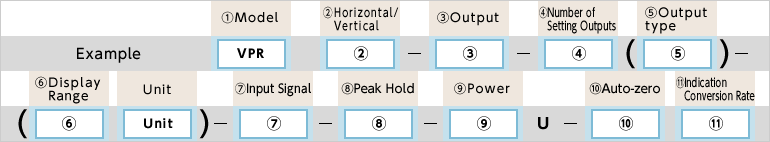

Model Selection
| Selection | Cheak | Model | Specifications | ||
|---|---|---|---|---|---|
| 1.Model | ○ | VPR | DIN48×96 Square type Digital Panel Meter | ||
| 2.Horizontal/Vertical | HS | Horizontal type panel mount | |||
| VS | Vertical type panel mount | ||||
| 3.Analog output *Consult us if you prefer analog output 0–10 V. |
- | - | Output type | Response time | Safe load resistance |
| Blank | None | - | - | ||
| A1 | 1mV/digit | Approx. 10msec. (63% response) |
10kΩ or more (Output impedance 100Ω) |
||
| A2 | 1–5V | ||||
| A3 | 4–20mA | 250Ω or less | |||
| A4 | 0–5V | 10kΩ or more (Output impedance 100Ω) |
|||
| 4.Number of setting outputs | - | - | Output type | Response time | Permission load |
| 0S | None | - | - | ||
| 1S | 1-setting/Relay output type | Approx. 60msec. (63% response) |
AC250V 4A | ||
| 1SO | 1-setting/PhotoMOS relay output type | Approx. 50msec. (63% response) |
AC/DC250V 0.1A | ||
| 2S | 2-setting/Relay output type | Approx. 60msec. (63% response) |
AC250V 4A | ||
| 2SO | 2-setting/PhotoMOS relay output type | Approx. 50msec. (63% response) |
AC/DC250V 0.1A | ||
| 5.Output type | H | Hi/Low: Enter H or L Setting1: ( ) Setting2: ( ) |
|||
| L | |||||
| 6.Display range | VPRHS: Specify in the range of MAX. ±1999 | ||||
| VPRVS: Specify in the range of ±999 | |||||
| 7.Input signal | A2 | 1–5V | |||
| A3 | 4–20mA (4-wire) *Available only when Power is 4 | ||||
| A4 | 0–5V | ||||
| A5 | 0–10V | ||||
| A6 | 4–20mA (2-wire) | ||||
| 8.Peak holding (Optional |
Blank | Without Peak-holding | |||
| P | With Peak-holding *Not available if comparative setting output is 0S | ||||
| 9.Power supply [Current consumpiton] | 1 | AC100V[2VA] | Power supply to VALCOM pressure transmitters | ||
| 11 | AC110V[2VA] | 12V DC is supplied from this converter. Specify 5 as the power for the pressure transmitter to be used. | |||
| 2 | AC200V [2VA] | ||||
| 22 | AC220V [2VA] | ||||
| 4 | DC24V [100mA] | ||||
| 10.Auto-zeroing (Optional) |
Blank | Without Auto-zeroing | |||
| Z | With Auto-zeroing *Not available if comparative setting output is 0S | ||||
| 11.Indication conversion rate (Optional) |
Indication conversion rate Standard 4 times/sec option ( times/sec) *Specify in the range of 1–10 times/s. |
||||

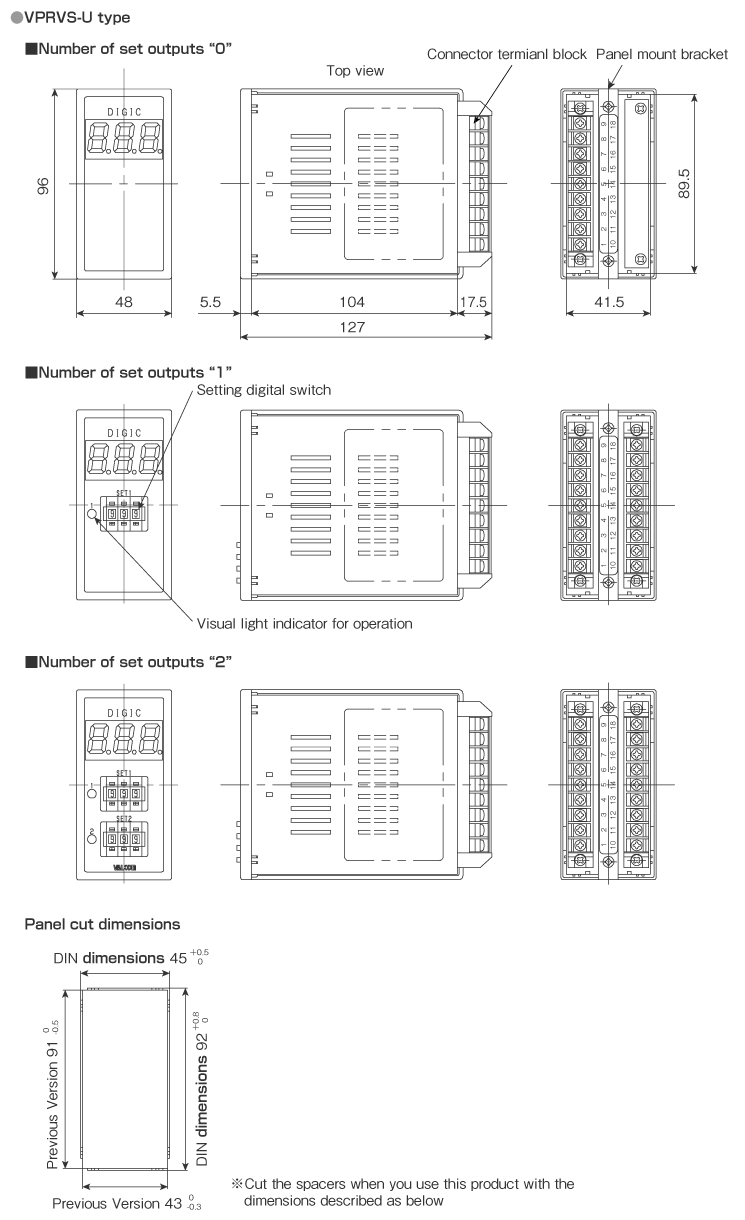

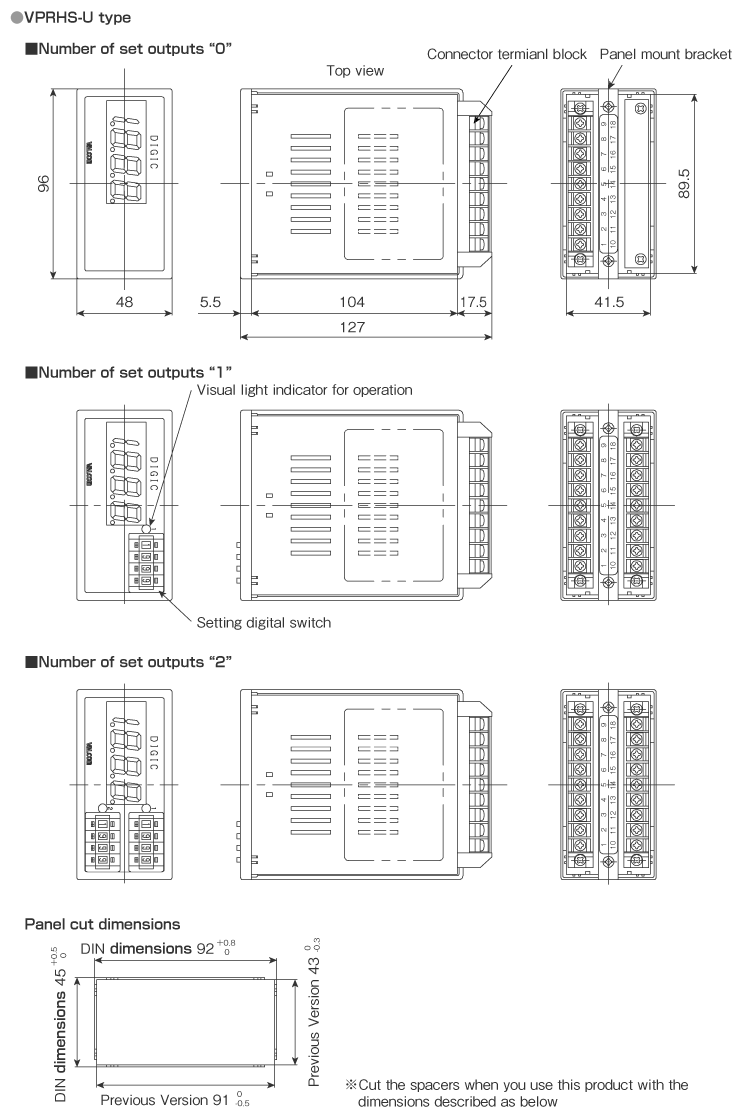

Dimensions (Unit: mm)

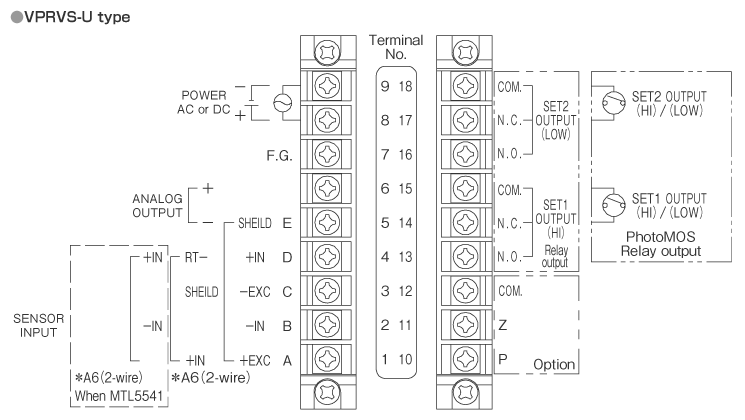

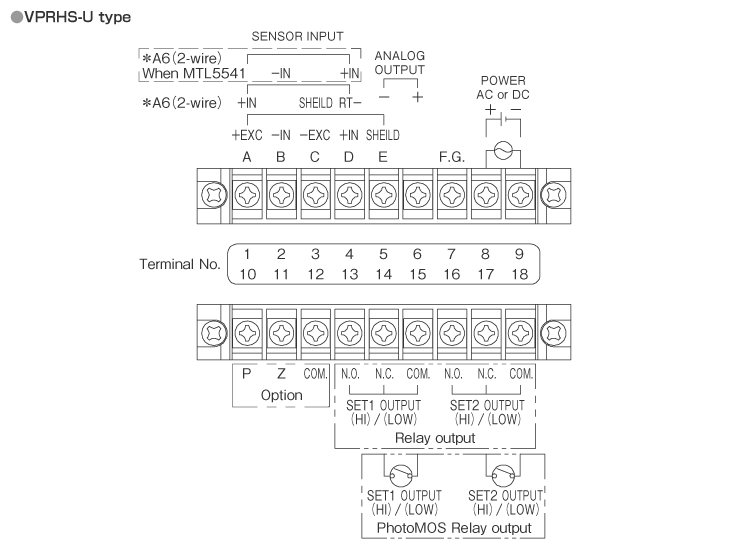

Terminal connection
Digital Panel Meter
