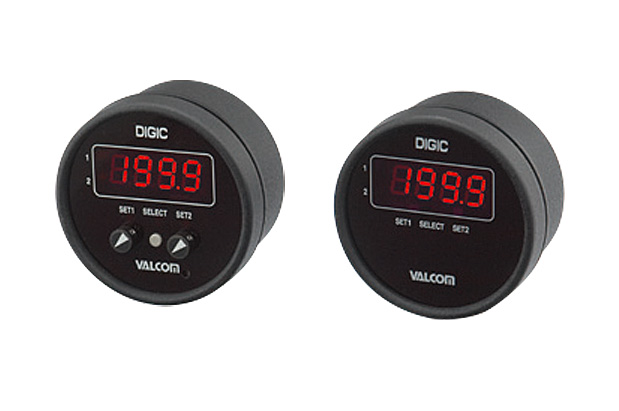

Setting Output type Amplifier with Round Digital (Pressure/Load) Display
VPC series Sensor separate type Comparison setting output
* Actual products may differ from photo depending on specifications.
Use in combination with pressure sensors or load cells.
- High-speed analog comparator function included.
- Output can be selected between relay and photo-MOS relay.
- HI or LO comparative setting output can be selected.
- Can be used for both pressure and load measurements.
| Can be combined with sensors | Can be combined with all models of pressure sensors and load cells. |
|---|---|
| Sensor specifications | Refer to the pages of pressure sensors and load cells. |
| Calibration of amplifier and sensor | VPC amplifiers and pressure sensors or load cells have been calibrated as a pair. Amplifiers and sensors have been calibrated as a pair under the same serial number. |
Specifications
| Display | 1999 3 1/2digits High brightness red LED (character height of approx. 15mm) |
|---|---|
| Display conversion speed | 3 times/sec (Standard) Specify 1–15 times/sec. |
| Accuracy | ±0.05%F.S.±1digit |
| Operating temperature range | 0–55°C (No freezing) |
| Operating humidity range | 0–90%RH (No condensation) |
| External dimensions | φ104×56 (D: Protrusions not included) |
| Weight | Approx. 650g (Varies with specification) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy (*1) |
- 1) Click here for accessories.

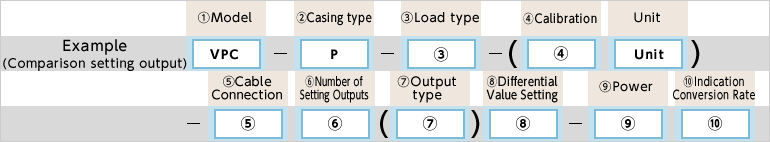

Model Selection
Pressure Sensor or Load Cell Selection
Click here for the specifications of pressure sensors, and click here for the loads cells
Specify the applicable models.
[e.g.] VPC-P-50.0MPaW-2VA(HL)2△PF-4 / VPRT-50MPW (3m cable included)
| Selection | Check | Model | Specifications | ||
|---|---|---|---|---|---|
| 1.Model | ○ | VPC | Setting Output type Amplifier with Round Digital (Pressure/Load) Display | ||
| 2.Casing type | ○ | P | Separate | ||
| 3.Load type | Blank | Need not be specified when combining with a pressure sensor | |||
| PS | To be specified only when combining with a load cell. | Compression | |||
| PL | Tension | ||||
| PSL | Compression and tension *Add a "±" sign to the display range when using for tensile/compression load. |
||||
| 4.Calibration | Example of calibration range | Pressure: 1.000MPa (0–1.000)MPa 500kPa (0–500)kPa ±100.0kPa (-100.0–100.0)kPa |
|||
| Load: 20.0kN (0–20.0)kN 100.0kN (0–100.0)kN ±1.00kN (-1.00–1.00)kN |
|||||
| 5.Cable Connection | Blank | Specify the type of the connector for the pressure sensor to be combined. | Standard connector | ||
| W | Waterproof connector | ||||
| S | Pigtail | ||||
| 6.Number of Setting Outputs | - | - | Output type | Response time | Permission load |
| 1VA | 1-setting Relay output/Inside setting type | 6msec. or less | AC250V 4A | ||
| 1VAM | 1-setting Relay output/Outside setting type | ||||
| 1VAO | 1-setting PhotoMOS relay output/Inside setting type | 1msec.or less | AC/DC250V 0.1A Peak 400V |
||
| 1VAOM | 1-setting PhotoMOS relay output/Outside setting type | ||||
| 2VA | 2-setting Relay output/Inside setting type | 6msec. or less | AC250V 4A | ||
| 2VAM | 2-setting Relay output/Outside setting type | ||||
| 2VAO | 2-setting PhotoMOS relay output/Inside setting type | 1msec. or less | AC/DC250V 0.1A Peak 400V |
||
| 2VAOM | 2-setting PhotoMOS relay output/Outside setting type | ||||
| 7.Output type | H or L | When outputting 1 setting, select any of H and L | Always specify the output type when placing an order. | ||
| When outputting 2 settings, select any of HH, HL and LL | |||||
| 8.Differential Value Setting (Volume adjustment) |
Blank | Hysteresis=Without differential (△P) setting | |||
| △PF | Hysteresis=△PF available Hysteresis setting variable rang: Within 10% of the sensor's rating (*3)Refer to Hysteresis of dimension page. *With differential, a differential as many as the setting will be added [e.g.]: 2VA(H,L)2△PF 1VA(H)1△PF |
||||
| 9.Power [Power Consumption] | 1 | AC100V[5VA] | When specifying AC power, a dedicated power converter "TUC" will be included. Click herefor the specifications of power converters. | ||
| 11 | AC110V[5VA] | ||||
| 2 | AC200V[5VA] | ||||
| 22 | AC220V[5VA] | ||||
| 3 | DC±12V[200mA] | ||||
| 4 | DC24V[200mA] | ||||
| 5 | DC12V[200mA]*Not available when analog output is A5 | ||||
| 10.Indication Conversion Rate (Option) |
Indication conversion rate: Standard 3times/sec Option ( times/sec) *Specify in the range of 1–15 times/s. |
||||
●When using an inductive load (relay, etc.) with a photoMOS relay output model, connect a diode to absorb surge.

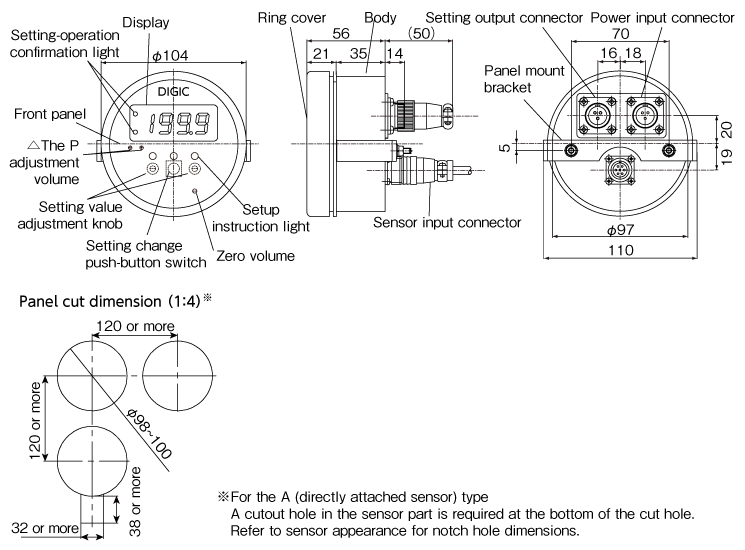

External dimensions (Unit: mm)

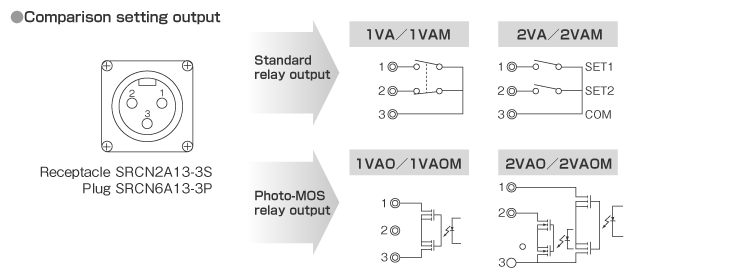

Output Specifications

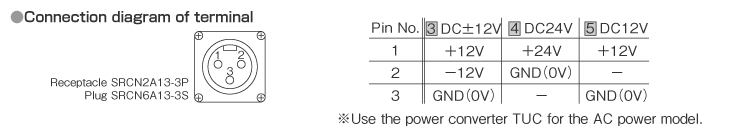

Power Specifications

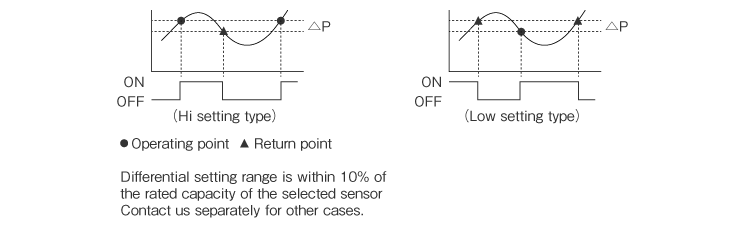

Hysteresis(Volume adjustment)
