Discontinued (Please contact our sales representative.)
Analog/BCD Output type Amplifier with Round Digital(Pressure/Load) Display
VPC series Sensor separate type Analog/BCD output

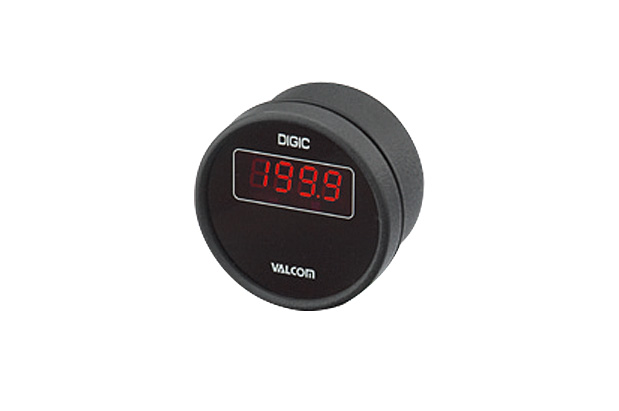

* Actual products may differ from photo depending on specifications.
Use in combination with pressure sensors or load cells.
- 5 analog outputs and 3 BCD outputs can be selected and used together.
- VPC and sensor are calibrated as a pair, including the sensor cable length, and constitute a high-accuracy digital pressure meter.
- Fast response analog output without microcomputer is available that is suitable to fluid pressure measurement.
| Can be combined with sensors | Can be combined with all models of pressure sensors and load cells. |
|---|---|
| Sensor specifications | Refer to the pages of pressure sensors and load cells. |
| Calibration of amplifier and sensor | VPC amplifiers and pressure sensors or load cells have been calibrated as a pair. Amplifiers and sensors have been calibrated as a pair under the same serial number. |
Specifications
| Display | 1999 3 1/2digits High brightness red LED (character height of approx. 15mm) |
|---|---|
| Display conversion speed | 3 times/sec (Standard) Specify 1–15 times/sec. |
| Accuracy | ±0.05%F.S.±1digit |
| Operating temperature range | 0–55°C (No freezing) |
| Operating humidity range | 0–90%RH (No condensation) |
| External dimensions | φ104×56 (D: Protrusions not included) |
| Weight | Approx. 650g (Varies with specification) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy (*1) |
- *1 Click here for accessories.
Model Selection
Pressure Sensor or Load Cell Selection
Click here for the specifications of pressure sensors, and click here for the loads cells
Specify the applicable models.

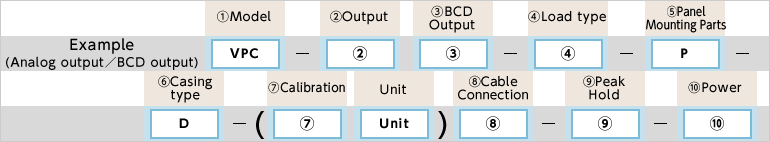

[e.g.] VPC-A3B20-P-D-(±10.00kPa)-4/VPMR015 (3m cable included)
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VPC | Analog/BCD Output type Amplifier with Round Digital (Pressure/Load) Display | |||
| 2.Analog output *Analog output and BCD output can be used together. |
- | - | Output type | Response frequency | Load resistance | |
| D | Display only (no output) |
When D is selected, analog output and BCD output are not available. | - | |||
| A1 | 1mV/digit (±1999mV max.) |
1.2kHz | This value has been calculated as response frequency (= 1/2T (Hz)) based on the measured step response (0–100%) and rise time (T) with the sensor bridge resistance of 350Ω. Response frequency is determined by the sensor to be used. Consult with us when focusing on response. | 10kΩ or more | ||
| A2 | 1–5V | |||||
| A3 | 4–20mA | 333Hz | 250Ω or less | |||
| A4 | 0–5V | 1.2kHz | 10kΩ or more | |||
| A5 | 0–10V | |||||
| 3.BCD output *Analog output and BCD output can be used together. |
- | - | Output type | Response frequency | Load resistance | |
| Blank | None | - | - | |||
| B1 | BCD TTL (Positive) | Synchronized with the display conversion rate. | ±3mA | |||
| B2 | Discontinued BCD TTL (Negative) |
|||||
| B1O | BCD Open collector (Signal output Tr OFF) |
35V 25mA | ||||
| B2O | BCD Open collector (Signal output Tr ON) |
|||||
| 4.Load type | Blank | Need not be specified when combining with a pressure sensor | ||||
| PS | To be specified only when combining with a load cell. | Compression | ||||
| PL | Tension | |||||
| PSL | Compression and tension *Add a "±" sign to the display range when using for tensile/compression load. |
|||||
| 5.Panel Mounting Parts | ○ | P | Available | |||
| 6.Casing type | ○ | D | Separate | |||
| 7.Calibration | Example of calibration range | Pressure: 1.000MPa (0–1.000)MPa 500kPa (0–500)kPa ±100.0kPa (-100.0–100.0)kPa |
||||
| Load: 20.0kN (0–20.0)kN 100.0kN (0–100.0)kN ±1.00kN (-1.00–1.00)kN |
||||||
| 8.Cable Connection | Blank | Specify the type of the connector for the pressure sensor to be combined. | Standard connector | |||
| W | Waterproof connector | |||||
| S | Pigtail | |||||
| 9.Peak Hold | Blank | Without Peak Hold | ||||
| P | With Peak Hold (*2) | |||||
| 10.Power [Power consumption] | 1 | AC100V [5VA] | When specifying AC power, a dedicated power converter "TUC" will be included. Click here for the specifications of power converters. | |||
| 11 | AC110V [5VA] | |||||
| 2 | AC200V [5VA] | |||||
| 22 | AC220V [5VA] | |||||
| 3 | DC±12V [200mA] | |||||
| 4 | DC24V [100mA] | |||||
| 5 | DC12V [200mA]*Not available when analog output is A5 | |||||
- *2 Peak hold can be selected only under the following conditions.
Neither analog output nor BCD output can be set. 4 24V DC and 5 12V DC cannot be selected as power.

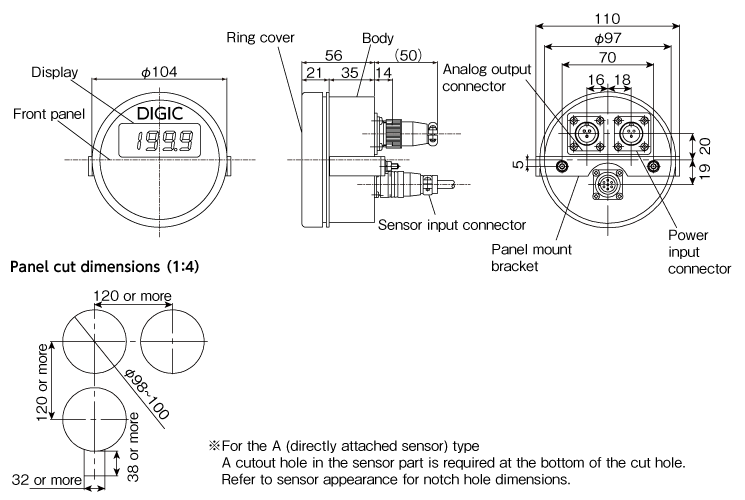

External dimensions (Unit: mm)

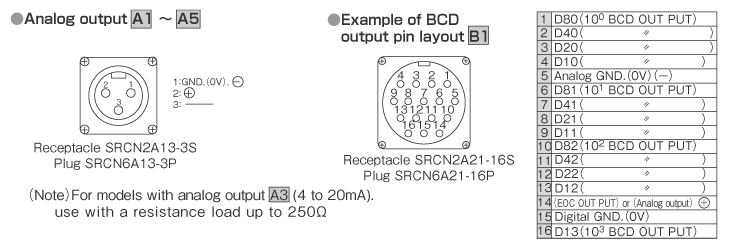

Output Specifications

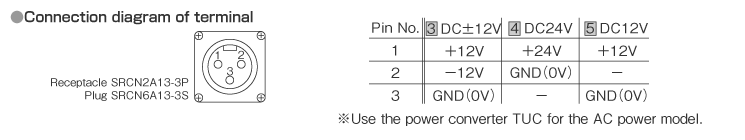

Power Specifications
