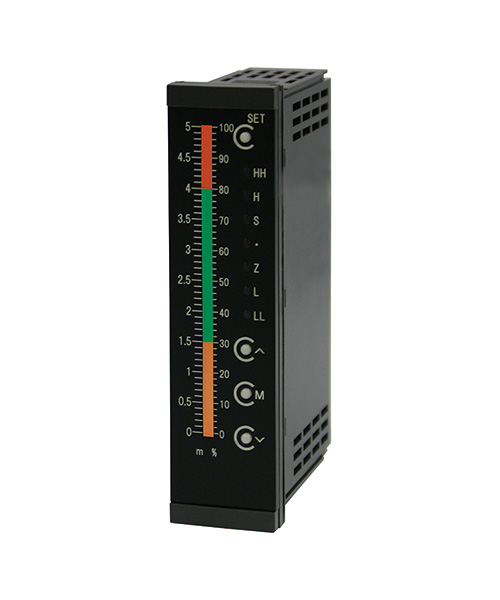

Vertical type Color Bar Graph Meter "RAINBAR" series
RV2/CV2 series
- Display changes among red, orange and green, intuitively easy to see.
- High accuracy thanks to the split-mounted 101-dot LED.
- Easy-to-view color bar graph instead of digital display.
- Supports various signal inputs for wide range of use.
- Compact, low-cost, high brightness and easy-to-view design.
- CE-compliant (option)
| Input signal | Specify among 1 to 5V, 4 to 20mA(4-wire, 2-wire), 0 to 5V, 0 to 10V. |
|---|---|
| Sensor specifications | Select from Pressure Sensor Analog output type or output devices above. |
| Use | Thermometer, pressure meter, load meter, level meter, flowmeter, tachometer, etc. |
Specifications
| Form | Vertical type |
|---|---|
| Display | Bicolor LED for measurement: 101 dots Bicolor LED for zero adjustment: 1 dot Red LEDs for set value check 2 points |
| Input impedance | 4–20mA: 10Ω 0–5V/1–5V/0–10V: 1MΩ or more |
| Sampling cycle | Approx. 100 cycles/s |
| Response time | 0.5s or less |
| Functions | Brightness control, Zero/span adjustment |
| Accuracy | ±1%±1digit |
| Operating temperature | −5–55°C |
| Operating humidity | 30–90%RH (No condensation) |
| Connections | Terminal block (M3 screw) |
| Dimensions | 36(W)×144(H)×103(D) |
| Weight | Approx. 470g (Varies with specification) |
| Accessories | Operation manual (1 copy) |

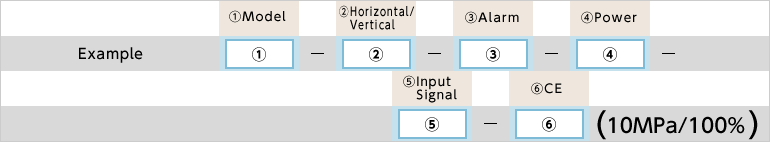

Model Selection
| Selection | Cheak | Model | Specifications |
|---|---|---|---|
| 1.Model | RV2 | Zone color change, fixed color: Amber→Green→Red | |
| CV2 | Total color change, fixed color: Amber→Green→Red | ||
| 2.Mounting Direction | V | Vertical mounting | |
| H | Horizontal mounting | ||
| 3.Alarm | 2S | 2-point alarm rated load AC250V 1A/DC30V 5A | |
| 4S | 4-point alarm rated load AC250V 1A/DC30V 5A | ||
| 4.Power supply | 4 | DC24V(±15%) max.3.5W | |
| 7 | AC100〜240V(85〜264V) max.8VA | ||
| 5.Input signal | A2 | 1–5V (input resistance 1MΩ or more) | |
| A3 | 4–20mA (input resistance 10Ω) | ||
| A4 | 0–5V (input resistance 1MΩ or more) | ||
| A5 | 0–10V (input resistance 1MΩ or more) | ||
| A6 | 4–20mA (2-wire) (input resistance 250Ω, with excitation) | ||
| 6.CE | Blank | Without CE conformance | |
| CE | With CE conformance | ||
| Display Scale | Left/Right The scale of the right and left of meter is specified. (A mark goes into the meter left side when a specification range is one kind) |

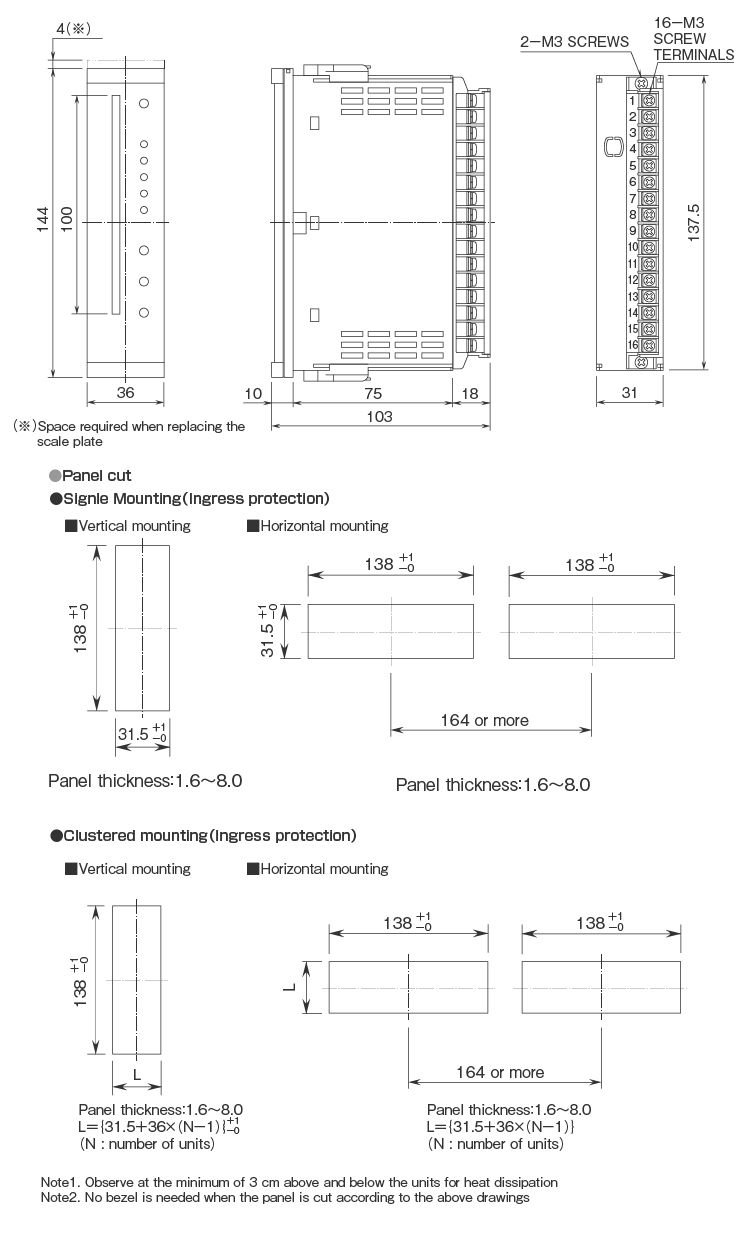

Dimensions (Unit: mm)

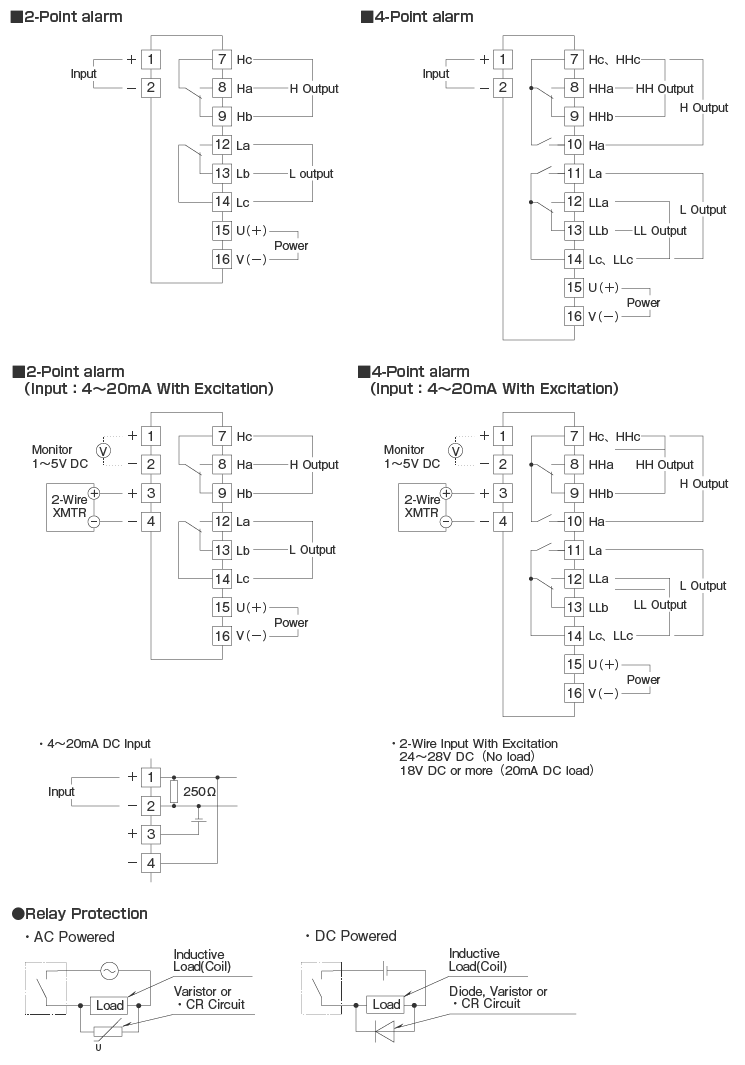

Terminal connection
