Discontinued (Please contact our sales representative.)

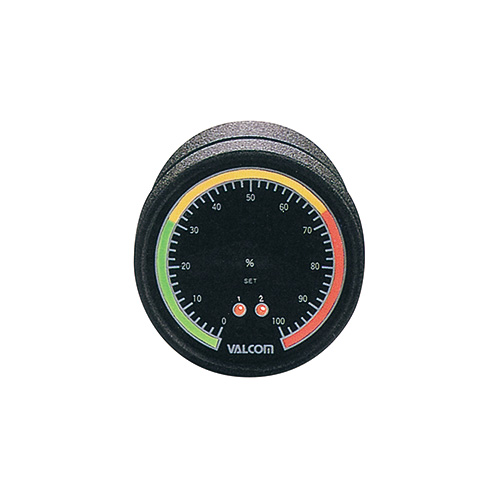

Round type Color Bar Graph Meter "RAINBAR" series
RBC series

  • Display changes among red, orange and green, intuitively easy to see.
  • High accuracy thanks to the split-mounted 101-dot LED.
  • Easy-to-view color bar graph instead of digital display.
  • Supports various signal inputs for wide range of use.
  • Compact, low-cost, high brightness and easy-to-view design.
Input signal Specify among 1 to 5V, 4 to 20mA(4-wire, 2-wire), 0 to 5V, 0 to 10V.
Sensor specifications Select from Pressure Sensor Analog output type or output devices above.
Use Thermometer, pressure meter, load meter, level meter, flowmeter, tachometer, etc.

Specifications

Form Round type
Display 3-color LDE bar graph meter: 101 dots
Red LEDs for set value check 2 points
Sampling frequency Approx. 100 cycles/s
Response time Approx. 0.5s (Following speed for step inputs 0-10V)
Functions Brightness control, Zero/span adjustment
Accuracy ±0.4% ±1 dot
Operating temperature −20–70°C (No freezing)
Operating humidity 20–90%RH (No condensation)
Connections Terminal block (M3 screw)
Dimensions φ104×D70 (D:Protrusions not included)
Weight Approx. 470g (Varies with specification)
Accessories Operation manual (1 copy), Inspection sheet (1 copy)

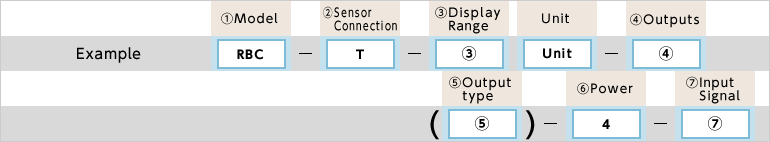

Model Selection

Example

Selection Cheak Model Specifications
1.Model RBC Round type Color Bar Graph Meter "RAINBAR" Series (Color combination: Red, Orange, Green)
2.Sensor connecting T Separate
3.Display Range     Maximum scale value and unit (e.g.)100%, 100kPa, 100cm
4.Output   A2 Analog output 1–5V (Safe load resistance 10kΩ or more)
  A3 Analog output 4–20mA (Safe load resistance 250Ω or more)
  A4 Analog output 0–5V (Safe load resistance 10kΩ or more)
  A5 Analog output 0–10V (Safe load resistance 10kΩ or more)
  1VA Comparative contact output 1 relay output
Output contact capacity MAX4A Load resistance 250VAC
  2VA Comparative contact output 2 relay output
Output contact capacity MAX4A Load resistance 250VAC
  1VAO Comparative contact output 1 photo-MOS relay output
Output contact capacity MAX0.1A Load resistance 400VAC/DC
  2VAO Comparative contact output 2 photo-MOS relay output
Output contact capacity MAX0.1A Load resistance 400VAC/DC
5.Output type   L or H Example: 1VA(O) H or L
2VA(O) HH or HL or LH or LL
*L=Lower limit, H=Higher limit
6.Power supply [Current consumpiton] 4 DC24V (18–36V)
7.Input signal   A2 1–5V (Input impedance 25kΩ)
  A3 4–20mA (4-wire) (Input impedance 150Ω)
  A4 0–5V (Input impedance 32kΩ)
  A5 0–10V (Input impedance 34kΩ)
  A6 4–20mA (2-wire) (Input impedance 150Ω)

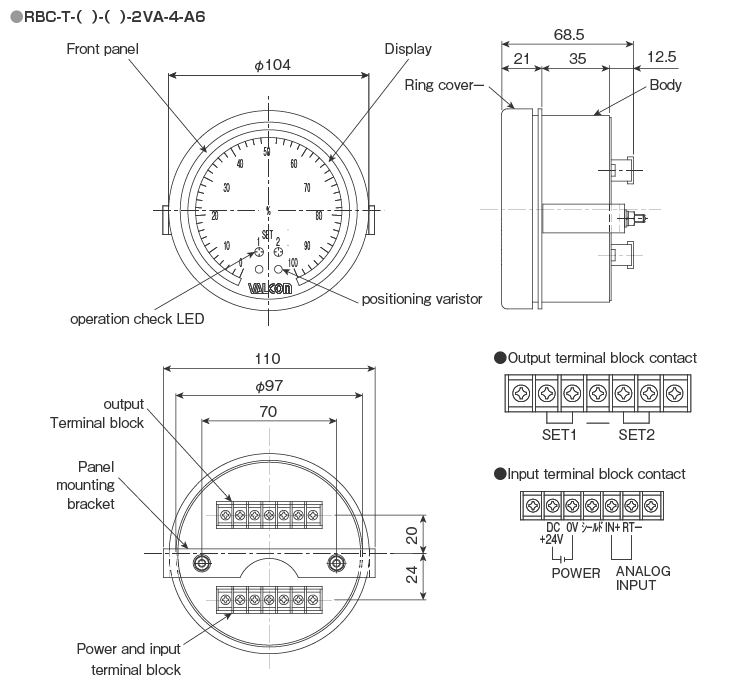

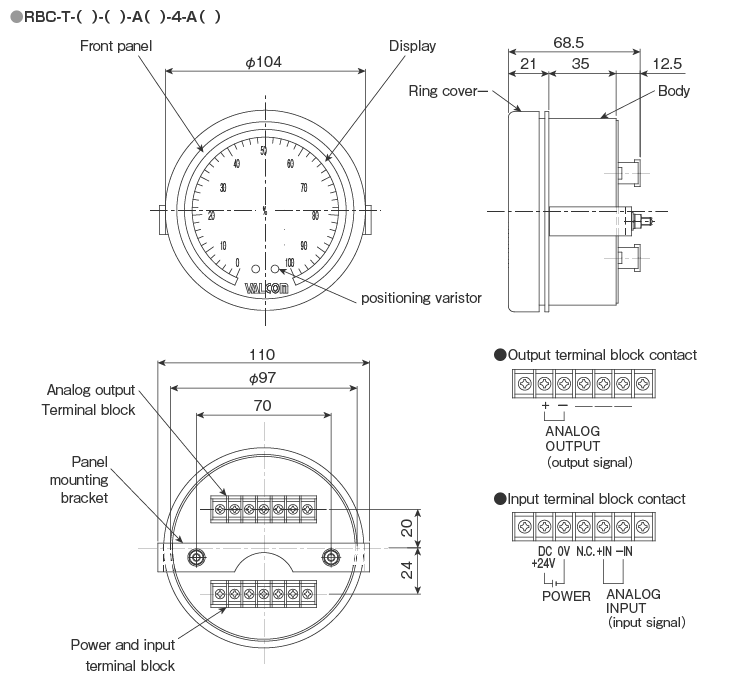

Dimensions (Unit: mm)

External dimensions External dimensions
