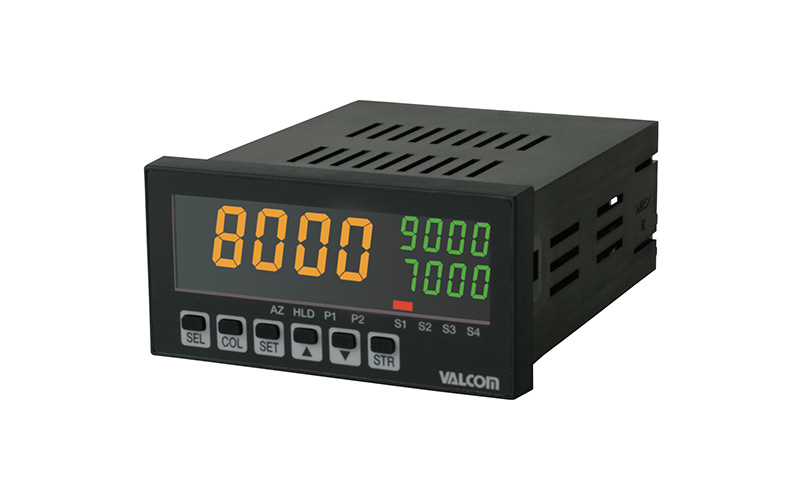

Digital Panel Meter VALCOR series
F3 series
Indicates the change in condition with
change of color. LCD adopted.
F3 type has up to four setting outputs per input channel.
Highly versatile panel meter suitable to various occasions.
- Current operation state (normal/abnormal) can be found easily by the color of the value (on main display).
- Measured values can be displayed in 3 colors: red, orange and green, as desired, in areas partitioned by set values.
- High speed sampling as fast as 2000 samples per second.
- Fast output enables use for high-speed and safe control purposes.
- Analog output ranges of 4 to 20 mA, 1 to 5 V and 0 to 5 V included as standard.
- Output scaling function included, which allows the measurement range to be set variable as desired.
Specifications
| Input signal | Process input: 4–20mA/0–5V/1–5V/0–10V Selectable Power supply for sensor: DC12V 80mA max. |
|---|---|
| Input impedance | 4–20mA: 68Ω 0–5V/1–5V/0–10V: 68kΩ |
| Display | −9999–9999 (User selectable decimal places) 7 segment 4-digit LCD with 3 changeable colors (red, orange and green) |
| Sampling cycle | 2000 times/sec Max. |
| Indication Conversion Rate | 1–10 times/sec Selectable |
| Accuracy | Display: ± 0.05%F.S.±1digit (25°C±3°C) Analog output: ±0.5%F.S. (25°C±3°C) |
| Analog output | 4–20mA/0–5V/1–5V Range to be switched, Option 0–10V (*1) |
| Setting output (Select by model) |
4-setting Relay output, AC125V, 0.3A (per 1 setting)/ DC24V, 1A (per 1 setting) Response time 3msec. or less(*1) 4-setting Photomos Relay output, AC / DC250V, 0.1A (per 1 setting) Response time of compaarison output 2msec. or less (*1) |
| Operating temperature range | 0–55°C (No freezing) |
| Operating humidity range | 35–85%RH (No condensation) |
| Power supply (Select by model) |
AC90–240V 50/60Hz Current consumpiton 15VA or less |
| DC24V ±10% Current consumpiton 300mA or less | |
| Dimensions | 97(W)×48.8(H)×132.5(D) *Option terminals are not described in the following figure |
| Weight | Approx. 300g (Varies with specification) |
| Accessories | Operation manual (1 copy), Unit labels, List of initial settings, Panel mounting bracket, Amphenol connector (5730240) (BCD output function only) |
| Other Functions | Display scaling, Analog output scaling, Display hold (upper peak/bottom peak/transition peak/peak-to-peak/sample hold), Auto-zero, Max./min. value indication, Pattern selection, Simulation, Input value shift, sub-display ON/OFF, Key protection, Main display color change, Display update rate setting, Power-saving mode ON/OFF, Sampling rate setting, Dumping time constant, Zero suppress ON/OFF, Fix-zero, Tracking zero |
- (*1)0–90% of response time. Sampling cycle, damping time constant at high-speed setting
Setting output
| F3 | 4-setting output to ch.1 |
|---|
Option output
| A5 Analog output (0–10V) | 0–10V Safe load resistance 10kΩ or more Response time 2.5msec.or less(*) Analog output accuracy ±0.5%F.S.(25°C±3°C) Temperature characteristics ±0.35%F.S./10°C |
|---|---|
| BO BCD open collector output | NPN open collector DC50V 100mA or less Response time 1.5msec. or less (*) |
| RS RS-232C | RS-232C-compliant 2-wire half-duplex Asynchronous Communication rate (300/600 1200/2400/4800/9600/19200/38400 bps) Stop bit (1, 2bit) Parity (NON/ODD/EVEN) Data length (7, 8bit) unit No. (0–99) |
| R1 RS-485 | RS-485-compliant 2-wire half-duplex Asynchronous Communication rate (300/600 1200/2400/4800/9600/19200/38400 bps) Stop bit (1, 2bit) Parity (NON/ODD/EVEN) Data length (7, 8bit) unit No. (0–99) |
- (*)0–90% of response time. Sampling cycle, damping time constant at high-speed setting
Model Selection
| Selection | Cheak | Model | Specifications |
|---|---|---|---|
| 1.Model | ○ | F3 | 1ch. Input |
| 2.Power supply [Current consumpiton] | 4 | DC 24V ±10% Current consumpiton 300mA or less | |
| 7 | AC 90–240V Current consumpiton 50/60Hz 15VA or less | ||
| 3.Input signal | N | Multiple-input Process input 4–20mA/0–5V/1–5V Power supply for sensor DC12V 80mA max. |
|
| A5 | 0–10V/4–20mA (Note) | ||
| 4.Setting output | S | 4-setting Relay output AC125V 0.3A/DC24V 1A (per 1 setting) |
|
| O | 4-setting Photomos Relay output AC/DC250V 0.1A (per 1 setting) |
||
| 5.Output signal (Option) |
Blank | 4–20mA Safe load resistance: 250Ω or less 0–5V/1–5V Safe load resistance: 10kΩ or more Analog output accuracy ±0.5%F.S. (25°C±3°C) Temperature characteristics ±0.35%F.S./10°C |
|
| A5 | Analog output 0–10V Safe load resistance: 10kΩ or more | ||
| BO | BCD open collector output NPN type | ||
| RS | RS-232C | ||
| R1 | RS-485 |
- (Note) Do not use sensor power supply of this unit when connecting pressure transducer (VALCOM product),
sensor 0–10V output type (Model code:A5). Please prepare sensor power supply separately.

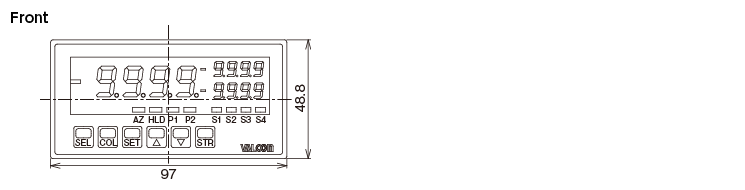

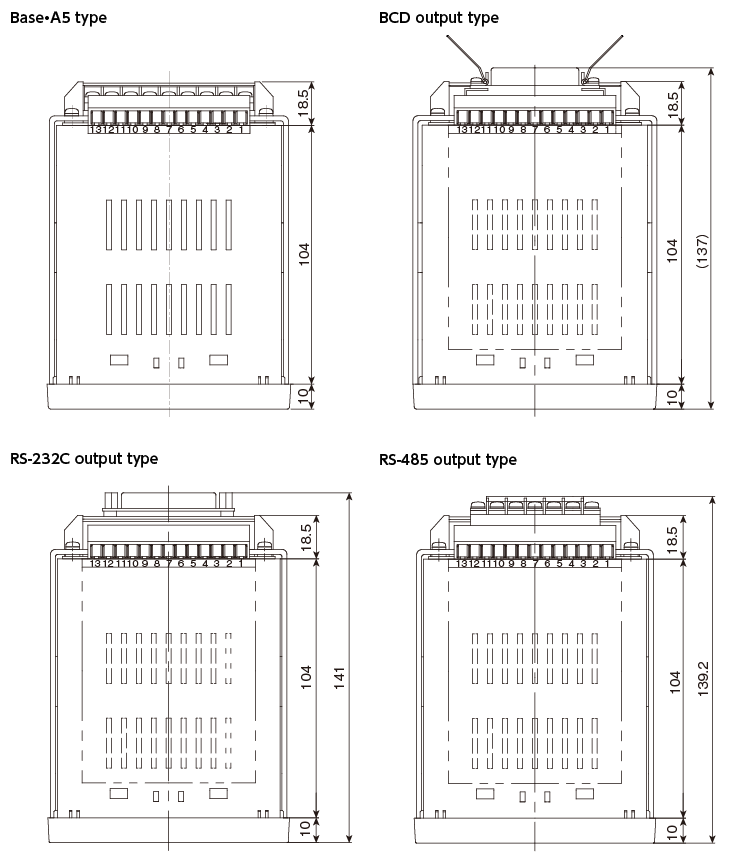

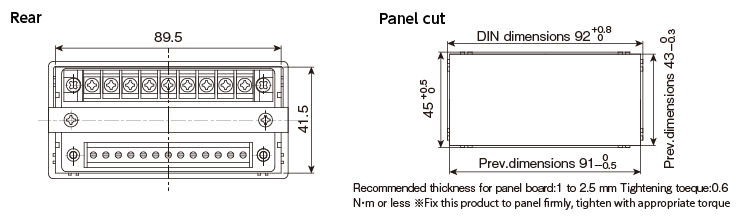

Dimensions (Unit: mm)
F3 Process input type

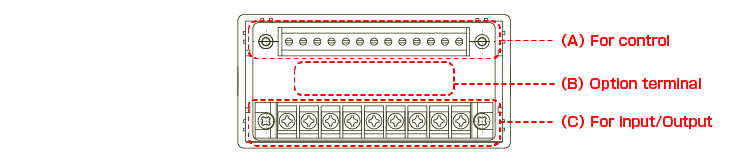

Terminal connection

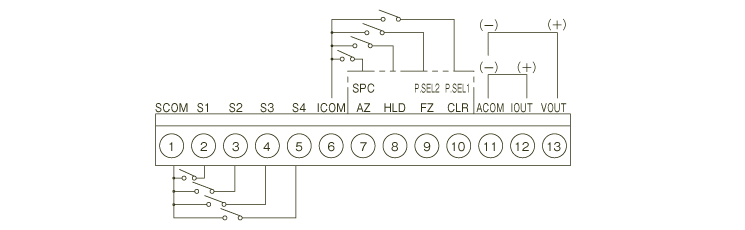

(A)Terminals for control Output, terminals for control input (upper) connection
| Terminal No. | Name | Functions | Terminal No. | Name | Functions |
|---|---|---|---|---|---|
| 1 | SCOM | COM terminal of comparison setting output | 8 | HLD | Hold |
| 2 | S1 | Comparison setting output 1 terminal | 9 | P.SEL2 | Pattern SEL 2 |
| 3 | S2 | Comparison setting output 2 terminal | FZ | Forced zero | |
| 4 | S3 | Comparison setting output 3 terminal | 10 | P.SEL1 | Pattern SEL 1 |
| 5 | S4 | Comparison setting output 4 terminal | CLR | Clear | |
| 6 | ICOM | COM terminal of control | 11 | ACOM | Analog output COM |
| 7 | SPC | Sample hold clear | 12 | IOUT | Analog (Current) Output+ |
| AZ | Auto-zero | 13 | VOUT | Analog (Voltage) Output+ |
(B)Option output connection

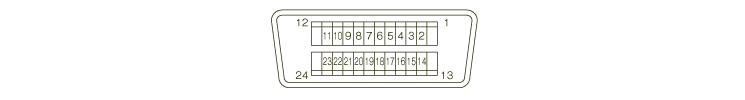

●BCD signal output
Amphenol: 5740240 Accessories: Amphenol: 5730240
| Item | Pin No. | Item | |||
|---|---|---|---|---|---|
| EOC (Signal of over the conversion) | 1 | 13 | Digital GND. | ||
| ×100 BCD OUT |
1 | 2 | 14 | 1 | ×102 BCD OUT |
| 2 | 3 | 15 | 2 | ||
| 4 | 4 | 16 | 4 | ||
| 8 | 5 | 17 | 8 | ||
| ×101 BCD OUT |
1 | 6 | 18 | 1 | ×103 BCD OUT |
| 2 | 7 | 19 | 2 | ||
| 4 | 8 | 20 | 4 | ||
| 8 | 9 | 21 | 8 | ||
| - | 10 | 22 | - | ||
| OVER (Over) | 11 | 23 | POL. (Polarity) | ||
| - | 12 | 24 | - | ||

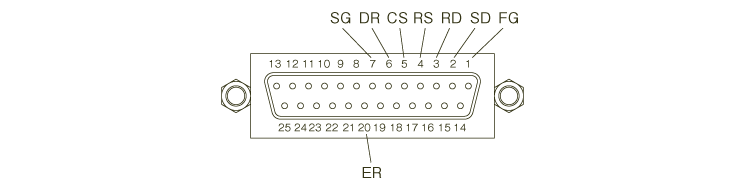

●RS-232C communication
| Name | Pin No. | Functions | Input output |
|---|---|---|---|
| SD | 2 | Transmit data | Output |
| RD | 3 | Received data | Input |
| FG | 1 | Frame ground, or cable shield | - |
| RS | 4 | Request to send | Output |
| CS | 5 | clear to send | Input |
| SG | 7 | Signal ground | - |
| DR | 6 | Data set ready | Input |
| ER | 20 | Data terminal ready | Output |

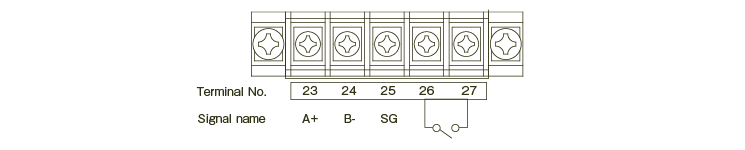

●RS-485 communication
| Signal name | Terminal No. | Item | Input output |
|---|---|---|---|
| A+ | 23 | Non inverting output | Input output |
| B- | 24 | Inverting output | Input output |
| SG | 25 | Signal ground | - |
| Terminator | 26 | Terminals are short-circuited |
- |
| 27 |

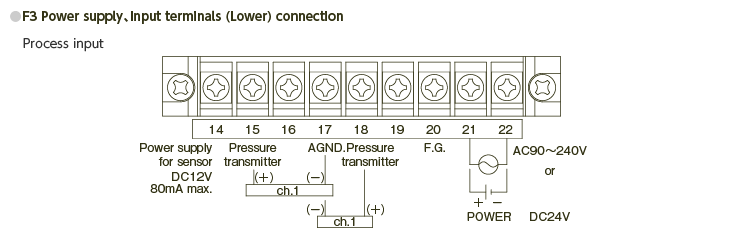

(C)Input/output terminals connection
Digital Panel Meter
